CYP CH-506TXPLBD Bedienungsanleitung
CH-506TXPLBD & RXPLBD
HDMI to CAT5e/6/7 Extender
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2014 by Cypress Technology.
All Rights Reserved.
Version 1.0 May 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 26/05/14 Preliminary Release
CONTENTS
1. Introduction................................................. 1
2. Applications................................................ 1
3. Package Contents ..................................... 1
4. System Requirements................................. 1
5. Features....................................................... 2
6. Operation Controls and Functions............ 3
6.1 Transmitter Front and Rear Panels....... 3
6.2 Receiver Front and Rear Panels .......... 4
6.3 IR Pin Assignment .................................. 5
6.4 D-Sub 9 Pin Denitions .......................... 6
7. Specications ............................................. 7
8. Connection and Installation...................... 9
9. Acronyms .................................................. 10
1
1. INTRODUCTION
The HDBaseT-LiteTM HDMI over single CAT5e/6/7 with bidirectional
IR, RS-232 & bidirectional PoC Transmitter and Receiver set can
make your home or ofce set-up more efcient and easy to use.
Uncompressed video and audio can be transmitted up to 60 meters
with the PoC function and added benet of controls through the built-
in RS-232 and IR ports. This family design of HDBaseT™ technology
allows a full usage of HDMI and controls over CAT5e/6/7 cable.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control for projector
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI to CAT5e/6/7 with IR/RS232 & PoC x 1
• CAT5e/6/7 to HDMI with IR/RS232 & PoC x 1
• IR Blaster x 1
• IR Extender x 1
• 3.5Ø to RS-232 female cable x 1
• 3.5Ø to RS-232 male cable x 1
• 24V 1.25A DC Power Adaptor x 1
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player/PC, output
display with HDMI input jack and connection cables of HDMI and
CAT5e/6/7.
2
5. FEATURES
• Compatible with HDCP and DVI
• Supports HDMI 3D and 4K x 2K features
• Supports HDBaseT-Lite Technology
• Supports HD resolutions up to 1080p@60Hz/36-bit
• Supports distance up to 60 meters through CAT5e/6/7 cable
• Supports bidirectional IR and PoC
• HDMI input/output up to 15 meters with 8bits resolution or 10 meters
with 12bits resolution
• RS-232 with baud rate up to 115200/sec
• Supports wide range of IR frequency from 30~50kHz
• Supports HDCP repeater and CEC bypass
• Audio supports LPCM 7.1CH, Dolby TrueHD, Dolby digital Plus and
DTS-HD Mater Audio transmission
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
Power
Link
CAT 5e /6/7 Out
IR2 Extender
RS-232 In IR1 Blaster
HDMI In
Transmitter
1 432 5 6 7 8
1DC 24V
Plug the 24V DC power supply into the unit and connect the
adaptor to an AC outlet. Only 1 side of device require power
supply when both Transmitter and Receiver obtain PoC function.
2LINK LED
This LED will illuminate when the devices are connected with
a CAT5e/6/7 cable from the Receiver side. When the data
transmission accrue with error the LED will be blinking.
3Power LED
This LED will illuminate when the devices are connected with power
supply.
4CAT5e/6 Out
Connect to the Receiver unit with a single CAT5e/6/7 cable for
transmission of all data signals.
5RS232 In
Plug the 3.5Ø to D-Sub 9-pin female cable included in the
package and connect to a PC or laptop for RS-232 commands
transmission.
6IR2 Extender
Connect to the supplied IR Extender cable for IR signal reception.
Ensure that remote being used is within the direct line-of-sight of
the IR Extender.
7IR1 Blaster
Plug the IR Blaster included in the package for IR signal sending
from the Receiver side.
4
8HDMI In
Connect with source equipment such as DVD/Blu-ray player.
6.2 Receiver Front and Rear Panels
Power
Link
CAT 5e /6/7 In
IR1 Extender
RS-232 Out IR2 Blaster
HDMI Out
Receiver
1 432 5 6 7 8
1DC 24V
Plug the 24V DC power supply into the unit and connect the
adaptor to an AC outlet. Only 1 side of device require power
supply when both Transmitter and Receiver obtain PoC function.
2LINK LED
This LED will illuminate when the devices are connected with
a CAT5e/6/7 cable from the transmitter side. When the data
Transmission accrue with error the LED will be blinking.
3Power LED
This LED will illuminate when the device is connected from the
transmitter with power supply.
4CAT5e/6 In
Connect to the Transmitter unit with a single CAT5e/6/7 cable for
transmission of all data signals.
5RS232 Out
Plug the 3.5Ø to D-Sub 9-pin male cable included in the package
and connect to the device that is to be controlled by RS-232
commands
6IR1 Extender
Connect to the supplied IR Extender cable for IR signal reception.
Ensure that remote being used is within the direct line-of-sight of
the IR Extender.
7IR2 Blaster
Plug the IR Blaster included in the package for IR signal sending
from the Receiver side.
5
8HDMI Out
Connect to a HDMI equipped TV/monitor for display of the HDMI
input source signal.

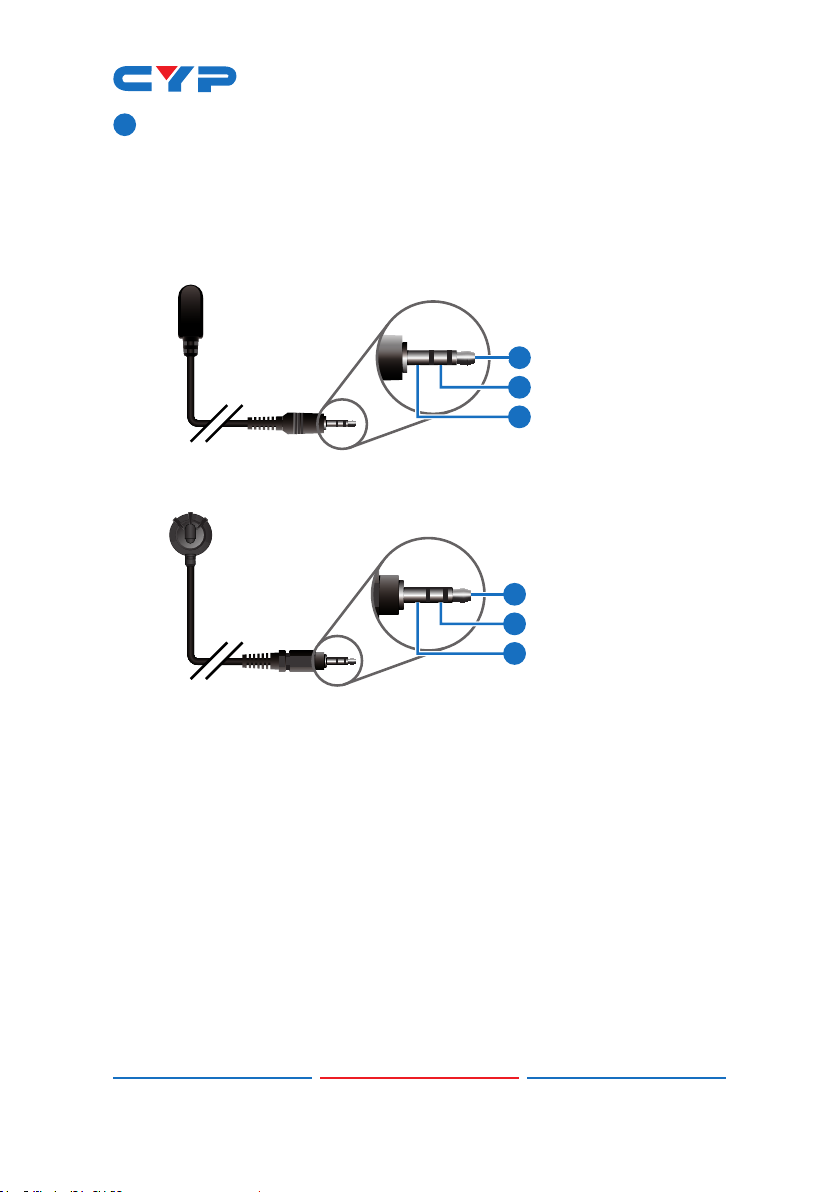

6.3 IR Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Receiver
IR Blaster
