CH-514TXL/RXL
HDMI to CAT5e/6 Extender
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 21/12/12 Preliminary Release
CONTENTS
1. Introduction................................................. 1
2. Applications................................................ 1
3. Package Contents ..................................... 1
4. System Requirements................................. 1
5. Features....................................................... 2
6. Operation Controls and Functions............ 3
6.1 Transmitter Front and Rear Panels....... 3
6.2 Receiver Front and Rear Panels .......... 4
6.3 Transmitter and Receiver Top Panels.. 5
6.4 IR Pin Assignment .................................. 5
7. Connection Diagram ................................. 6
8. Specications ............................................. 7
9. Acronyms .................................................... 9
1
1. INTRODUCTION
The HDMI Extender over single CAT5e/6 incorporating IR signal transfer
allows for a more efcient system setup and is easy to install.
Uncompressed video and audio can be transmitted to distances of
up to 60 meters (1080p) and supports High Denition Audio and 3D
signals.
Designed with HDBaseT technology for greater exibility in custom
installations with full HDMI and control signal transfer over a single
CAT5e/6 cable.
2. APPLICATIONS
• Residential entertainment sharing and control
• University lecture hall display and control
• Retail sales display and control
• Meeting room presentation and control
• Commercial advertising display and control
3. PACKAGE CONTENTS
• 1×HDMI to CAT5e/6 with IR Transmitter
• 1×CAT5e/6 to HDMI with IR Receiver
• 2×IR Blaster
• 2×IR Extender
• 2×5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such as DVD/Blu-ray player/PC and TV/
monitor/projector with HDMI input and HDMI to CAT5e/6 cables.
2
5. FEATURES
• HDMI with 3D, 4K×2K support, HDCP and DVI compliant
• Complies with the HDBaseT-Lite class
• Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m
• Full HD resolution support (1080p@60Hz/36-bit), 3D, 4Kx2K and PC
resolution support (VGA to WUXGA) over CAT5e/6 cable
• HDMI input up to 15m with 8-bit resolution or 10 m with 12-bit
resolution
• HDMI output up to 15 m with 8/12-bit resolution
• Supports HDCP repeater and CEC bypass
• Supports High Denition LPCM 7.1CH, Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio transmission
• Compact size with stylish design
3
6. OPERATION CONTROLS AND FUNCTIONS

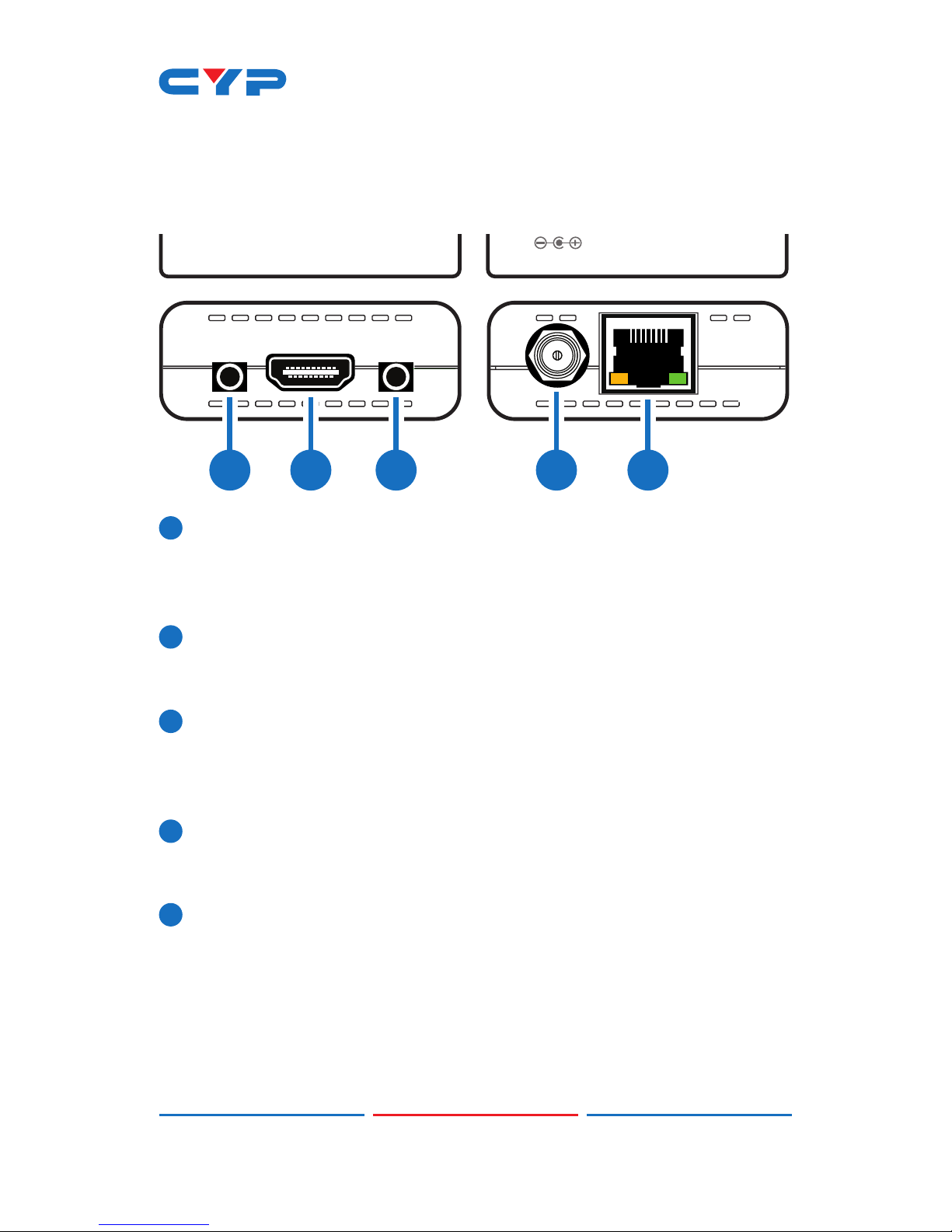

6.1 Transmitter Front and Rear Panels
CAT5e/6 OUT
HDMI INIR1 OUT IR2 IN
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER
CAT5e/6 OUT
HDMI IN IR2 INIR1 OUT
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER
4 51 2 3
IR1 OUT/Blaster
Connect to the supplied IR blaster for IR signal transmission to the
source equipment from IR1 IN's IR signal. Place the IR blaster in direct
line-of-sight of the equipment to be controlled.
HDMI IN
Connect to the HDMI input source devices such as a DVD player or a
Set-top Box with HDMI cable or DVI to HDMI cable.
IR2 IN/Extender
Connect to the supplied IR extender cable for IR signalreception
and transmission to IR2 OUT. Ensure that remote being used is within
the direct line-of-sight of the IR extender.
DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
CAT5e/6 OUT
Connect to the receiver unit with a single CAT5e/6 cable for
transmission of all data signals. The yellow LED will illuminate when
both transmitter and receiver are connected together with power
supply. The green LED will illuminate when the powersupply is
connected to the deivce.
1
2
3
4
5
4
6.2 Receiver Front and Rear Panels
CAT5e/6 INDC 5V
CAT5e/6 to HDMI
with IR
HDMI OUT IR2 OUTIR1 IN
RECEIVER
CAT5e/6 INDC 5V
CAT5e/6 to HDMI
with IR
HDMI OUT IR2 OUTIR1 IN
RECEIVER
4 51 2 3
DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
CAT5e/6 IN
Connect to the transmitter unit with a single CAT5e/6 cable for
transmission of all data signals. The yellow LED will illuminate when
both transmitter and receiver are connected together with power
supply. The green LED will illuminate when the power supply is
connected to the deivce.
3
IR1 IN/Extender
Connect to the supplied IR extender cable for IR signal reception
and transmission to IR1 OUT. Ensure that remote being used is within
the direct line-of-sight of the IR extender.
4
HDMI OUT
Connect to a HDMI equipped TV/monitor for display of the HDMI
input source signal.
5
IR2 OUT/Blaster
Connect to the suppliedIR blaster for IR signal transmission to the
display side from IR2 IN's IR signal. Place the IR blaster in direct line-
of-sight of the equipmentto be controlled.
1
2
5

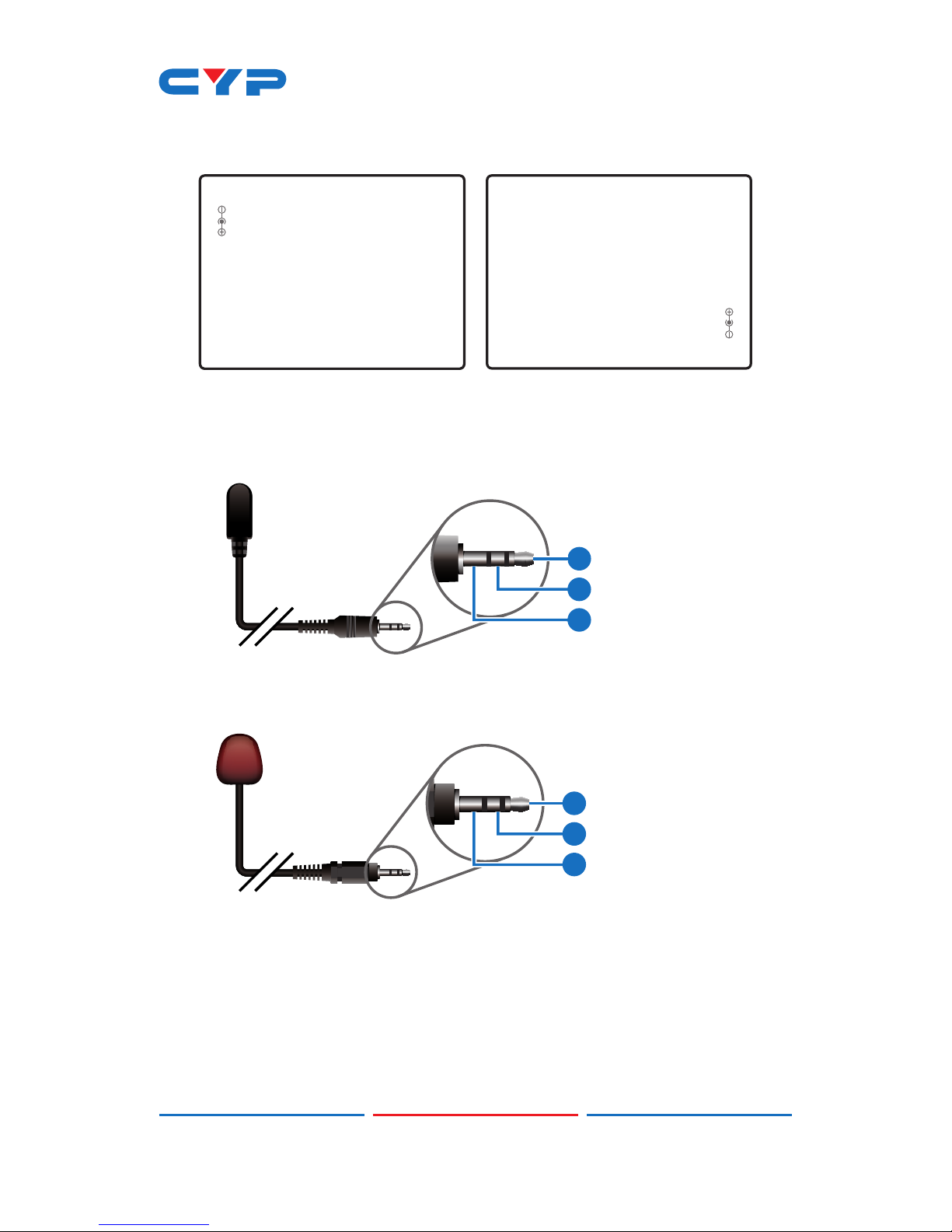

6.3 Transmitter and Receiver Top Panels
CAT5e/6 OUT
HDMI IN IR2 INIR1 OUT
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER
CAT5e/6 INDC 5V
CAT5e/6 to HDMI
with IR
HDMI OUTIR2 OUTIR1 IN
RECEIVER
6.4 IR Pin Assignment
3
1
3
1
2
2
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Ground
IR Extender
IR Blaster
6
7. CONNECTION DIAGRAM
7m3m 3m
60°
m
m
3m
7m3m 3m
60°
m
m
3m
1.5m
60°
1.5m
60°
RXL
TXL
HD Monitor
CAT5e/6
(60m)
Power
Supply
Power
Supply
Blu-ray Player
IR Blaster
IR Extender HDMI Cable
