CYP CH-506TXPLRXPL Bedienungsanleitung

CH-506TXPLRXPL

HDMI to CAT5e/6 Extender

Operation Manual

DRAFT MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.0 December 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 07/06/2012 Preliminary Release

CONTENTS

1. Introduction................................................. 1

2. Applications................................................ 1

3. Package Contents ..................................... 1

4. System Requirements................................. 1

5. Features....................................................... 2

6. Operation Controls and Functions............ 3

6.1 Transmitter Front and Rear Panels....... 3

6.2 Receiver Front and Rear Panels .......... 4

6.3 IR Pin Assignment .................................. 5

6.4 D-Sub 9 Pin Denitions .......................... 5

7. Specications ............................................. 6

8. Connection and Installation...................... 7

9. Acronyms .................................................... 8

1. INTRODUCTION

The HDMI over single CAT5e/6 with IR &RS-232 transmitter and receiver

wall-mounted set can make your home or ofce set-up more efcient

and easy to use. Uncompressed video and audio can be transmitted

up to 60 meters with the added benet of controls through the built-in

RS232 and IR ports. This family design of HDBaseT™ technology allows

a full usage of HDMI and controls over CAT5e/6 cable.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control for projector

• Classroom display and control

3. PACKAGE CONTENTS

• HDMI/DVI to CAT5e/6 with IR/RS232 x 1

• CAT5e/6 to HDMI with IR/RS232 x 1

• IR Blaster x 1 (HDMI only)

• IR Extender x 1 (HDMI only)

• 3.5Ø to RS-232 female cable x 1 (HDMI only)

• 3.5Ø to RS-232 male cable x 1 (HDMI only)

• 5V 2.6A DC Power Adaptor x 2

• Operation Manual

4. SYSTEM REQUIREMENTS

Input HDMI source equipment such as DVD/Blu-ray player/PC, output

display with HDMI input jack and connection cables of HDMI and

CAT5e/6.

5. FEATURES

• HDMI 1.4 with 3D, 4K x 2K support, HDCP and DVI compliant

• Complies with the HDBase T-Lite class

• Enables HDMI 1.4 (including HDCP), over a single CAT5e/6 up to

60m

• Full HD support: 1080p@60Hz@36 b/pixels, 3D over 60m and 4Kx2K

over 40m with CAT5e/6 cable

• HDMI input up to 15 meters with 8bits resolution or 10 meters with

12bits resolution

• HDMI output up to 15 meters with 8/12bits resolution

• Multiple control interfaces such as RS-232 with baud rate up to

115200/sec and IR

• Supports HDCP repeater and CEC bypass

• Supports uncompressed video 1080p, 60Hz, 36bits

• Audio supports LPCM 7.1CH, Dolby TrueHD, Dolby digital Plus and

DTS-HD Mater Audio transmission

• Compact size with stylish design

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Transmitter Front and Rear Panels

Power

Link

CAT 5e /6 Out

DC 24V

1 4 5 6 7 82 3

IR2 Extender

RS-232 In IR1 Blaster

HDMI In

Transmitter

1DC 24V

Plug the 24V DC power supply into the unit and connect the

adaptor to an AC outlet.

2Power LED

3LINK LED

This LED will illuminate in blue when the devices are connected

with a CAT5e/6 cable. When the data transmission accrue with

error the LED will be blinking.

4CAT5e/6 OUT

Connect to the receiver unit with a single CAT5e/6 cable for

transmission of all data signals.

5RS232 IN

Plug the 3.5Ø to D-Sub 9 pin female cable included in the

package and connect to a PC or laptop for RS-232 commands

transmission.

6IR2 Extender

Connect to the supplied IR extender cable for IR signal reception.

Ensure that remote being used is within the direct line-of-sight of

the IR extender.

7IR1 Blaster

Plug the IR blaster included in the package for IR signal sending

from the receiver side.

8HDMI IN

Connect with source equipment such as DVD/Blu-ray player.

6.2 Receiver Front and Rear Panels

Power

Link

CAT 5e /6 In

IR1 Extender

RS-232 Out IR2 Blaster

HDMI Out

Receiver

31 2 4 5 6 7

1Power LED

2LINK LED

This LED will illuminate in blue when the devices are connected

with a CAT5e/6 cable. When the data transmission accrue with

error the LED will be blinking.

3CAT5e/6 IN

Connect to the transmitter unit with a single CAT5e/6 cable for

transmission of all data signals.

4RS232 OUT

Plug the 3.5Ø to D-Sub 9 pin male cable included in the package

and connect to the device that is to be controlled by RS-232

commands

5IR2 Extender

Connect to the supplied IR extender cable for IR signal reception.

Ensure that remote being used is within the direct line-of-sight of

the IR extender.

6IR2 Blaster

Plug the IR blaster included in the package for IR signal sending

from the receiver side.

7HDMI OUT

Connect to a HDMI equipped TV/monitor for display of the HDMI

input source signal.

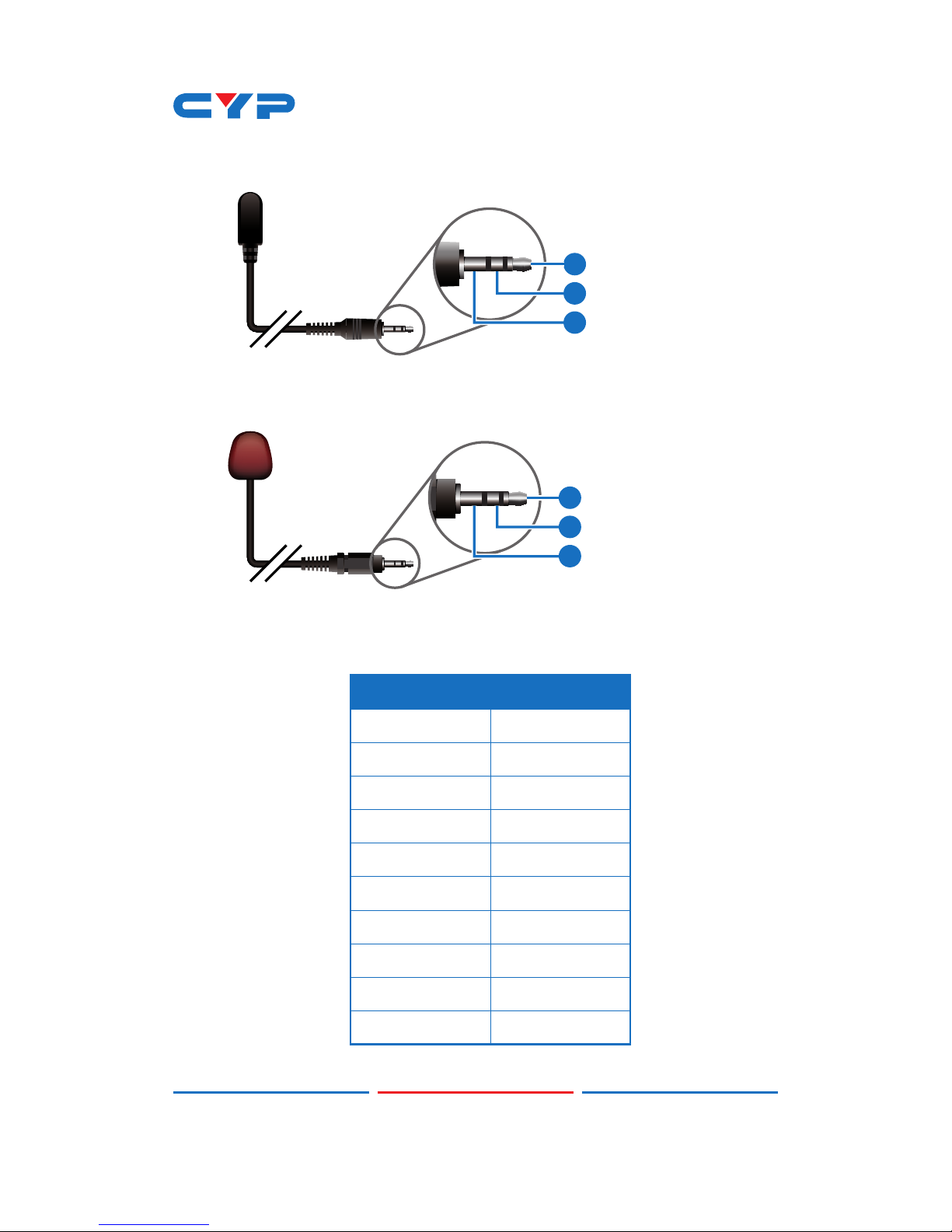

6.3 IR Pin Assignment

Power 5 V

IR Blaster Signal

IR Signal

Power 5 V

Grounding

IR Receiver

IR Blaster

6.4 D-Sub 9 Pin Denitions

Pin Dene TX / RX

1 N/C

2 TxD/RxD

3 RxD/TxD

4 N/C

5 GND

6 N/C

7 N/C

8 N/C

9 N/C

9 NC
