CYP PU-304-KIT Bedienungsanleitung

PU-304-KIT

Digital Audio over CAT6 Extender TXRX Set

OPERATIONS MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

RDV1 15/02/2012 Preliminary Release

CONTENTS

1. Introduction ...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features ..................................................6

5. Operation Controls and Functions .......7

5.1 Transmitter Front and Rear Panels ....... 7

5.2 Receiver Front and Rear Panels ............ 8

5.2 Receiver Front and Rear Panels ............ 9

5.4 RJ45 Pin Assignment ................................ 9

6. Connection Diagram .......................... 10

7. Specications ...................................... 11

8. Acronyms ............................................. 11

1. INTRODUCTION

The PU-304-KIT is designed to send digital audio signals over 150m. This

device supports both Coaxial and Optical signals and can transmit these

signals up to 150m. The PU-304-KIT can be powered using a USB cable or

the supplied PSU adaptor for added exibility in a compact design. Digital

SPDIF signals are supported up to a sample rate of 96Khz, and support for

Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby

Digital Plus), also provided.

2. APPLICATIONS

Transmit dual SPDIF (coaxial and optical) over single CAT cable..

3. PACKAGE CONTENTS

Digital Audio Transmitter over single CAT6 cable

Digital Audio Receiver over single CAT6 cable

5 V/1 A DC power adaptor

Operation manual

4. SYSTEM REQUIREMENTS

Coaxial/Optical audio input source and amplier or speaker output and

single CAT6 cable for connecting transmitter and receiver.

5. FEATURES

Supports Coaxial or Optical digital audio S/PDIF signal

Supports stereo and multi-channel (7.1, DTS, Dolby Digital etc.) digital

audio

Supports industry standard Category 5/5e/6 cable

Digital audio S/PDIF performance sampling rate 96 kHz

Supports single Coaxial input to Coaxial signal output

Supports single Optical input to Optical signal output

5. OPERATION CONTROLS AND FUNCTIONS

5.1 Transmitter Front and Rear Panels

Optical

Coaxial

USB

5V CAT6 Out

DC 5V

Optical

Coaxial

USB

5V CAT6 Out

DC 5V

1 2 3 4 5

1 Coaxial In

Connect to source audio equipment such as DVD or Blu-ray players

with a Coaxial digital audio output.

2 Optical In

Connect to source audio equipment such as DVD or Blu-ray players

with an Optical digital audio output.

3 DC 5V

Plug the 5V DC power supply into the unit and connect the adaptor to

an AC outlet. Note: only one unit out of the two needs to be powered.

4 USB 5V

Connect with a USB cable for power supply from computer or

notebook.

5 CAT6 Out

Connect to the receiver unit with a single CAT6 cable.

5.2 Receiver Front and Rear Panels

DC 5V

Optical

Out

Coaxial

Out

USB

5V CAT6 In DC 5V

Optical

Out

Coaxial

Out

USB

5V CAT6 In

1 2 3 4 5

USB 5V

Connect with a USB cable for power supply from computer or

notebook.

CAT6 In

Connect to the receiver unit with a single CAT6 cable.

Coaxial OUT

Connect to an amplier or active speakers with coaxial input.

Optical Out

Connect to an amplier or active speakers with optical input.

DC 5V

Plug the 5V DC power supply into the unit and connect the adaptor to

an AC outlet. Note: only one unit out of the two needs to be powered.

5.2 Receiver Front and Rear Panels

DC 5V

Optical

Out

Coaxial

Out

USB

5V CAT6 In

Optical

Coaxial

USB

5V CAT6 Out

DC 5V

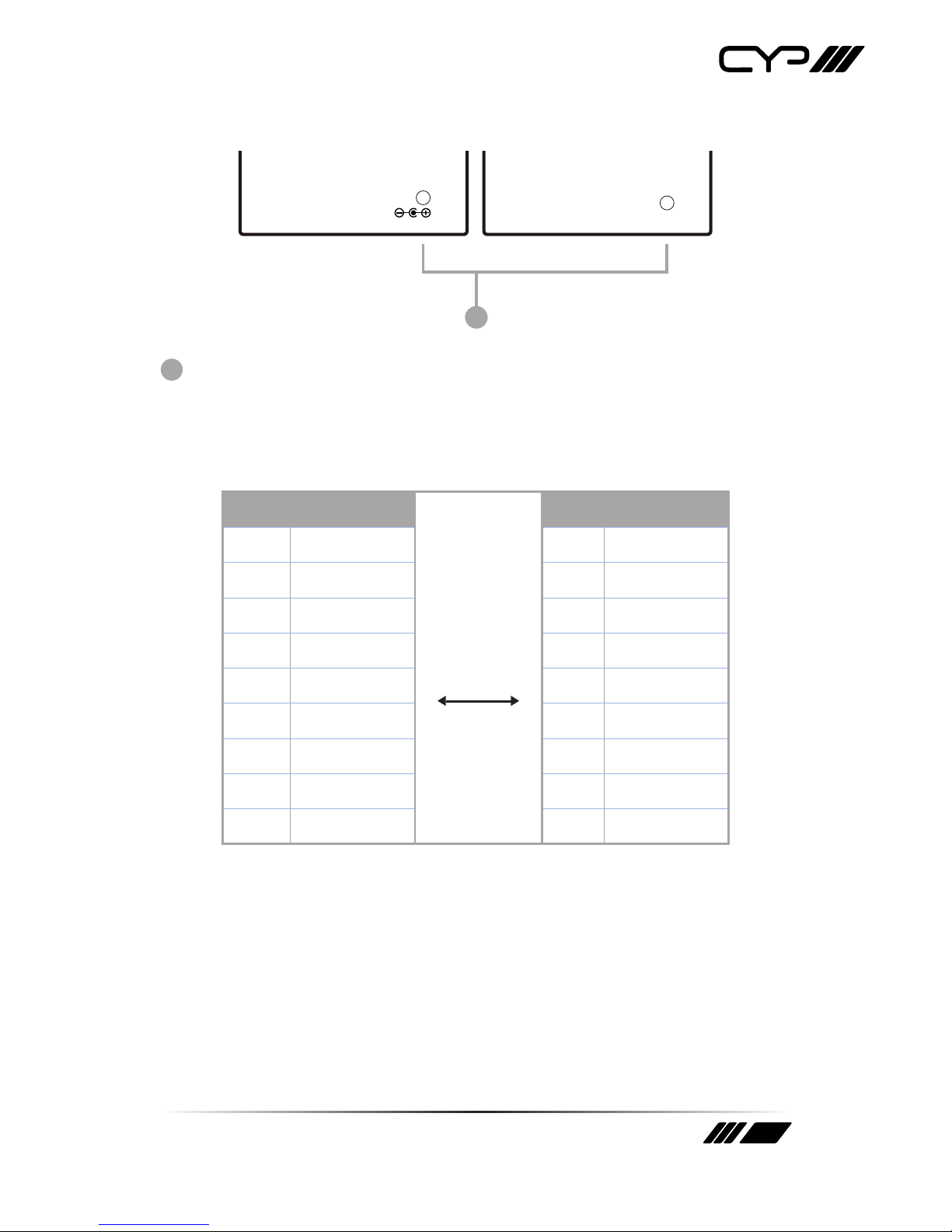

Power LED

The blue LED will light when the device is powered.

5.4 RJ45 Pin Assignment

TRANSMITTER

Cat5/5e/6

150m

RECEIVER

Pin Denition Pin Denition

1 Signal A 1 Signal A

2 Signal B 2 Signal B

3 Signal C 3 Signal C

4 GND 4 GND

5 GND 5 GND

6 Signal D 6 Signal D

7 DC5V 7 DC5V

8 DC5V 8 DC5V

6. CONNECTION DIAGRAM

Transmitter

Receiver

Amplier

Power Supply

Optical Connection Coaxial Connection

CD Player DVD/Blu-ray Player

Optical Connection Coaxial Connection
