CYP CH-1109TX Bedienungsanleitung

CH-1109TX & RX

HDMI/IP over Single CAT5e/6 Extender

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 03/09/11 Preliminary Release

VR1 09/09/11 ARC Support

VS2 18/10/12 Updated format/diagrams

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 2

6. Operation Controls and Functions....... 3

6.1 Transmitter Front and Rear Panels..3

6.2 Receiver Front and Rear Panels .....4

6.3 D-Sub 9 Pin Denitions .....................5

7. Connection Diagram ............................ 6

8. Specications ........................................ 7

9. Acronyms ............................................... 8

1. INTRODUCTION

The HDMI and IP over Single CAT5e/6 Transmitter and Receiver set is

capable of sending HDMI (uncompressed audio/video), 3 Ethernet

connections and control signals (through the built-in RS-232 and IR

ports) over a single CAT5e/6 cable up to a distance of 100 m (300 ft).

The transmitter can be powered from the receiver via Power over

Ethernet (PoE) and the HDMI bypass is designed to allow display of the

source signal at the control point.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• 1×HDMI/IP over Single CAT5e/6 Transmitter

• 1×HDMI/IP over Single CAT5e/6 Receiver

• 1×IR Blaster

• 1×R Receiver

• 1×48 V DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI equipped source equipment such as a DVD/Blu-ray player

and HDMI equipped output display (TVs or monitors).

• IP router system or internet hub system and PC/Notebook devices.

5. FEATURES

• Supports HDMI 3D signal and 4K×2K resolution

• Supports CEC bypass

• Simultaneous transmission of uncompressed data over a single 100

m/328 ft

• Uncompressed video 1080p/48-bit@60 Hz, 3D and 4K×2K

• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

transmission

• Ethernet speed can be up to 100 Mbps

• Various controls via HDMI CEC, RS-232 and IR

• 5Play™ convergence includes HDMI, RS-232/IR control, LAN, and

PoE functionalities

• Installation friendly

Note: The PoE function is designed for powering compatible receiver

units only—non-PoE receivers will need their own power supply.

Receivers of another brand may not be compatible.

6. OPERATION CONTROLS AND FUNCTIONS

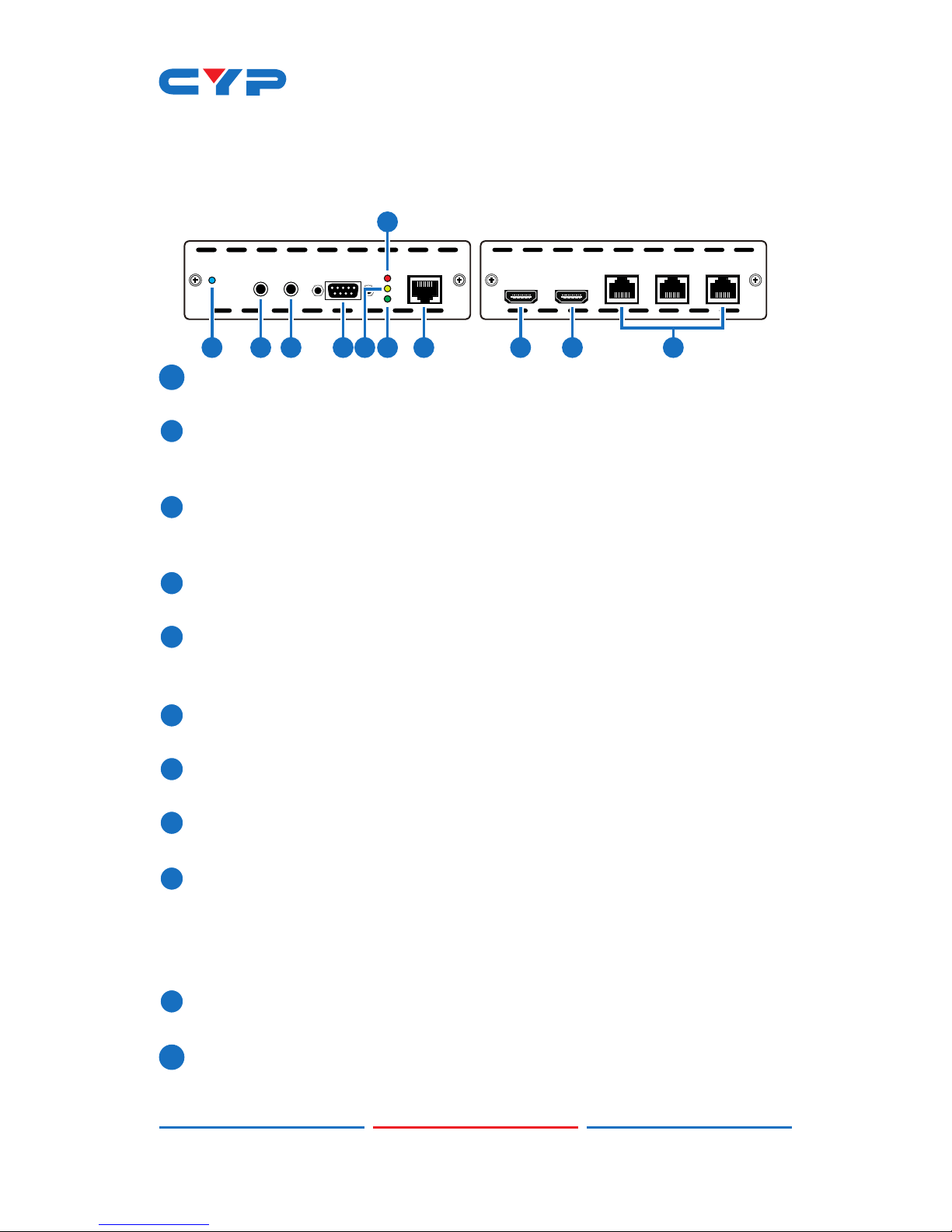

6.1 Transmitter Front and Rear Panels

HDMI

Bypass

HDMI

LAN 2LAN 3LAN 1

IR 2

Extender

IR 1

Blaster

RS-232

Power

HDCP

Link

Mode

CAT5e/6

Out

HDMI to CAT5e/6 with LAN/PoE/IR CH-1109TX Transmitter

RearFront

54321 7 8 9 10 11

Power LED: The LED will illuminate in red to indicate it is being

powered over Ethernet by the Receiver unit.

2IR 1 Blaster: Connect to the supplied IR blaster cable for IR signal

transmission. Place the IR blaster in direct line-of-sight of the

equipment to be controlled.

3IR 2 Extender: Connect to the supplied IR extender cable for IR

signal reception. Ensure that the remote being used is within the

direct line-of-sight of the IR extender.

4RS-232 In: Connect to a PC/Laptop or RS-232 enabled device with

a D-Sub 9-pin cable for the transmission of RS-232 commands.

5Link LED: The Link LED will illuminate in yellow when the both the

Transmitter and Receiver are properly connected and data is

being transmitted/received.

6HDCP LED: The HDCP LED will illuminate in red when the input

source signal contains HDCP data.

7Mode LED: The Mode LED will ash in green when the device is

processing data.

8CAT5e/6 Out: Connect to the Receiver unit with a single CAT5e/6

cable for the transmission of all data signals.

9HDMI Bypass: Connect to an HDMI equipped TV/monitor for instant

display of the HDMI input source signal.

Note: When the HDMI bypass is connected, no HDMI signals will be

transmitted to the Receiver unit. Therefore, unplug this connection

after conrming that the correct image is being displayed

10 HDMI In: Connect to an HDMI source equipment such as a DVD or

Blu-ray player.

LAN 1/2/3: The LAN connections can be used to connect and

share up to 6 Ethernet connections (3 at the Receiver end, 3 at the

Transmitter end), including computers, routers and media servers.

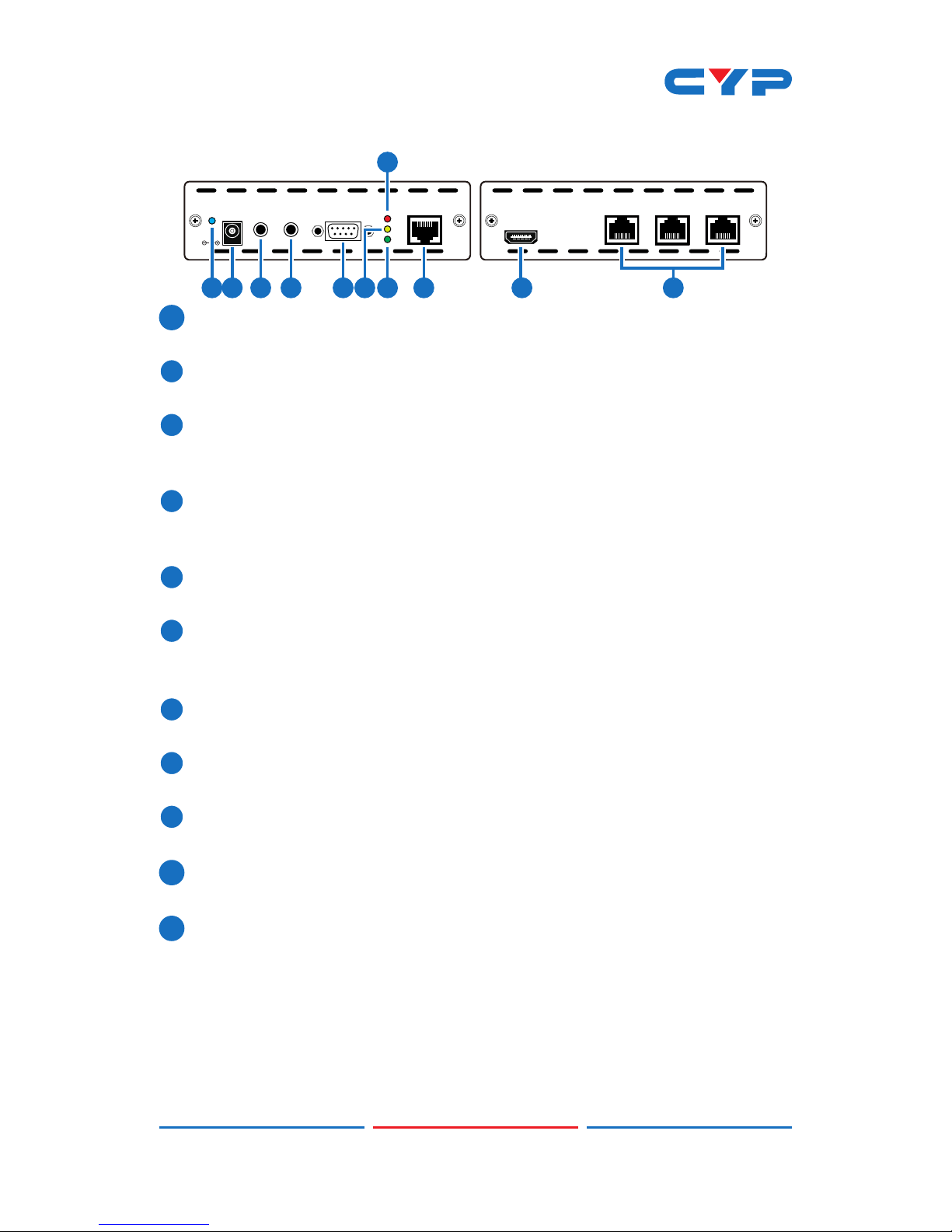

6.2 Receiver Front and Rear Panels

LAN 2LAN 3LAN 1

IR 2

Blaster

IR 1

Extender

DC 48V

RS-232

Out

Power

HDCP

Link

Mode

CAT5e/6

CAT5e/6 to HDMI with LAN/PoE/IR CH-1109RX Receiver

HDMI

Out

RearFront

654321 8 9 10 11

1Power LED: The LED will illuminate in red when the 48 V DC power

supply is connected to the AC outlet.

2DC 48V: Plug the 48 V DC power supply into the unit and connect

the adaptor to an AC outlet.

3IR 1 Extender: Connect to the supplied IR extender cable for IR

signal reception. Ensure that the remote being used is within the

direct line-of-sight of the IR extender.

4IR 2 Blaster: Connect to the supplied IR blaster cable for IR signal

transmission. Place the IR blaster in direct line-of-sight of the

equipment to be controlled.

5RS-232 Out: Connect to a PC/Laptop or RS-232 enabled device

with a D-Sub 9-pin cable for the transmission of RS-232 commands.

5Link LED: The Link LED will illuminate in yellow when the both the

Transmitter and Receiver are properly connected and data is

being transmitted/received.

6HDCP LED: The HDCP LED will illuminate in red when the input

source signal contains HDCP data.

7Mode LED: The Mode LED ash green when the device is

processing data.

9CAT5e/6 In: Connect to the Transmitter unit with a single CAT5e/6

cable for the transmission of all data signals.

HDMI Out: Connect to an HDMI equipped TV/monitor for display of

the HDMI input source signal.

LAN 1/2/3: The LAN connections can be used to connect and

share up to 6 Ethernet connections (3 at the Receiver end, 3 at the

Transmitter end), including computers, routers and media servers.

6.3 D-Sub 9 Pin Denitions

PIN DEFINE TX / RX

1N/C

2TxD / RxD

3RxD / TxD

4N/C

5GND

6N/C

7N/C

8N/C

9N/C
