CYP SM-4X4-HDMI-LC Bedienungsanleitung

TABLE OF CONTENTS

1. Introduction................................................................................ 1

2. Features...................................................................................... 1

3. Package Contents.................................................................... 1

4. Operation Controls and Functions........................................... 1

4.1 Front Panel........................................................................... 1

4.2 Rear Panel........................................................................... 2

4.3 Remote Control................................................................... 3

4.4 RS-232 Protocol.................................................................... 3

4.4.1 Pin Definition................................................................... 3

4.4.2 Commands..................................................................... 4

5. Specifications............................................................................ 4

5.1 General Specification........................................................ 4

5.2 Support Resolution.............................................................. 5

6. Connection and Installation.................................................... 5

1. Introduction

CHMX-44 is a high performance HDMI Matrix with remote control. It

offers you maximum convenience in HDMI signal distribution when you have

multiple HDMI sources and displays to connect together. Each of the four HDMI

sources can be directed to any one of the four outputs, so four displays can

show 4 identical or 4 different sources at the same time. CHMX-44 provides a

maximum of 16 possible connection scenarios between sources and displays.

When HDMI signal progresses through CHMX-44, it is re-timed, levelcompensated,

phase error corrected, and data jitter eliminated, so the output is a regenerated

brand new HDMI signal that can run for another 25 meters and can be

cascaded.

1. HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

2. HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the

output is a well tuned standard HDMI signal.

3. Input source LED indicators on each output select.

4. Ideal for home theater integration, conference room and retail stores.

5. Compatible with all HDMI sources and displays.

6. Supports high resolution input/output:

PC: VGA, SVGA, XGA, SXGA and UXGA (1600X1200) &

HDTV: 480i, 576i, 480p, 576p, 1080i, and 1080p

7. RS-232 control.

8. IR remote control.

2. Features

1. CHMX-44 HDMI Matrix

2. 5VDC Power Supply Adaptor

3. Operation Manual

3. Package Contents

2 3 4 5 61

POWER

HDMI OUT HDMI OUT

INPUT

1 3 4

INPUT

1 3 4

INPUT

1 3 4

INPUT

1 3 4

CHMX-44

4X4 HD Matrix

ABCD

4. Operation Controls and Functions

4.1 Front Panel

1. Remote control sensor.

2. Power Switch & LED Indicator:

The LED will illuminate when the power is turned on.

4.2 Rear Panel

3 64 5

RS-232

IR IN

INPUT

1 2

INPUT

3 4

OUTPUT

A B

OUTPUT

C D

AC 110~240V

50~60Hz

1 7

1. IR IN Socket:

Plug the IR extender sensor (optional) into the socket for IR extension

control.

2. RS-232 Communication Port:

Connect to the COM port of your PC for the distant control over RS-232

channel.

3. HDMI inputs 1 and 2:

Connect to the HDMI output of your source equipment such as DVD player

or set-top-box.

4. HDMI outputs A and B:

Connect each of these output ports to the HDMI input of an HDMI display.

5. HDMI outputs C and D:

Connect each of these output ports to the HDMI input of an HDMI display.

6. HDMI inputs 3 and 4:

Connect to the HDMI output of your source equipment such as DVD player

or set-top-box.

7. Power:

Plug the 5VDC power supply into the unit and connect the adaptor to AC

wall outlet.

3. Input Select/Indicators (A):

Press the "HDMI OUT A" button repeatedly to switch to your desired source,

and the LED will illuminate to indicate which input source is being selected,

and routed to HDMI A display.

4. Input Select/Indicators (B):

Press the "HDMI OUT B" button repeatedly to switch to your desired source,

and the LED will illuminate to indicate which input source is being selected,

and routed to HDMI B display.

5. Input Select/Indicators (C):

Press the "HDMI OUT C" button repeatedly to switch to your desired source,

and the LED will illuminate to indicate which input source is being selected,

and routed to HDMI C display.

6. Input Select/Indicators (D):

Press the "HDMI OUT D" button repeatedly to switch to your desired source,

and the LED will illuminate to indicate which input source is being selected,

and routed to HDMI D display.

OUTPUT

POWER

CR-33

1. Power:

Press the button to turn on/off the unit.

2. Input Select for HDMI OUT A:

Press 1, 2, 3 or 4 to select the desired input source for

HDMI OUT A.

3. Input Select for HDMI OUT B:

Press 1, 2, 3 or 4 to select the desired input source for

HDMI OUT B.

4. Input Select for HDMI OUT C:

Press 1, 2, 3 or 4 to select the desired input source for

HDMI OUT C.

5. Input Select for HDMI OUT D:

Press 1, 2, 3 or 4 to select the desired input source for

HDMI OUT D.

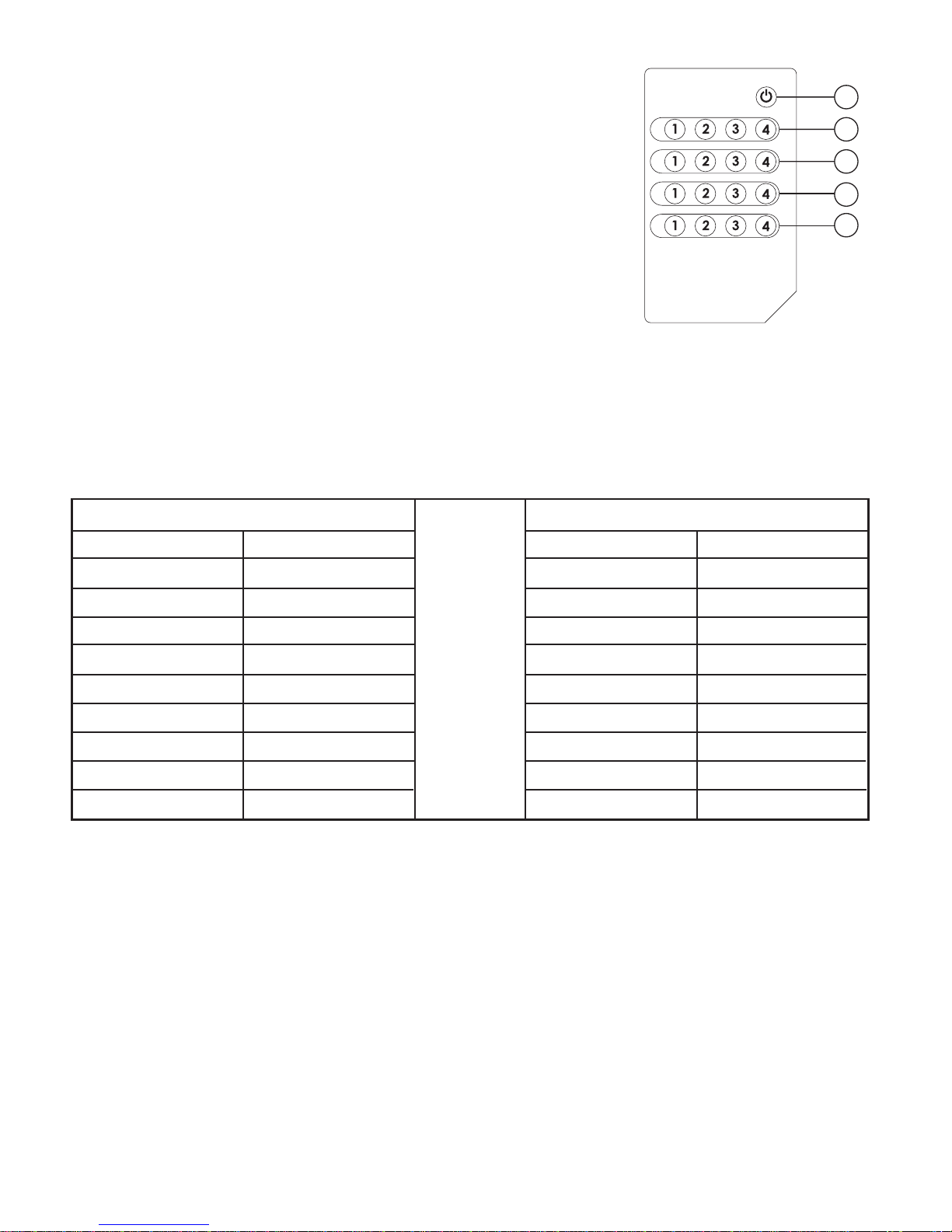

4.3 Remote Control

Definition

GND

Definition

GND

CHMX-44 Remote Control Console



4.4 RS-232 Protocol

4.4.1 Pin Definition

*RS-232 transmission format:

Baud Rate: 9600 bps

Data bit: 8 Bits

Parity: None

Stop Bit: 1 bit

4.4.2 Commands

COMMAND

ACTION

Power Off (standby)

Power On *

System Status *

Firmware Version

Output A select Input1

Output A select Input2

Output A select Input3

Output A select Input4

Output B select Input1

Output B select Input2

Output B select Input3

Output B select Input4

Output C select Input1

Output C select Input2

Output C select Input3

Output C select Input4

Output D select Input1

Output D select Input2

Output D select Input3

Output D select Input4

5. Specifications

5.1 General Specification

* Frequency bandwidth: 1.65Gbps (single link)

* Input/Output: 4-in to 4-out HDMI female ports

* 5V DC power supply

* Dimensions: 438 (W) x 175 (D) x 49 (H)mm

* Weight: 3.1Kgs

VGA, SVGA, XGA, SXGA, UXGA

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

VGA, SVGA, XGA, SXGA, UXGA

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

OUTPUT

INTPUT

5.2 Support Resolution

6. Connection and Installation
