CYP PRO-SDI44 Bedienungsanleitung
PRO-SDI44/84/124/164
4x4/8x4/12x4/16x4 3G-SDI Matrix Switchers
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
VR0 18/10/11 First release
VS1 30/01/12 Updated format/diagrams
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
7. RS-232 Protocols ................................. 10
7.1 Pin Assignment ........................................10
7.2 Commands .................................................10
8. Remote Control ................................... 11
9. Connection Diagram .......................... 12
10. Specications .................................... 13
11. Acronyms .......................................... 14
6
1. INTRODUCTION
The 3G-SDI Matrix series allows SD-SDI, HD-SDI and 3G-SDI signals to
be shown on SDI displays while ensuring high bit-rates of 2.970 Gbps to
give fast signal transmission without signal loss. The PRO-SDI164 allows
16 3G-SDI sources to be switched between 4 SDI equipped displays to
distances of up to 300m. Additionally, LPCM Multi-channel and LPCM
stereo audio signals are supported. Control of the matrix is via the
supplied IR remote, the front panel keys, or RS-232 control functions.
2. APPLICATIONS
Video broadcasting switching display
Professional video program display
Film studios program monitoring
Video program switching display
3. PACKAGE CONTENTS
16 by 4/12 by 4/8 by 4/4 by 4 3G-SDI Matrix
Remote Control (CR-101)
5 V/2.6 A DC power adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Source devices with SDI (SD/HD/3G) output, display devices with SDI
Input and connected with SDI cables.
7
5. FEATURES
3G-SDI input sources can be selected and split or switched to four
3G-SDI displays simultaneously
Operation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001
Gbps and 270 Mbps
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE
292M, SMPTE 259M-C
Provides the Equalized and re-clocked transmission
Supports signal input and output distance of up to 300m for SD
signals, 200m for HD signals and 100m for 3G signals
NOTE
Tested with Belden 1694A cable. Results may vary with cables that have
a dierent specication.
8
6. OPERATION CONTROLS AND FUNCTIONS

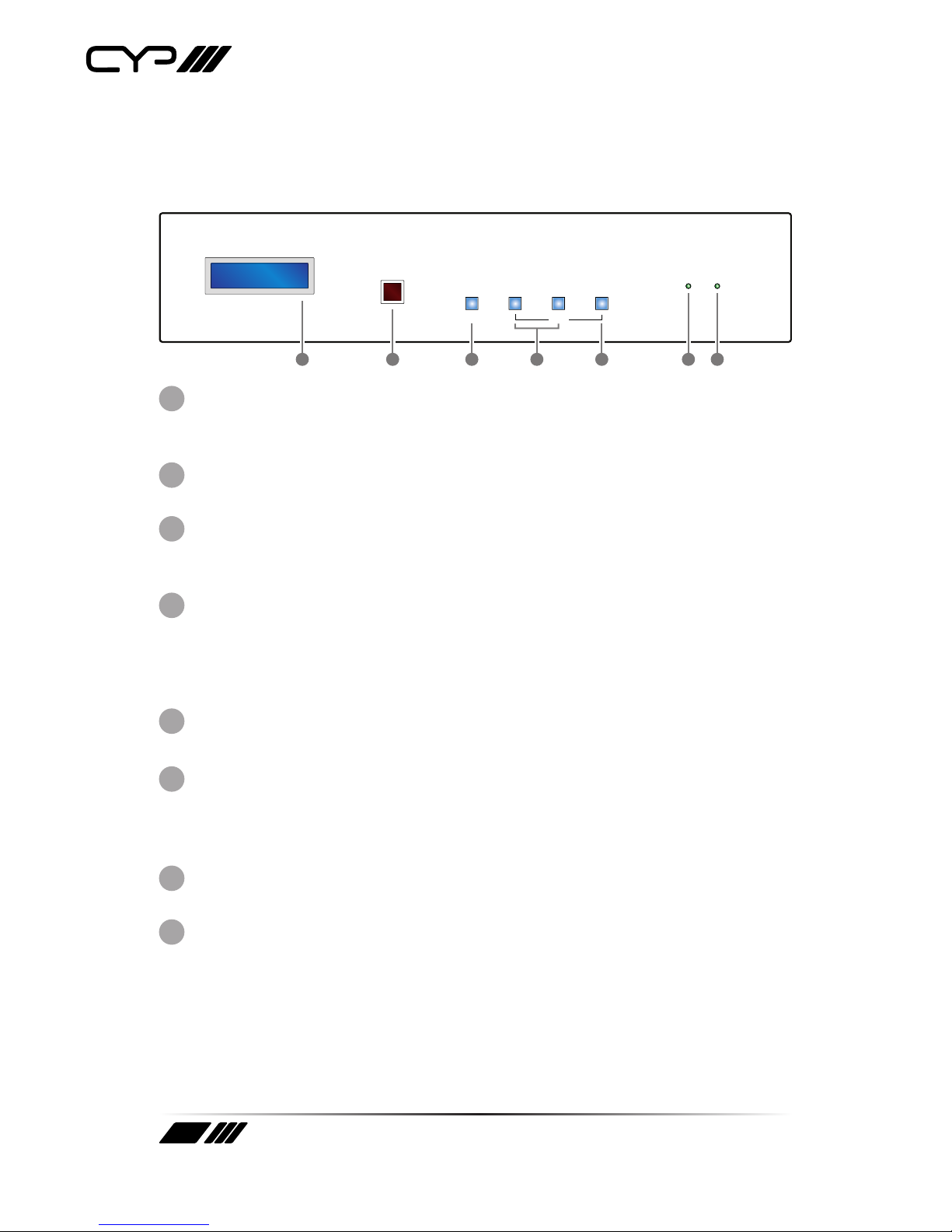

6.1 Front Panel
OUTPUT ENTER
-
INPUT
+
LOCK POWER
LOCK
1 2
3
4 5
6
7
1
LCD Monitor: This LCD monitor displays the conguration of the input
and output selections. The upper line displays the outputs A, B, C, & D.
The lower line displays each output’s selected input.
2
IR receiver: Receives the IR signal from the remote control included
in the package.
3
OUTPUT Button: Press this button to select the output A~D the
cursor will skip to the lower line of the LCD monitor then, select an
input for highlighted output.
4
INPUT −/+ Button: Press − or + button to select the input sources
from 1~16, press ENTER to conrm the selection.
Note: Depending on dierent models, the selectable input will be
displayed on the LCD monitor.
5
Lock Button: Press both the '−' and 'ENTER' buttons together to lock
all the function keys on the panel. To unlock, press both buttons again.
6
ENTER Button: Press this button to conrm the selection. Press both
the 'ENTER' key and '–' key together to lock all the keys on panel.
To unlock, press both the 'ENTER' key and '–' key together again to
release the locking system.
7
LOCK LED: This LED will illuminate in green when the key lock is
active.
8
POWER LED: This LED will illuminate green when the device is
switched ON. When in standby mode (Press the power key on the
remote control) the LED will turn red.
9

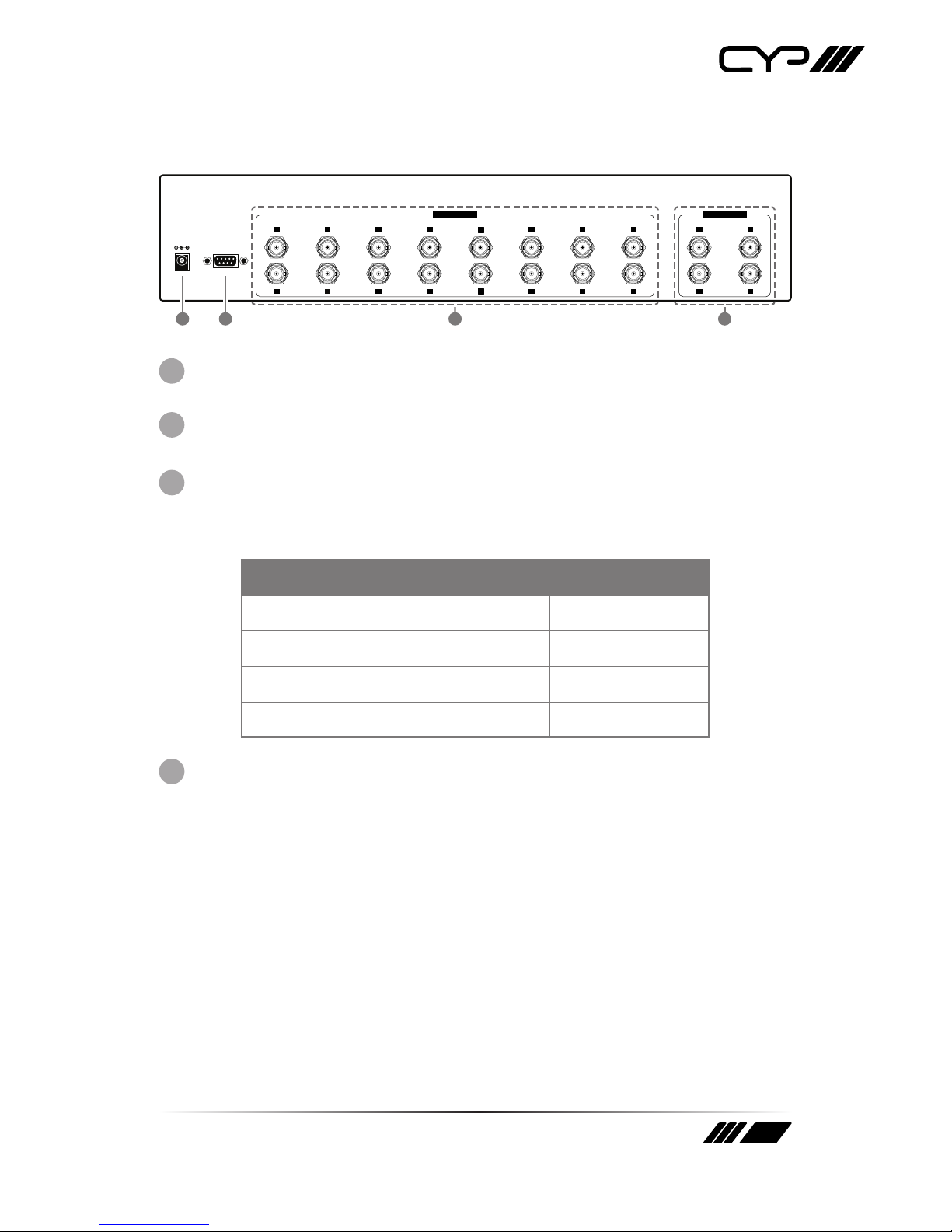

6.2 Rear Panel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
B
C
D
RS-232
DC 5V
SDI INPUT SDI OUTPUT
1 2 3 4
1
DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.
2
RS-232: Connect to a PC or laptop (with D-Sub 9 pin female cable) to
control the device via RS-232 commands..
3
SDI INPUT: Connect to the SDI source equipment such as video
camera or SDI player. The amount of input slots will depend on the
model.
MODEL INPUTS OUTPUTS
PRO-SDI164 16 4
PRO-SDI124 12 4
PRO-SDI84 8 4
PRO-SDI44 4 4
4
SDI OUTPUT: Connect to the SDI displays with an SDI cables for
displaying the output. It can also be connected to another SDI
converter/extender to extend the signal.
10
7. RS232 PROTOCOLS
7.1 Pin Assignment
Pins denition of modem cable
Unit Remote Controller
PIN Denition
PIN Denition
1 NC 1 NC
2 TxD 2 RxD
3 RxD 3 TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data bit: 8-bits
Parity: None
Stop bit: 1-bit
7.2 Commands
Command Description
poweron enter Power ON
powero enter Power OFF
portx xx enter x= a~d output, xx=01~16 input
For example: When SDI Output A needs to be set to SDI input 2, the
command would be porta02.
