CYP CDPH-1P Installationshandbuch

CDPH-1P

DisplayPort to HDMI Converter

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2012

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 09/11/10 Preliminary Release

VR1 12/04/11 Support Dual Mode

VS2 30/08/12 Updated format/texts

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 1

6. Operation Controls and Functions....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel.........................................2

7. Connection and Installation................. 3

8. Specications ........................................ 4

9. Acronyms ............................................... 5

1. INTRODUCTION

The Display Port to HDMI Converter provides digital signal conversion

from DisplayPort to HDMI interface, utilizing ‘DisplayPort to HDMI

Level Shifter’ technology this model is able to output TMDS signal

fully compatible with HDMI, and so makes it the best solution to show

DisplayPort content on HDTV / HDMI monitor.

2. APPLICATIONS

• Display a DisplayPort signal on an HDMI display

• Use HDTV/HDMI monitor as the external/mirror display of MAC/PC/

3. PACKAGE CONTENTS

• 1×DisplayPort to HDMI Converter

• Operation Manual

4. SYSTEM REQUIREMENTS

Input source equipment with DisplayPort output (must support Dual

mode), HDTV/HDMI monitor, and cables.

5. FEATURES

• HDMI and DVI 1.0 compliant

• Support DVI monitor if an HDMI to DVI adaptor is used

• Stylish design

• Runs without the need to install any software

• Support audio sampling rate up to 48 kHz

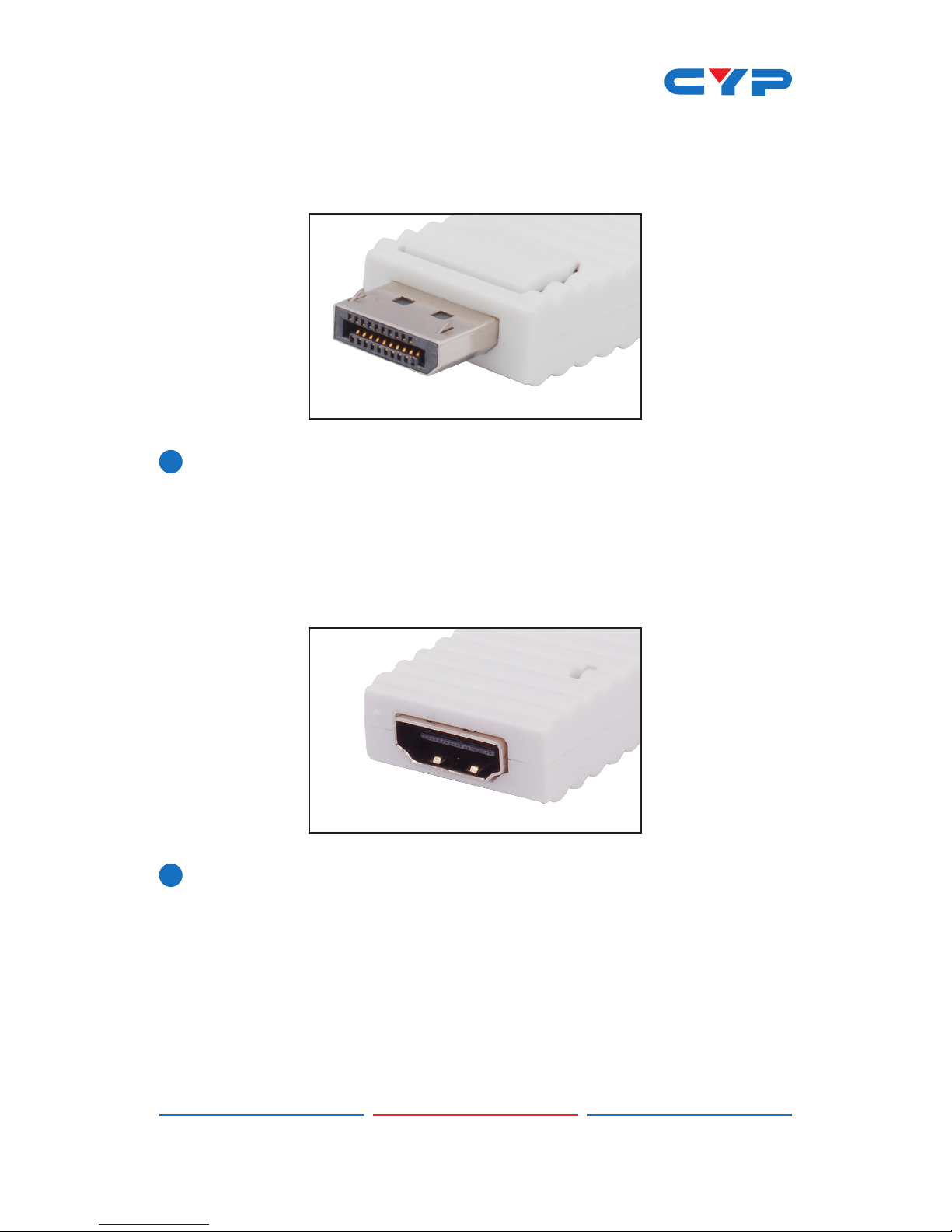

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1DisplayPort Input:

Connect to the DisplayPort equipped source device such as PC

or Laptop. Hold the top button to safely remove the unit from the

source device.

6.2 Rear Panel

1HDMI Output:

Connect to HDMI equipped displays such as HDTV or HDMI

monitor.

Note: Some PC's DisplayPort port do not output audio signal, in such a

case, the HDMI port will output video signal

7. CONNECTION DIAGRAM

LCD TV

8. SPECIFICATIONS

Frequency Bandwidth 2.25Gbps (single link)

Input Port 1 x DisplayPort (Male type)

Output Port 1 x HDMI (Female type)

Output Resolution 480p ~ 1080p, VGA ~ WUXGA

ESD Protection Human body model:

± 10kV (air-gap discharge)

± 6kV (contact discharge)

Dimensions (mm) 81(W) x 25(D) x 11(H)

Weight(g) 22

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity 20~90% RH (no condensation)

9. ACRONYMS

ACRONYM COMPLETE TERM

HDMI High-Denition Multimedia Interface

DVI Digital Visual Interface

DP DisplayPort
