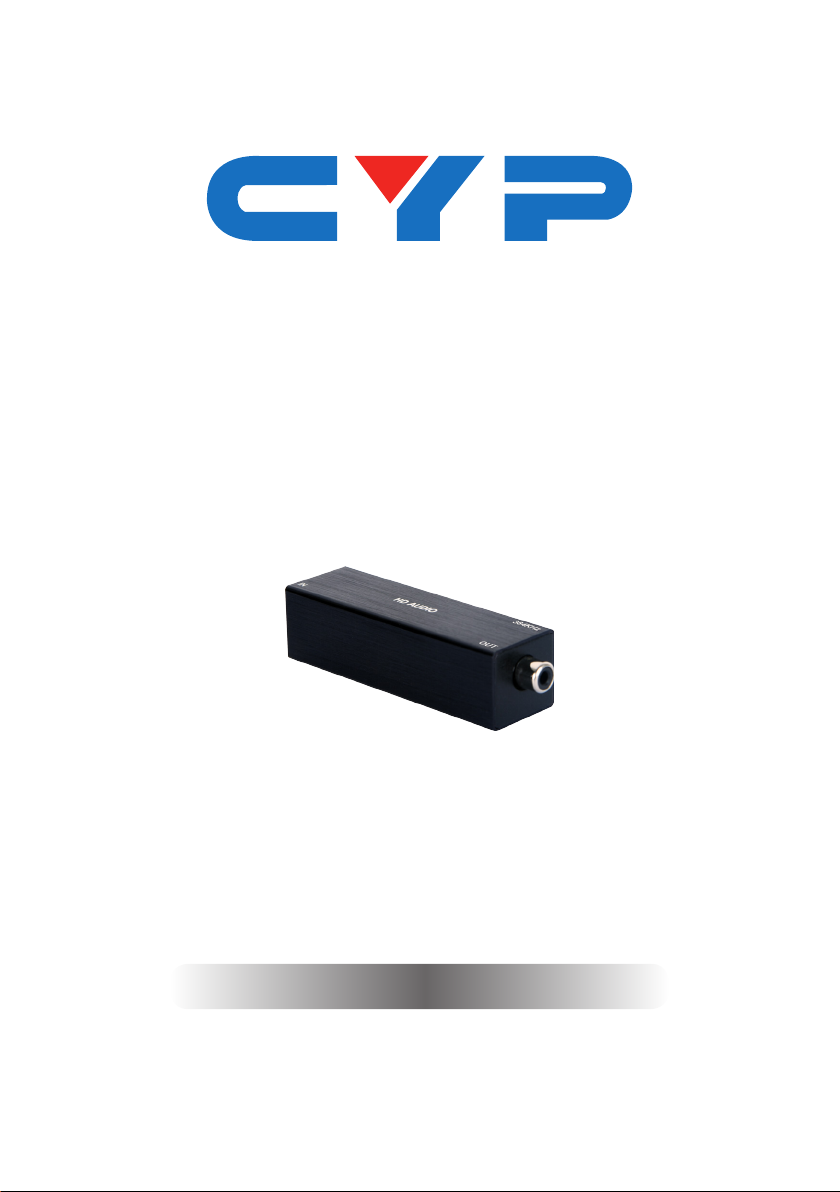

CYP CDB-6HR Bedienungsanleitung
CDB-6HR
USB to Coaxial Audio Converter
(up to 384kHz)
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2017 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 16/03/16 Preliminary release
RDV2 19/04/17 Updated text/diagrams
VS1 09/04/18 A few adjustments to the text
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................1
5. Features............................................................2
6. Operation Controls and Functions.................2
7. Connection Diagram ......................................3
8. Specications ..................................................4
9. Acronyms .........................................................5
1
1. INTRODUCTION
This unit is a simple but smart device and no external power is required.
It allows you to connect your PC/laptop to an audio amplier or
other audio destination that has an S/PDIF input without needing a
dedicated audio card. This compact HD audio product supports
LPCM 2.0 audio with a maximum sampling rate of 384kHz at 24bits.
This unit connects to your PC/laptop using any available USB 2.0 (or
higher) port (Windows and Mac OSX compatible).
2. APPLICATIONS
• High-resolution audio playback
• Improved audio quality from laptops for presentations or
entertainment
3. PACKAGE CONTENTS
• 1×USB to Coaxial Audio Converter
• 1×Driver Disk
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• Audio source equipment such as PC/Mac/laptop with an available
USB port.
• Coaxial audio receiving equipment such as audio ampliers or
powered speakers.
• Windows XP, Vista, 7, 8, 8.1, 10 (32 & 64-bit) or Apple OSX version
10.6.4 and later.
2
5. FEATURES
• Output HD audio from your PC/laptop to an audio amplier
• Superior USB audio processor (XMOS U8A) which supports up to
384kHz/24bits sample rate
• Superior coaxial module supporting up to 384kHz audio
• Simple operation and compact design
• No external power required
6. OPERATION CONTROLS AND FUNCTIONS
IN OUT
384KHz
IN
HD AUDIO
1 2 3
1USB IN: Connect to computer source equipment with an available
USB port such as a PC/Laptop (Windows and Mac Operating
Systems are compatible).
2POWER LED: This LED will illuminate RED to indicate the unit is on
and receiving power from the USB connection.
3COAXIAL OUT: Connect to powered speakers or an amplier for
digital audio output using an appropriate coaxial cable.
3

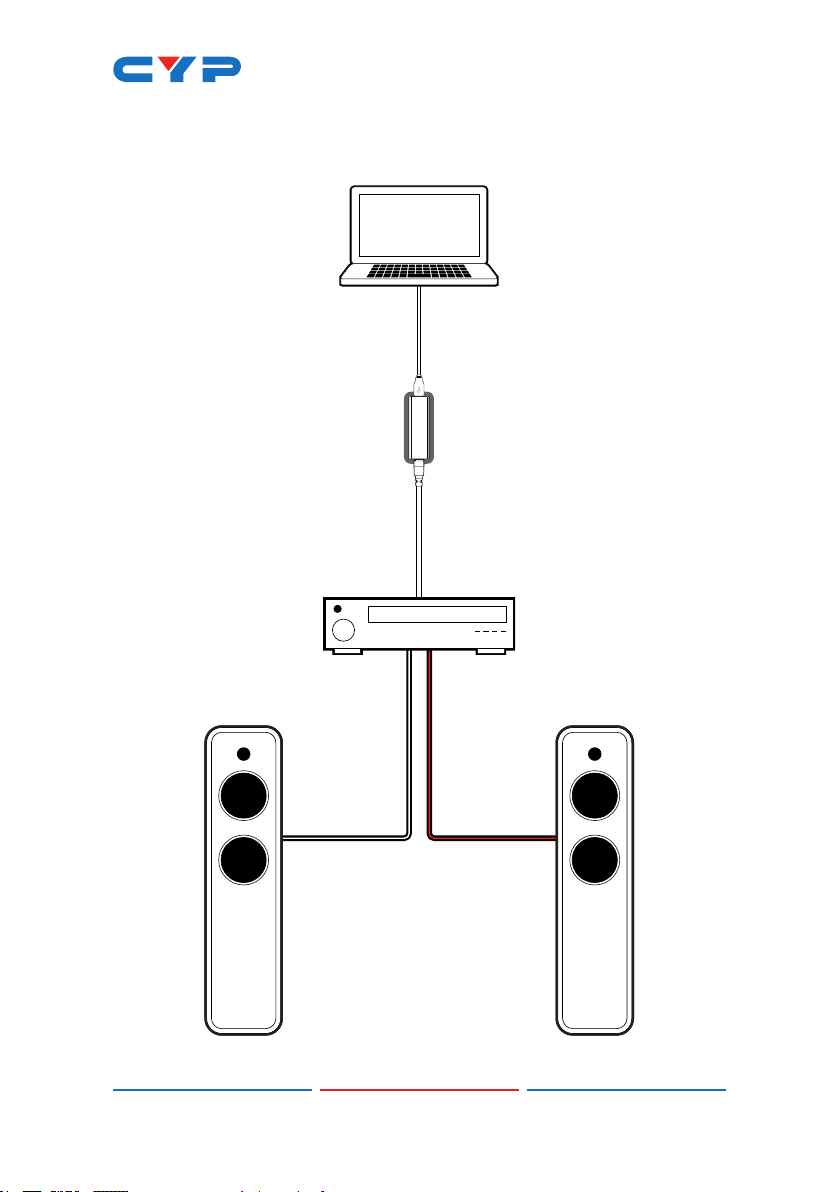

7. CONNECTION DIAGRAM
IN OUT
384KHz
HD AUDIO
IN OUT
384KHz
HD AUDIO
Powered Speaker System
Coaxial Digital
Audio Output
USB Audio
Input
AV Receiver
Speaker Level
Output
USB Audio Source
4
8. SPECIFICATIONS
Input Port 1×USB Type-B
Output Port 1×RCA
Input Audio Format USB Audio 2.0
Output Audio Format LPCM 2.0
Audio Sample Rates 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384kHz
ESD Protection Human Body Model:
±12kV (Air Discharge)
±8kV (Contact Discharge)
Dimensions 77.5mm×22.5mm×25mm (W×H×D)
[Case Only]
86.5m×22.5mm×25mm (W×H×D)
[All Inclusive]
Weight 48g
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C - 40˚C/32˚F - 104˚F
Storage Temperature −20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity 20 - 90% RH (Non-condensing)
9. ACRONYMS
ACRONYM COMPLETE TERM
HD High-Denition
LPCM Linear Pulse-Code Modulation
PC Personal Computer
S/PDIF Sony/Philips Digital Interface Format
USB Universal Serial Bus
