CYP DCT-4 Bedienungsanleitung

Analog to Digital

Audio Converter

Operation Manual

DCT-4

1. Introduction................................................................................

2. Main Features.............................................................................

3. Package Contents.....................................................................

4. Operation Controls and Functions..........................................

4.1 Front Panel...........................................................................

4.2 Rear Panel............................................................................

4.3 Side Panel............................................................................

5. Connection and Installation.....................................................

6. Specifications............................................................................

TABLE OF CONTENTS

1

1

1

2

2

2

2

3

3

1

1. Introduction

Analog to Digital Audio Converter is designed to convert analog stereo audio

signal from L/R input to Coaxial S/PDIF and Toslink Optical outputs

simultaneously. The output digital audio signal is 2-channel uncompressed LPCM

(Linear Pulse Code Modulation) with sampling rate at 48 KHz. Both Optical Fiber

and Coaxial cables connected to the outputs of the unit can run up to 5 meters

while still provide reliable and lossless audio signal transmission. The product is

compact and easy to install, and that makes it a very handy gadget

recommended for either home or professional audio switching.

2. Main Features

 Supports uncompressed 2-channel LPCM (Linear Pulse Code Modulation)

digital audio signal output.

 Supports output sampling rate at 48 KHz.

 Provides electromagnetic-noise-free transmission.

 Easy to install and simple to operate.

3. Package Contents

 Analog to Digital Audio Converter box.

 5V DC power supply adaptor.

 Operation Manual.

2

DC 5V

1

COAX

-

OUT

-

OPTICAL

1

L

-

IN

-

R

1

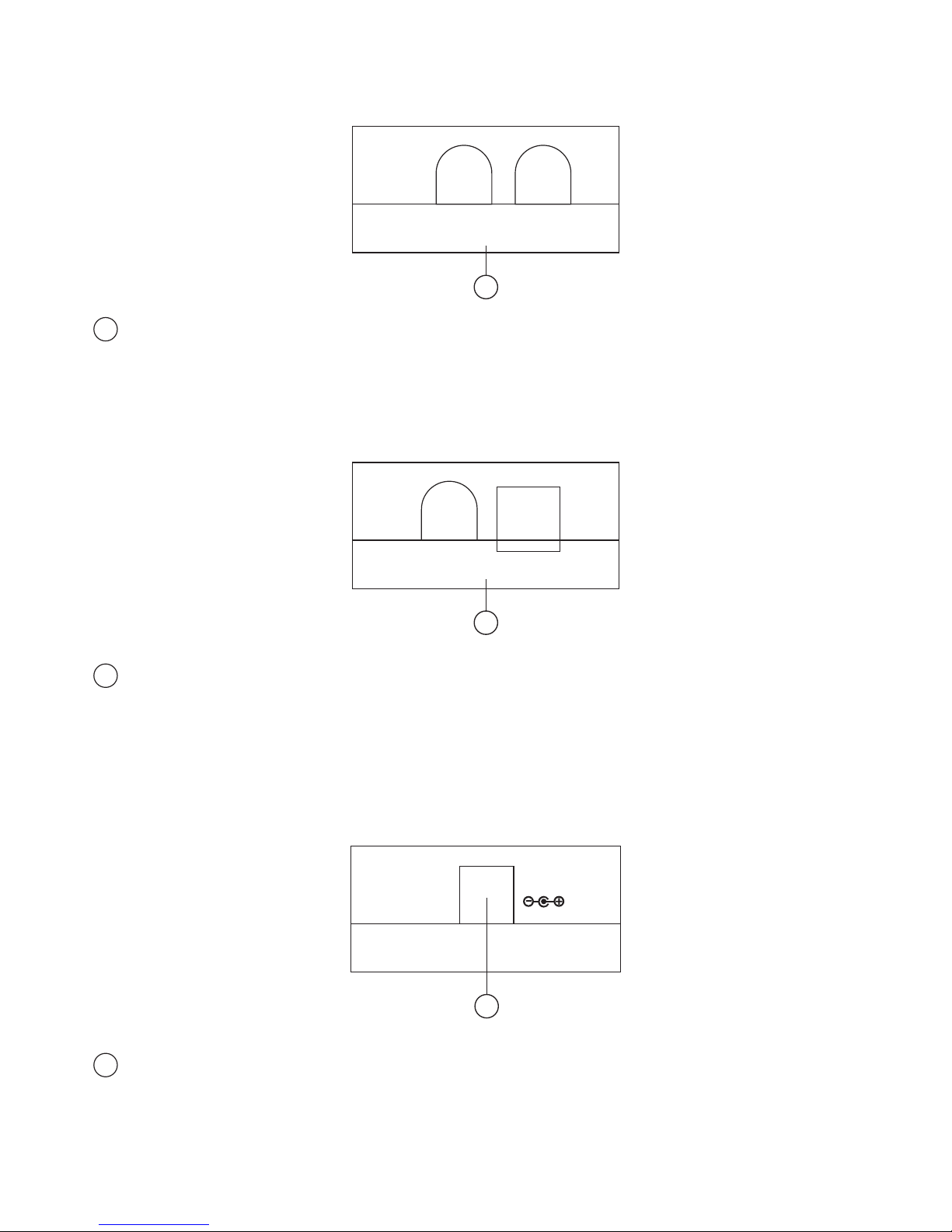

4. Operation Controls and Functions

4.1 Front Panel

1 Coaxial and TOSLink (Optical Fiber) Output Ports: Connect the output

ports to the Coaxial or TOSLink (Optical Fiber) input port of audio

equipments such as audio amplifier and AV receiver, using proper cable.

1 Power: Plug 5V DC power supply into the unit and connect the adaptor to

AC wall outlet.

1 L/R Analog Audio Input Ports: Connect L/R RCA jacks to the audio output

ports of audio amplifier, AV receiver, LCD TV, or DVD player.

4.2 Rear Panel

4.3 Side Panel

3

A/V Receiver

or

COAXIAL

OPTICAL

R/L

DVD

Amplifier

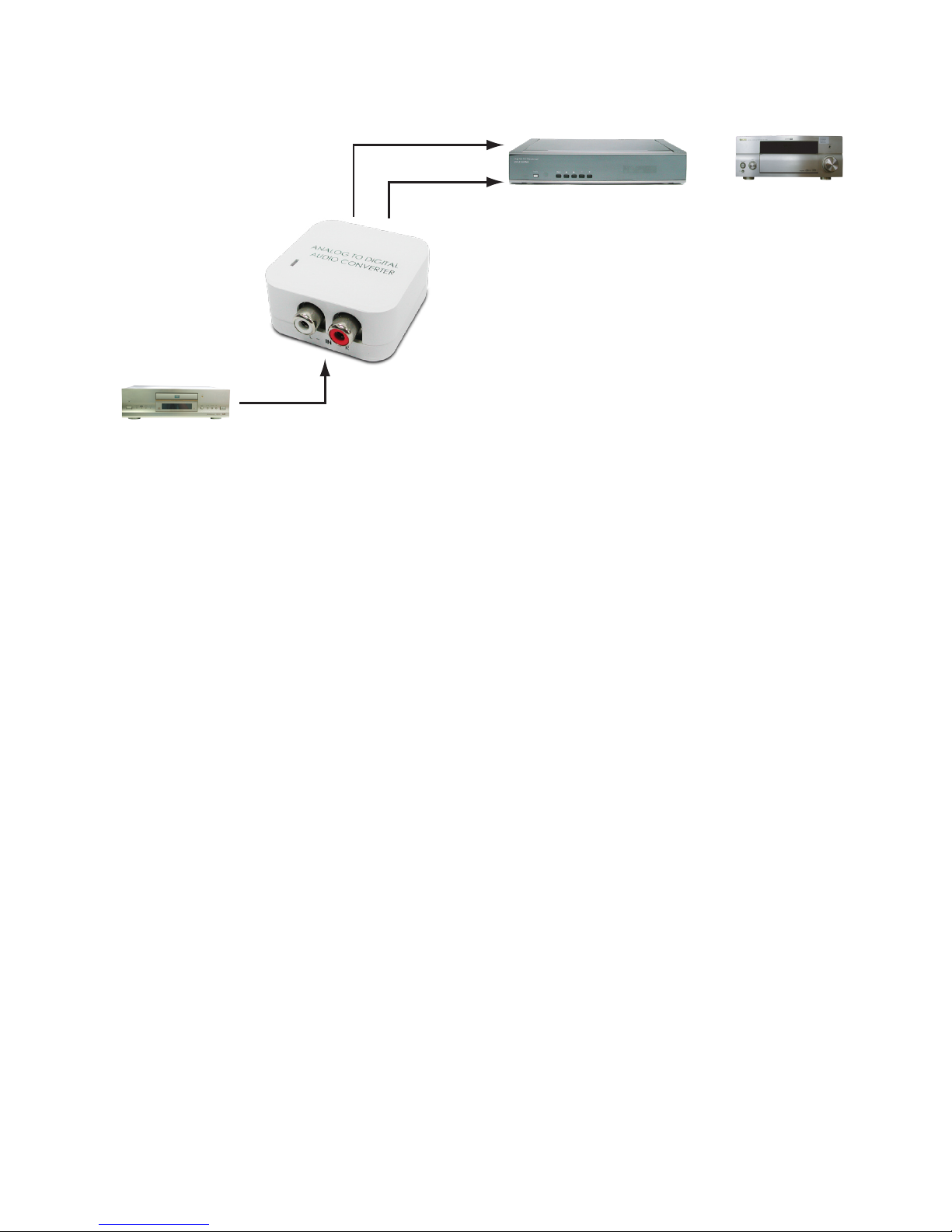

5. Connection and Installation

6. Specifications

Input ports Stereo R/L

Output ports 1 x TOSLink (Optical Fiber), 1 x Coaxial

Power Supply 5V/0.36~0.5A DC (US/EU standards, CE/FCC/UL

certified)

Dimensions (mm) 57(W) x 45.5(D) x 23.5(H)

Weight(g) 30

Chassis Material Plastic

Silk Skin Color White

Operating Temperature Operating from 0°C ~ 40°C

2008.1.11 MPM-DCT4

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
