CYP CM-388 Bedienungsanleitung

CM-388

HDMI to CV/SV

Converter - with

HDMI Bypass

Operation Manual

1. Introduction................................................................................

2. Main Features.............................................................................

3. Package Contents.....................................................................

4. Hardware Description................................................................

4.1 Front Panel.............................................................................

4.2 Rear Panel.............................................................................

5. Connections and Installation....................................................

6. Specifications.............................................................................

TABLE OF CONTENTS

1. Introduction

The HDMI to CV/SV Converter is designed to convert digital signal from HDMI

(or DVI + Coaxial) source to analog signal of NTSC or PAL system, with L/R

stereo audio. Besides S-Video and Composite Video outputs, it also provides

one bypass HDMI output to deliver original signal, and a Coaxial output to

send S/PDIF digital audio to audio amplifier. The product provides a

convenient application that user can watch high definition movie

meanwhile record it (in standard resolutions 480i or 576i) to DVR or VCR

machine.

2. Main Features

 HDMI 1.2, HDCP1.1 and DVI1.0 compliant

 Converts video signal from HDMI source to NTSC or PAL signal selectable

 Converts digital audio from HDMI or Coaxial source to analog stereo audio

 Accepts HDTV input of wide resolutions, from 480p to 1080p@60Hz (except

1080p@24Hz) and PC from VGA@60Hz to UXGA@60Hz.

Note: Sources’ signal also need to disable 1080p@24Hz resolution in order to

avoid image corruption.

When HDMI input source end is not displaying full screen (i.e. letter

box/pillbox image) then the output display end may come out with

wrong size or position images. Hence, input source must set on full

screen first before powering on the converter and set the input source

to YCbCr by entering into DVD/PS3/BD’s OSD menu and set the HDMI

color space on YCbCr will resolve the problem.

 Video and audio conversion / bypass scenarios:

* In the scenario of INPUT/OUTPUT A, the audio signal from Coaxial input will not

be used.

** DVI input or output can be applied by using HDMI to DVI adapter or cable of

similar function.

*** Analog L/R audio outputs are not available when the audio input is Coaxial,

please connect the analog audio from source to your speakers directly.

● When the signal from HDMI or DVI source is protected by HDCP (High-

bandwidth Digital Content Protection), the HDMI or DVI display needs to

support HDCP to be able to show picture.

3. Package Contents

1. HDMI to CV/SV Converter

2. 5V/2.6A DC power adaptor.

3. Operation manual.

INPUT C Video from DVI source and audio from Coaxial source

DVI -> Bypass, output original video from DVI

COAXIAL -> Output digital audio from Coaxial

CV + L/R -> Output analog video converted from DVI, L/R mute***

OUTPUT C

SV + L/R -> Output analog video converted from DVI, L/R mute***

INPUT A Both video and audio from HDMI source*

HDMI - > Bypass, output original video and audio from HDMI

OUTPUT A COAXIAL -> Output digital audio from HDMI

CV + L/R -> Output analog video / audio converted from HDMI

SV + L/R -> Output analog video / audio converted from HDMI

INPUT B

HDMI -> output original video from DVI and audio from Coaxial

COAXIAL -> Output digital audio from Coaxial

CV + L/R -> Output analog video converted from DVI, L/R mute***

OUTPUT B

SV + L/R -> Output analog video converted from DVI, L/R mute***

Video from DVI source and audio from Coaxial source**

COAXIAL

HDMI

COAXIAL R L VIDEO

NTSC PAL

R L S-VIDEO

DC 5V IN

HDMI

INPUT OUTPUT

1 3 7

4 5 6 8

POWER

CM-388

HDMI REPEAT WITH VIDEO OUTPUT

4. Hardware Description

The following sections describe the hardware components.

4.1 Front Panel

1 Power LED: The LED indicator will illuminate when the unit is powered on.

4.2 Rear Panel

1 Coaxial Input: Connect the digital audio input port to the Coaxial output

port of your source equipment such as DVD player or Set-Top-Box.

2 HDMI Input: Connect the HDMI input port to the HDMI output port of your

source equipment such as DVD player or Set-Top-Box.

3 Coaxial Output: Connect the digital audio output port to the input port

of your digital audio equipment such as audio amplifier.

4 HDMI Bypass Output: Connect the HDMI output port to the HDMI input

port of your display.

5 L/R Output: Connect the analog audio output port to speakers.

6 Composite Video/S-Video: Connect the Composite Video or S-Video

port to the input port of your display.

7 TV System Switcher: Select between NTSC and PAL system for output.

8 DC 5V: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

Input ports

Output ports

Power Supply

Dimensions (mm)

Weight(g)

Chassis Material

Silk Skin Color

Operating Temperature

1 x HDMI type A, 1 x Coaxial

1 x HDMI type A, 1 x Coaxial, 2 x Stereo R/L RCA jack,

1 x Composite-Video RCA jack, 1 x S-Video mini-din

5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

141(W) x 127(D) x 38(H)

510

Metal

Black

Operating from 0°C ~ 40°C

6. Specifications

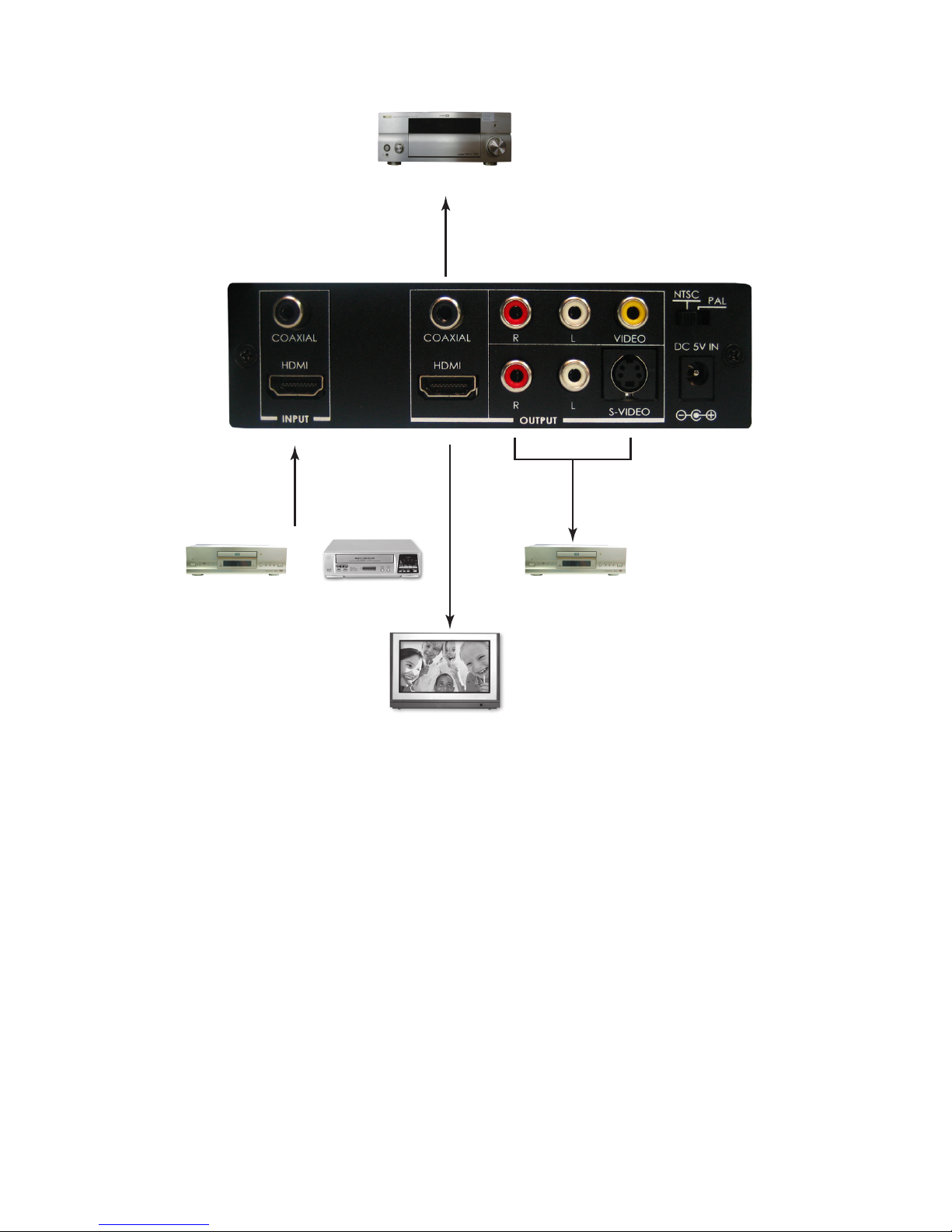

5. Connection and Installation

HDMI TV

STBDVD

Amplifier

20071206 MPM-CM380

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
