CYP CMDPH-2C Bedienungsanleitung

CMDPH-2C

Mini-DisplayPort to HDMI Converter

Operation Manual

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2011 by Cypress Technology.

All Rights Reserved.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

V1 06/10/10 Preliminary Release

VS2 30/08/12 Updated format/texts

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 1

5. Features.................................................. 1

6. Operation Controls and Functions....... 2

6.1 Front Panel ........................................2

6.2 Rear Panel.........................................2

6.3 Top Panel ..........................................3

7. Connection Diagram ............................ 4

8. Specications ........................................ 5

9. Acronyms ............................................... 6

1

1. INTRODUCTION

The Mini-DisplayPort to HDMI Converter is designed to display your

MAC /PC / Notebook content on an HDTV or monitor. No external

power supply is required, as the model can be powered by USB

directly. No need to install any software, the model can work with

MAC / PC / NB in a plug-and-play fashion, the installation is easy to

anyone.

2. APPLICATIONS

• Convert DisplayPort signal to VGA signal

• Display DisplayPort signal on VGA monitor or projector

3. PACKAGE CONTENTS

• Mini-DisplayPort to HDMI Signal Converter

• Operation Manual

4. SYSTEM REQUIREMENTS

Input Mini-DisplayPort/DisplayPort source equipment, USB powering

connection, and HD TV or monitor.

5. FEATURES

• Compliant with HDMI (with Deep Color Video), HDCP1.1 and DVI1.0

• Supports up to 1080p@50/60 and WUXGA

• Supports pixel component format with RGB: YCbCr422: YCbCr444

• Supports bit depth per color with 8/10/12-bit

• Bi-direction Color Space Conversion (CSC) between RBG and

YCbCr

• Dithering for conversion from 12-bit component to 10/8-bit

• Support USB 2CH, LPCM 48K@24-bit

• Automatic audio error detection with soft mute function, preventing

annoying harsh output sound due to audio error or hot-unplug

• Automatic loss of signal detection for link management

2

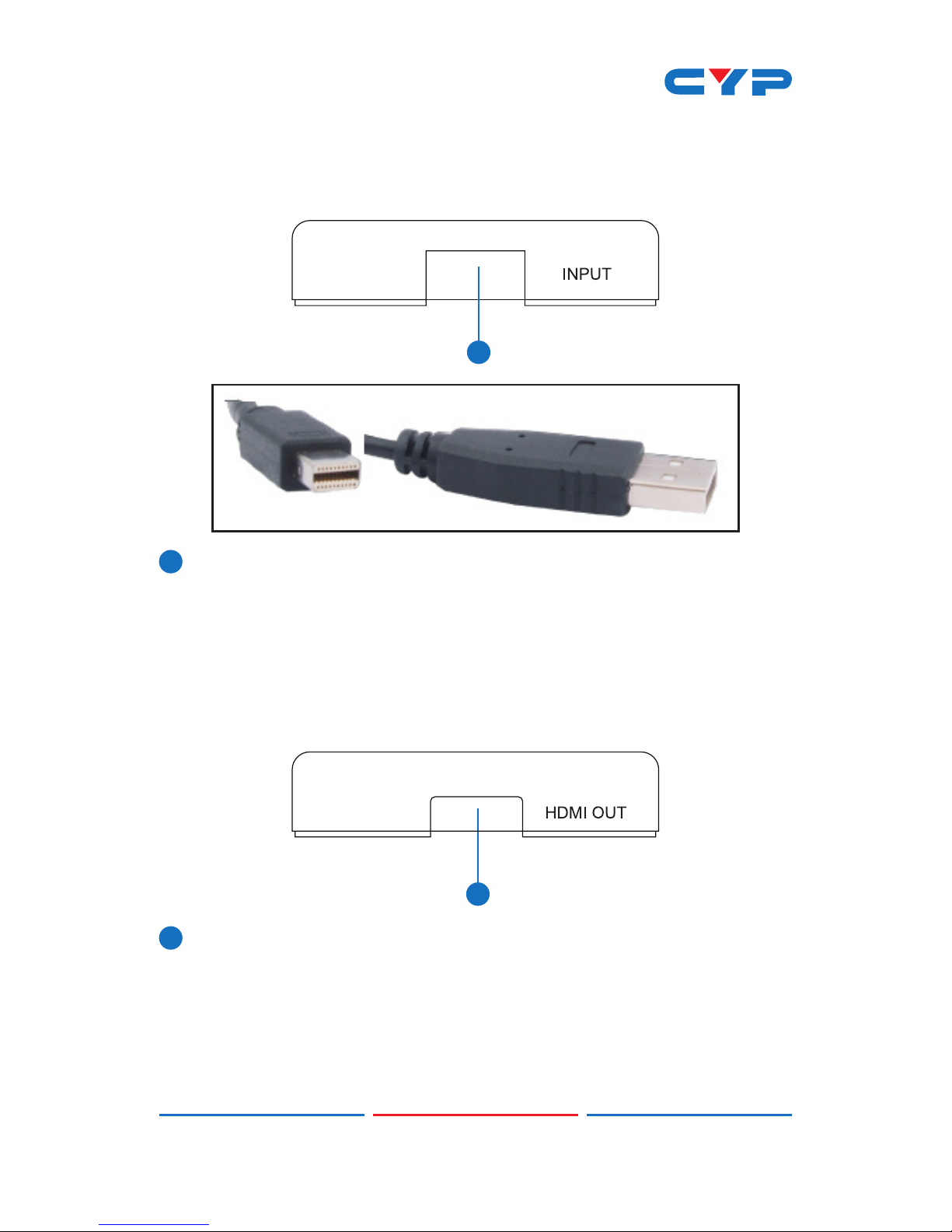

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1

1Mini-DisplayPort/USB INPUT

Connect Mini-DisplayPort port to the source equipment, and

USB port to device providing power supply. The USB cable, if

connected to MAC/PC/NB, can be used to transfer audio signal

from the source and be integrated to the HDMI output.

6.2 Rear Panel

2

1HDMI OUTPUT

Connect to output display such as HD TV or monitor supporting

HDMI.

3

6.3 Top Panel

1 2

1Reset

Press this button only when there is no picture output. Press it

repeatedly until there is image shown on the display properly.

2Power LED

The red LED will illuminate when the USB power is connected.

4

7. CONNECTION DIAGRAM

HDTV

PC Apple NB

or

or or

Monitor

5

8. SPECIFICATIONS

TMDS Clock Frequency 2.7Gbps

Input ports 1 x Mini-DisplayPort (Male type), 1 x USB

Output port 1 x HDMI (Female type)

Input Resolution 480i ~1080p, VGA ~ WUXGA

Output Resolution 480i ~1080p, 1920 x 1200@60Hz,

VGA~WUXGA

I/O Audio Sample Rate Up to 48 kHz

I/O Audio Support PCM 2CH

ESD Protection Human body model:

±8kV (air-gap discharge)

±4kV (contact discharge)

Dimensions (mm) 100(W) x 62.5(D) x 22(H)

Weight(g) 22

Chassis Material Plastic

Silkscreen Color Black

Operating Temperature 0°C~40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity 20~90% RH (non-condensing)
