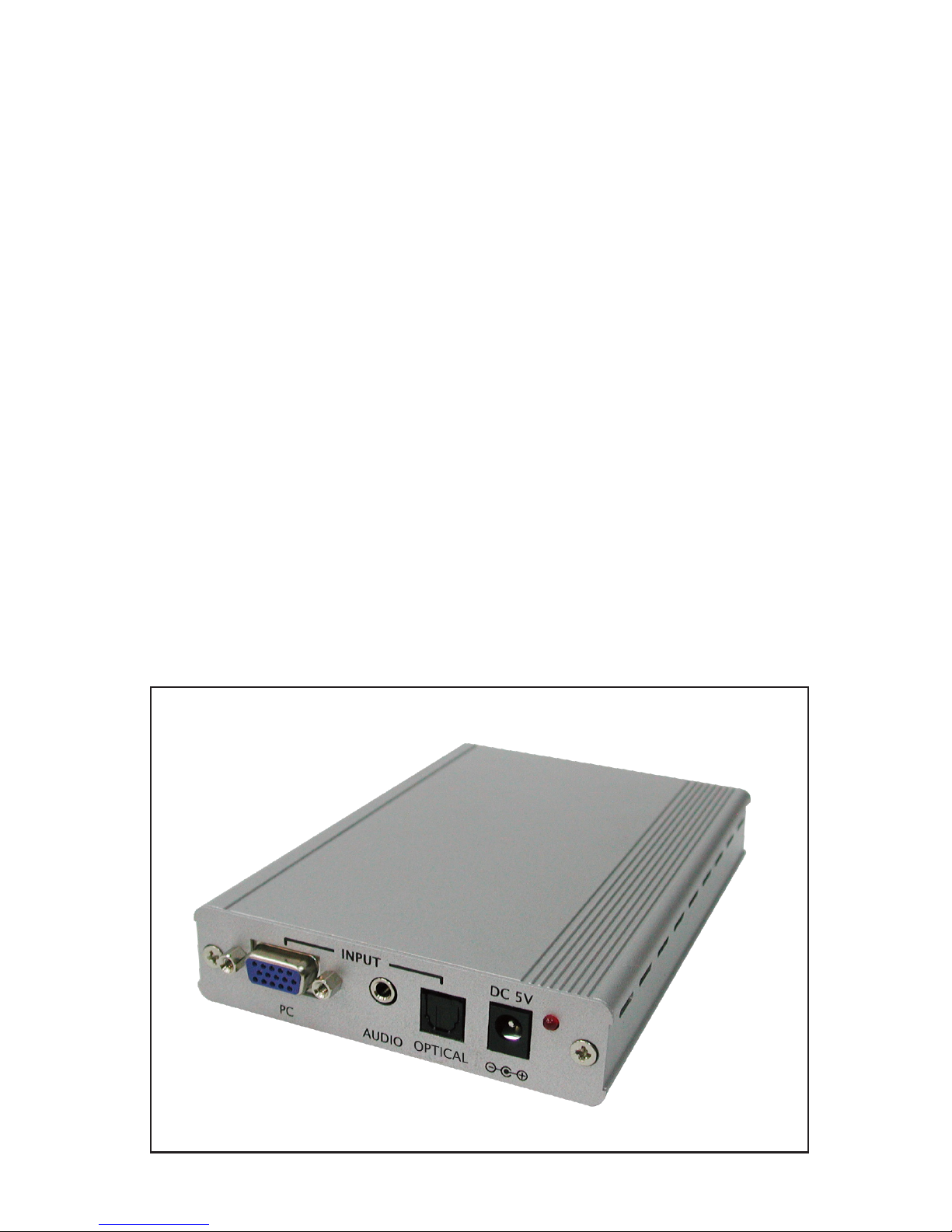

CYP CP-293 Bedienungsanleitung

CP-293 PC to HDMI

1080p Scaler Box

Operation Manual

CP-293

CP-293 PC to HDMI

1080p Scaler Box

1. Introduction................................................................................

2. Features......................................................................................

3. Package Contents....................................................................

4. Operation Controls and Functions..........................................

4.1 Front Panel...........................................................................

4.2 Rear Panel............................................................................

4.3 OSD Operation.....................................................................

5. Reset Functionality.....................................................................

6. Specifications.............................................................................

6.1 General Specifications........................................................

6.2 Supports Resolution..............................................................

7. Connection and Installation.....................................................

TABLE OF CONTENTS

1.Introduction

This Scaler Box is designed to upscale analog video signal from PC input source

to digital HDMI output of wide-range HDTV and PC resolutions, up to

1080p/WUXGA. Besides video upscaling, the scaler box also converts input

audio signal from TOSLink or L/R to both digital and analog formats, then output

to HDMI combining with the video, TOSLink (optical fiber), and phone jack (L/R

audio) simultaneously. This unit has a comprehensive OSD menu that allows

user to select a variety of output resolutions and adjust for best picture quality.

2. Features

 HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.

 Scales any PC resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p)

resolutions.

 Automatically detect the factory setting of the connected display and

output the corresponding resolution and refresh rate, when the NATIVE

output is selected.

 Provides output picture adjustment on contrast, brightness, hue, saturation,

sharpness, RGB (color tone) level and aspect ratio size.

 Supports high resolution output (See section “6.2. Support Resolution” for

reference.):

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

 Supports stereo LPCM analog/digital audio input and stereo LPCM

analog/digital output. Simply select among the audio input sources in the

OSD menu, then output the audio to HDMI, TOSLINK(optical fiber) and

phone jack simultaneously.

3. Package Contents

 PC to HDMI 1080p Scaler Box

 5VDC Power Supply Adaptor

 Operation Manual

4. Operation Controls and Functions

4.1 Front Panel

1 PC Input: Connect the PC input D-Sub (15-pin) port to the D-Sub output

port of your source equipment such like PC.

2 Audio Input: Connect the PC 3.5mm phone jack input port to the analog

audio output port of your source equipment.

3 TOSLink (optical fiber) Input: Connect the optical input port to the digital

audio output port of your source equipment.

4 Power: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

PC AUDIO OPTICAL

DC 5V

INPUT

1 2 3 4

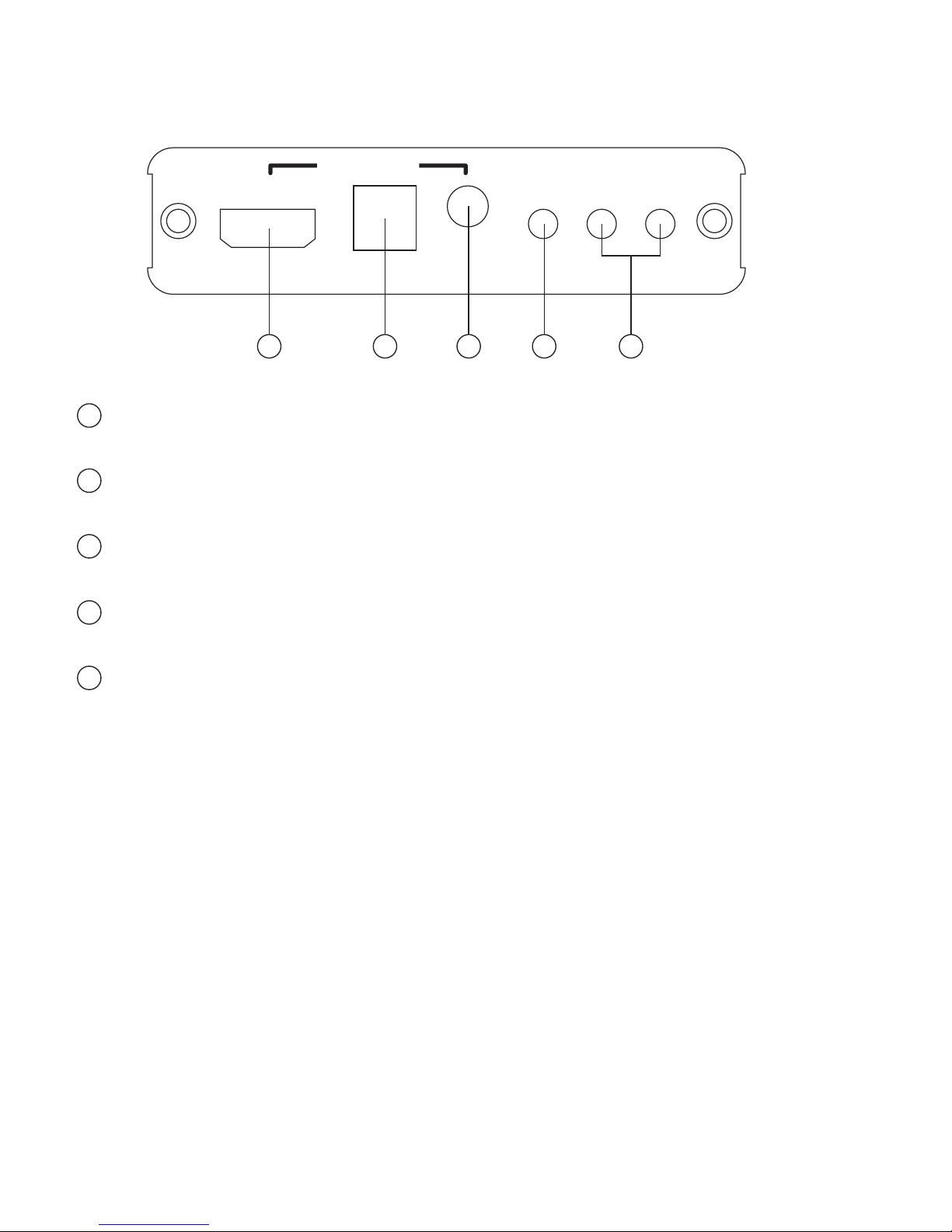

HDMI AUDIO

MENU +

OPTICAL

OUTPUT

1 HDMI Output: Connect the HDMI output port to the HDMI input port of

your display such like HDTV.

2 TOSLink (optical fiber) Output: Connect the optical output port to the

digital audio input port of your amplifier.

3 Audio Output: Connect the PC 3.5mm phone jack output port to the

analog audio input port of your equipment.

4 Menu Button: Press the MENU button to bring up OSD operation menu.

(See section “4. OSD Operation” for reference.)

5 +/- Button:

a. On the first tier of OSD menu, use + and – buttons to move up/down

the highlight item for selection.

b. Once the desired option is selected, use + and – buttons to toggle

between setting values.

Note: Outside of the OSD menu, press [-] button to active the Auto

Adjust function. The screen will show Auto Adjust.

Press [MENU] and then [ - ] to switch to 480p mode.

Press [MENU] and then [ + ] to switch to XGA mode.

4.2 Rear Panel

1 2 3 4 5

4.3. OSD Operation

Adjustment

CONTRAST - 0 ~ 100 of Contrast Level

BRIGHTNESS - 0 ~ 100 of Brightness Level

- HUE 0 ~ 100 of Hue Level

- SATURATION 0 ~ 100 of Saturation Level

- SHARPNESS 0 ~ 100 of Sharpness Level

FINETUNE

- EXIT

- RED 0 ~ 100 of Red Color Level

- GREEN 0 ~ 100 of Green Color Level

- BLUE 0 ~ 100 of Blue Color Level

COLOR

- EXIT

SIZE -

OUTPUT

NATIVE / VGA / SVGA / XGA

/ SXGA /UXGA / 480i / 480p/

720p@60Hz / 1080i@60Hz /

1080p@60Hz / 576i / 576p /

720p@50Hz / 1080i@50Hz /

1080p@50Hz / WXGA /

WSXGA / WUXGA

AUDIO -

- HPOSITION 0 ~ 100 of OSD Horizontal Position

- VPOSITION 0 ~ 100 of OSD Vertical Position

- TIMER 0 ~ 100 of OSD Existing Time (sec.)

- BACKGROUND 0 ~ 100 of OSD Transparent Level

OSD

- EXIT

INFORMATION

EXIT - Close OSD Menu

FULL / OVERSCAN / UNDERSCAN /

LETTERBOX / PANSCAN

EAR PHONE / OPTICAL

Tier Option 2

Tier Option

Back to 1

Tier

Back to 1

Tier

Back to 1

Tier

SOURCE (Input Interface)

INPUT (Input Resolution)

OUTPUT (Output Resolution)

VERSION (Firmware Version)

5. Reset Functionality

To reset the unit, press and hold the MENU button then re-plug the DC power

into the unit to set the unit back to factory default, with output resolution

as NATIVE. This feature is also useful when the output is scaled to a resolution

not supported by the connected TV/monitor so no picture is shown, because

the NATIVE resolution can guarantee the proper (might not be the best) output.

　PC INPUT HDMI OUTPUT

　PC SD/HD PC

480I/576I (NTSC/PAL) V

480P/576P V

720P@(50/60) V

1080I@(50/60) V

1080P@(50/60) V

VGA@(60/72/75/85) V V

SVGA@(56/60/72/75/85) V V

XGA@(60/70/75/85) V V

SXGA@(60/75/85) V V

UXGA@60 V V

WXGA@60(1280x800) V V

WSXGA@60(1680x1050) V V

WUXGA@60(1920x1200) V V

6.2. Support Resolution

6. Specifications

6.1. General Specification

Input Ports

Output Ports

Power Supply

Dimensions (mm)

Weight(g)

Chassis Material

Silkscreen Color

Operating Temperature

1 x PC, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber)

1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber)

5V/2.6A DC (US/EU standards, CE/FCC/UL certified)

154(D) x 100(W) x 25(H)

340

Aluminum

Silver

0°C ~ 40°C

7. Connection and Installation

HDMI

Amplifier

D-Sub

Audio / Optical Audio / Optical

@60

*VGA/SVGA/XGA/SXGA/output only support@60Hz

20080229 MPM-CP293

Home page: http://www.cypress.com.tw

CYPRESS TECHNOLOGY CO., LTD.
