CYP CP-255I Bedienungsanleitung

Operation Manual

CP-255I

Multi-Format to HDMI Scaler

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE

VS1 25/11/11 First release

VR2 03/07/13 Input 1080i resolution @60/50

VR3 18/10/13 RS-232 Port

CONTENTS

1. Introduction..............................................1

2. Applications.............................................1

3. Package Contents .................................. 1

4. System Requirements.............................. 1

5. Features....................................................2

6. Operation Controls and Functions......... 3

6.1 Front Panel...........................................3

6.2 Rear Panel ...........................................4

6.3 Remote Control...................................5

6.4 OSD Menu............................................6

6.5 RS-232 Pin Assignment ........................7

6.6 RS-232 Setting Commands.................8

6.7 RS-232 Status Commands ................12

6.8 Resolution Supports...........................14

8. Specications ........................................ 16

9. Acronyms ...............................................17

1. INTRODUCTION

The Multi-Format to HDMI Scaler is designed to upscale digital/analog

video signals from Composite, S-Video, PC, Component (HD) and

HDMI input sources, to digital HDMI output of a wide range of HDTV

and PC resolutions including 1080p and WUXGA (1920 x 1200).

As well as upscaling video, the scaler box also converts digital/analog

audio signals to digital format, which can then be output either

through HDMI combined with the video signal or separately via the

discrete Coaxial S/PDIF output.

The Scaler has a comprehensive on-screen display (OSD) menu that

allows the user to select a variety of output resolutions and adjust

them for the best picture quality.

2. APPLICATIONS

• Upscale the video from standard denition sources or a PC/Laptop

to a HDMI equipped display.

3. PACKAGE CONTENTS

• Multi-Format to HDMI Scaler

• Remote Control

• 1×D-Sub 15-pin Cable

• 1×Composite Video Cable (3 RCA)

• 5 V/3 A DC Power Supply Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

• INPUT: Composite, Component, S-Video or HDMI, or PC VGA video/

audio source.

• OUTPUT: HDMI equipped TV or monitor, optional Coaxial (S/PDIF)

equipped receiver/amplier.

5. FEATURES

• HDMI, HDCP 1.1 and DVI 1.0 compliant

• Scales any PC (VGA~WUXGA) or HD (480i~1080p) resolutions to from

another PC/HD resolutions

• Automatically detects the correct settings of the connected display

and outputs the corresponding resolution and refresh rate, when

the NATIVE output is selected

• Supports 50/60 Hz frame rate conversion

• Supports 3D motion video adaptive, 3D de-interlacing, and 3:2 / 2:2

pull-down detection and recovery

• Provides output picture adjustment on contrast, brightness, hue,

saturation, sharpness, RGB (color tone) level, and aspect ratio size

• Supports high resolution input/output:

PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, and WUXGA

HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

• Supports digital and analog audio input and digital output

6. OPERATION CONTROLS AND FUNCTIONS

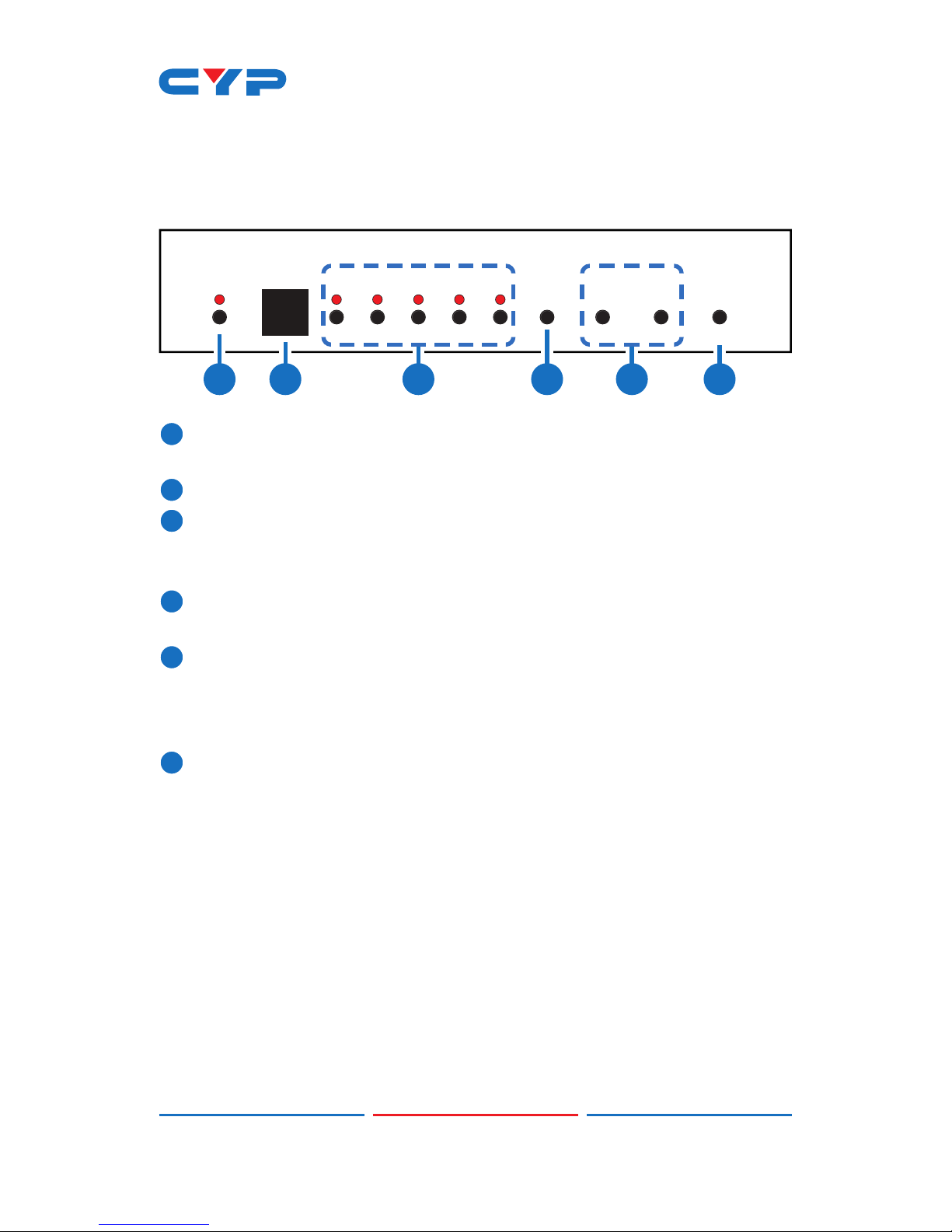

6.1 Front Panel

POWER CV SV COMP PC

MEN

NTER

Digital Video Scaler Processor

HDMI

1 2 5 63 4

POWER Button and LED: Press the button power the unit on or off.

When the power is turned on, the LED will illuminate.

IR Window

Input Buttons and LEDs: Press the required button (CV/SV/COMP/

PC/HDMI) to select the desired input source. The LED will illuminate

to indicate the corresponding input is selected.

MENU Button: Press the MENU button to bring up OSD operation

menu (see section 6.3 OSD Operation for reference.)

Minus (-)/Plus (+) Buttons: A. On the rst level of OSD menu, use +

and − buttons to move up/down the menu to highlight the item

for selection. B. Once the desired option is selected, use + and −

buttons to toggle between setting values.

ENTER Button: In the OSD menu, use the ENTER button to conrm

the selection.

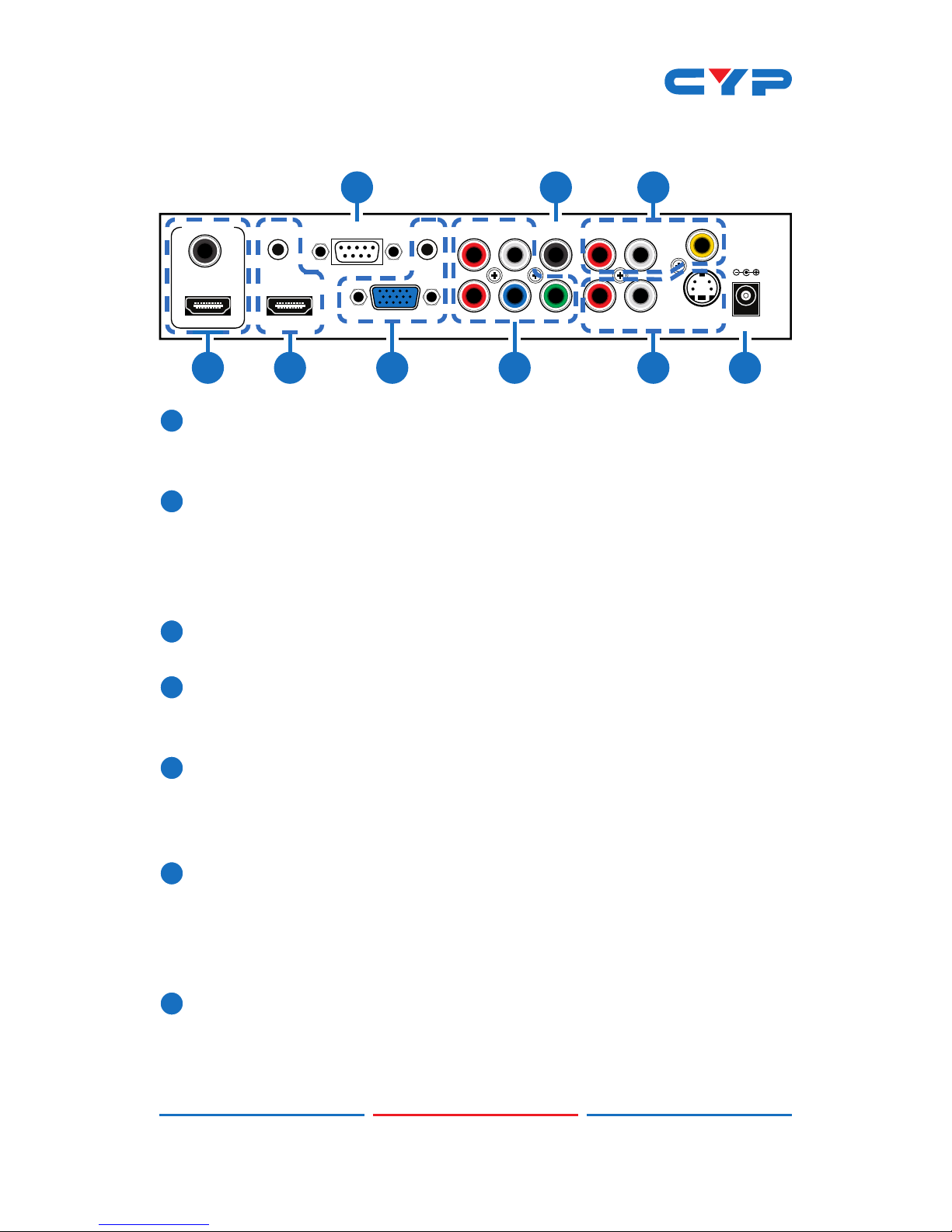

6.2 Rear Panel

HDMI OUT

AUX IN RS-232PC IN

HDMI IN

PC IN

Cr/Pr

Cb/Pb

CO-AX

LCV

DC 5V

LSV

CO-AX OUT

1 2

3 6 8

4 5 7 9

HDMI OUT and COAX OUT: Connect the HDMI OUT port to an HDMI

display such as HDTV or monitor. Connect the COAXIAL OUT port

(TOSLINK) to an amplier for separate digital audio output.

HDMI IN and AUX IN: Connect the HDMI IN port to an HDMI source

device such as a DVD player or set-top box or connect to a DVI

source equipment such as a PC with an HDMI to DVI cable. Use

the AUX IN port to input the audio signal when the video signal

input through the HDMI IN port is an DVI source.

RS-232: Connect to a PC/Laptop or RS-232 control system to use

RS-232 commands to control the device.

PC IN and Audio IN: Connect the D-sub 15-pin port to a PC for

video signal conversion. Connect the 3.5mm phone jack port to

the PC for audio signal conversion.

YCbCr/YPbPr IN and L/R IN: Connect the YCbCr/YPbPr input ports

(3 RCA) to source equipment such as a DVD player or set-top box

for video signal conversion. Connect the L/R audio input ports to

source equipment for audio signal conversion.

COAX IN: The COAXIAL port provides the digital audio input

support, and can be assigned to any of the video inputs. Once

connected, it can be assigned in the OSD Menu under Audio

Source Selection by selecting between Coaxial (S/PDIF) or other

audio source (see section '6.4 OSD Menu' for reference).

S-Video IN and L/R IN: Connect the S-Video input port to

source equipment such as a DVD player or set-top box for vido

signal conversion. Connect the L/R audio input ports to source

equipment for audio signal conversion.

Composite Video IN and L/R IN: Connect the Composite Video

input port to source equipment such as a DVD player or Set-top

box for video signal conversion. Connect the L/R audio input ports

to source equipment for audio signal conversion.

DC 5V: Plug the 5 V DC power supply into the unit and connect the

adaptor to AC wall outlet.

6.3 Remote Control

POWER: Press the button once to power on

the unit. Press again to enter standby mode.

INPUT: Press the button repeatedly to toggle

through various input sources.

HD, PC, HDMI/DVI: Press the appropriate

button to directly select component video,

PC, or HDMI/DVI input.

VGA, SVGA, XGA, SXGA, UXGA or 480p,

720p, 1080i, 1080p: Press appropriate button

to directly select the preferred output

resolution. Other output resolutions that

are not covered by these buttons can be

selected from the OSD Menu.

MENU: Press the button to bring up the OSD

main menu page.

EXIT: Press the button to exit from a sub

menu or main menu.

Up, Down, Left, Right and OK: Press the Up/Down button to move

the highlight bar to your desired parameter during the OSD

operation. Press the Left/Right button to increase/decrease the

value of a selected parameter.Press the OK (ENTER) button to

conrm your selection.

AUTO ADJUST: Press the button to optimize the positioning of the

picture (picture centering) on the screen.

RESET: Press the button to reset the unit's rmware setting to the

factory default value.

9 8
