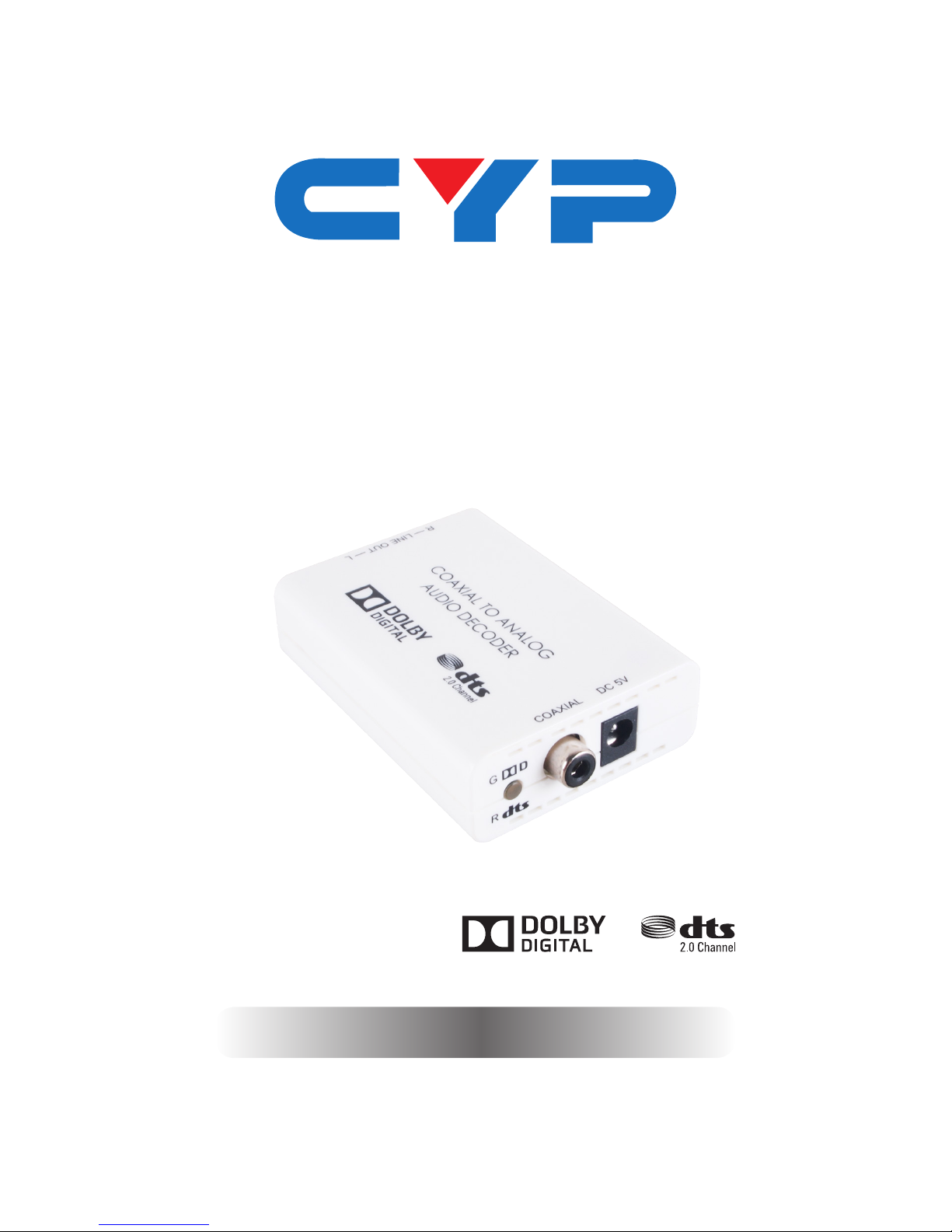

CYP DCT-1DD Bedienungsanleitung
DCT-1DD
Coaxial to Analog Audio Converter
with Dolby®Digital & DTS®2.0 Decoder
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,487,535 & other U.S. and worldwide patents issued
& pending. DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS 2.0 is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 24/07/15 Preliminary Release
VS1 19/04/18 Updated section 3
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel.........................................3
6.2 Rear Panel .........................................3
7. Connection Diagram ............................ 4
8. Specications ........................................ 5
9. Acronyms ............................................... 6
1
1. INTRODUCTION
The Coaxial to Analog Audio Converter (DAC) with Dolby®Digital &
DTSTM 2.0 Decoder provides the ideal solution for converting an coaxial
digital audio signal to analog stereo audio. It provides high quality
sound conversion. The Dolby Digital & DTS 2.0 function guarantees that
Dolby digital/DTS2.0 audio signals are downmixed to analog stereo
without loss of quality. This unit is perfect for use in computer audio
systems or digital mixing consoles.
2. APPLICATIONS
• Converting digital coaxial audio into analog stereo
• Converting Dolby Digital formatted audio into analog stereo
• Converting DTS 2.0 formatted audio into analog stereo
• HDTV with only digital audio output to analog amplier input
• Improving the digital to analog conversion quality from any stereo
optical digital audio source
3. PACKAGE CONTENTS
• 1×Coaxial to Analog Audio Converter with Dolby Digital Decoder &
DTS 2.0 Decoder
• 1×5V/1.2A DC Power Adapter
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
Digital audio source device such as DVD/Blu-ray player or Media
player with an coaxial output cable and to a device such as an
amplier or AV receiver with analog stereo input.
2
5. FEATURES
• Supports coaxial digital audio signal input and conversion into
analog audio signal L/R output
• Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1,
48, 88.2 and 96 kHz)
• Supports DTS 2.0 5.1CH audio sampling rates up to 96 kHz
• Supports Dolby Digital 5.1CH audio sampling rates up to 48 kHz
• Supports Dolby Digital & DTS 2.0 audio downmixing to 2-channel
audio
• Supports S/PDIF bitstream 24-bit of data for the left and right
channels
• Compact, elegant design and easy to install
3

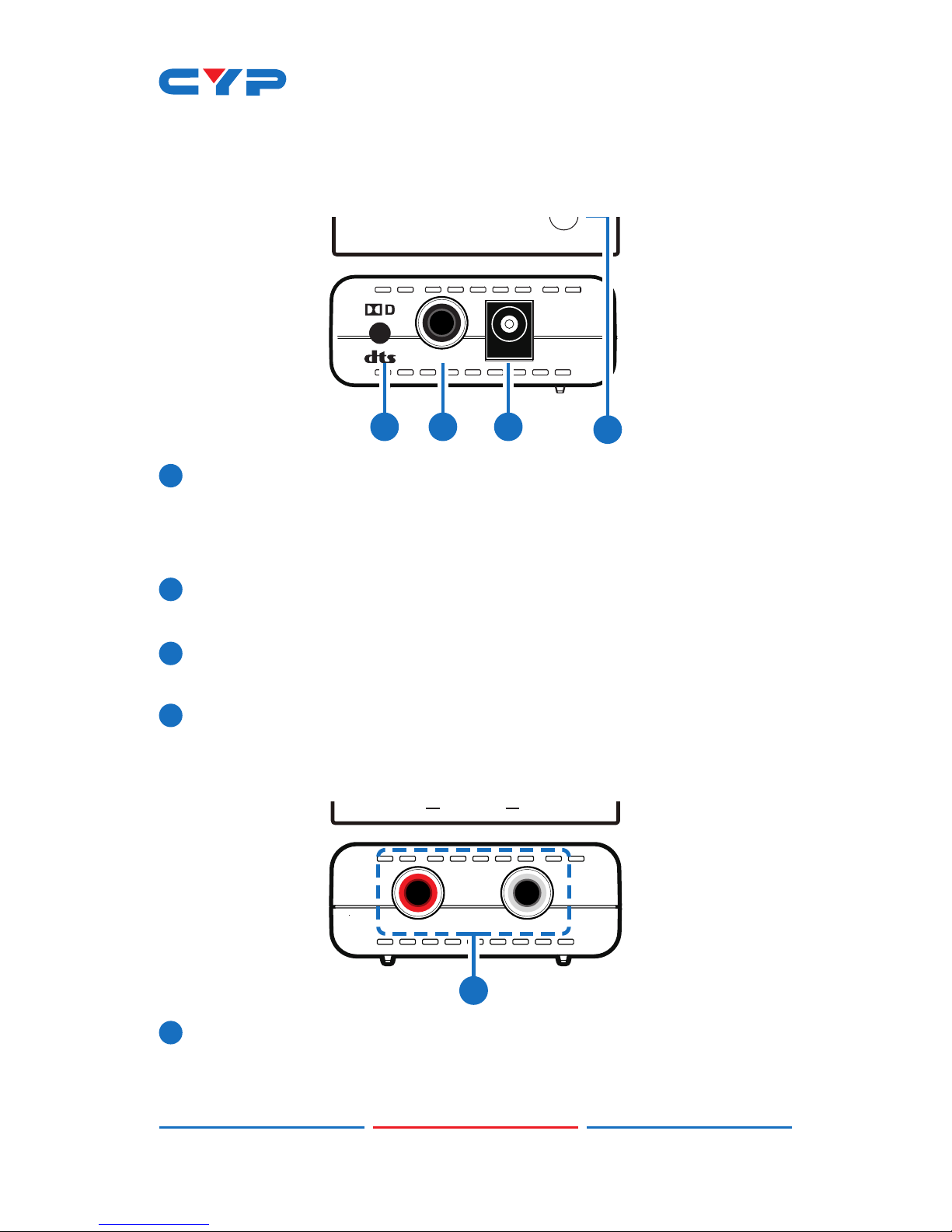

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
G
R
RL
LINE OUT
RL
LINE OUT
COAXIAL DC 5V
4
1 32
1Dolby/DTS LED Indicator: When the source audio is encoded with
Dolby Digital the LED will illuminate in green and when with DTS 2.0
the LED will illuminate in red other types of audio the LED will not
illuminate.
2COAXIAL IN: Connect the Coaxial input to an Coaxial digital audio
source, such as a Games Console, HDTV or Set-top Box.
3POWER 5V: Plug the 5V DC power supply into the unit and
connect the adaptor to an AC outlet.
4Power LED: The LED will illuminate when connected to power.
6.2 Rear Panel
RL
LINE OUT
RL
LINE OUT
COAXIAL DC 5V
1
1R/L LINE OUT: Connect the R/L analog audio output to the input of
your AV Receiver or audio system.
4

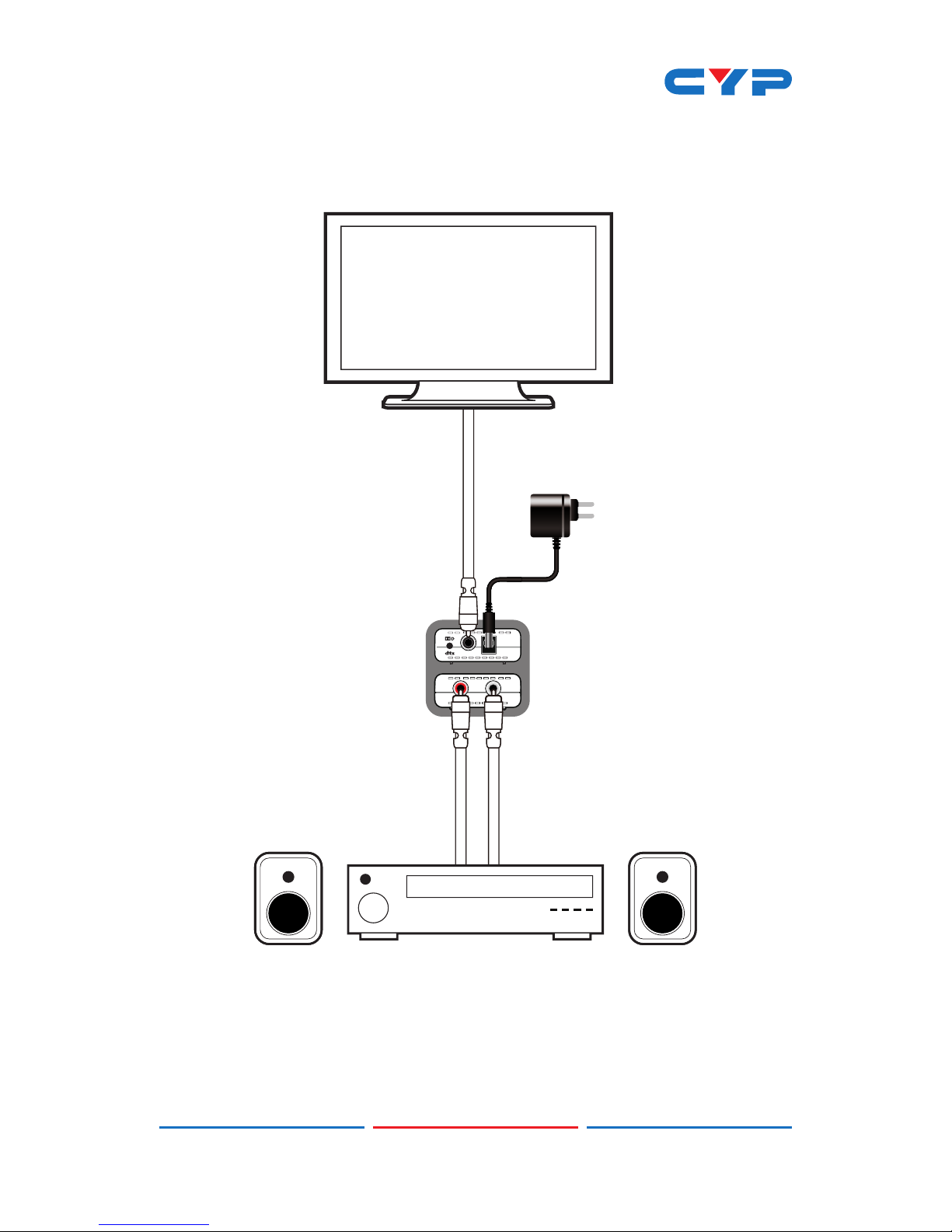

7. CONNECTION DIAGRAM
G
R
HDTV without
Analog Audio Output
Digital
Coaxial
Input
Analog
Stereo
Output
Power Supply
Amplier
(with a spare analog input)
5
8. SPECIFICATIONS
Input Port 1×Coaxial
Output Port 1×L/R (2×RCA)
Power Supply 5V/1A DC (US/EU standards,
CE/FCC/UL certied)
Output Level 2Vrms ± 10%
THD+N <0.007%
Frequency Response ±1 dB
SNR >100 dB
Crosstalk <-119 dB
Dimensions 55 mm (W)×75.5 mm (D)×22.5 mm (H)/
Jacks Excluded
55 mm (W)×86 mm (D)×22.5 mm (H)/
Jacks Included
Weight 42 g
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0 ˚C ~ 40 ˚C/32 ˚F ~ 104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption 1.7 W
Audio Specications:
Output Level T.H.D+N
(A-Weight)
Frequency
Response SNR Crosstalk
Coaxial
0dBFS/1kHz 2Vrms±10% <0.01% ±1 dB >100 dB <-115 dB
OUT
IN
