CYP CH-2603RX Bedienungsanleitung
CH-2603RX
HDMI/HDBaseT/USB to HDMI Receiver
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
RDV1 2019/04/29 Preliminary release
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................2
4. System Requirements......................................2
5. Features............................................................3
6. Operation Controls and Functions.................4
6.1 Front Panel................................................. 4
6.2 Rear Panel.................................................. 5
6.3 IR Cable Pinouts ........................................ 6
6.4 RS-232 Pinout and Defaults...................... 6
6.5 WebGUI Control........................................ 7
6.5.1 Video Select Tab.............................. 9
6.5.2 EDID Tab.......................................... 11
6.5.3 HDCP Tab........................................ 13
6.5.4 USB Tab............................................ 14
6.5.5 Audio Tab ....................................... 15
6.5.6 System Tab...................................... 16
6.6 Telnet Control.......................................... 17
6.7 RS-232 and Telnet Commands.............. 18
7. Connection Diagram ....................................29
8. Specications ................................................30
8.1 Technical Specications ........................ 30
8.2 Video Specications............................... 32
8.3 Audio Specications............................... 34
8.3.1 Digital Audio................................... 34
8.3.2 Analog Audio................................. 34
8.4 Cable Specications .............................. 35
8.5 HDBaseT Features.................................... 36
9. Acronyms.......................................................37
1
1. INTRODUCTION
This HDBaseT 2.0 Receiver is designed for use in environments needing
a wide range of exibility when it comes to inputs, outputs, and
control. With a 2 by 2 matrix arrangement of HDBaseT & HDMI inputs
and dual HDMI outputs this Receiver can handle a variety of source
routing scenarios. The HDMI input and outputs support resolutions
up to a maximum of 4K@60Hz (4:4:4, 8-bit) while the HDBaseT input
supports resolutions up to a maximum of 4K@60Hz (YUV 4:2:0, 8-bit). A
balanced analog stereo audio breakout is also provided (LPCM 2.0
sources only) allowing for professional local powered speakers to be
easily added to the system. The HDBaseT input not only supports video
and audio but also bi-directional Ethernet, RS-232, USB, and IR.
When paired with this unit’s standard Transmitter, up to 3 switchable
USB 2.0 host (Type B) connections are available (2 on the Transmitter, 1
on the Receiver) which connect to 6 USB 2.0 (Type A) device ports (3
on the Transmitter, 3 on the Receiver) for a multi-source, bi-directional,
and highly exible KVM conguration (Note: Only 1 USB host may be
active at a time).
This Receiver (PSE) can provide PoH (Power over HDBaseT) power to
the connected HDBaseT Transmitter (PD) (compatible Transmitters
only), allowing for greater exibility within different installation
scenarios. This unit is controllable via front-panel controls, WebGUI,
Telnet, and RS-232.
2. APPLICATIONS
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
2
3. PACKAGE CONTENTS
• 1×HDMI/HDBaseT/USB to HDMI Receiver
• 1×24V/3.75A DC Power Adapter
• 1×3.5mm to IR Blaster Cable
• 1×3.5mm to IR Extender Cable
• 1×Shockproof Feet (Set of 4)
• 1×Operation Manual
• 1x power cord
• 1x3-pin terminal block
• 1x5-pin terminal block
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game
console, or set-top box.
• A compatible HDBaseT transmitter with PoH (PD) support is
recommended.
• HDMI receiving equipment such as HDTVs, monitors or audio
ampliers.
• The use of Premium High Speed HDMI cables, and industry standard
Cat.6, Cat.6a or Cat.7, is highly recommended.
3
5. FEATURES
• HDMI input and output with 3D & 4K video support (18Gbps)
• HDCP 1.x & 2.2 compliant
• HDBaseT 2.0 compatible
• Selectable HDMI and HDBaseT inputs
• HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit)
• HDBaseT input supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit)
• HDMI outputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)
• 2×2 matrix switching (both HDMI outputs are independent)
• Supported HDBaseT features: HD video and audio, 100BaseT
Ethernet, PoH, and control (bi-directional IR/RS-232/USB pass-
through)
• Supports pass-through of 8 channel LPCM, Bitstream & HD Bitstream
audio formats
• Balanced analog stereo audio breakout
• Flexible USB host selection using front panel buttons
• Multiple USB hosts may be connected at once (up to 3 total,
between the Tx and a compatible Rx unit) with a single selected
host active at a time
• Supports providing PoH power from Receiver (PSE) to Transmitter (PD)
(compatible Transmitters only)
• Controllable via front panel buttons, WebGUI, Telnet, and RS-232
4
6. OPERATION CONTROLS AND FUNCTIONS

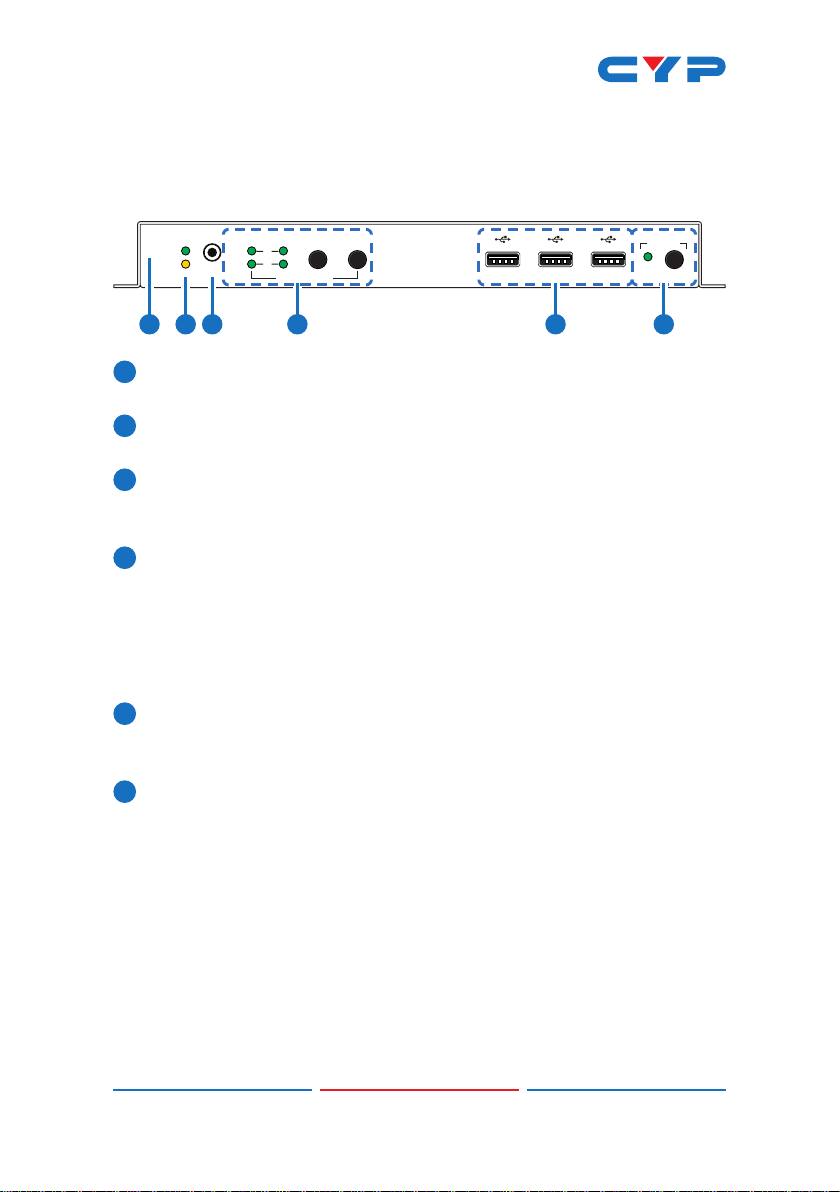

6.1 Front Panel
POWER
LINK
1OUT1
2OUT2
LOCAL
RS-232
HDMI OUT 1OUT 2CAT5e/6/7 USB
SELECT
VIDEO SELECT SERVICE
1 2 3 4 5 6
1POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
2LINK LED: This LED will illuminate solidly when a live connection with
a compatible Transmitter is active.
3LOCAL RS-232 Port: Connect directly to a PC, laptop, or other
serial control device with a 3.5mm adapter cable to send RS-232
commands to control the unit.
4OUT 1 Button & LEDs: Press this button to toggle between the
available inputs for HDMI output 1. The OUT 1 LED will illuminate to
indicate which source is currently selected.
OUT 2 Button & LEDs: Press this button to toggle between the
available inputs for HDMI output 2. The OUT 2 LED will illuminate to
indicate which source is currently selected.
5USB Device Ports (Type A): Connect directly to standard USB
devices such as a mouse, keyboard or ash drive to extend their
USB functionality to the currently active USB Host Port.
6USB SELECT Button & LED: Press this button to toggle between using
the USB Host Port on the Receiver or the USB Host Ports on the
connected Transmitter. The LED will illuminate when the USB Host
Port on the Receiver is active. If the LED is off, then one of the USB
Host Ports on the connected Transmitter is active.
Note: Changing the USB host will force the HDBaseT connection to
briey disconnect while it recongures. The connected host (PC,
Laptop, etc.) may also take a moment to detect all available
devices.
5
6.2 Rear Panel
DC 24VLAN
RS-232
BYPASS
OUT 2OUT 1HDMI INCAT5e/6/7 INUSB OUT
IR
IN
TX RX
ANALOG OUT
LR
G
10987654321
1USB Host Port (Type B): Connect directly to a standard USB host
such as a PC or laptop to extend their USB functionality to all
currently connected USB devices.
Note: Only one USB Host Port may be active at a time.
2IR IN Port: Connect to the provided IR Extender to receive IR
control signals and extend them to devices connected to the
other end of the HDBaseT connection. Ensure that the remote
being used is within direct line-of-sight of the IR Extender.
IR OUT Port: Connect to the provided IR Blaster to transmit IR signals
from the other end of the HDBaseT connection to devices within
direct line-of-sight of the IR Blaster.
3CAT5e/6/7 IN Port: Connect to a compatible HDBaseT Transmitter
with a single Cat.5e/6/7 cable for reception of all data signals. PoH
will also be supplied to a connected compatible PD Transmitter.
4HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
5ANALOG OUT Terminal Block: Connect to powered speakers or an
amplier using a 5-pin terminal block for balanced stereo analog
audio output.
6HDMI OUT 1 Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
7HDMI OUT 2 Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
8BYPASS RS-232 Terminal Block: Connect to a PC, laptop, or other
serial control device with a 3-pin adapter cable for the extension
of RS-232 signals to the Transmitter.
9LAN Port: Connect directly, or through a network switch, to your
PC/laptop to control the unit via Telnet/WebGUI and to extend the
network across the HDBaseT connection.
Inhaltsverzeichnis
Andere CYP Empfänger Handbücher
CYP
CYP CWHDI-Tx Bedienungsanleitung
CYP
CYP CA-COMP100R Bedienungsanleitung
CYP
CYP AVIP-P5104R-B1C Bedienungsanleitung
CYP
CYP PUV-1830RX-AVLC Bedienungsanleitung
CYP
CYP CH-2540RX Bedienungsanleitung
CYP
CYP CH-507TXWPBD Bedienungsanleitung
CYP
CYP AVX-101F-KIT Bedienungsanleitung
CYP
CYP IP-7050RX-TG Bedienungsanleitung
CYP
CYP HDMI Over CAT5 Bedienungsanleitung
CYP
CYP PRO-HDMIFO-KIT Bedienungsanleitung
CYP
CYP PRO-HDMIFO-4K Bedienungsanleitung
CYP
CYP HDBaseT 5Play PUV-1510RX Bedienungsanleitung
CYP
CYP CH-507RXWPL Bedienungsanleitung
CYP
CYP CH-514RXWPL Bedienungsanleitung
CYP
CYP CA-HDMI250R Bedienungsanleitung
CYP
CYP AVX-101C-KIT Bedienungsanleitung
CYP
CYP PU-515PL-WPRX Bedienungsanleitung
CYP
CYP CH-2538TXWPKD Bedienungsanleitung
CYP
CYP DCT-30RX Bedienungsanleitung
CYP
CYP CH-331H-RX Bedienungsanleitung
