CYP CFSW-51MHL Bedienungsanleitung

Operation Manual

CFSW-51MHL

5 x 1 HDMI/MHL Fast Switcher

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.0 December 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

VR0 29/06/2012 Preliminary Release

CONTENTS

1. Introduction..............................................1

2. Applications.............................................1

3. Package Contents .................................. 1

4. System Requirements.............................. 1

5. Features.................................................... 2

6. Operation Controls and Functions......... 3

6.1 Front Panel ..........................................3

6.2 Rear Panel...........................................4

7. Remote Control........................................ 5

8. RS-232 Protocols ...................................... 6

8.1 Pin Assignment ...................................6

8.2 Commands.........................................6

9. Connection and Installation................... 8

10. Specications ........................................ 9

11. Acronyms ...............................................9

1. INTRODUCTION

This is ve inputs and one output HDMI fast switcher which has MHL

(Mobile High-Denition Link) support integrated on its fth input port.

With the MHL port, you can share high denition video and audio from

any of your MHL-ready mobile devices on an HDTV, and charge the

connected device at the same time. This switcher supports 3D signal

up to 2.25Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio

and other features dened by HDMI v1.3 specications, on all of its

5 input ports. The operation of source selection can be done easily

through on-panel buttons, IR remote control, or RS-232 protocol.

2. APPLICATIONS

• Smart Home Entertainment

• Show room or meeting room

• Smart AV Installation

3. PACKAGE CONTENTS

•5 by 1 HDMI with MHL switcher

•5V DC power supply adaptor

•Remote Control CR-113 with battery

•Operation Manual

•IR Extender cable

•MHL to HDMI cable

4. SYSTEM REQUIREMENTS

•HDMI sources such as PS3 or Blu-ray players for 1 to 5 ports

HDMI type A inputs and the 5th port can connect to MHL

mobile device with a MHL to HDMI cable.

•Output HDMI type A port connect to the HDMI display/TV.

Input sources with HDMI/DVIconnector or MHL device.

5. FEATURES

• Supports InstaPort Technology™

• Supports ve HDMI type A with one MHL to HDMI port

• Supports one HDMI type A output

• Supports video resolution up to 1080p@60Hz

• Support HDMI specication features, including data rates up to

2.25Gbps, 12-bit Deep color

• Supports 3D

• MHL port support 1080p@30Hz or 1080i@60Hz

• MHL port can charge the connected mobile device

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

12 3

5X1 HDMI/MHL FAST SWITCHER CFSW-51MHL

54321

POWER

INPUT

1Receiver

2Input selection buttons with LED:

Press input button to select input source, the Blue LED will illuminate

accordingly.

3Power button with LED:

Press this button to switch on the device or press it again to set it

to standby mode. When the system is switch to on the green LED

will illuminate.

6.2 Rear Panel

2 3 4 5

DC 5V

54321

MHL/HDMI

HDMI IN

HDMI OUT

RS232

IR IN

1RS232:

This slot is to connect to a PC or control system with D-Sub 9pin

cable for RS-232 control. For detail RS-232 commands please refers

to section 9.

2IR IN:

Connect to IR extender cable included in the package for

receiving IR remote signal of this device.

3HDMI OUT:

Connect to LCD TV or HD monitor with HDMI cable.

4HDMI IN:

Connect the equipments to the HDMI input ports 1 to 5 such as

DVD player, Blu-Ray, PS3 and other sources with HDMI cables. The

5th can be connected to HDMI/MHL mobile device.

Note: When MHL device is connected it will automatically be

charged, if the MHL device is switched off at the connection, it will

automatically be turned on.

5Power:

Plug the DC 5V power supply into the system and connect the

adaptor to AC wall outlet.

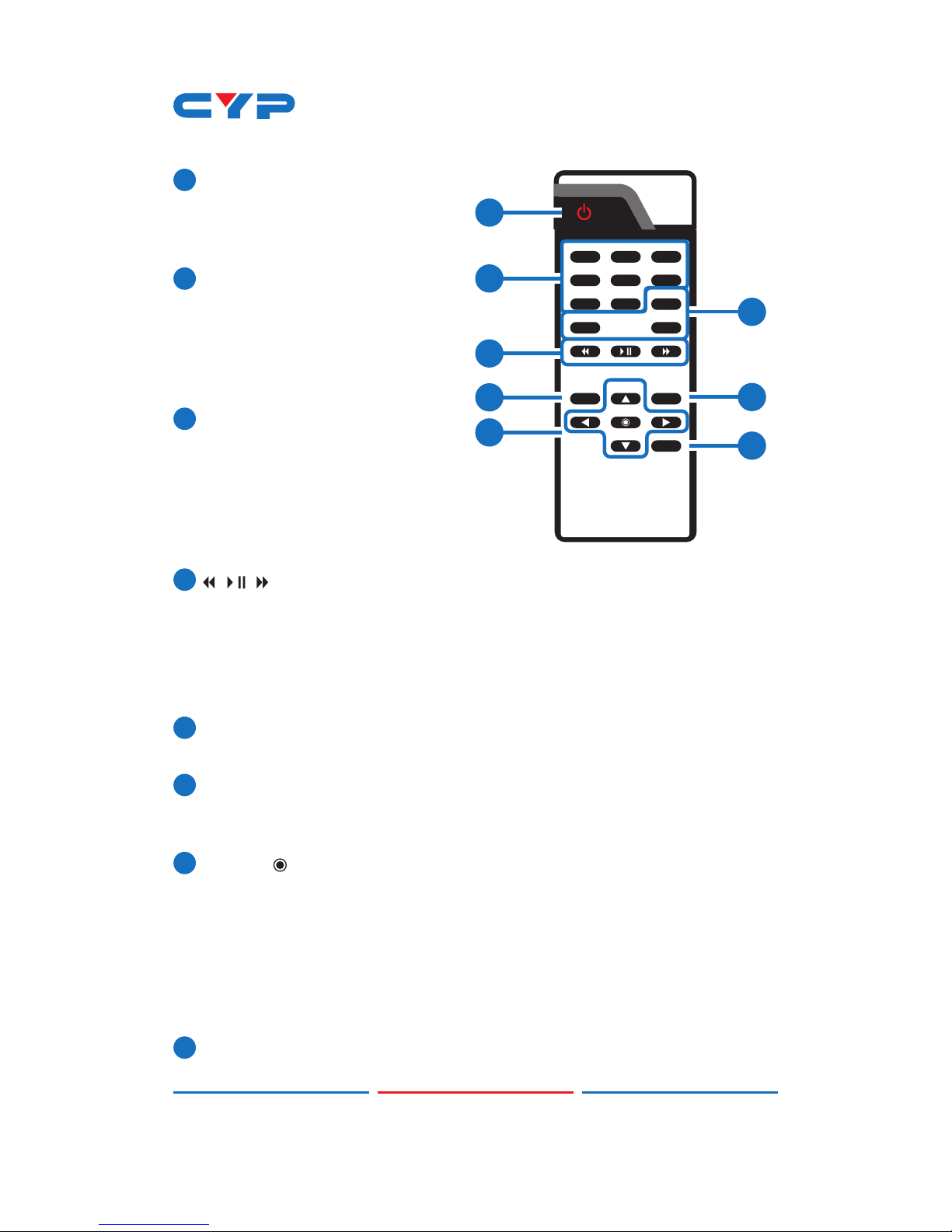

7. REMOTE CONTROL

1Power button:

Press this button to switch on

or turn the device to standby

mode.

2HDMI 1~5:

These buttons are the input

HDMI hot switching keys for

selecting HDMI sources. Note:

for this model only 1~5 is

active.

3Mute / Vol + / Vol -:

These buttons are to control

the input source including DVD

or PS3 or Blu-ray player or even

MHL mobile’s volume by set it

to mute or add up or down the

sound.

These buttons are to control the input source including DVD or

PS3 or Blu-ray or even MHL mobile’s play list by set it to backward,

play/pause and forward.

Note: In order for continuing control on the MHL mobile device

thescreen time out setting must set free.

5Input:

Press this button sequentially to select input source from 1 ~ 5.

6Menu:

Press this button to enter into the input source including DVD or PS3

or Blu-ray or even MHL mobile’s root menu.

7▲▼◄► & Enter:

These buttons are to control the input source including DVD or PS3

or Blu-ray or even MHL mobile’s OSD selection.

Note: In order to activate the functions 3~6, input source device

must compliance with the following

1. HDMI control (CEC/Via Link…etc) must switch on.

2. Must accept CEC command

8Exit:

Press this button to exit the selection .

Input

HDMI 1 HDMI 2 HDMI 3

HDMI 6

HDMI 4 HDMI 5

Vol +

HDMI 7 HDMI 8

Mute

Vol -

Exit

Enter

CR-113
