DCT-17

4 by 1 Optical Audio

Switcher with IR Remote

Operation Manual

DCT-17

DRAFT MANUAL

Disclaimers

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes

no commitment to update or to keep current the information

contained in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

Copyright Notice

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means

- electronic, mechanical, magnetic, optical, chemical, manual,

or otherwise - without express written permission and consent from

Cypress Technology.

© Copyright 2009 by Cypress Technology.

All Rights Reserved.

Version 1.0 October 2009

Trademark Acknowledgments

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

re, electrical shock and injury to persons.

 To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide ventilation.

Revision History

Version No Date Summary of Change

V1 20100802 Preliminary Release

Table of Contents

1. Introduction..................................................................................1

2. Applications.................................................................................1

3. PackageContents......................................................................1

4. Features........................................................................................1

5. Specifications..............................................................................2

6. OperationControlsandFunctions............................................. 3

7.3 Top Panel ..................................................................... 3

7.1 Right Panel ................................................................... 3

7.2 Rear Panel .................................................................... 4

7. ConnectionandInstallation..................................................... 5

1

1. Introduction

The 4 by 1 Optical Audio Switcher is a device with four optical inputs and one

optical output. This device allows users with multiple optical sources connection

for one output display. All signal are bypass and without delay or conguration.

The device is built with last memory function and IR remote control which ease

users with friendly using.

2. Applications

• Multi-selection audio performance

• Optical audio signal display

• Theater performance

• Audio showroom control

3. Package Contents

• 4 by 1 Optical Audio Switcher

• IR Remote Control

• 5V / 1A Power Adaptor

• Operation Manual

5. Features

• Optical sampling rate supports up to 192 kHz

• Low power consumption

• up to 24 bit resolution

2

6. Specications

Input Ports 4 x Optical

Sample Frequency Up to 192 kHz

Output Port 1 x Optical

Audio Format PCM2, AC3/5.1, Dolby 5.1 & DTS 5.1 pass through

Power Supply 5V / 1A DC ( US/EU standards, CE/FCC/UL certied)

ESD Protection Human body model: ± 8kV (air-gap discharge)

± 6kV (contact discharge)

Dimensions(mm) 100 (W) x 70 (D) x 20(H)

Weight(g) 90

Chassis Material Plastic

Silkscreen Color Black

Operating Temperature 0°C~40°C / 32°F~104°F

Storage Temperature -20°C~60°C / -4°F~140°F

Power Consumption <1W

Relative Humidity 20 ~ 90% RH (non-condensing)

3

7. Operation Controls and Functions

7.1TopPanel

1

① Input 1~4: The LED will illuminate in blue when selected the source.

1

1 Optical In: These slots are to connect with input source equipments such

as DVD/Blue-Ray player for audio input signal sending.

4

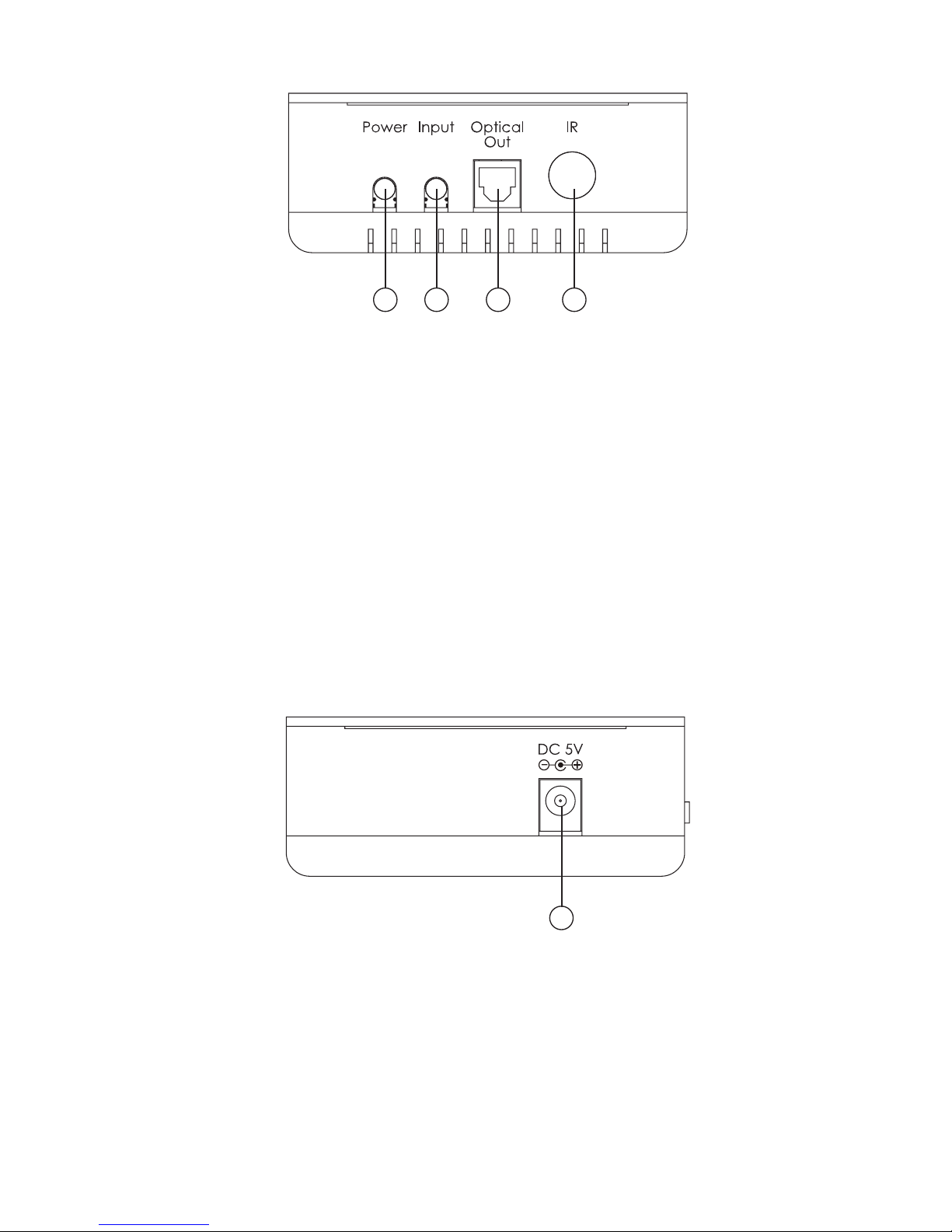

7.2LeftPanel

1 2 3 4

① Power: Press this button to turn on the device or to set it to standby

mode. The blue LED on the top panel will illuminate when the device is

turn on.

② Input: Press this button to select the input port from 1~4. The blue LED on

the top panel will illuminate according to the selection.

③ Optical OUT: This slot is where you connect the amplier or active

speaker with optical cable for audio output.

④ IR: This is the IR receiver window receiving IR signal from the remote

control included with the device.

7.3RearPanel

1

① DC 5V: This slot is where you plug the 5V DC power supply into the unit

and connect the adaptor to an AC wall outlet.

5

8. Connection and Installation

DVD Blu-ray

AmplierActive Speaker

6

Acronyms A

Acronym Complete Term
