4-Mbit (256K x 16) Static RAM

CY62146DV30

Cypress Semiconductor Corporation • 3901 North First Street • San Jose,CA 95134 • 408-943-2600

Document #: 38-05339 Rev. *A Revised February 2, 2005

Features

• Very high speed: 45 ns

• Wide voltage range: 2.20V–3.60V

• Pin-compatible with CY62146CV30

• Ultra-low active power

— Typical active current: 1.5 mA @ f = 1 MHz

— Typical active current: 8 mA @ f = fmax

• Ultra low standby power

• Easy memory expansion with CE, and OE features

• Automatic power-down when deselected

• CMOS for optimum speed/power

• Packages offered 48-ball BGA and 44-pin TSOPII

• Also available in Lead-free packages

Functional Description[1]

The CY62146DV30 is a high-performance CMOS static RAM

organized as 256K words by 16 bits. This device features ad-

vanced circuit design to provide ultra-low active current. This

is ideal for providing More Battery Life™ (MoBL) in portable

applications such as cellular telephones. The device also has

an automatic power-down feature that significantly reduces

power consumption. The device can also be put into standby

mode reducing power consumption by more than 99% when

deselected (CE HIGH). The input/output pins (I/O0through

I/O15) are placed in a high-impedance state when: deselected

(CE HIGH), outputs are disabled (OE HIGH), both Byte High

Enable and Byte Low Enable are disabled (BHE, BLE HIGH),

or during a write operation (CE LOW and WE LOW).

Writing to the device is accomplished by taking Chip Enable

(CE) and Write Enable (WE) inputs LOW. If Byte Low Enable

(BLE) is LOW, then data from I/O pins (I/O0through I/O7), is

written into the location specified on the address pins (A0

through A17). If Byte High Enable (BHE) is LOW, then data

from I/O pins (I/O8through I/O15) is written into the location

specified on the address pins (A0through A17).

Reading from the device is accomplished by taking Chip

Enable (CE) and Output Enable (OE) LOW while forcing the

Write Enable (WE) HIGH. If Byte Low Enable (BLE) is LOW,

then data from the memory location specified by the address

pins will appear on I/O0to I/O7. If Byte High Enable (BHE) is

LOW, then data from memory will appear on I/O8to I/O15. See

the truth table at the back of this data sheet for a complete

description of read and write modes.

The CY62146DV30 is available in a 48-ball VFBGA, 44-pin

TSOPII packages.

Note:

1. For best practice recommendations, please refer to the Cypress application note “System Design Guidelines” on http://www.cypress.com.

Logic Block Diagram

256K x 16

RAM Array I/O0–I/O7

ROW DECODER

COLUMN DECODER

A11

A12

A13

A14

A15

SENSE AMPS

DATA IN DRIVERS

A3I/O8–I/O15

BLE

BHE

A16

A17

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 2 of 11

Notes:

2. NC pins are not internally connected on the die.

3. DNU pins have to be left floating or tied to VSS to ensure proper application.

4. Pins H1, G2, and H6 in the BGA package are address expansion pins for 8 Mb, 16 Mb, and 32 Mb, respectively.

5. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at VCC = VCC(typ.), TA= 25°C.

Pin Configuration[2, 3, 4]

VFBGA (Top View) 44 TSOP II (Top View)

A11

A10

A3CE

I/O

Vss

I/O

BHE

A17

BLE

I/O

5I/O

I/O

A15

A14

A13

NC NC

A16

DNU

Vcc

14 31

VCC

A17

A16

A15

A14

VSS

I/O15

I/O2

I/O0

I/O1

BHE

I/O3

VSS

I/O6

I/O4

I/O5

I/O7

BLE

VCC

I/O14

I/O13

I/O12

I/O11

I/O10

I/O9

I/O8

A10

A11

A13 A12

Product Portfolio

Product

VCC Range (V) Speed

(ns)

Power Dissipation

Operating ICC (mA)

Standby ISB2 (µA)f = 1MHz f = fmax

Min. Typ.[5] Max. Typ.[5] Max. Typ.[5] Max. Typ.[5] Max.

CY62146DV30L 2.20V 3.0 3.60 45 1.5 3 10 20 2 12

CY62146DV30LL 8

CY62146DV30L 2.20V 3.0 3.60 55 1.5 3 8 15 2 12

CY62146DV30LL 8

CY62146DV30L 2.20V 3.0 3.60 70 1.5 3 8 15 2 12

CY62146DV30LL 8

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 3 of 11

Maximum Ratings

(Above which the useful life may be impaired. For user guide-

lines, not tested.)

Storage Temperature .................................–65°C to +150°C

Ambient Temperature with

Power Applied.............................................–55°C to +125°C

Supply Voltage to Ground

Potential......................................–0.3V to + VCC(MAX) + 0.3V

DC Voltage Applied to Outputs

in High-Z State[6, 7].........................–0.3V to VCC(MAX) + 0.3V

DC Input Voltage[6, 7] .....................–0.3V to VCC(MAX) + 0.3V

Output Current into Outputs (LOW)............................. 20 mA

Static Discharge Voltage........................................... >2001V

(per MIL-STD-883, Method 3015)

Latch-up Current......................................................>200 mA

Operating Range

Device Range

Ambient Tem-

perature (TA)V

CC[8]

CY62146DV30L Industrial –40°C to +85°C 2.20V to 3.60V

CY62146DV30LL

Electrical Characteristics Over the Operating Range

Parameter Description Test Conditions

CY62146DV30-45 CY62146DV30-55 CY62146DV30-70

UnitMin. Typ.[5] Max. Min. Typ.[5] Max. Min. Typ.[5] Max.

VOH Output HIGH

Voltage

IOH = –0.1 mA VCC = 2.20V 2.0 2.0 2.0 V

IOH = –1.0 mA VCC = 2.70V 2.4 2.4 2.4 V

VOL Output LOW

Voltage IOL = 0.1 mA VCC = 2.20V 0.4 0.4 0.4 V

IOL = 2.1 mA VCC = 2.70V 0.4 0.4 0.4 V

VIH Input HIGH

Voltage

VCC = 2.2V to 2.7V 1.8 VCC +

0.3V

1.8 VCC +

0.3V

1.8 VCC +

0.3V

VCC= 2.7V to 3.6V 2.2 VCC +

0.3V

2.2 VCC +

0.3V

2.2 VCC +

0.3V

VIL Input LOW

Voltage

VCC = 2.2V to 2.7V –0.3 0.6 –0.3 0.6 –0.3 0.6 V

VCC= 2.7V to 3.6V –0.3 0.8 –0.3 0.8 –0.3 0.8 V

IIX Input Leakage

Current

GND < VI< VCC –1 +1 –1 +1 –1 +1 µA

IOZ Output

Leakage

Current

GND < VO <VCC, Output

Disabled

–1 +1 –1 +1 –1 +1 µA

ICC VCC

Operating

Supply

Current

f = fMAX =

1/tRC

VCC = VCCmax

IOUT = 0 mA

CMOS levels

10 20 8 15 8 15 mA

f = 1 MHz 1.5 3 1.5 3 1.5 3 mA

ISB1 Automatic

Power-down

Current —

CMOS

Inputs

CE > VCC−0.2V,

VIN>VCC–0.2V, VIN<0.2V)

f = fMAX (Address and Data

Only),

f = 0 (OE, WE, BHE and

BLE), VCC = 3.60V

L212 212 212µA

LL 8 8 8

ISB2 Automatic

Power-down

Current —

CMOS Inputs

CE > VCC – 0.2V,

VIN > VCC – 0.2V or VIN <

0.2V,

f = 0, VCC = 3.60V

L212 212 212µA

LL 8 8 8

Notes:

6. VIL(min.) = –2.0V for pulse durations less than 20 ns.

7. VIH(max) = VCC+0.75V for pulse durations less than 20 ns.

8. Full device AC operation assumes a 100-µs ramp time from 0 to VCC(min) and 200 µs wait time after VCC stabilization.

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 4 of 11

Capacitance (for all packages)[9]

Parameter Description Test Conditions Max. Unit

CIN Input Capacitance TA= 25°C, f = 1 MHz,

VCC = VCC(typ)

10 pF

COUT Output Capacitance 10 pF

Thermal Resistance[9]

Parameter Description Test Conditions BGA TSOP II Unit

ΘJA Thermal Resistance

(Junction to Ambient)

Still Air, soldered on a 3 × 4.5 inch, four-layer

printed circuit board

72 75.13 °C/W

ΘJC Thermal Resistance

(Junction to Case)

8.86 8.95 °C/W

AC Test Loads and Waveforms[10]

Parameters 2.50V 3.0V Unit

R1 16667 1103 Ω

R2 15385 1554 Ω

RTH 8000 645 Ω

VTH 1.20 1.75 V

Data Retention Characteristics (Over the Operating Range)

Parameter Description Conditions Min. Typ.[5] Max. Unit

VDR VCC for Data Retention 1.5 V

ICCDR Data Retention Current VCC= 1.5V

CE > VCC – 0.2V,

VIN > VCC – 0.2V or VIN < 0.2V

L9µA

LL 6

tCDR[9] Chip Deselect to Data Retention Time 0 ns

tR[11] Operation Recovery Time tRC ns

VCC

OUTPUT

50 pF

INCLUDING

JIG AND

SCOPE

GND

90%

10% 90%

10%

Rise Time = 1 V/ns Fall Time = 1 V/ns

OUTPUT V

Equivalent to: THÉVENIN EQUIVALENT

ALL INPUT PULSES

RTH

Data Retention Waveform

Notes:

9. Tested initially and after any design or process changes that may affect these parameters.

10. Test condition for the 45 ns part is a load capacitance of 30 pF.

11. Full device operation requires linear VCC ramp from VDR to VCC(min.) > 100 µs or stable at VCC(min.) > 100 µs.

VCC(min)

tCDR

VDR >1.5 V

DATA RETENTION MODE

VCC

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 5 of 11

Switching Characteristics Over the Operating Range [12]

Parameter Description

45 ns[10] 55 ns 70 ns

UnitMin. Max. Min. Max. Min. Max.

Read Cycle

tRC Read Cycle Time 45 55 70 ns

tAA Address to Data Valid 45 55 70 ns

tOHA Data Hold from Address Change 10 10 10 ns

tACE CE LOW to Data Valid 45 55 70 ns

tDOE OE LOW to Data Valid 25 25 35 ns

tLZOE OE LOW to LOW Z[13] 55 5ns

tHZOE OE HIGH to High Z[13, 14] 15 20 25 ns

tLZCE CE LOW to Low Z[13] 10 10 10 ns

tHZCE CE HIGH to High Z[13, 14] 20 20 25 ns

tPU CE LOW to Power-Up 0 0 0 ns

tPD CE HIGH to Power-Down 45 55 70 ns

tDBE BLE/BHE LOW to Data Valid 25 25 35 ns

tLZBE BLE/BHE LOW to Low Z[13] 10 10 10 ns

tHZBE BLE/BHE HIGH to HIGH Z[13, 14] 15 20 25 ns

Write Cycle[15]

tWC Write Cycle Time 45 55 70 ns

tSCE CE LOW to Write End 40 40 60 ns

tAW Address Set-up to Write End 40 40 60 ns

tHA Address Hold from Write End 0 0 0 ns

tSA Address Set-up to Write Start 0 0 0 ns

tPWE WE Pulse Width 35 40 45 ns

tBW BLE/BHE LOW to Write End 40 40 60 ns

tSD Data Set-up to Write End 25 25 30 ns

tHD Data Hold from Write End 0 0 0 ns

tHZWE WE LOW to High-Z[13, 14] 15 20 25 ns

tLZWE WE HIGH to Low-Z[13] 10 10 10 ns

Notes:

12. Test conditions for all parameters other than three-state parameters assume signal transition time of 3 ns (1V/ns) or less, timing reference levels of VCC(typ)/2,

input pulse levels of 0 to VCC(typ.), and output loading of the specified IOL/IOH as shown in the “AC Test Loads and Waveforms” section.

13. At any given temperature and voltage condition, tHZCE is less than tLZCE, tHZBE is less than tLZBE, tHZOE is less than tLZOE, and tHZWE is less than tLZWE for any

given device.

14. tHZOE, tHZCE, tHZBE, and tHZWE transitions are measured when the outputs enter a high-impedence state.

15. The internal Write time of the memory is defined by the overlap of WE, CE = VIL, BHE and/or BLE = VIL. All signals must be ACTIVE to initiate a write and any

of these signals can terminate a write by going INACTIVE. The data input set-up and hold timing should be referenced to the edge of the signal that terminates

the write.

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 6 of 11

Switching Waveforms

Read Cycle 1 (Address Transition Controlled)[16, 17]

Read Cycle No. 2 (OE Controlled)[17, 18]

Notes:

16. The device is continuously selected. OE, CE = VIL, BHE and/or BLE = VIL.

17. WE is HIGH for read cycle.

18. Address valid prior to or coincident with CE and BHE, BLE transition LOW.

ADDRESS

DATA OUT PREVIOUS DATA VALID DATA VALID

tRC

tAA

tOHA

50%

DATA VALID

ACE

LZBE

LZCE

DATA OUT HIGH IMPEDANCE IMPEDANCE

HZOE

HZCE

HIGH

SUPPLY

CURRENT

HZBE

BHE/BLE t

LZOE

ADDRESS

DBE

DOE

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 7 of 11

Write Cycle No. 1 (WE Controlled)[15, 19, 20]

Write Cycle No. 2 (CE Controlled)[15, 19, 20]

Notes:

19. Data I/O is high impedance if OE = VIH.

20. If CE goes HIGH simultaneously with WE = VIH, the output remains in a high-impedance state.

21. During this period, the I/Os are in output state and input signals should not be applied.

Switching Waveforms (continued)

tHD

tSD

tPWE

tSA

tHA

tAW

tWC

DATA I/O

ADDRESS

tHZOE

DATAIN

NOTE 21

BHE/BLE tBW

tSCE

tHD

tSD

tPWE

tHA

tAW

tSCE

tWC

tHZOE

DATAIN

ADDRESS

DATA I/O

NOTE 21

BHE/BLE tBW

tSA

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 8 of 11

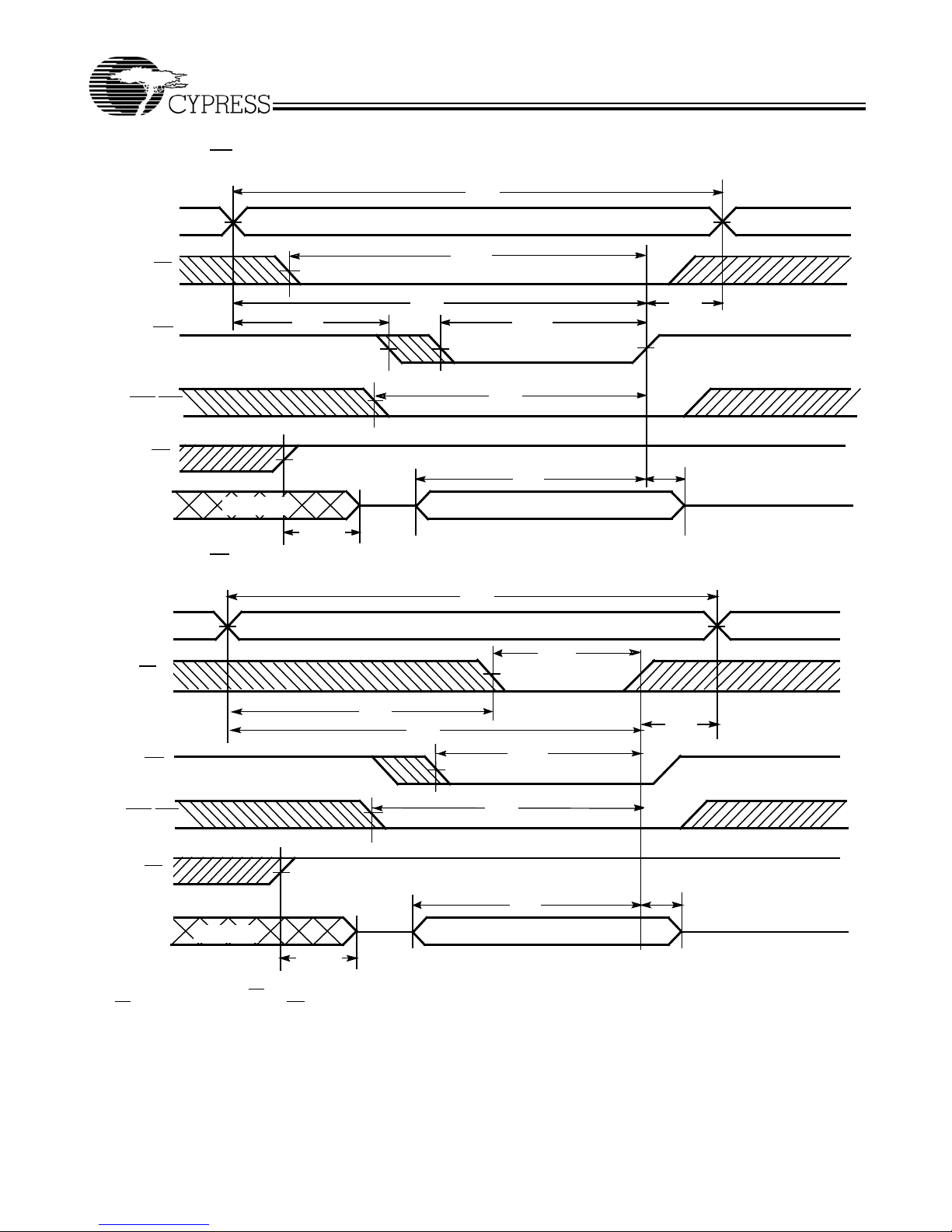

Write Cycle No. 3 (WE Controlled, OE LOW)[20]

Write Cycle No. 4 (BHE/BLE Controlled, OE LOW)[20]

Switching Waveforms (continued)

DATAIN

tHD

tSD

tLZWE

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZWE

ADDRESS

DATAI/O NOTE 21

tBW

BHE/BLE

DATA I/O

ADDRESS

tWC

DATA

NOTE 21

BHE/BLE

tSCE

PWE

tHZWE tHD

tLZWE

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 9 of 11

Truth Table

CE WE OE BHE BLE Inputs/Outputs Mode Power

H X X X X High Z Deselect/Power-Down Standby (ISB)

L X X H H High Z Output Disabled Active (ICC)

L H L L L Data Out (I/OO–I/O15) Read Active (ICC)

L H L H L Data Out (I/OO–I/O7);

I/O8–I/O15 in High Z Read Active (ICC)

L H L L H Data Out (I/O8–I/O15);

I/O0–I/O7 in High Z

Read Active (ICC)

L H H L L High Z Output Disabled Active (ICC)

L H H H L High Z Output Disabled Active (ICC)

L H H L H High Z Output Disabled Active (ICC)

L L X L L Data In (I/OO–I/O15) Write Active (ICC)

L L X H L Data In (I/OO–I/O7);

I/O8–I/O15 in High Z

Write Active (ICC)

L L X L H Data In (I/O8–I/O15);

I/O0–I/O7 in High Z Write Active (ICC)

Ordering Information

Speed

(ns) Ordering Code

Package

Name Package Type

Operating

Range

45 CY62146DV30LL-45BVI BV48A 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm) Industrial

CY62146DV30LL-45BVXI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm) (Pb-free)

CY62146DV30LL-45ZSXI ZS-44 44-pin TSOP II (Pb-free)

55 CY62146DV30L-55BVI BV48A 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm) Industrial

CY62146DV30L-55BVXI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm)

(Pb-free)

CY62146DV30LL-55BVI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm)

CY62146DV30LL-55BVXI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm)

(Pb-free)

CY62146DV30L-55ZSXI ZS-44 44-pin TSOP II (Pb-free)

CY62146DV30LL-55ZSXI

70 CY62146DV30L-70BVI BV48A 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm) Industrial

CY62146DV30L-70BVXI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm)

(Pb-free)

CY62146DV30LL-70BVI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm)

CY62146DV30LL-70BVXI 48-ball Very Fine Pitch BGA (6 mm × 8mm × 1 mm)

(Pb-free)

CY62146DV30L-70ZSXI ZS-44 44-pin TSOP II (Pb-free) Industrial

CY62146DV30LL-70ZSXI

[+] Feedback

CY62146DV30

Document #: 38-05339 Rev. *A Page 10 of 11

of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be

used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its

products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

MoBL is a registered trademark, and More Battery Life is a trademark, of Cypress Semiconductor. All product and company

names mentioned in this document may be the trademarks of their respective holders.

Package Diagram

48-Lead VFBGA (6 x 8 x 1 mm) BV48A

51-85150-*B

44-Pin TSOP II ZS44

51-85087-*A

[+] Feedback

Inhaltsverzeichnis

Andere Cypress Computerhardware Handbücher

Cypress

Cypress CY91590 Series Bedienungsanleitung

Cypress

Cypress MB9B160R Series Bedienungsanleitung

Cypress

Cypress CY62128B Bedienungsanleitung

Cypress

Cypress CY8CKIT-029 PSoC Bedienungsanleitung

Cypress

Cypress CY62137EV30 Bedienungsanleitung

Cypress

Cypress CY14B101P Bedienungsanleitung

Cypress

Cypress CY3250-PLC20NQ Bedienungsanleitung

Cypress

Cypress SK-FM4-176L-S6E2CC Bedienungsanleitung

Cypress

Cypress PSoC DESIGNER ImageCraft M8C Bedienungsanleitung

Cypress

Cypress CY8C22113 Bedienungsanleitung

Cypress

Cypress EZ-PD CCG3 Bedienungsanleitung

Cypress

Cypress EZ-Color CY3263-ColorLock Bedienungsanleitung

Cypress

Cypress CY14B101Q1 Bedienungsanleitung

Cypress

Cypress CY62128EV30 Bedienungsanleitung

Cypress

Cypress CY8CKIT-038 Bedienungsanleitung

Cypress

Cypress UNIVERSAL CAPSENSE CY3280-BMM Bedienungsanleitung

Cypress

Cypress 256K (32K x 8) CY62256 Bedienungsanleitung

Cypress

Cypress PSoC CY8CKIT-048 Handbuch

Cypress

Cypress CYSMART CY5677 Bedienungsanleitung

Cypress

Cypress CY14E256L Bedienungsanleitung

Cypress

Cypress MB2198-01 Bedienungsanleitung

Cypress

Cypress CY8CKIT-029 PSoC Bedienungsanleitung

Cypress

Cypress EZ-USB FX3 SDK Bedienungsanleitung

Cypress

Cypress DCT-7 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
