Cypress CLUX-4S2 Bedienungsanleitung
CLUX-4S2
4x2 HDMI v1.3
switch
Operation Manual
CLUX-4S2
TABLE OF CONTENTS
1. Introduction.................................................................................1
2. Main Features............................................................................. 1
3. Package Contents..................................................................... 1
4. Hardware Description................................................................ 1
4.1 Front Panel.............................................................................1
4.2 Rear Panel............................................................................. 2
5. Remote Control...........................................................................2
6. Connection and Installation......................................................3
7. Specifications............................................................................. 3
1
1. Introduction
This is a 4 to 2 HDMI v1.3 switch it allows 4 HDMI port to be switched to two
independent display output. This is compatible to HDMI v1.3 specifications,
a cutting edge technology which defines the support to transfer Deep
Color (12 bits/color) video and new lossless compressed (Dolby TrueHD,
Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high
bandwidth up to 225MHz. The HDMI v1.3 Distribution Amplifier also does
signal amplification and equalization.
2. Main Features
●Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards.
●Supports four HDMI inputs and switch to two independent display output
(can’t support simultaneously output).
●Supports digital video formats in Deep Color Mode at up to 36 bits
(12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio) digital audio.
●Supports equalize and recover incoming TMDS data before re-transmitting
them with optimal quality regardless of the incoming signal quality.
●Supports high definition input up to 1080p@(24/60)Hz, output resolution
follows input.
●Support CEC function.
●HDMI cable distance test with 1080p/8bits resolotion, the input/output
source can run up to 15/15 meters and 1080p/12bits the input/output
source can run up to 7/7 meters.
3. Package Contents
●4 x 2 HDMI v1.3 switch.
●5V/1A DC power supply adaptor.
●Operation Manual.
4. Operation Controls and Functions
4.1. Front Panel
1 . Remote Control Sensor.
2 . HDMI input selection/Indicator: Press the "Input" button sequentially to
switch to your desired input (HDMI 1 to HDMI 4), the LED will illuminate to
indicate which input source is selected.
4321
1 12 23 4 OUTPUT
INPUT POWER
CLUX-4S2
2
3 . HDMI output selection: Press the “Output” button to select your desired
output port, the LED will illuminate to indicate which output port is
selected (can’t support simultaneously output).
4 . POWER Switch/Indicator: Press the "POWER" button to turn on/off the
power.

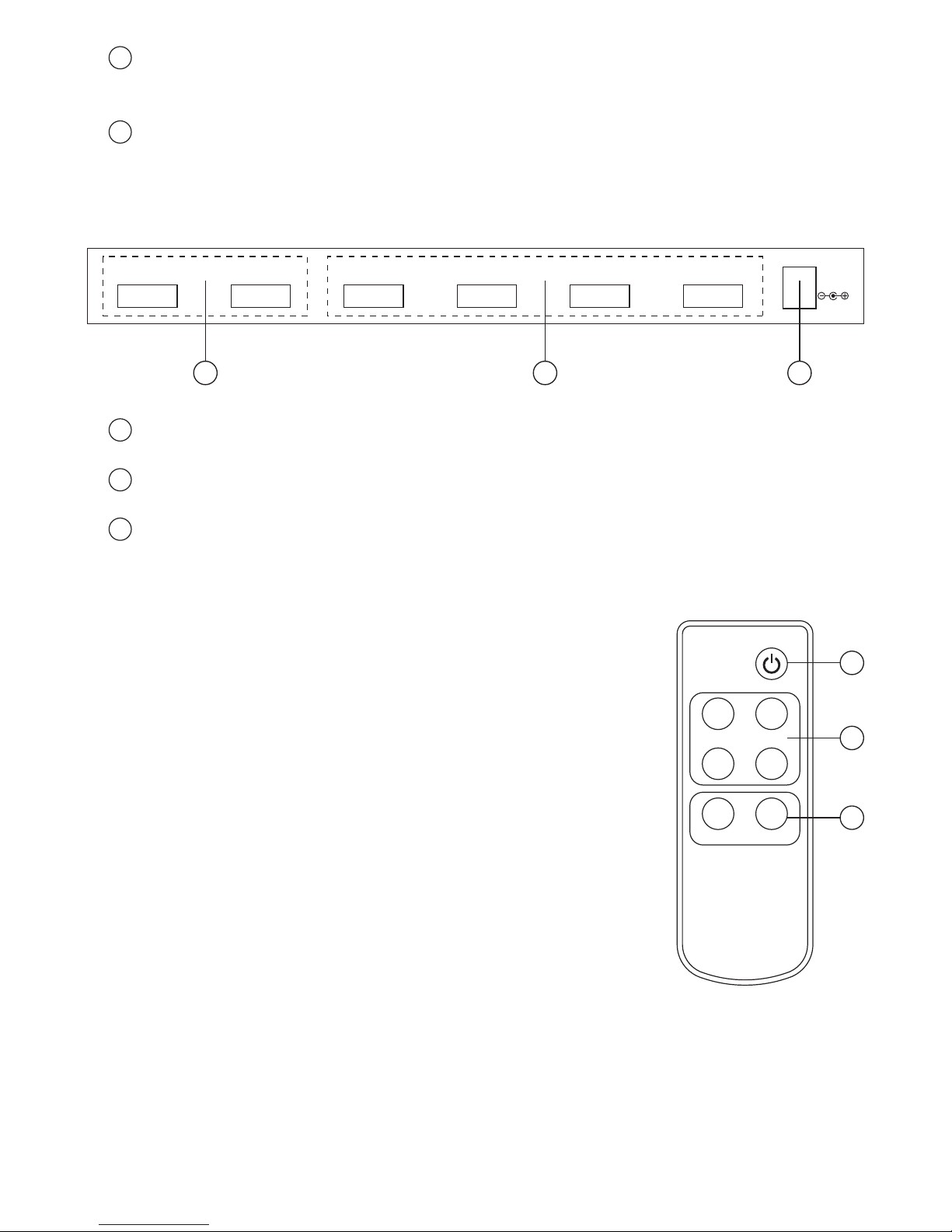

4.2. Rear Panel
1 . HDMI Outputs 1 and 2: Connect each of the output ports to the HDMI
display.
2 . HDMI Inputs 1 to 4: Connect each of the input ports to the HDMI or DVI
output of your source equipment such as DVD player or set-top-box.
3 . Power: Plug the 5V DC power supply into this unit and connect the
adaptor to AC wall outlet.
5. Remote Control
1. Power: Press the button to turn on/off the unit.
2. Direct input selector: Press 1, 2, 3 or 4 to select the
desire input source.
3. Direct output selector: Press 1 or 2 to select the
desire output port.
IN 1IN 2IN 3IN 4OUTPUT 1
DC 5V
OUTPUT 2
321
OUTPUT
CR-51
POWER
INPUT
3 4
1 2
1 2
1
2
3
3
6. Connection and Installation
7. Specifications
Input ports 4 x HDMI
Output ports 2 x HDMI
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL
certified)
Dimensions (mm) 206(W) x 111(D) x 32(H)
Weight(g) 248
Chassis Material Plastic
Silk Skin Color Black
Operating Temperature Operating from 0°C ~ 40°C
LCD TV
DVD 3
LCD TV
STBDVD 2DVD 1
2008.4.3 MPM-CLUX4S2
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
