DHP-601AV

Quick Install Guide

PowerLine AV2 1000 Gigabit Starter Kit

If any of the above items are missing, please contact your reseller.

Two Powerline AV2 1000 Gigabit Adapters (DHP-600AV)

Two Ethernet Cables

Quick Install Guide

Package Contents

Installation Considerations

1. Connect PowerLine devices into electrical outlets that are not controlled by a

wall switch. This will help you to avoid accidentally turning o power to the

device.

2. Do not connect your PowerLine devices to extension cords, surge protectors, or

power strips. Doing this might prevent your devices from working correctly, or

may reduce network performance.

3. Avoid plugging your PowerLine devices into electrical outlets that are located

near appliances that use a lot of power, such as washers, dryers, and refrigerators.

Doing this could prevent the adapter from working correctly, or may negatively

impact network performance.

4. Verify that your PowerLine devices are electrically rated to operate with the

power available in your location.

5. Be sure to plug the power cables into properly grounded electrical outlets in

order to help prevent against electrical shock.

1Power LED

• Solid: The device is receiving electrical power.

• Blinking: The device is powering up or in power saving

mode. The light will also blink during the Simple

Connect process.

• O: The device is not receiving electrical power.

2PowerLine LED

• Solid: The device is connected to a Powerline

network.

• O: The device has not found any other compatible

Powerline devices using the same encryption key.

The color indicates the Powerline link rate:

• Green: The Powerline link rate is best.

• Amber: The Powerline link rate is better.

• Red: The Powerline link rate is good.

3Ethernet LED • Solid: The Ethernet port is linked.

• O: There is no Ethernet connection.

4Simple Connect Button/

Reset Button

Press and hold the button for two seconds to secure

your network or hold the button for 10 seconds to reset

to the factory default settings.

5Gigabit Ethernet Port

Connect to a 10/100/1000 Ethernet device such as a

router, computer, gaming console, network storage

unit, or a media player.

Product Overview

• For best results, use in a regular wall outlet without any other devices plugged

in. Plugging into a power strip or a surge protector may adversely aect the

performance of this product.

• Avoid using the PowerLine adapters in an electrical outlet that is located near

an appliance that uses a lot of power, such as a washer or dryer, refrigerator,

microwave, hair dryer, or air conditioning unit.

• To verify connectivity or if you are having connection problems, plug the

adapters in the same room to verify whether your home’s electrical wiring is

contributing to the issue. The adapters’PowerLine LED indicators will illuminate

if the connection is established. Once congured you may place the adapter in

the location of your choice.

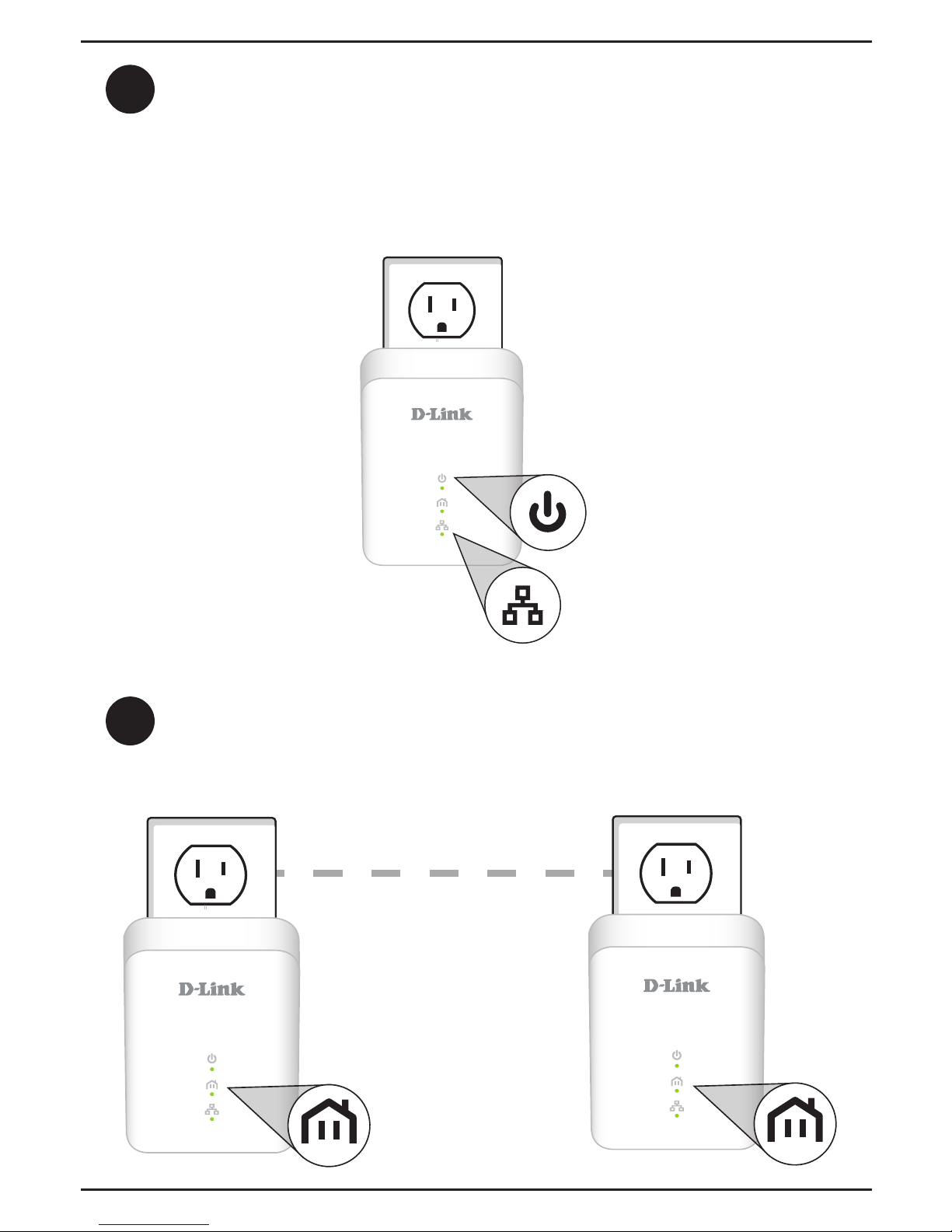

1Plug in one of the DHP-600AV adapters and connect to your

router with an Ethernet cable. The Power and Ethernet LEDs

should both light up.

2.5A

USB

WPS

INTERNET

POWER

DHP-600AV

Router

Internet

Installation

Recommendations

2Plug in the other DHP-600AV adapter in the room that you

want to extend your network. The Power LED will turn on.

You can now connect a device such as a computer, game

console, printer, or Smart TV using an Ethernet cable to the

DHP-600AV adapter. Verify that the Ethernet LED is lit.

3Verify that the PowerLine LEDs on both adapters are lit. If they

are, the adapters are connected. If not, try another outlet.

DHP-600AV

DHP-600AV DHP-600AV

5Your installation is completed.

(Optional/Recommended) To secure your network, press the

Simple Connect button (on the bottom) for two seconds on one

of the adapters. The Power LED will start to blink. Then, within

two minutes, press the Simple Connect button on the other

adapter for two seconds. Once the Power LEDs stop blinking,

verify that the PowerLine LED is lit on both adapters (as in Step

3). This indicates that your adapters are properly connected to

each other.

DHP-600AV DHP-600AV

Simple Connect ButtonSimple Connect Button

FAQs

If I do not see LEDs light up?

If the Power LED is o, make sure the PowerLine devices are plugged

into outlets with power. Also make sure the PowerLine devices are not

plugged into an extension cord, power strip, or surge protector.

If the PowerLine LED is o, the devices are unable to nd each other.

You can plug in all the PowerLine adapters within the same room in

order to determine whether your home’s electrical outlets are suitable.

The adapters’ PowerLine LED will light up when a connection is

established.

If I’m having problems with conguration?

If you are having problems conguring the network with two or more

PowerLine adapters, make sure you reset all the devices and start the

conguration process again.

If you get an error message during conguration, make sure you have

not inadvertently unplugged the PowerLine adapter.

Technical Support

This guide is only for initial conguration. Please refer to the user manual to

learn more or visit http://www.mydlink.com for more information. Also

feel free to contact us. U.S. and Canadian customers can contact D-Link

Technical Support through our website. For warranty and regulatory

information, please visit http://support.dlink.com/warranty.aspx.

http://support.dlink.com

USA

http://support.dlink.ca

Canada

Version 3.00

May 20, 2016

Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners.

Product specications, size and shape are subject to change without notice, and actual product appearance may dier from that depicted

on the packaging. Visit www.dlink.com for more details. Maximum throughput based on theoretical transmission PHY rate. Actual date

throughput will vary. Network conditions and environmental factors, including volume of trac and network overhead, may lower actual

data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect

the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave

radios, or other powerline devices that do not follow the HomePlug AV and IEEE1901 standard.
