D-Link DWA-110 Bedienungsanleitung

7 D-Link DWA-110 Quick Install Guide

The D-Link conﬁguration wizard will

now appear.

If you are using Windows®XP (SP2),

you will have the option to use either

the D-Link utility or the built-in

Windows®Wireless utility.

Click Next to continue.

Insert the adapter into an available

USB port on your computer.

Optional: If desired or necessary,

attach the cradle between the DWA-

110 and your computer.

If the Found New Hardware Wizard

appears, click Cancel.

Click Next to continue.

Enter the network name (SSID). If

you enter the SSID incorrectly, you

will automatically be brought to the

site survey page.

Click Next to continue or click Scan

to display the site survey page.

DWA-110

8D-Link DWA-110 Quick Install Guide

Click the Scan button to display a list

of wireless networks (site survey).

Click on the network name (SSID)

and click Connect.

If the wireless network you are trying

to connect to is encrypted, enter the

WEP key or WPA-PSK passphrase.

Click Next to continue.

Click Finish to continue. If you are

prompted to reboot your computer,

select Yes, I want to restart my

computer now.

DWA-110

9 D-Link DWA-110 Quick Install Guide

Hold the USB adapter with both hands.

Apply little force to slowly pull out the cover

from both sides.

Insert the DWA-110 into an available

USB port on your computer.

Optional: If desired or necessary, attach

the cradle between the DWA-110 and

your computer.

USB Installation

10D-Link DWA-110 Quick Install Guide

Connect to a Wireless Network

The DWA-110 uses the Conguration Utility as the management

software. The utility provides the user an easy interface to change any

settings related to the wireless adapter. After you have completed the

installation of the DWA-110 and whenever you start the computer,

the Conguration Utility starts automatically and the system tray

icon is loaded in the toolbar. Clicking on the utility icon will start the

Conguration Utility.

If you are using Windows®XP, please skip to page 11.

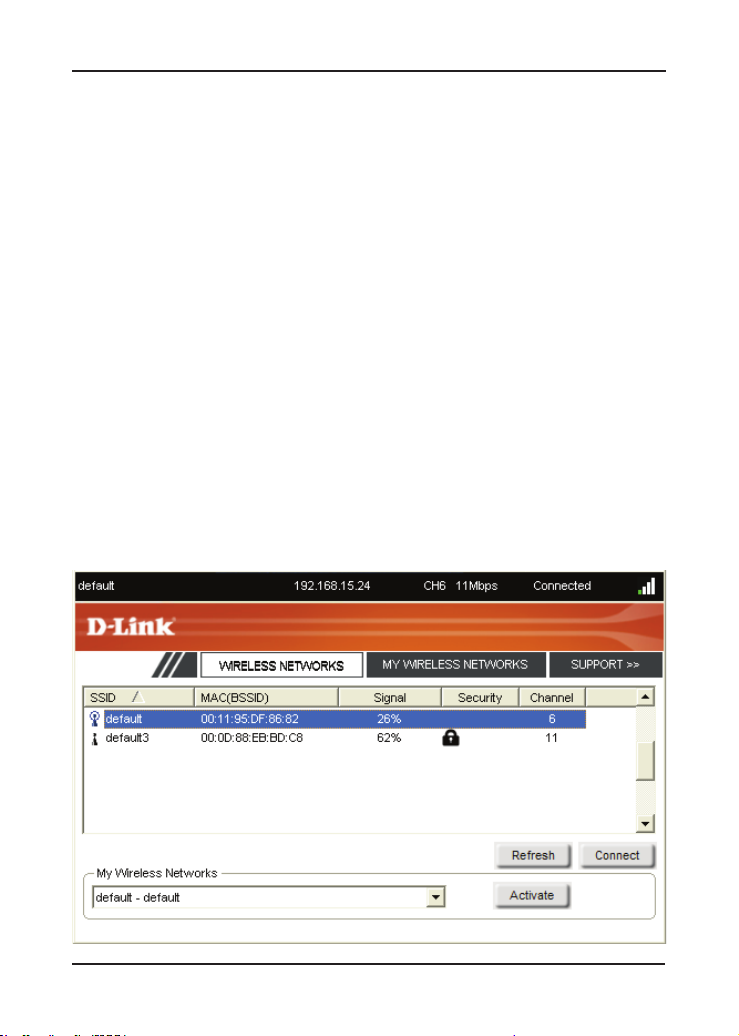

This window will allow you to see available wireless networks in your

area. Simply click the network (SSID) you want to connect to and

click the Connect button. If you are connecting to a secure network,

you will be prompted to enter the encryption key. Please refer to the

Wireless Security section in the manual located on the D-Link CD.

11 D-Link DWA-110 Quick Install Guide

Windows®XP users may use the built-in wireless utility. The following

instructions are for Service Pack 2 users.

If you receive the Wireless Networks

Detected bubble, click on the center

of the bubble to access the utility.

You may also right-click on the

wireless computer icon in your

system tray (lower-right corner next

to the time). Select View Available

Wireless Networks.

The utility will display any available wireless networks in your area. Click on

a network and click the Connect button.

Refer to the manual for information on connecting to a secure network.

Windows®XP Conﬁguration Utility

FEDERALCOMMUNICATIONSCOMMISSIONINTERFERENCESTATEMENT

ThisdevicecomplieswithPart15 ofthe FCCRules.Operation issubjecttothe following

twoconditions:(1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevice

mustacceptanyinterferencereceived,including interferencethatmaycauseundesired

operation.

Thisequipmenthasbeen tested and found tocomplywiththe limitsforaClass B

digitaldevice,pursuanttoPart15 ofthe FCC Rules.Theselimitsaredesigned toprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgenerates,usesand can radiateradiofrequency energyand,ifnotinstalled

and usedinaccordancewiththe instructions,maycauseharmfulinterferencetoradio

communications.However,thereisno guarantee thatinterferencewillnotoccurina

particularinstallation.If thisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedetermined byturningtheequipmentoff and on,the

userisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowing

measures:

--Reorient orrelocatethe receiving antenna.

--Increasethe separation between the equipment and receiver.

--Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiver

isconnected.

--Consult the dealeroran experienced radio/TVtechnician forhelp.

CAUTION:

Anychangesormodificationsnotexpresslyapprovedbythegrantee ofthisdevicecould

voidthe user'sauthoritytooperatethe equipment.

RFexposurewarning:

The equipmentcomplieswithFCC RFradiation exposurelimitssetforthforan

uncontrolled environment. SAR has been evaluated with a laptop as host and the

maximum SAR value is as below. The equipmentmustnotbe co-located oroperating

inconjunctionwithany otherantenna ortransmitter.

SARValue: 802.11b: 0.075 W/kg

802.11g:0.08 W/kg

IndustryCanadaregulatoryinformation

Operationissubjecttothefollowingtwoconditions:(1)thisdevice maynotcause

interference, and(2)thisdevice mustacceptanyinterference, includinginterference

thatmaycause undesiredoperationofthedevice.

Theuseriscautionedthatthisdevice shouldbeusedonlyas specifiedwithinthis

manual tomeetRFexposurerequirements. Use ofthisdevice inamanner

inconsistentwiththismanual couldleadtoexcessiveRFexposureconditions.

D-Link DWA-110 Quick Install Guide

Technical Support

D-Link’s website contains the latest user documentation and

software updates for D-Link products.

U.S. and Canadian customers can contact D-Link Technical

Support through our website or by phone.

United States

Telephone

(877) 453-5465

Twenty four hours a day, seven days a week.

World Wide Web

http://support.dlink.com

E-mail

[email protected]

Canada

Telephone

(800) 361-5265

Monday through Friday, 7:30am to 9:00pm EST.

World Wide Web

http://support.dlink.ca

E-mail

[email protected]

Version 1.0

Revised 12/15/2005

6WUA1340Q.01G

of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their

respective owners. Maximum wireless signal rate based on IEEE Standard 802.11g speciﬁcations. Actual data throughput will

vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and

network overhead lower actual data throughput rate. Product speciﬁcations, size and shape are subject to change without notice,

and actual product appearance may differ from that depicted on the packaging. Visit www.dlink.com for more details.

警語

經型式認證合格之低功率射頻電機, 非經許可,公司, 商號或使用者均不得擅自變更頻率,加

大功率或變更原設計之特性及功能

低功率射頻電機之使用不得影響飛航影響安全及干擾合法通信, 經發現有干擾現象時,應立

即停用,並改善至無干擾時方得繼續使用

前項合法通信,指一電信法規定作業之無線電通信低功率射頻電機需忍受合法通信或工業,科

學及醫療用電波輻射性電機設備之干擾
