D-Link DAS-3 Series Bedienungsanleitung
1
DAS-3 Series Rev.C
ADSL IP DSLAM
Before You Begin
This Quick Installation Guide gives step-by-step instructions for setting up the D-Link DAS-3
Series ADSL IP DSLAM. This Quick Installation Guide only introduces you for the main
setup procedure. For more detailed information about complete installation and configuration,
please refer to the User’s Manual on master CD included with your DLSAM.

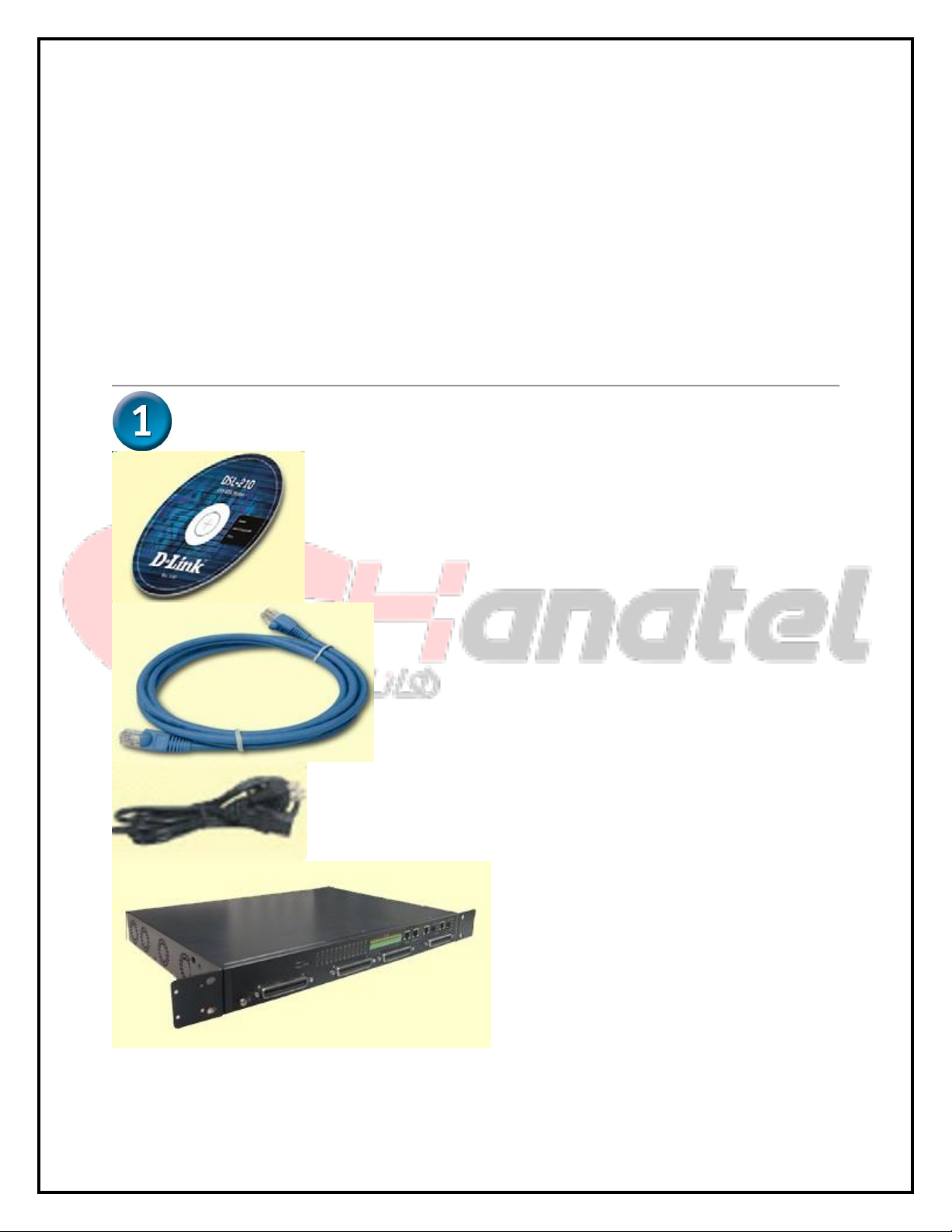

Check Your Package Contents
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
1
2
D-Link DAS-3 Series ADSL IP DSLAM
CD-ROM (containing Manual and LCT)
Ethernet Cable (CAT5e UTP Straight-Through)
AC Power Cord (only for AC power models)
Console Cable
Setup the DAS-3 Series ADSL IP DSLAM
The DAS-3 Series can be installed in a standard 19-inch rack, by using the
mounting brackets provided. Mount the shelf on the rack using the large screws.
The procedure to connect and wire the system is as follows.
Line and POTS Connection
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
2
3
The following figure shows the front panel connection of DAS-3248:
The following figure shows the rear panel connection of DAS-3248:
Step 1: Connect the ADSL line connector(s), a 50-pin centronic connector, of DAS-
3 Series IP DSLAM to CPE’s by using telco cable. Each line connector can
support up to 24 ports of ADSL/ADSL2/2+ for Data path.
Step 2: Connect the phone connector(s), a 50-pin centronic connector, of DAS-3
Series IP DSLAM to Exchange/PBX by using telco cable.
Step 3: Connect to AC power outlet and turn the power switch to “|”.
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
3
4
The following figure shows the rear panel connection of DAS-3248/DC:
Step 1: Connect the ADSL line connector(s), a 50-pin centronic connector, of DAS-
3 Series IP DSLAM to CPE’s by using telco cable. Each line connector can
support 24 ports of ADSL/ADSL2/2+ for Data path.
Step 2: Connect the phone connector(s), a 50-pin centronic connector, of DAS-
3248/DC to Exchange/PBX by using telco cable.
Step 3: Connect to DC power and then turn on the DC Power Supply.
Uplink/Downlink and Mgmt Connection
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
4
5
Web Configuration
This section shows how to prepare the system to perform basic
communication functions through Web management. Perform initial configuration
procedures as follows:
2.1. Login Window
Launch your web browser, and go to http://19.168.1.1 via management port. The following
screen appears.
The login window to use User name/Password = dnld / dnld then click “login” button to login.
DAS3 Series Web Management Login Window
Even though you can connect to the IP-DSLAM Eth1/Fiber1 (uplink) or Eth2/Fiber2
(downlink), it is recommended that you connect your computer to management port for initial
configuration.
The DAS3 series web management login User name/Password = dnld / dnld of default value.
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
5
6
2.2. Operation Window Overview
The DAS3 series web management window contains main menu, operate window and
real-time
LED status panel.
DAS3 Series Web Management Operation Window
2.3. Configuring the DAS-3 Series Community
1.
Before you start to connect to EMS, it is necessary that your PC’s IP and DAS-3
Series’s IP are in the same subnet. Note: DAS-3 Series’s default MGNT
IP/prefix length is 192.168.1.1/24.
2.
Create management IP into the DAS-3 Series so that the authorized IP agent can
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks
are the property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
6
7
manage DAS-3 Series through LCT. Connect to DAS-3 Series with RS-232 or
Ethernet cable, and then write the IP into DAS-3 Series by telnet or CLI. Input
the following commands sequentially:
a.
create snmp host ip 192.168.1.xxx community public, where 192.168.1.xxx
is the IP of your PC and public is the SNMP community.
b.
create snmp traphost ip 192.168.1.xxx community public, where
192.168.1.xxx is the IP of your PC and public is the SNMP community.
Note: To access the CLI Ex mode via a direct VT100-
compatible terminal connection to the Console Port, use the
following procedure:
DAS-3 Series Console Management Setting Table
Parameter
Setting
Baud rate
9600
Data bits
8
Parity
None
Start bits
1
Stop bits
1
Flow
None
control
Configure the System
Click on the Menu System Information from the DAS3 Series main menu
in which some parameters related to the system are available for configuration.
The DAS-3 Series System Information window will appear as follows:
Configure DSL Profile
8
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
7
Open the Deployment from the menu tree. The
DAS-3 Series Configuration menu and related
windows will appear as follows:
Item
Description
DSL port
The PVC Management dialog has the ability
to configure the ATM PVC on ADSL port
interface.
DSL profile
9
This section describes the static Line
configuration
(ADSL) profile configuration. Line Profile
Configuration dialog allows you to modify
the ADSL connection parameters of each
ADSL port.
DSL profile
This section helps you to attach the DSL
mapping
profile to the ADSL line interface.
PVC setting
The PVC Management dialog has the ability
to configure the ATM PVC on ADSL port
interface.
DSL port Dialog
Select port to be enabled or disabled
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
8
10
DSL profile configuration Dialog
Add DSL profile dialog allows you to create the ADSL connection parameters.
Enter the control values to the text box and click ‘Add’ to activate.
©2007 D-Link Corporation, Inc. All rights reserved. Trademarks or registered trademarks are the
property of their respective holders.
Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.
9
