InstalI Guide

DWL-2200AP

Wireless Access Point

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

• Internet Explorer 6.0 or Netscape Navigator™7.0 or above.

CAT5 Ethernet Cable

Manual and Software on CD

DWL-2200AP Access Point Power Adapter*

PoE base unit

* Using a power adapter with a different voltage rating will damage and void the warranty of

this product.

Hardware Overview

Front Panel LEDs

LAN

A blinking light indicates data is being

transmitted via the Ethernet port.

Power

Asolid light indicates

the unit is properly

powered.

WLAN

Blinking green indicates

wireless network activity.

Hardware Overview

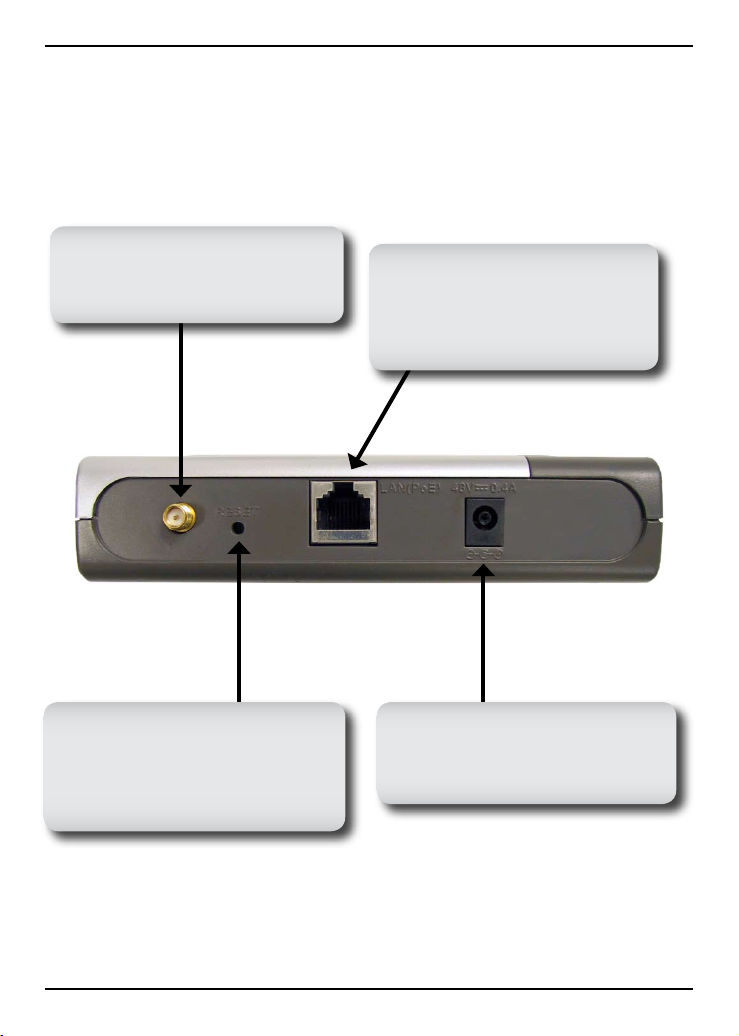

Back Panel Connections

Antenna Connector

Attach the wireless antenna to

this connector.

Ethernet Port

Connects the DWL-2200AP to

a computer, a switch, or router

using an Ethernet cable.

Reset Button

Pressing this button restores

the Access Point to its original

factory default settings.

Power Receptor

Used to connect the supplied

power adapter.

Installation Considerations

D-Link wireless devices allow you access your network using a wireless connection

from virtually anywhere within the operating range of your wireless network. Keep

in mind, however, that the number, thickness and location of walls, ceilings, or

other objects that the wireless signals must pass through, may limit the range.

Typical ranges vary depending on the types of materials and background RF (radio

frequency) noise in your home or business. The key to maximizing wireless range

is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the D-Link access point

and other network devices to a minimum - each wall or ceiling can reduce

your adapter’s range from 3-90 feet (1-30 meters.) Position your devices

so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5

feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1

meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick!

Position devices so that the signal will travel straight through a wall or

ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs

may have a negative effect on range. Try to position access points, wireless

routers, and computers so that the signal passes through drywall or open

doorways. Materials and objects such as glass, steel, metal, walls with

insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will

degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as

ceiling fans, lights, and home security systems), your wireless connection

may degrade dramatically or drop completely. Make sure your 2.4GHz

phone base is as far away from your wireless devices as possible. The

base transmits a signal even if the phone in not in use.

Installation

A. Connect the power adapter to the receptor at the back panel of the

DWL-2200AP. Plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of the cable to the Ethernet port on the back panel of the

DWL-2200AP and the other end of the cable to an Ethernet Broadband

Router or Switch.

Note: You also have the option of connecting the DWL-2200AP directly

to the computer that will be used for conguration. The LAN LED light

should illuminate to indicate a proper Ethernet connection. (Note: The

Ethernet Port on the DWL-2200AP is Auto-MDI/MDIX. This allows you

to use a straight-through or crossover Ethernet cable to connect to the

Ethernet port on the DWL-2200AP.)

There are two methods of powering the DWL-2200AP. The power adapter

can plug directly into the unit or plug into the PoE (Power over Ethernet)

base unit. For directions on using PoE, please refer to page 15.

It’s best to use a computer (with an Ethernet adapter) that is connected

to a switch for conguring the DWL-2200AP. The default IP address for

the DWL-2200AP is 192.168.0.50 with a Subnet Mask of 255.255.255.0.

You will need to assign your computer a Static IP address within the same

range as the DWL-2200AP’s IP address for the purpose of conguring the

AP. Please refer to page 13 to statically assign an IP address to your

computer.

When you have completed the steps in this Quick Installation Guide, your

connected network should look similar to this:

Conguration

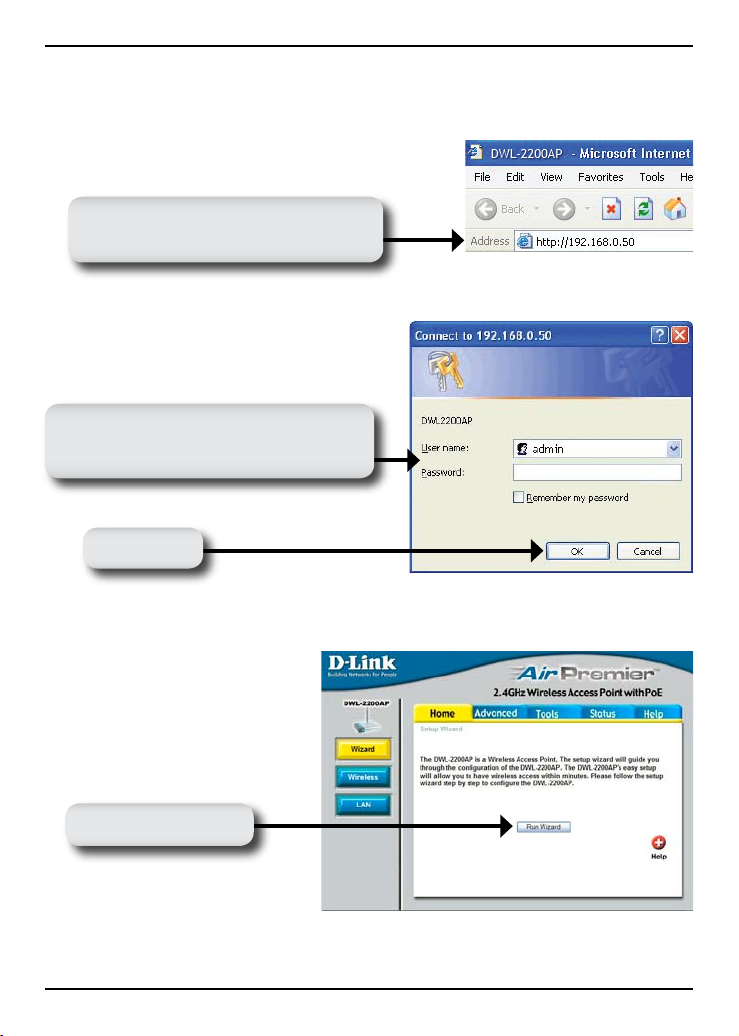

The log-in pop-up screen will appear.

Once you have logged in, the

Home screen will appear.

Open your Web browser and

enter http://192.168.0.50

Click OK

Click Run Wizard

Type admin for the username and

leave the password eld blank.

Set up your new password

You have the option to establish

a password.

You will see the following

screen.

Click Next

Set your Wireless Connection

Enter your SSID and select the

channel of your wireless network.

The SSID is the name of your

wireless network. It can be up to

32 characters.

Click Next

Wireless Security

The DWL-2200AP offers WEP

and WPA-Personal. By default

encryption is disabled. You can

enable encryption for secure

wireless communication.

Click Next

WEP Encryption

If you selected WEP, select the

security level and enter your

WEP key. Refer to the Wireless

Security section in the manual on

the CD for more information.

Click Next

WPA-Personal Encryption

If you selected WPA-Personal,

enter your WPA passphrase.

Refer to the Wireless Security

section in the manual on the CD

for more information.
