D-Link DWL-G700AP - AirPlus G Access Point Bedienungsanleitung

Manual

Version 1.1

DWL-G700AP

2.4GHz

Wireless Access Point

D-Link AirPlus G

Contents

Package Contents ................................................................................ 3

System Requirements .......................................................................... 3

Introduction ........................................................................................... 4

Features and Beneﬁts .......................................................................... 5

Hardware Overview (LEDs) .................................................................. 5

Wireless Basics .................................................................................... 6

Getting Started ..................................................................................... 8

Using the Conﬁguration Utility .............................................................. 9

Logging into Utility ........................................................................... 9

Wireless Settings .......................................................................... 10

WEP Encryption .............................................................................11

WPA Authentication ....................................................................... 12

WPA-PSK/WPA2-PSK Encryption ................................................ 13

LAN Settings ................................................................................. 14

DHCP Conﬁguration ...................................................................... 15

Performance Settings ................................................................... 16

MAC Address Filtering .................................................................. 17

Change Password ......................................................................... 18

System Backup/Restore ............................................................... 18

Firmware Upgrade ........................................................................ 19

Device Information ........................................................................ 19

System Log ................................................................................... 20

Trafﬁc and Wireless Statistics ....................................................... 21

Networking Basics .............................................................................. 22

Troubleshooting .................................................................................. 35

Technical Speciﬁcations ..................................................................... 40

Contacting Technical Support ............................................................. 42

Warranty ............................................................................................. 43

Registration ........................................................................................ 46

Computer with Windows, Macintosh, or Linux-based operating

system with an installed Ethernet adapter

Contents of Package:

D-Link AirPlusTM G DWL-G700AP

2.4GHz Wireless Access Point

Power Supply - 5V DC, 2.0A

Manual on CD

Quick Installation Guide

Ethernet Cable

Package Contents

If any of the above items are missing, please contact your reseller.

System Requirements:



Note: Using a power supply with a different voltage rating than the one included

with the DWL-G700AP will cause damage and void the warranty for this

product.

Internet Explorer or Netscape Navigator version 6.0 or above,

with JavaScript enabled

Introduction

D-Link, an industry leader in networking, introduces the new D-Link

AirPlus™ G DWL-G700AP Access Point. With the ability to transfer

ﬁles with a maximum wireless signal rate of up to 54Mbps*, the

DWL-G700AP gives you high-speed wireless network access for your

home or ofﬁce.

The DWL-G700AP is Wi-Fi IEEE 802.11g compliant, meaning that it can

connect and interoperate with other 802.11g compatible wireless client

devices. The G700AP is also backwards compatible to 802.11b.

The D-Link DWL-G700AP Access Point has been veriﬁed and

successfully passed through the Intel Centrino™ Veriﬁcation Program,

which tests the compatibility of various access point devices and wireless

service providers with common conﬁguration of notebooks built on Intel®

Centrino™ mobile technology**.

With its web-based setup wizard, the DWL-G700AP Access Point

ensures that you will be up and running on a wireless network in just

a matter of minutes. The DWL-G700AP also includes an embedded

DHCP server that can automatically assign IP addresses to wireless

network clients.

The DWL-G700AP Access Point features Wi-Fi Protected Access

(WPA-PSK/WPA2-PSK) and 64/128-bit WEP Encryption to provide

an enhanced level of security for wireless data communications. The

DWL-G700AP also includes additional security features to keep your

wireless connection safe from unauthorized access.

With easy-to-use Web-based management, the DWL-G700AP Access

Point is the right choice for setting up your ﬁrst wireless network or

extending the range of an existing wireless network.

* Maximum wireless signal rate based on IEEE Standard 802.11g speciﬁcations. Actual data throughput will

vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials

and construction, and network overhead, lower actual data throughput rate.

** This wireless access point product has been veriﬁed for basic compatibility with corresponding Intel®

Centrino™ mobile technology based notebooks. Notebooks based on Intel Centrino mobile technology do

not support proprietary 802.11g performance enhancement features. Data rate features and performance

may vary based on the conﬁguration of your notebook and other factors.

Intel, the Intel Inside Logo, Intel Centrino and the Intel Centrino logo are trademarks or registered trademarks

of Intel Corporation or its subsidiaries in the United States and other countries.

Up to 5X Faster with AirPlus G Products - high-speed wireless data transfer

rates up to 54Mbps*. With increased data rate and capacity, the DWL-G700AP

delivers media rich content such as digital images, videos, and MP3 ﬁles much

faster than standard 802.11b networks.

 Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b standard

and interoperable with all existing 802.11b compliant devices.

 Network Security – Supports 64/128-bit WEP encryption for a level of security

for your data and wireless communication as well as WPA, WPA-PSK and

WPA2-PSK.

 Built-in DHCP Server – If enabled, it will automatically assign IP addresses

to wireless clients on the local network.

 Web-based interface for Managing and Conﬁguring – Easy-to-use interface

independent of the operating system.



Features and Beneﬁts

LEDS

LED stands for Light-Emitting Diode. The DWL-G700AP Wireless Access Point

has 3 LEDs as shown below:

WLAN: blinking green light

indicates wireless activity;

solid green light indicates

connection

LAN: blinking green light

indicates activity; solid green

light indicates connection

Power: solid green light

indicates connection to a

power source

* Maximum wireless signal rate based on IEEE Standard 802.11g speciﬁcations. Actual data throughput will

vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials

and construction, and network overhead lower actual data throughput rate.

Wireless Basics

D-Link wireless products are based on industry standards to provide easy-to-use and

compatible high-speed wireless connectivity within your home, business or public

access wireless networks. D-Link wireless products will allow you access to the data

you want, when and where you want it. You will be able to enjoy the freedom that

wireless networking brings.

A Wireless Local Area Network (WLAN) is a computer network that transmits and

receives data with radio signals instead of wires. WLANs are used increasingly in both

home and ofﬁce environments, and public areas such as airports, coffee shops and

universities. Innovative ways to utilize WLAN technology are helping people to work

and communicate more efﬁciently. Increased mobility and the absence of cabling and

other ﬁxed infrastructure have proven to be beneﬁcial for many users.

Wireless users can use the same applications they use on a wired network. Wireless

adapter cards used on laptop and desktop systems support the same protocols as

Ethernet adapter cards.

People use WLAN technology for many different purposes:

Mobility - Productivity increases when people have access to data in any location

within the operating range of the WLAN. Management decisions based on real-time

information can signiﬁcantly improve worker efﬁciency.

Low Implementation Costs – WLANs are easy to set up, manage, change

and relocate. Networks that frequently change can beneﬁt from WLANs ease of

implementation. WLANs can operate in locations where installation of wiring may be

impractical.

Installation and Network Expansion - Installing a WLAN system can be fast and

easy and can eliminate the need to pull cable through walls and ceilings. Wireless

technology allows the network to go where wires cannot go - even outside the home

or ofﬁce.

Scalability – WLANs can be conﬁgured in a variety of ways to meet the needs of

speciﬁc applications and installations. Conﬁgurations are easily changed and range

from peer-to-peer networks suitable for a small number of users to larger infrastructure

networks to accommodate hundreds or thousands of users, depending on the number

of wireless devices deployed.

Inexpensive Solution - Wireless network devices are as competitively priced as

conventional Ethernet network devices.

Installation Considerations

Keep in mind, that the number, thickness and location of walls, ceilings, or other objects

that the wireless signals must pass through, may limit the range. Typical ranges vary

depending on the types of materials and background RF (radio frequency) noise in

your home or business. The key to maximizing wireless range is to follow these basic

guidelines:

Wireless Basics (continued)

Keep the number of walls and ceilings between the DWL-G700AP and

other network devices to a minimum - each wall or ceiling can reduce your

DWL-G700AP’s range from 3-90 feet (1-30 meters.) Position your devices so

that the number of walls or ceilings is minimized.

Be aware of the direct line between network devices. A wall that is 1.5 feet thick

(.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick.

At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices

so that the signal will travel straight through a wall or ceiling (instead of at an

angle) for better reception.

Building materials can impede the wireless signal - a solid metal door or

aluminum studs may have a negative effect on range. Try to position wireless

devices and computers with wireless adapters so that the signal passes

through drywall or open doorways and not other materials.

Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices

or appliances that generate RF noise.

Please remember that D-Link AirPlus G wireless devices are pre-conﬁgured to

connect together, right out of the box, with their default settings.

You will need broadband Internet access (a Cable or DSL-subscriber line into

your home or ofﬁce)

Consult with your Cable or DSL provider for proper installation of the modem

Connect the Cable or DSL modem to your broadband router (see the Quick

Installation Guide included with your router.)

If you are connecting a desktop computer in your network, you can install the

D-Link AirPlus G DWL-G510 wireless PCI adapter into an available PCI slot

on your desktop computer.

(See the Quick Installation Guide included with the DWL-G510.)

Install the drivers for the wireless Cardbus adapter into a laptop computer.

(e.g, the DWL-G630; See the Quick Installation Guide included with the

DWL-G630.)

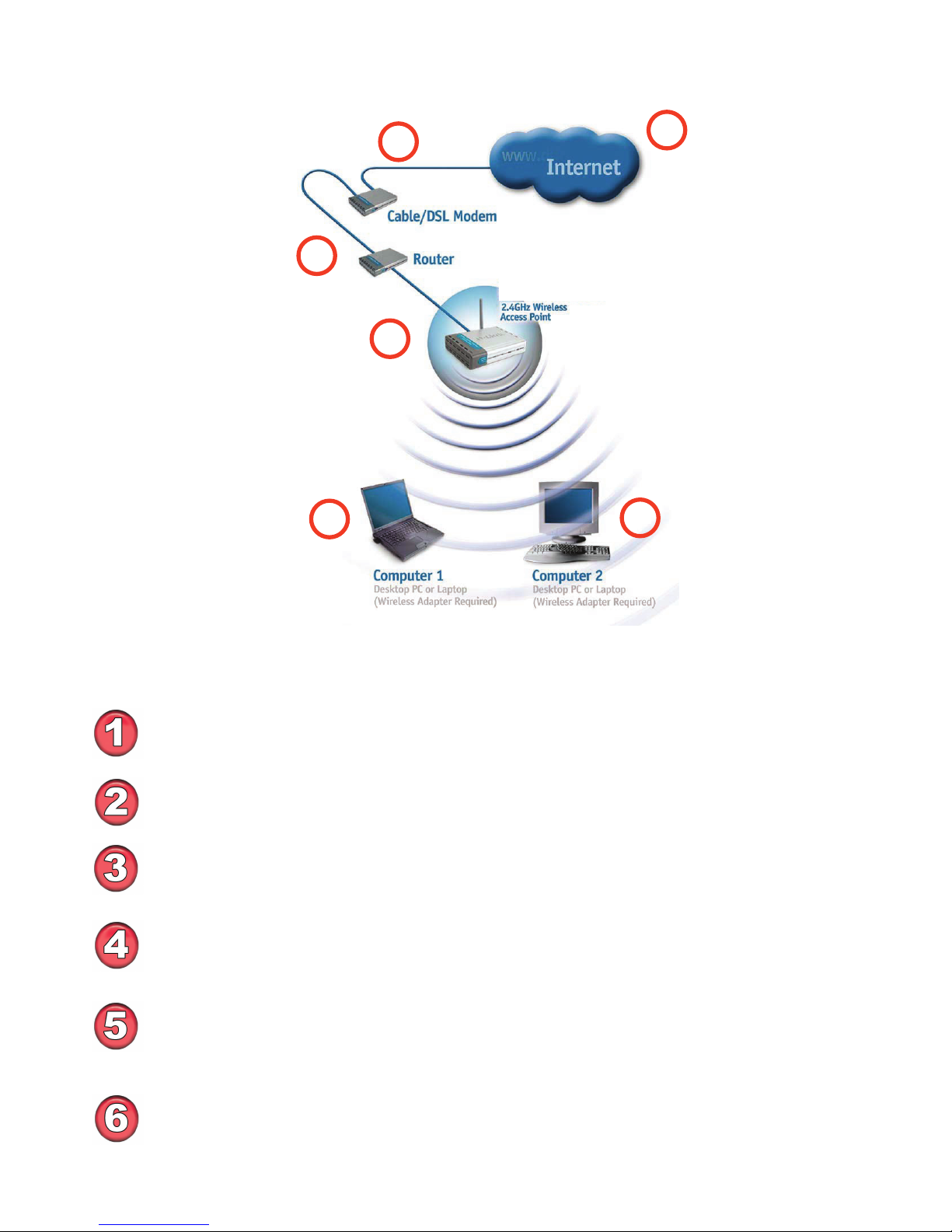

Setting up a Wireless

Infrastructure Network

Getting Started

Connect the router to the D-Link AirPlus G DWL-G700AP.

(See the Quick Installation Guide included with the DWL-G700AP.)

For a typical wireless setup at home (as shown above), please do the following:

DWL-G700AP

After you have completed the initial installation and the Setup Wizard (as illustrated in

the Quick Installation Guide that is included with the DWL-G700AP), you can access the

conﬁguration menu, at any time, by opening the web-browser and typing in the IP address

of the DWL-G700AP. The DWL-G700AP’s default IP address is shown below:

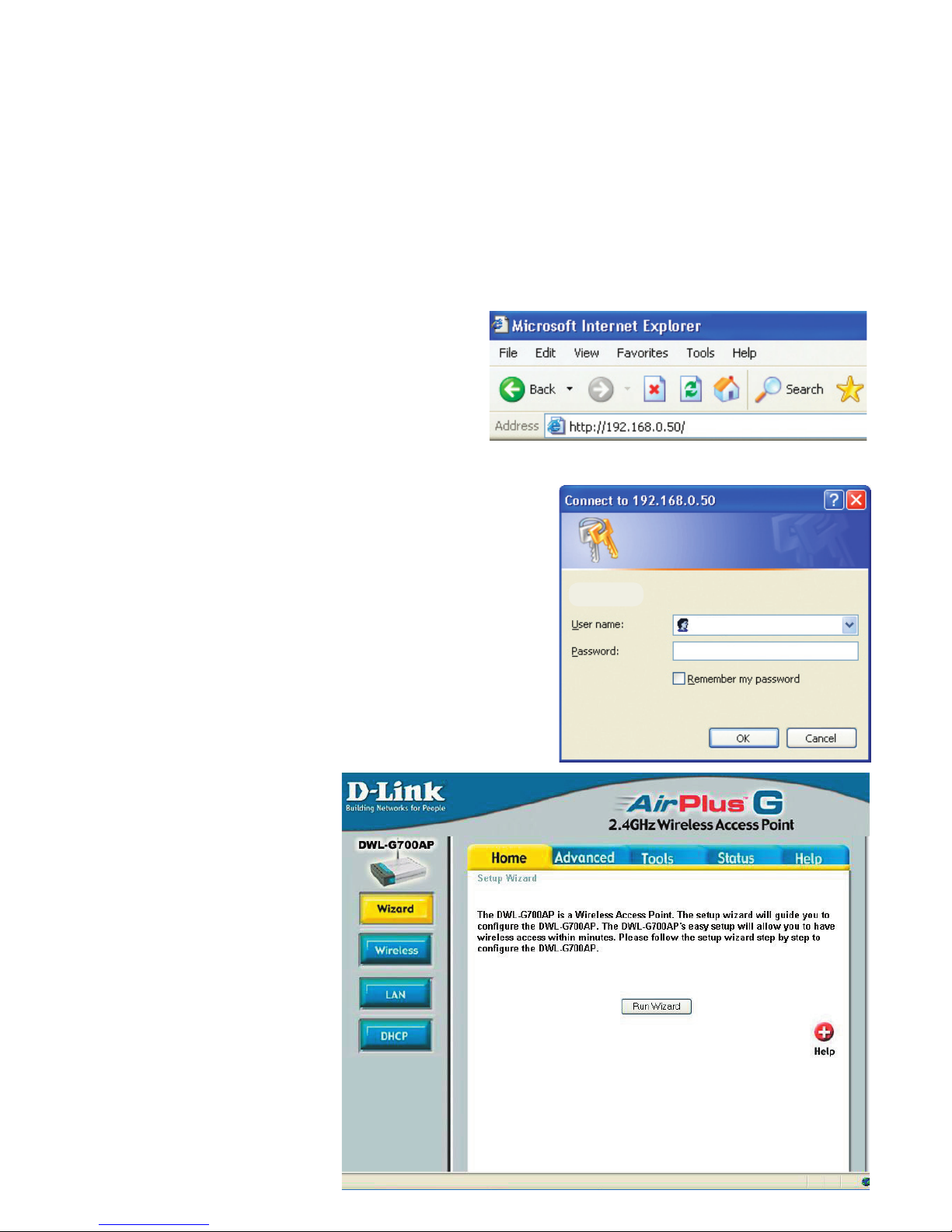

Open the web browser

Type in the IP address of the

DWL-G700AP. (192.168.0.50).

Type admin in the

User Name ﬁeld

Leave the Password

blank

Click OK



admin



Using the Conﬁguration Utility

If you wish to change the default settings or optimize the performance of the

DWL-G700AP, D-Link has included a conﬁguration utility for this purpose.

Note: If you have changed the default IP address assigned to the DWL-G700AP, make sure to

enter the correct IP address.

The Home > Wizard

screen will appear.

Please refer to the Quick

Installation Guide for more

information regarding the

Setup Wizard.

Using the Conﬁguration Utility (continued)

Home > Wireless

SSID: (Service Set Identiﬁer) Default is the default setting. The SSID is a unique

name that identiﬁes a network. All devices on a network must share the same SSID

name in order to communicate on the network. If you choose to change the SSID from

the default setting, input your new SSID name in this ﬁeld.

Channel: Channel 6 is the default channel. Input a new number if you want to change

the default setting. All devices on the network must be set to the same channel to

communicate on the network.

Security: Select the level of security for your wireless network:

Disable: Select to use no security.

WEP: Select to use WEP Encryption.

WPA: Select to use WPA (Wi-Fi Protected Access) authentication in conjunction

with a RADIUS server.

WPA-PSK/WPA2-PSK: Select to use WPA-PSK or WPA2-PSK without a

RADIUS server.

Andere Handbücher für DWL-G700AP - AirPlus G Access Point

Inhaltsverzeichnis

Andere D-Link Drahtloser Zugangspunkt Handbücher

D-Link

D-Link DAP-1360U Bedienungsanleitung

D-Link

D-Link xtreme n duo dap-1522 Kurzanleitung

D-Link

D-Link AirPremier N DAP-2310 Bedienungsanleitung

D-Link

D-Link AirPlus DWL-900AP Bedienungsanleitung

D-Link

D-Link DWL-7200AP - AirPremier AG - Wireless Access... Bedienungsanleitung

D-Link

D-Link DAP-3220 Bedienungsanleitung

D-Link

D-Link NUCLIAS CONNECT DAP-2680 Bedienungsanleitung

D-Link

D-Link Nuclias Connect DAP-2622 Bedienungsanleitung

D-Link

D-Link DAP-2553 - Wireless N Dual Band Gigabit Access... Bedienungsanleitung

D-Link

D-Link DWL-8710AP Bedienungsanleitung

D-Link

D-Link AirPlus Xtreme G DWL-2000AP Bedienungsanleitung

D-Link

D-Link DWR-923 Bedienungsanleitung

D-Link

D-Link DWL-7200AP - AirPremier AG - Wireless Access... Bedienungsanleitung

D-Link

D-Link DAP-2553 - Wireless N Dual Band Gigabit Access... Bedienungsanleitung

D-Link

D-Link DIR-505 Bedienungsanleitung

D-Link

D-Link DAP-2660 Bedienungsanleitung

D-Link

D-Link Rangebooster N 650 Access Point DAP-1353 Bedienungsanleitung

D-Link

D-Link UNIFIED WIRED & WIRELESS ACCESS SYSTEM... Bedienungsanleitung

D-Link

D-Link DWL-2600AP Bedienungsanleitung

D-Link

D-Link DWL-7100AP Bedienungsanleitung

D-Link

D-Link DWL-3140AP - Web Smart PoE Thin Access Point Bedienungsanleitung

D-Link

D-Link Rangebooster N 650 Access Point DAP-1353 Bedienungsanleitung

D-Link

D-Link Air Premier DAP-2695 Bedienungsanleitung

D-Link

D-Link AirPremier DAP-2565 Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung

Draytek

Draytek VIGORAP 902 Bedienungsanleitung

EnGenius

EnGenius EAP350 Bedienungsanleitung
