Dahua PFH610N-IR Bedienungsanleitung

HD Network (IR) Housing Zoom Camera

Installation Manual

Version 1.0.0

Table of Contents

1GENERAL INTRODUCTION ..............................................................................1

1.1 Overview...........................................................................................................................................1

1.2 Features............................................................................................................................................1

1.3 Dimensions.......................................................................................................................................1

2INSTALLATION INSTRUCTION GUIDE.............................................................3

2.1 Lock/Unlock Housing.......................................................................................................................3

2.2 Camera Installation..........................................................................................................................3

3BRACKET INSTALLATION GUIDE ....................................................................5

3.1 General Bracket Installation ............................................................................................................5

3.2 Special Bracket Installation (Compact design, concealed cable exit)..........................................5

3.3 Bracket Types ..................................................................................................................................6

APPENDIX TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS .......................8

Welcome

Thank you for purchasing our HD network (IR) housing zoom camera!

Please read the following safeguards and warnings carefully before you install or use the

product!

iii

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the HD network (IR) housing zoom camera before completing installation.

Do not place objects on the HD network (IR) housing zoom camera.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The HD network (IR) housing zoom camera should be installed in a cool, dry place away from

direct sunlight, inflammable, explosive substances and etc.

Please keep sound ventilation.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

1General Introduction

1.1 Overview

The HD network housing zoom camera (“camera”) adopts all-weather compact design. It is

suitable for various environments. Its housing has IP66 compliance and it supports various

installation modes such as ceiling mount, wall mount, pedestal mount and etc.

1.2 Features

All-weather compact design, bracket supports upright/upside down installation, easy

maintenance work.

Airproof design, sustain high temperature, strong wind, rainstorm and dustproof.

Suitable for various environments.

1.3 Dimensions

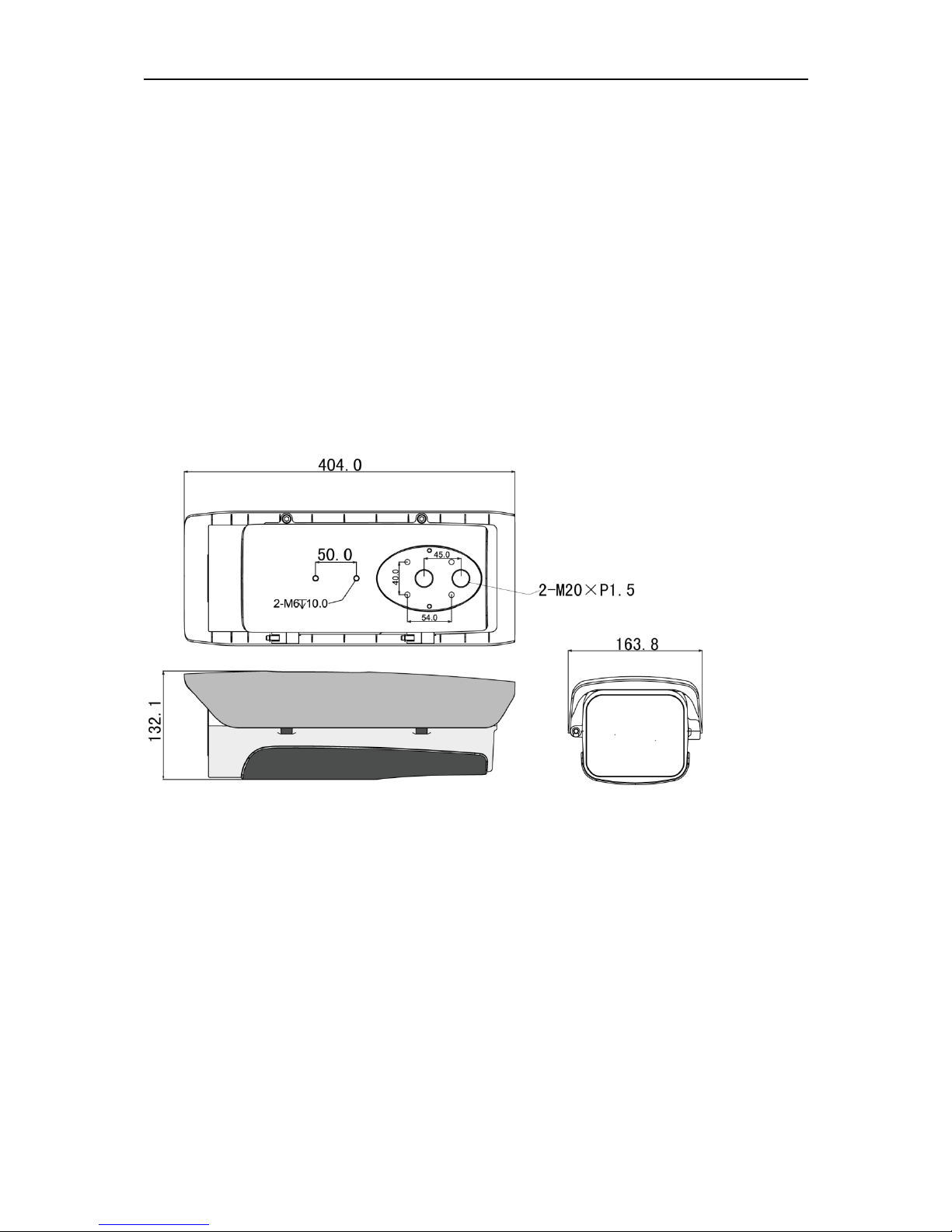

Please refer to Figure 1-1 for PFH610N/PFH610N-H dimensions information. The unit is mm.

Figure 1-1

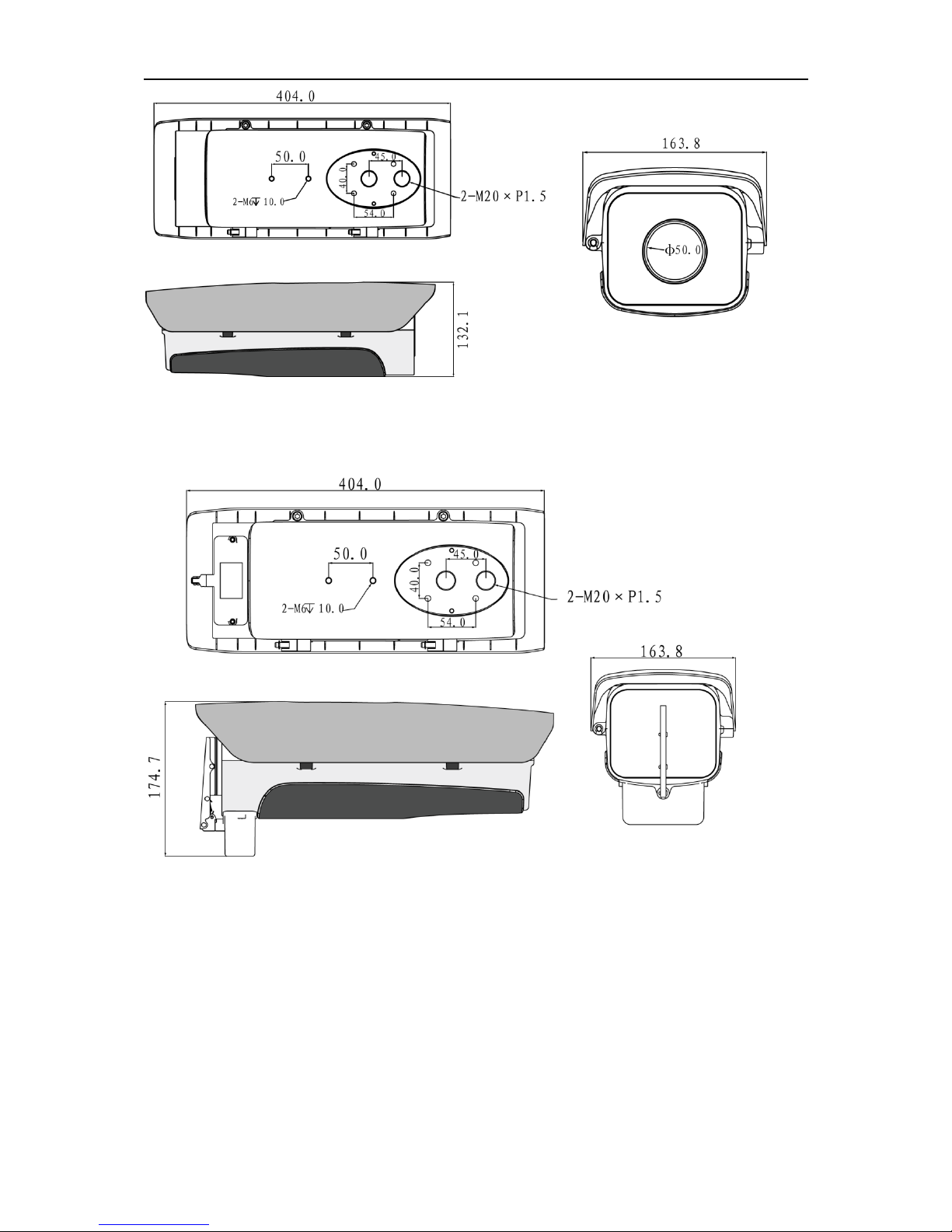

Please refer to Figure 1-2 for PFH610N-IR dimensions information. The unit is mm.

Figure 1-2

Please refer to Figure 1-3 for PFH610N-W/PFH610N-IR-W dimensions information. The unit is

mm.

Figure 1-3

2Installation Instruction Guide

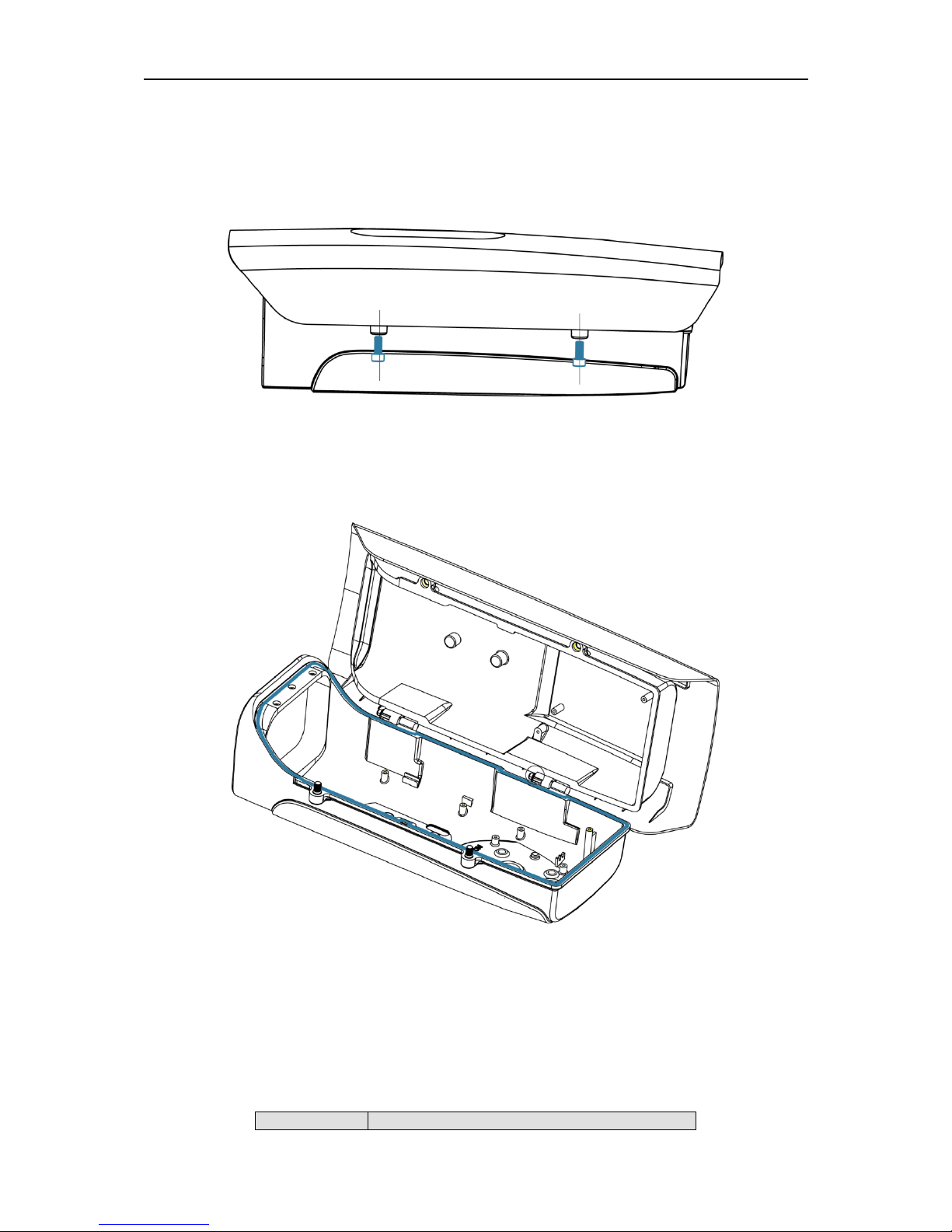

2.1 Lock/Unlock Housing

You can use inner hex wrench (5.0mm) to fix or loosen the two M6 screws on both sides of the

housing to lock or unlock the housing. See Figure 2-1.

Figure 2-1

Important

Before you lock the housing, please make sure the waterproof gasket is in the right

position. See Figure 2-2. Otherwise it may affect the waterproof capability of the housing.

Figure 2-2

2.2 Camera Installation

Step 1: Fix the camera on the camera bracket.

Step 2: Secure the camera bracket on the case. See Figure 2-3.

Please refer to the following sheet for detailed information.

Name

Camera and the components of the main

control board

IR light board fastener and etc

Housing components

Figure 2-3

3Bracket Installation Guide

3.1 General Bracket Installation

The camera can use the bracket of the thread hole to install. The general bracket thread hole

(M6) on the camera is shown as below. See Figure 3-1.

Figure 3-1

3.2 Special Bracket Installation (Compact design, concealed cable exit)

Step 1: Pull the cable through the inside of the bracket. See Figure 3-2.

Step 2: Secure the bracket on the camera. See Figure 3-3.

Step 3: Put the waterproof joint on the cables and then secure firmly. See Figure 3-4.

Figure 3-2

Figure 3-3

Figure 3-4

3.3 Bracket Types

You can refer to the following sheet for different bracket models if you want to use different

mount modes.

Installation

Mode

Reference Figure

Bracket Model

Ceiling

Mount

PFB600W
