Dakota Digital VFD3-91C-CAP Bedienungsanleitung

MAN#650259

1991-93 Chevy Caprice

Dakota Digital Gauge Installation

This sheet covers the installation of the Dakota Digital gauge kit into your 91-93 Caprice

with an original analog speedometer.

1. Remove the cluster from the vehicle.

Remove the four screws holding the clear lens onto

the cluster. Remove clear lens and gray gauge

separator plate from the gauge cluster.

2. Remove the six screws with arrows pointing to

them in the photo at left.

Pull out the fuel gauge and temp gauges, lift off the

gear indicator plate.

3. Remove the three screws pointed to in the photo

at right.

4. With the

screws removed gently pry up on speedometer motor as shown at left

to begin removing motor assembly from the gauge housing. After

the motor pins are free, slightly lift up on the speedometer face until

it contacts the cover on the trip reset shaft.

Rotate the speedometer face clockwise to access screws underneath

of it.

5. Remove the 5 screws indicated with arrows in the two photos below. Remove all the light bulbs (8)

from gauge area. The outer indicator lights can be left in place.

MAN#650259

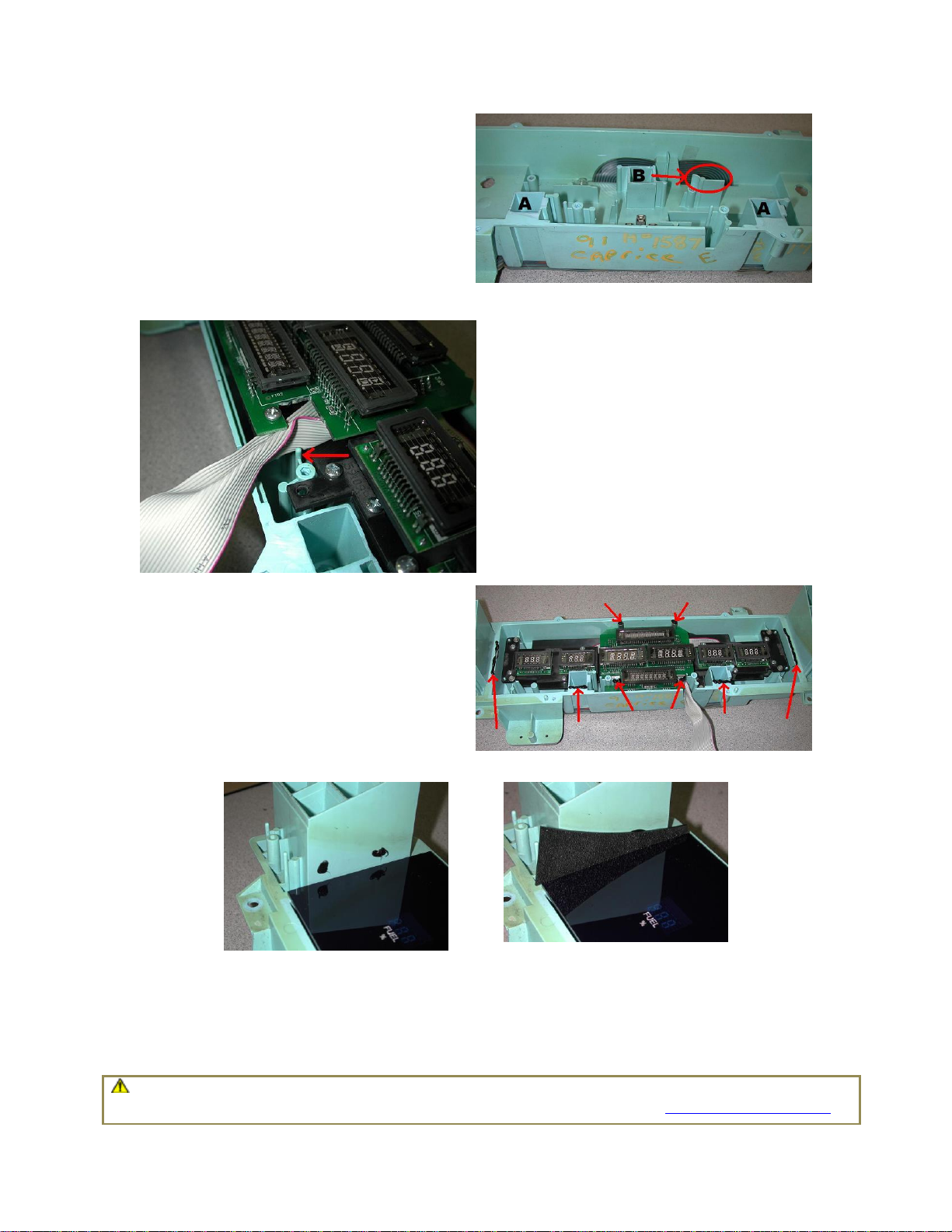

6. Remove the turn signal diffusers (not shown)

from squares marked A. Trim plastic down so it is

flush or slightly lower than the bottom edge of the

housing. This allows the lens to sit flat.

The high beam light tube marked B, needs to be

cut down to below the level of the plastic that is to

the right of it as circled in the photo. This provides

clearance for the digital gauge assembly

7. Insert the gauge assembly into the housing; take

care to route ribbon cable around the guide pin

indicated in the photo. The cable will exit the

housing through the gear indicator cable opening.

When positioned install 6 of the original screws to

retain the gauge assembly.

8. Place dabs of silicone on top of the standoffs

holding the speed/tach circuit board, small lines on

the bottom side of the turn signal light tubes, and

the edge of the housing as indicated by the arrows

in the photo at right. Set the system lens in place.

Place a couple of dabs of silicone on the sides of

the indictor light risers on the sides. Position the

thin black ABS pieces on the sides, textured side in

towards the lens.

.

9. Place the original clear lens over the system lens. The notches on the top of the systems lens will align

and position it. Use the original screws to hold the lens on place. Allow the silicone to dry before

installing the cluster.

10. See the main instruction manual for the remainder of the installation.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to

cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
