Dancover PRO XL Bedienungsanleitung

16-12-2019

Manual

for

Storage Tent PRO

4m Series PVC/PE

Safety Advice

Attention

In some countries approval is needed to set up a tent larger than 75 m2. It is your responsibility

to comply with local rules and regulations and to ensure that the tent is assembled correctly.

In case of bad weather conditions, it is your responsibility to ensure the tent is safely secured

and that the tent does not cause damage to others.

Do not use open re, welding equipment or other sources which can ignite, inside or close to the

tent.

The tent must be safely secured. We recommend you secure your tent with straps and pegs as

soon as it is assembled.

Make sure to check if the tent is covered by your home contents insurance.

Tents must be evacuated under extreme weather conditions.

In the event of snow, always remove snow from the roof of the tent regularly to prevent snow

from building on the roof, as heavy snow can cause the tent to collapse.

In the event of rain, there is a risk of rain puddles building up on top of the roof of the tent.

Heavy rain puddles can cause the roof to collapse. It is your responsibility to ensure rain

puddles do not build up. As a precaution, make sure the roof of the tent is stretched out

properly and adequately over the side frames of the tent and remove rain water regularly.

Do not unpack or repack your tent in freezing temperatures. In case of temperatures below

zero, always unpack and repack your tent indoors to avoid the risk of cracking parts.

The tent must be totally dry before you repack and store it to avoid mildew.

Note: Dancover warranty applies only to the normal use of the Product, normal wear and tear

excepted, in accordance with written use instructions or manual. The warranty does not apply

to damage caused by accident, abuse, misuse, or modification of the Product.

Warranty Information

Please visit dancovershop.com for information on warranty.

Please always check our website for the latest safety advice and manual.

Warning

1. In order to avoid being rusted by air, oil is covered on the surface of the pipes. Before setting

up the tent, please remove the oil carefully rst to keep the cover clean.

2. Take note that the tent needs to be handled carefully to avoid damage.

3. Do not force the frames as they may be damage in the process.

4. Tents are meant as temporary shelter, and must be evacuated under extreme weather

conditions.

Please, select a suitable site for the tent to avoid the damage of underground sprinkler systems,

water, gas or electrical lines.

Part no. 4x10m

1Middle leg

1600mm 50-50 4

2Frame pole

1880mm 38-38 39

3Frame pole

1780mm 50-50 12

4Frame pole

2030mm 50-50 8

5Ceiling rail

2025mm 32-32 2

6Diagonal support

1720mm 32-32 6

7Roof support

1715mm 25-25 6

8Frame pole

2030mm 50-50 4

9Diagonal support

800mm 32-32 4

10 Female doorbar

2025mm 32-32 2

11 Lower leg

1600mm 50-50 8

12 Strengthen bar

1480mm 32-32 2

13 Strengthen bar

1845mm 32-32 2

A3-way connector

54-42/3 rings 6

B4-way connector

54-42/4 rings 12

4x12m

16-12-2019

Part no. 4x12m4x10m

14 3-way conntector

54-42 4

15 4-way connector

54-42 10

16 3-way connector

for corner 2

17 3-way connector

for corner 2

18 3-way connector

for sidewall 10

19 2-way connector

for endwall 2

20 Ceiling rail

1430mm 32-32 2

21 Bracket 14

22 Groundbracket 12

23 Strengthen bar

1855mm 25-25 24

24 Turnbuckle for

door 5130mm 4

25 Turnbuckle for

roof 2840mm 24

26 Turnbuckle for

side 3870mm 24

16-12-2019

Part no. 4x12m4x10m

27 Peg

10x350mm 24

28 Spiral peg 4

29 Small peg 50

30 Bungeeball long 60

31 M6 wingnut 26

32 Screw

M6x30mm 14

33 Screw

M6x45mm 10

34 Screw

M6x65mm 2

35 M6 nut 4

36 Spanner 2

37 Tie down 4

38 Steel clip 82

39 Screw

M8x50mm 92

40 Screw

M8x65mm 92

41 M8 nut 184

42 Peg

16x600mm 22

43 M12 washer 4

158

16-12-2019

Part no. 4x12m4x10m

44 M12 nut 4

45 Screw

M12x48mm 2

46 Screw

M12x65mm 2

47 Sheaved block

1 wheel 2

48 Sheaved block

2 wheel 2

49 Ratchet stape 4

50 Roof 1

51 Endwall 2

16-12-2019

Part 33 Part 34 Part 35 Part 43 Part 44 Part 45 Part 46

M6x45

Screw

M6x65

Screw

Nut

M12

Washer

M12

Nut

M12x48

Screw

M12x65

Screw

4x10 4x12 4x10 4x12 4x10 4x12 4x10 4x12 4x10 4x12

Used for Part 7 and Part 21 12 14

Used for Part 6 and Part 20 2

Used for Part 5 and Part 10 2

Used for Part 6 and Part 9 4

Used for Sheaved block 1wheel Part 47 2 2 2

Used for Sheaved block 2 wheel Part 48

2 2 2

Used for M6x30 12 14

Used for M6x45 10 10

Used for M6x65 2 2

Used for 2-way connector 19 4 4

Used for 3-way connector A 6 6 12 12

Used for 4-way connector B 24 30 24 30

Used for 3-way connector 14 4 4 8 8

Used for 3-way connector 16 4 4 2 2

Used for 3-way connector 17 4 4 2 2

Used for 3-way connector 18 16 20 8 10

Used for 4-way connector 15 16 20 16 20

Used for Part 6 and Part 11 4 4

Used for Part 9 and Part 11 4 4

Used for M8x50 78 92

Used for M8x65 80 92

Used for M12x48 2 2

Used for M12x65 2 2

24 26 12 14 10 2 4 78 92 80 92 158 184 4 4 2 2

Nut

4x10-12x3.5m storage pro

Part 31 Part 32 Part 39 Part 40 Part 41

Wing nut

M6x30

Screw

M8x50

Screw (Ø42)

M8x65

Screw (Ø54)

16-12-2019

tubes, tent and accessories... etc. are present and the same as the list.

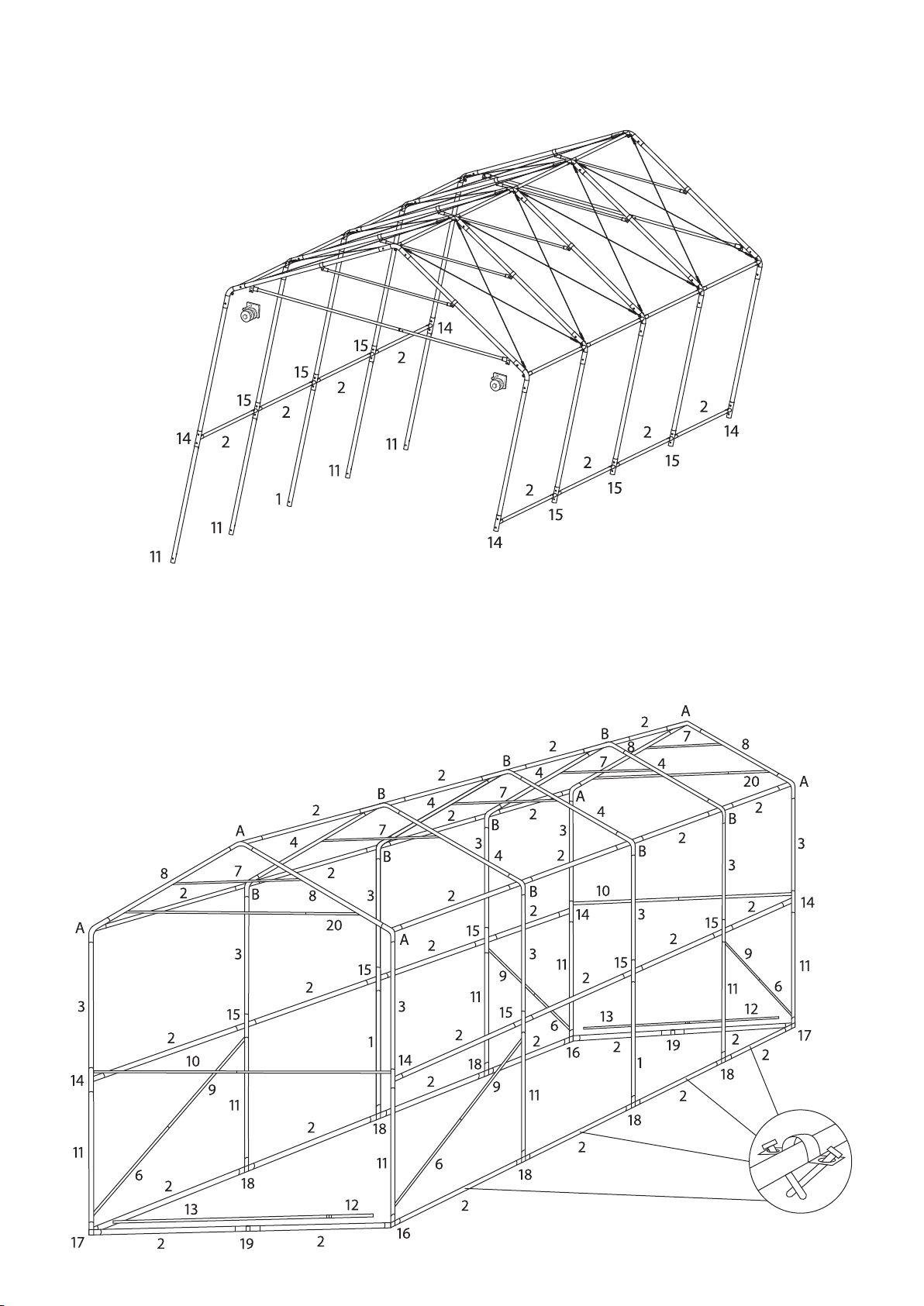

Assemble the framework of rooftop by joining the portion (A, B) together with poles (2, 4, 8) NO. 11

is on four corners for diagonal pipe.

across through each section as below.

III

Attach one end of supported pole (3) to the joints.

If you want the rope pull at the opposite side

than shown in the drawing then switch

sheaved block (47) and (48)

Attach the other supported poles (1, 2, 11) to the joints, built-up the framework. NO. 11 is on four

corners for diagonal pipe.

You facilitate the assembly and dismantling by pulling the roof with ropes on tent frame. Use the

steel clips to fasten the cover to the frame. Each section we offer bracket and nail to fasten the

frame to ground.
