Installation Guide
DEVIreg™ 316
Electronic Thermostat
The English language is used for the original instructions.
Other languages are a translation of the original instructions.
(Directive 2006/42/EC)
DEVIreg™ 316
3Installation Guide
1 Introduction
DEVIreg™ 316 is an electronic thermostat to be installed in
electric cabinets with DIN rail attachment. The thermostat
must be installed via an all-pole disconnection switch.
DEVIreg™ 316 applies to the control of room temperature,
oor temperature, ventilation, cooling or to the control of
snow melting in gutters and similar installations.
For measuring purposes either a wire sensor or an external
air sensor is used.
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . 3
1.1 Technical Specications . . . . . . . . . . . 4
1.2 Safety Instructions . . . . . . . . . . . . . . . 5
2 Mounting Instructions . . . . . . . . . . . . . . . 6
3 Settings . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Hysteresis . . . . . . . . . . . . . . . . . . . . 7
3.2 Minimum Temperature Limiter . . . . . . . 8
3.3 Temperature Set-back . . . . . . . . . . . . 9
4 Warranty. . . . . . . . . . . . . . . . . . . . . . . 10
5 Disposal Instruction . . . . . . . . . . . . . . . 13
DEVIreg™ 316
Installation Guide4
The thermostat has a button to adjust the temperature
setting with a scale from -10°C to +50°C . An LED indicator
shows standby periods and heating periods (red light).
More information on this product can also be found at:
devireg.devi.com.
1.1 Technical Specications
Operation voltage 220 - 240V~, 50Hz
Standby power consumption Max 0.25W
Relay:
Resistive load
Inductive load
Max 16A / 3680W @ 230V
cos φ= 0.3 max 1A
Sensing units NTC 15 kOhm at 25 °C
Sensing values:
0 °C
25 °C
50 °C
42 kOhm
15 kOhm
6 kOhm
Hysteresis 0 ° to 6 °C
Ambient temperature -10 °C to +45 °C
Lowering in economy periods 0 ° to 8 °C
Temperature range -10 ° to +50 °C
Minimum temperature range -10 °C to +5 °C
Cable specication max 1 x 4 mm or 2 x 2,5 mm
Ball pressure temperature 75 °C
DEVIreg™ 316
5Installation Guide
Pollution degree 2 (domestic use)
Type 1B
Storage temperature -20 °C to +65 °C
IP class 30
Protection class Class II -
Dimensions 86 x 36 x 58 mm
Weight 180 g
The product complies with the EN/IEC Standard“Automatic
electrical controls for household and similar use”:
• EN/IEC 60730-1 (general)
• EN/IEC 60730-2-9 (thermostat)
1.2 Safety Instructions
Make sure the mains supply to the thermostat is turned o
before installation.
IMPORTANT: When the thermostat is used to control a
oor heating element in connection with a wooden oor or
similar material, always use a oor sensor and never set the
maximum oor temperature to more than 35°C.
Please also note the following:
• The installation of the thermostat must be done by an
authorized and qualied installer according to local
regulations.
DEVIreg™ 316
Installation Guide6
• The thermostat must be connected to a power supply
via an all-pole disconnection switch.
• Always connect the thermostat to continuous power
supply.
• Do not expose the thermostat to moisture, water,
dust, and excessive heat.
2 Mounting Instructions
Please observe the following placement guidelines:
• Install the thermostat in an electric cabinet with DIN
rail attachment or a separate DIN attachment accord-
ing to local regulation on IP classes.
• Do not place the thermostat in a way that it will be
exposed to direct sunlight.
Follow the steps below to mount the thermostat:
1. Click the thermostat on to the DIN rail attachment.
2. Connect the thermostat according to the connection
diagram.
IP20
-10T50 D316
121110987
L
654321 N
Mains
220-240V~
250V~
16 (1) A
SensorMin.
Danfoss A/S
Ulvehavevej 61
7100 Vejle
Denmark
DEVIreg™ 316
7Installation Guide
The screen of the heating cable must be connected to
the earth conductor of the power supply cable by
using a separate connector.
Note: When you use the wire sensor for oor heating,
always install the sensor in a conduit.
3. Turn on the power supply.
Protective separation
The thermostat is designed so that the sensor circuit is gal-
vanically separated from the high voltage part which means
that the sensor part is regarded as a low voltage part.

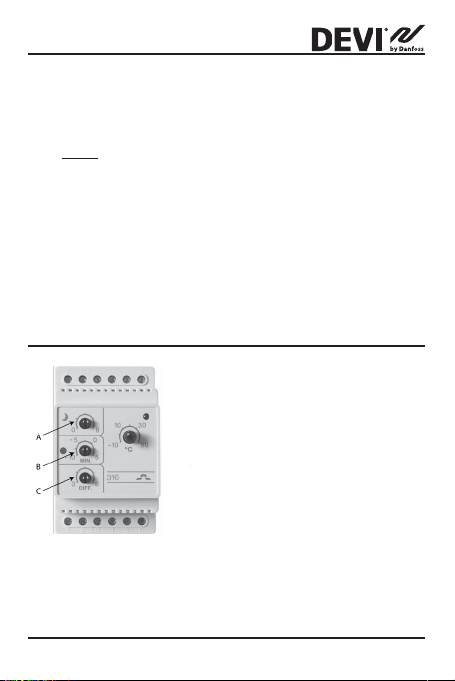

3 Settings
A
B
C
Night set-back
Minimum tempera-
ture limiter
Hysteresis
3.1 Hysteresis
When the thermostat is used to apply with either heating
systems or refrigerating systems, and the requested
DEVIreg™ 316
Installation Guide8
temperature is between -10°C to +50°C, then it is recom-
mendable also to adjust the hysteresis (C) according to the
requested regulating range.
As an example if the temperature is set at 18°C and the
hysteresis at 3°C the thermostat will switch on at 18°C and
o at 21°C.
For controlling of room temperature the Hysteresis is rec-
ommended to the set point of 1°C.
3.2 Minimum Temperature Limiter
When the thermostat is used in connection with snow and
ice melting systems, it is recommendable also to use and
adjust the minimum temperature limiter (B) which ensures
both an upper and lower temperature range in between
which the thermostat allows the system to heat.
The requested maximum temperature range has to be
between -10°C to +50°C and the requested minimum tem-
perature range has to be between -10°C to +5°C.
An link between terminal 9+10 must be connected to acti-
vate the use of the minimum temperature feature when the
thermostat controls snow and ice melting in gutters, valley
gutters and down pipes, where the waste of unnecessary
energy must be avoided. In particular by extremely cold
weather where owing water or moisture does not occur.
DEVIreg™ 316
9Installation Guide
When the temperature drops below the minimum tem-
perature set value, the thermostat stops heating and the
LED indicator turns yellow.
When the temperature exceeds the maximum temperature
setting, the thermostat stops heating and both the indica-
tor for minimum and maximum temperature disappears.
3.3 Temperature Set-back
By connecting an external timer to terminals 4 and 6, the
thermostat can be set to reduce the temperature by 0°C to
8°C (A).
DEVIreg™ 316
Installation Guide10
4 Warranty
A 2-year product warranty is valid for:
• thermostats: DEVIreg™ 316.
Should you, against all expectations, experience a problem with your DEVI product,
you will nd that Danfoss oers DEVIwarranty valid from the date of purchase on
the following conditions: During the warranty period Danfoss shall oer a new com-
parable product or repair the product if the product is found to be faulty by reason
of defective design, materials or workmanship.The repair or replacement.
The decision to either repair or replace will be solely at the discretion of Danfoss.
Danfoss shall not be liable for any consequential or incidental damages including,
but not limited to, damages to property or extra utility expenses. No extension of the
warranty period following repairs undertaken is granted.
The warranty shall be valid only if the WARRANTY CERTIFICATE is completed
correctly and in accordance with the instructions, the fault is submitted to the
installer or the seller without undue delay and proof of purchase is provided. Please
note that the WARRANTY CERTIFICATE must be lled in, stamped and signed by the
authorized installer performing the installation (Installation date must be indicated).
After the installation is performed, store and keep the WARRANTY CERTIFICATE and
purchase documents (invoice, receipt or similar) during the whole warranty period.
DEVIwarranty shall not cover any damage caused by incorrect conditions of use,
incorrect installation or if installation has been carried out by non-authorized electri-
cians. All work will be invoiced in full if Danfoss is required to inspect or repair faults
that have arisen as a result of any of the above.The DEVIwarranty shall not extend to
products which have not been paid in full. Danfoss will, at all times, provide a rapid
and eective response to all complaints and inquiries from our customers.
The warranty explicitly excludes all claims exceeding the above conditions.
For full warranty text visit www.devi.com.
devi.danfoss.com/en/warranty/
