Installation Guide
DEVIreg™ Room
Intelligent electronic timer controlled thermostat with
App control
EN
4INSTALLATION GUIDE
DEVIreg™ Room
1 Introduction
The DEVIreg™ Room is a Thermostat for use with electric oor heating, the
thermostat has multiple control modes: Floor, Room* and Combined. the
thermostat has adaptive timer support which provides an ecient way of
controlling your electric oor heating system.
*requires special action.
The thermostat is special designed for wall mounted installation in
standard EU wall mount boxes, in and on wall, and can be used for control
of total heating as well as comfort heating of the room. The thermostat
supports a selection of commonly used frame systems for 55x55 (inner
geometry) framing systems.
Among others, the thermostat has the following features:
• ECO design LOT20 compliance
• In App setup for specic ooring and room types.
• Support for 55x55 like frame systems.
• Simple knob operation for temp. control and features.
• Bluetooth connectivity on 2.4GHz frequency at a maximum power of
10 dBm.
• Access to thermostat via App for settings for easy access, setup, or
remote troubleshooting. Firmware update via DEVI Control App.
• Works out of box with default parameters as thermostat.
5INSTALLATION GUIDE
DEVIreg™ Room
2 Standard Compliance
Electrical safety, Electro-Magnetic Compatibility and Radio aspects for
this product is covered by the compliance with the following relevant
standards:
• EN/IEC 60730-1 (general)
• EN/IEC 60730-2-7 (timer)
• EN/IEC 60730-2-9 (thermostat)
• EN 301 349-1 and EN 301 349-17 (EMC standard for radio equipment
operating in the 2,4 GHz band)
• EN 300 328 (Ecient use of radio spectrum for radio equipment
operating in the 2,4 GHz band)
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Danfoss A/S declares that the radio equipment DEVIreg™ Room is
in compliance with Directive 2014/53/EU.
The full Declaration of conformity can be found on
https://assets.danfoss.com/approvals/latest/281716/ID455643625457-0101.pdf
6INSTALLATION GUIDE
DEVIreg™ Room
3 Safety instruction
Make sure that the mains power supply to the thermostat is shut o
before starting the installation.
Important: When the thermostat is used to control a oor heating
element, always use a oor sensor, and never set the maximum oor
temperature to more than the manufacturer recommends for the specic
ooring type. The device is limited to 35 °C oor temperature, due to
compliance requirements. In special cases the limit can be extended
to 45 °C oor temperature after the unrecoverable breakout has been
performed. Based on the setup in the app the thermostat has maximum
temperature limitations imposed based on our recommendations.
• Electrical heating thermostats must always be installed according to
local building regulations and wiring rules. Installation must be carried
out by an authorized and/or qualied installer.
• The thermostat must be used in a wall mounted installation supplied
through an all-pole disconnection switch (fuse).
• Do not expose the thermostat/switch to moisture, water, dust, and
excessive heat.
• This thermostat/switch can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved, by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with
the thermostat/switch.
• The device is designed for permanent operation.
7INSTALLATION GUIDE
DEVIreg™ Room
Instructional video material
To make it easy we show the
features and functions of the
product in videos that are present
on our YouTube channel.

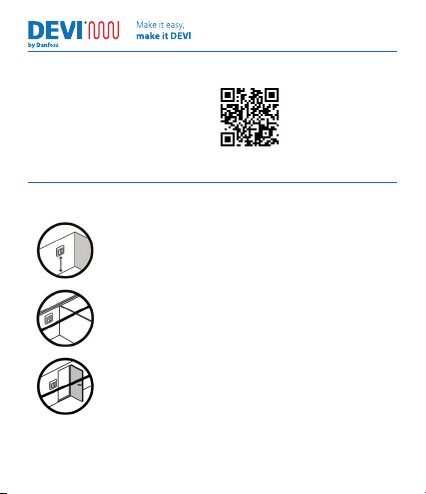

4 Installation Guidelines
Follow these guidelines when placing the thermostat.
Install the thermostat in a suitable height on the wall
(typical 80 – 170 cm)
Do not place the thermostat on the inner side of a poorly
insulated exterior wall.
Install the thermostat more than 50 cm from window
and door openings
8INSTALLATION GUIDE
DEVIreg™ Room
Do not place the thermostat in a way that it will be
exposed to direct sunlight.
The thermostat must not be installed in direct wet
areas (Zones 0, 1 and 2).Always follow local regulations
regarding IP classes, this doesn’t mean that the
thermostats can’t be installed in bathrooms.
Do not position the oor sensor close to door openings
or at places where the sunlight or other heat sources are
located in the oor.
9INSTALLATION GUIDE
DEVIreg™ Room
Installation steps
Description Illustration
1. Unpack the thermostat. Make
sure all parts are delivered
(1 pc. thermostat unit ,1 pc.
Power supply, 1 pc. Frame, 1 pc.
Frame adapter, 1 pc. Spacer, and
1 pc. wire sensor) along with
the instructions written in local
ocial language.
2. Place the oor sensor in the
Flexpipe and make sure the
sensor element is properly xed
inside a Flexpipe. The Flexpipe
must guide the sensor cable all
the way to the wall/connection
box. Our mats have this product
included. sold separately as
(140F1114).
10 INSTALLATION GUIDE
DEVIreg™ Room
Description Illustration
3. The bending radius for the
Flexpipe must be more than
50 mm.
4. Make sure the oor sensor is
located with equal distances
between two heating
cables (> 2 cm) located at a
representative position.
5. For thin oor constructions:
the Flexpipe should be ush
with the sub-oor surface,
countersink the Flexpipe if
possible.
For thicker constructions: the
Flexpipe including the sensor
should be located such that
the sensor is exposed to a
representative heating level,
our recommendation is still
that the sensor must be located
equidistant between the cables
or mat runs.
