Danfoss TP9000 Bedienungsanleitung

TP9000

Electronic Programmable Room Thermostat

plus Domestic Hot Water Timer

Installation Guide

Danfoss Heating

MAKING MODERN LIVING POSSIBLE

TP9000

For a large print version of these instructions

please call Marketing on 0845 121 7400.

Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other

printed material. All trademarks in this material are property of the respective companies.

Danfoss Heating 3

TP9000

Electronic Programmable Room Thermostat

plus Domestic Hot Water Timer

1.0 Basics

1.0 Product speciﬁcation...................................................................4

1.1 Installation.......................................................................................5

1.2 Wiring ................................................................................................7

2.0 Installer advanced programming options

2.1 Installer advanced programming options...........................9

2.2 Service Interval Timer..................................................................9

2.3 Entering Installer Advanced Programming Mode ............9

Installation Instructions

TP9000

Please note: This product should only be installed by a

qualiﬁed electrician or competent Heating installer, and should

be in accordance with the current edition of the IEEE wiring

regulations.

Speciﬁcation 230V model 24V model

Power supply 230 Vac, ±15%,

50/60 Hz

24 Vac, ±15%,

50/60 Hz

Switching action

2 x SPDT internally linked, Type 1BS

Unit switch rating 230 Vac, 3(1)A 24Vac, 3(1)A

Memory Backup Retained for life of product

Heat Temperature Range

Setting

5°C - 30°C

Factory Set Calendar

Clock

Automatic Summer/Winter time

change

Remote Sensor Inputs

(‘A’models only)

Can be set by installer for remote sen-

sor, limited sensor, window contact,

tele-switch or outdoor sensor

Programme resolution ± 1 minute

Timing Accuracy ± 1 minute

Dimensions, mm (W, H, D) 135 x 88 x 32mm

Design standard EN 60730-2-7 +EN60730-2-9

Control Pollution Situ-

ation

Degree 2

Rated Impulse Voltage 2.5 kV

Ball Pressure Test 75°C

1.0 Product speciﬁcation

1.0 Basics

Danfoss Heating 5

1.1 Installation

• Remove wallplate from unit by unscrewing the two screws on

the bottom edge of the unit.

• From the top left hand corner of the wallplate, there must be

clearances of at least 140 mm to the right, 15mm to the left,

30mm above and 100mm below in order to mount the plug-on

module.

• The wallplate must be securely mounted either directly to the

wall using suitable wood screws or to a ﬂush mounted 1-gang

electrical accessory box using M3.5 screws.

• Cable access can either be from behind for concealed cabling, or

from below for surface cabling. If surface cable is used, cut out

cable access slot on plug-on module prior to mounting.

• For wiring connections refer to diagram on page 7.

The TP9000 is double insulated and does not require an earth

connection, however a parking terminal is provided on the

wallplate. This is clearly marked with an Earth symbol.

• Prior to mounting the plug-on module, DIL switches on the

rear of the plug-on module must be set. See diagram below for

available options.

• Mount plug-on module to wallplate by locating tabs on top of

wallplate in apertures on rear of module, hinge down and press

ﬁrmly to wallplate before tightening securing screws on bottom

of wallplate.

Keyboard disabled

Reset disabled Reset enabled

Keyboard enabled

OFF ON

Sw. No.

Prior to mounting the unit the 2 DIL switches on the rear of the

unit have to be moved to the required position. The factory

presets are shown below.

TP9000

IMPORTANT: The supply to this unit should by wired via a double

pole isolation switch in accordance with BS EN60730-1, i.e. one

which provides air gaps of at least 3mm in both poles of the mains,

and incorporates a 3 amp fuse. It is strongly recommended that solid

conductors be used.

Clearance for

screwdriver

access

Surface fixed cable

bottom entry knockouts

Rear entry

cable access

N &

looping

terminals

Wall or

Plaster box

fitting

Terminal block

Outline of unit

30mm minimum

C/L

Thermostat and Remote Room Sensor:

Fix at a height of approximately 1.5m from the ﬂoor, away from

draughts or heat sources such as radiators, open ﬁres or direct

sunlight.

Danfoss Heating 7

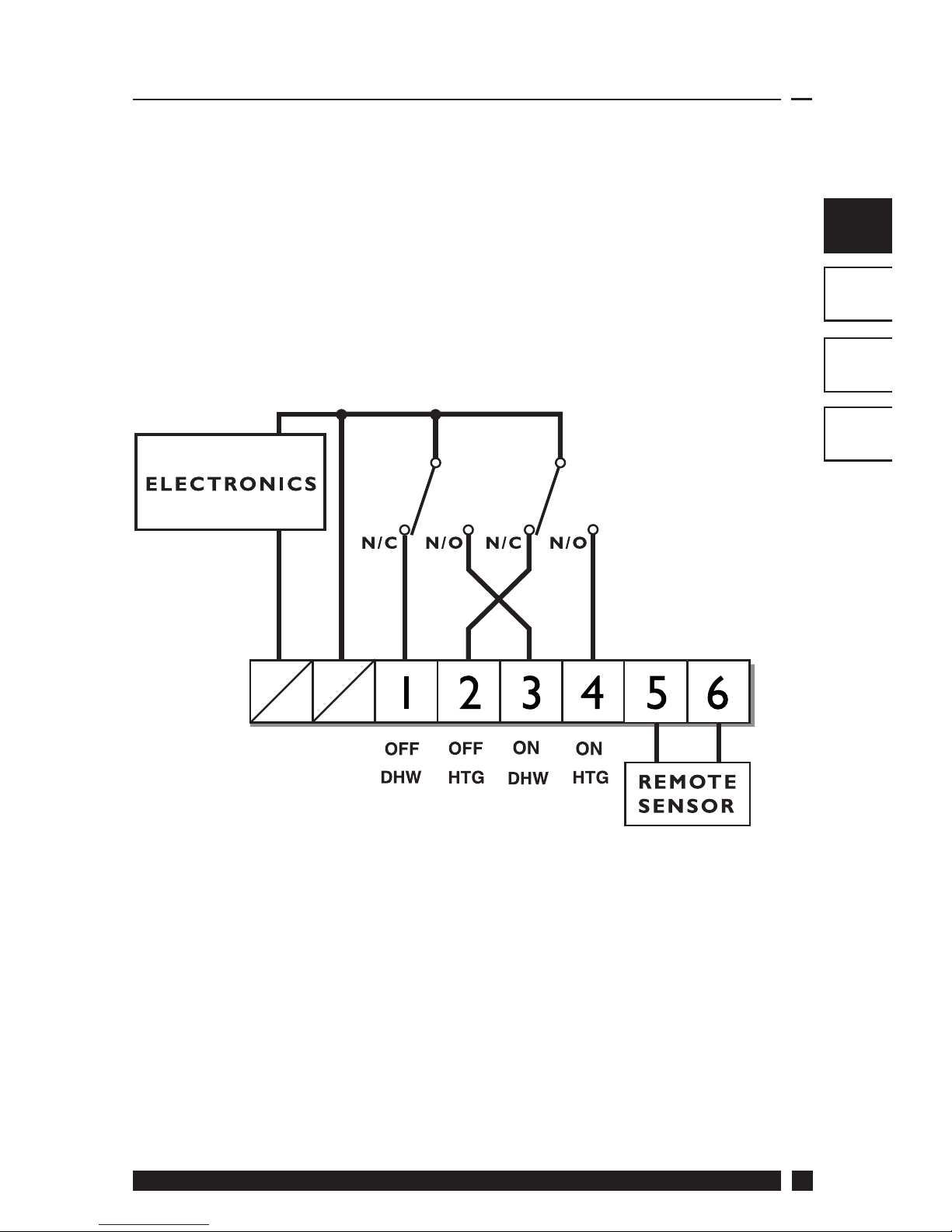

1.2 Wiring

NOTE:

The 230V TP9000 does not have voltage free contacts, therefore it is

NOT suitable for connection to extra low voltage equipment.

Remote Sensor to be wired with 1mm 2 core double insulated cable

only. Cable length should not exceed 50 metres. Sensor cable should

NOT be run parallel to mains cable.

NBLC

Remote sensor inputs

The TP9000 incorporates an input which can be used to connect one

of the following:

1) remote room temperature sensor

2) limit sensor, for example, ﬂoor temperature sensor (sold as

accessory).

3) window contacts, card reader contacts, outdoor sensor (sold as

accessory) or teleswitch contacts.

See Installer Advanced Programming Options for set-up

instructions.

N-L = 230V

B-C = 24V

(B=0v / C=24v)

TP9000

Remote sensor inputs

Terminals 5 and 6 are the designated remote sensor inputs.These can

be found on the top right hand side of the wallplate.

Window or

teleswitch

contact

(NO or NC)

Teleswitch

contact (NC)

Window

contact (NC)

Conﬁgured for

remote room,

limit or outdoor

sensor

Conﬁgured for

window contact or

other contact such

as teleswitch

Conﬁgured for

window contact

and other contact

such as teleswitch

Danfoss Heating 9

2.0 Installer advanced

programming options

TP9000 incorporates a number of advanced features which can be set

by the user. These are accessed via a User Advanced Programming

Mode, please refer to User Advanced Programming in the user

instructions for details (see page 23)

2.1 Installer advanced programming options

TP9000 incorporates an additional number of advanced features

which can be set by the installer to improve the operating eﬃciency

of the system and where required, to change the user functionality

of the product. These are accessed via an Installer Advanced

Programming Mode. These settings are optional and need only be

made if there is a demand for the enhanced functions.

2.2 Service Interval Timer

Instructions on how to access this feature are available from our

customer support desk. Please note these are only issued to boni-ﬁde

Heating installers.

2.3 Entering Installer Advanced Programming

Mode

To access the Installer Advanced Programming Mode follow the

steps below:

a) Press and hold Vand PROG for 3 seconds

to enter User Advanced Programming, the

display will change to ﬁgure opposite.

b) Press and hold V, Λand PROG for 5 seconds

to enter Installer Advanced Programming, the

display will change to ﬁgure opposite.

TP9000

c) Use +and -keys to scroll backwards and forwards between

options then Vand Λkeys to change the option settings. The

ﬂashing digit on the right hand of the display indicates the

number of the selected option. The large characters display the

option value selected.

d) To return to RUN, press and hold PROG until the display returns

to RUN mde.

Option 30 - Set upper limit of temperature range

This allows the upper limit of the thermostat

setting range to be electronically limited. Press +

until Option 30 is displayed, use Vand Λto select

required setting.

Setting 40 - 5°C (factory setting is 30°C)

Option 31 - Set lower limit of temperature range

This allows the lower limit of the thermostat

setting range to be electronically limited. Press +

until Option 31 is displayed, use Vand Λto select

required setting.

Setting 5 - 40°C (factory setting is 5°C)

Option 32 - Enable Oﬀ at lower limit

This enables an OFF function to be selected if a

set point below the lower limit is selected. Press +

until Option 32 is displayed, use Vand Λto select

required setting.

Setting 0 Disabled

Setting 1 Enabled (factory setting)

Option 33 - Enable On at upper limit

This enables an ON function to be selected if a set

point above the upper limit is selected. Press +

until Option 33 is displayed, use Vand Λto select

required setting.

Setting 0 Disabled (factory setting)

Setting 1 Enabled
