Danfoss TP5001 series Gebrauchsanweisung

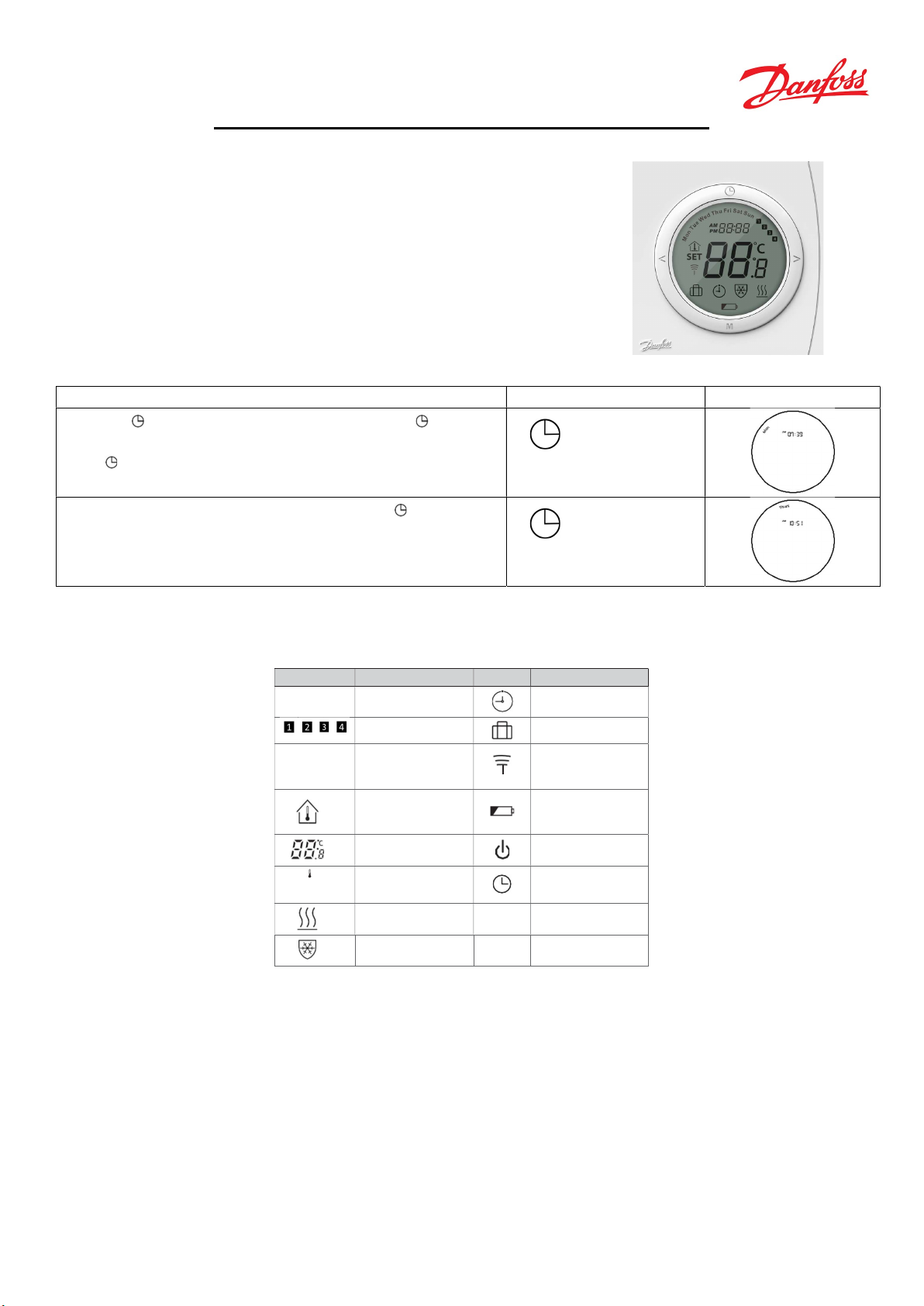

Danfoss TP5001 Easy Setting Guide

Setting the heating programmes on the TP5001 is done in two stages:

1. Set the correct time and date

2. Set the times at which you wish the room to be a set temperature.

Please see below for a step by step guide:

Set the clock:

Instruction

Buttons Used

Screen Display

Press

the

button to illuminate the screen. Press

again

and the HOUR will flash. Use < or > to set the correct hour and

press .

< > M

Use

to set the correct

MINUTE

and press

and the

DAY

will flash. Use < or > to set the correct DAY and press M to

return to the normal operating screen.

< > M

Display item meanings:

Symbols

Function description

Symbols

Function description

Mon – Sun

Current set day

Schedule mode

Current on/off period

Holiday mode

AM PM

Current set time /

parameter number

in setup

RF Status

(TP5001RF only)

Room temperature

Battery low indicator

(TP5001B & TP5001RF

only)

Temperature

indication

Power on/off

SET

Set temperature

Timer and program

operation

Heating active

Mode change /

option setting

Frost protect active

< >

Temperature / option

setting selectors

Setting On and Off times:

Instruction

Buttons Used

Screen

Display

To set the 1

period of the day ( )

Press the

button

for

seconds. Display changes to show Mon, Tue, Wed, Thu, Fri

with the HOUR flashing. Use < or > to set the HOUR of your

first temperature event. Press to make the MINUTES flash.

Use < or > to set the MINUTES.

Press

and the display will change to show

TEMPERATURE

flashing. This is the TEMPERATURE you want the room at for

the first period of the day. Use < or > to adjust the

TEMPERATURE e.g. 21oC. Press to set and move to period

two ( ).

< >

The display now shows period two ( ) with the HOUR

flashing. Use < or> to select the time you wish period ( ) to

start. Press to set the MINUTES using < or > buttons. Press

to confirm and then use < or > to set the required

TEMPERATURE e.g. 16oC. Press and repeat the previous

steps to set the period 3 ( )and 4 ( )

< >

Once periods and have been set, the display will change

to show SAT SUN. Repeat previous processes to set the time

and temperature events for the weekend.

< >

Once the temperature has been set for period using

button, the display will revert to its normal operating display

NOTE

: If your unit is set for

24hr programming

the display will show Mon Tue Wed Thu Fri Sat Sun during

programming and all days will have the same times and temperatures set. This is changed in the advanced setting,

see the full user guide for further instruction.

Away Mode:

Away mode is used

to temporarily stop the timing functions if

you are away for a period of time.

To enable AWAY mode, press M button and a will appear

in the display.

The AWAY mode temperature is set to 16oC by default. To

change, consult full user instructions.

disable

AWAY

mode,

press and release

button

–

normal

programme times are resumed.
