Datalogic Magellan CSS4400 Bedienungsanleitung

MagellanTM CSS4400

Customer Service Scanner

Quick Reference Guide

Datalogic USA, Inc.

959 Terry Street

Eugene, OR 97402

USA

Telephone: (541) 683-5700

Fax: (541) 345-7140

umentation or the procedures described therein may be reproduced or trans-

mitted in any form or by any means without prior written permission of

Datalogic S.p.A. or its subsidiaries or affiliates ("Datalogic" or “Datalogic USA,

Inc.”). Owners of Datalogic products are hereby granted a non-exclusive, revo-

cable license to reproduce and transmit this documentation for the pur-

chaser's own internal business purposes. Purchaser shall not remove or alter

any proprietary notices, including copyright notices, contained in this docu-

mentation and shall ensure that all notices appear on any reproductions of

the documentation.

Should future revisions of this manual be published, you can acquire printed

versions by contacting your Datalogic representative. Electronic versions may

either be downloadable from the Datalogic website (www.datalogic.com) or

provided on appropriate media. If you visit our website and would like to make

comments or suggestions about this or other Datalogic publications, please

let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this man-

ual that is complete and accurate, however, Datalogic reserves the right to

change any specification at any time without prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A.

in many countries, including the U.S.A. and the E.U. All other brand and prod-

uct names may be trademarks of Datalogic S.p.A. or of Datalogic Group com-

panies, registered in many countries, including the U.S. and the E.U.

All other brand and product names may be trademarks of their respective

owners.

Patents

See www.patents.datalogic.com for patent list.

See the Regulatory Addendum included with your

product for additional regulatory, safety and legal

information.

Quick Reference Guide i

Table of Contents

Features......................................................................................................... 2

Connection..................................................................................................... 3

Mounting Bracket......................................................................................... 4

Standard Mounting Bracket ............................................................... 4

Wall Mount.................................................................................. 4

Under Shelf Mount ..................................................................... 5

Pole Mount.................................................................................. 5

Mast Mounts........................................................................................ 6

Side Mast Mount ........................................................................ 6

Back Mast Mount ....................................................................... 6

Programming ................................................................................................ 7

Aladdin™ Configuration Utility ........................................................... 7

Using Programming Bar Codes.......................................................... 7

Resetting Product Defaults................................................................ 8

Software Product Policy............................................................................... 8

Reading Parameters .................................................................................... 9

Aiming System..................................................................................... 9

Technical Features ..................................................................................... 10

LED and Beeper Indications ...................................................................... 14

LED Status .......................................................................................... 14

Indicators..................................................................................................... 14

Programming Mode Indications ............................................................... 16

Error Mode................................................................................................... 17

Ergonomic Recommendations.................................................................. 19

ii Customer Service Scanner

Datalogic USA, Inc. Limited Factory Warranty ........................................ 20

Warranty Coverage .................................................................. 20

Warranty Claims Process ........................................................ 21

Warranty Exclusions................................................................ 21

No Assignment......................................................................... 22

Risk of Loss............................................................................... 22

Services and Support ................................................................................. 23

Quick Reference Guide 1

Customer Service Scanner (CSS)

For the purposes of this manual, the Customer Service Scanner

can alternatively be termed as the ”scanner,” or the ”CSS.”

The CSS is a standard range 2D bar code scanning module which

can be optionally teamed with an in-counter Magellan 9300i or

9400i scanner to provide a convenient means for customers to

scan their own coupons or input other images to the system.

Because of its convenient size, the CSS can be flexibly mounted in

most any suitable location that allows easy access to the cus-

tomer in a down-facing orientation.

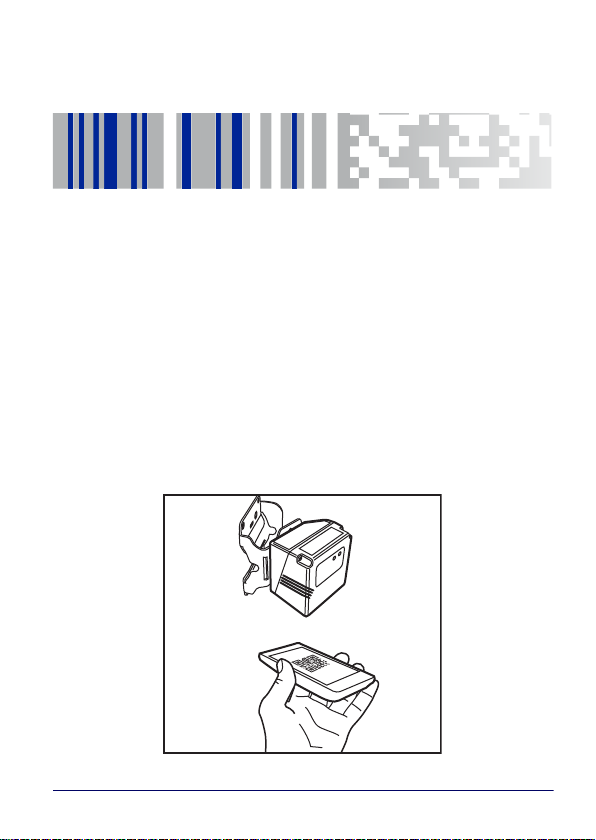

Figure 1. Customer Service Scanner (CSS)

Coupon

Features

2 Customer Service Scanner

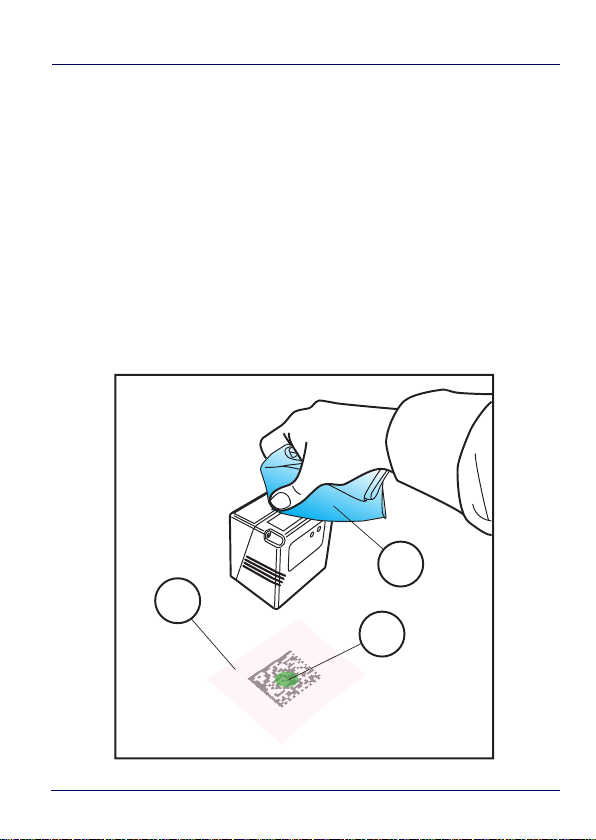

Features

CSS features offer ease of use and maintenance:

1. The illuminated area beneath the CSS is where the bar

code label should be placed to be read.

2. For accurate scanning, align the bar code with the Green

Spot in its center. In addition, visual feedback for good read

is indicated by the Green Spot turning off, then back on.

3. The scanner’s enclosure features robust IP54 sealing and

resin construction to increase its tolerance to cleaning

with solvents and disinfectants.

Figure 2. CSS Features

Connection

Quick Reference Guide 3

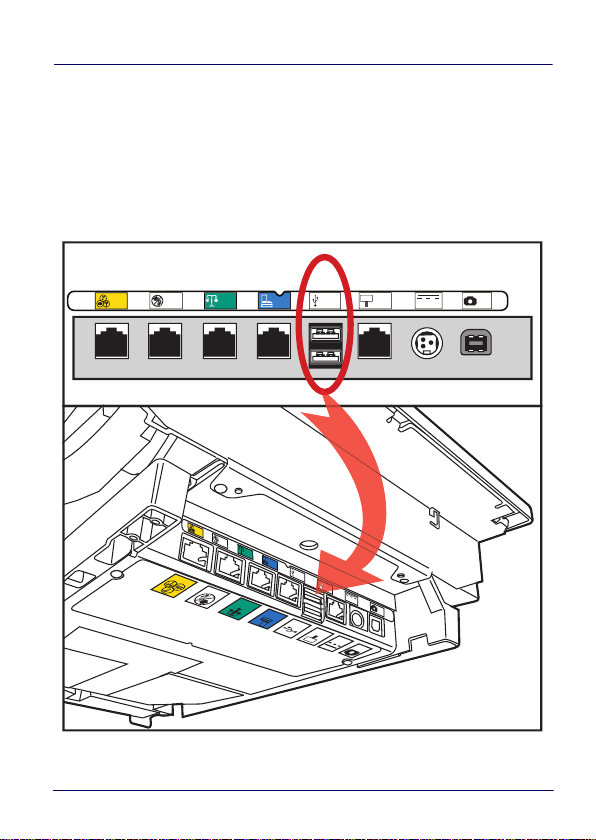

Connection

The CSS connects directly to either of the two stacked USB ports

on the connection bulkhead of the Magellan 9300i or 9400i scan-

ner (see Figure 3), and is powered via this connection. No addi-

tional power supply is required.

Figure 3. CSS Connection to the Magellan 9300i or 9400i Scanner

POWER

0.00

REMOTE

DISPLAY

USB

HOST

PORT

SCALE

HOST

EAS

AUX


PORT

AUX

EAS

SCALE

HOST

PORT

USB

0.00

REMOTE

DISPLAY

POWER


PORT

POWER

0.00

REMOTE

DISPLAY

USB

HOST

PORT

SCALE

HOST

EAS

AUX


PORT

0.00

REMOTE

DISPL

Mounting Bracket

4 Customer Service Scanner

Mounting Bracket

Your scanner kit typically includes a mounting bracket which was

pre-selected for its suitability to your installation. Generally, you

should mount the face of the CSS 6 cm to 18 cm above the surface

to be scanned.

Standard Mounting Bracket

The Standard Mounting Bracket offers several different options

for mounting the CSS, as well as routing features for its cable.

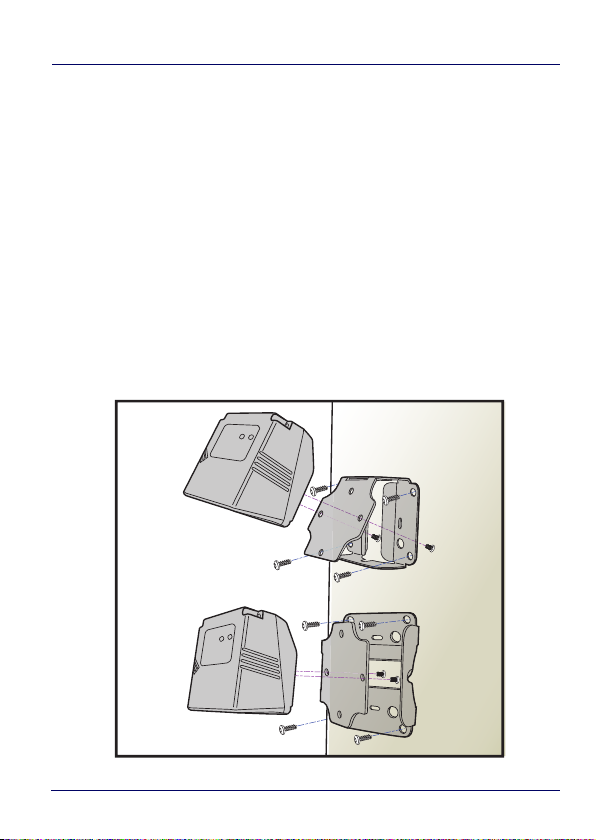

Wall Mount

Mount to a wall or other vertical surface using one of the two op-

tional configurations shown in Figure 4.

Figure 4. Mounting to a Wall

Mounting Bracket

Quick Reference Guide 5

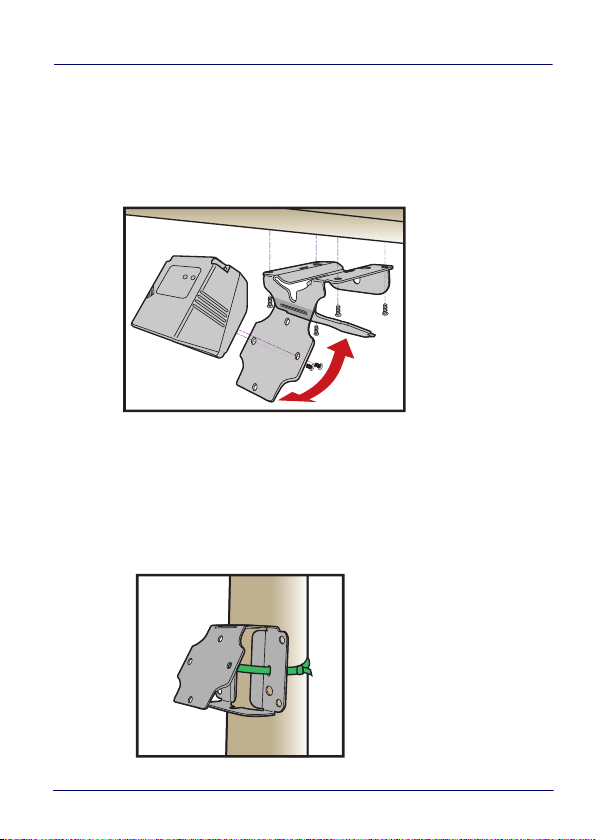

Under Shelf Mount

If the CSS is to be mounted beneath a shelf, counter, or other hor-

izontal surface; the mounting plate can be carefully bent to the

necessary angle as shown in Figure 5.

Figure 5. Mounting Under a Shelf

Pole Mount

The Standard Mount will also permit the CSS to be secured to a

pole or post as demonstrated in Figure 6. Use the slots shown to

attach cable ties or other sturdy cord or line.

Figure 6. Mounting to a Pole or Post

Mounting Bracket

6 Customer Service Scanner

Mast Mounts

Two types of Mast Mounts are available that allow convenient in-

stallation of the CSS in a position adjacent to the scanner’s bon-

net. When installing a Mast Mount, remove the plug from the

desired mount location. Retain the plug for re-installation in case

the mount is ever removed.

Side Mast Mount

The Side Mast Mount can optionally be installed on either the right or

left side of the scanner’s bonnet. The mount is secured beneath the

scanner using two screws and a cosmetic piece plug, and snugs

against the scanner’s side, leaving an opening through which the ca-

ble for the CSS is routed.

Figure 7. Mast Mounts

Back Mast Mount

The Back Mast Mount secures and contours against the back of

the scanner in the same manner.

Back Mast Mount

Side Mast

Mount

Plug

Screws
