Components description

1. Trigger spray

2. Solution dispenser coupling

3. Motor unit

4. Solution system coupling

5. Water or water + shampoo selector

6. External tank

7. Fastening catches

8. Water level gauge

9. Wet/dry tank

10. Handgrip

11. Suction power selector

12. Motor unit handle

13. Electronic suction power selector

(electronic version only)

14. Solution dispenser coupling

15. Motor protection cage

16. Solution dispenser

17. Flexible hose coupling

18. Suction on indicator light

19. Suction ON/OFF button

20. Cleaning-lock button

21. Cold-water-cleaning button

22. Hot-water-cleaning button

23. Steam-cleaning button

24. Cleaning-on indicator light

Tools and accessories

25. Flexible suction hose with handgrip

26. Large triangular clear plastic attachment

27. Small triangular clear plastic attachment

28. Carpet/rug brush

29. Window cleaning attachment

(where provided)

30. Hard floor brush

31. Extension tube handgrip

32. Multi-purpose nozzle

33. Round brush attachment

34. Crevice tool

35. Wet vacuum filter

36. Paper filter

37. Dust bag

38. Shampoo bottle

39. Two extension tubes

40. Dust bag ring

41. Steam brush attachment

ENGLISH

16/28 GB 3-01-2003 10:36 Pagina 16

Dear Customer,

Thank you and congratulations on your purchase of a PENTAVAP

extraction cleaner.

Every De’ Longhi product is the result of meticulous technical testing

supported by a consolidated experience in the design and manufacture of

household cleaning appliances.

We have prepared this manual to help you make the most of your

PENTAVAP and fully appreciate its superb quality.

Please read it carefully before you use your appliance.

We are certain that, if you follow our suggestions, this appliance will give

you maximum satisfaction and many years of service.

PENTAVAP is a multi-function appliance ideal for all house-cleaning jobs. It

is the first deep-cleaner capable of washing and drying any surface using the

best technique for each.

CONTENTS

1. DRY VACUUM ................................................................................. p. 19

2. WET VACUUM................................................................................. p. 21

3. EXTRACTION CLEANING .............................................................. p. 23

Cold water cleaning......................................................................... p. 24

Hot water cleaning........................................................................... p. 25

Rinsing operations........................................................................... p. 25

Steam cleaning................................................................................ p. 26

Cleaning windows ........................................................................... p. 27

4. CARE AND MAINTENACE ............................................................. p. 27

16/28 GB 3-01-2003 10:36 Pagina 17

IMPORTANT INFORMATION

1) Read the instruction booklet carefully before using the appliance.

2) The appliance contains pressurised steam. Incorrect or improper use could be dangerous. The

appliance is designed for household use or for gardening, hobbies or DIY. All types of industrial use are

excluded. The manufacturer declines all liability for damage deriving from improper use of the product.

3) Always disconnect the appliance from mains outlet when not in use or before any maintenance

or care operation.

4) Before using, check that the mains voltage corresponds to the voltage indicated in the specifications

label under the handle.

5) Connect your cleaner only to power outlets with a minimum of 10 amps V, and make sure the outlet is

earthed.

6) Do not leave your cleaner unattended while it is running. Keep it away from the reach of children

and persons unfit to use it.

7) Avoid the steam coming into contact with the skin. The high temperature could cause serious

burns. Never direct the steam jet towards persons or animals or towards surfaces or objects

with could be damaged by high temperatures.

8) Do not aim the water or steam jet at people or animals and do not use on surfaces or objects with a low

resistance to heat.

9) Never direct the steam jet towards the appliance. Before steam cleaning electrically-powered objects or

household appliances (electric oven, refrigerator, extractor fan, etc), unplug these appliances from the

mains. Before plugging in again, make sure they are perfectly dry as residual water could cause

electrical discharges.

10) Avoid skin contact with steam. High temperature may cause serious burns.

11) Do not touch the plug or cord with wet hands.

12) Do not clean the appliance with trichloroethylene or other solvents. Use soapy water only.

13) Do not add detergent to the water tank (steam function). Use water only.

14) Do not run the appliance over the power cord as this may damage the insulating sheath.

15) Do not tug on the power cord to disconnect the appliance from mains outlet.

16) Do not shut the power cord in doors or rub against sharp corners. Keep away from hot surfaces.

17) Do not use the appliance to pick up matches, hot ash, or burning cigarette ends.

18) Do not use to pick up flammable liquids.

19) Avoid vacuuming up hard or sharp objects that might damage the dustbag or the appliance itself. Do not

use to pick up nails, pins, screws, coins, or other metal objects.

20) Always check that filters are in place before switching on your appliance.

21) After use, disconnect the flexible hose and the solution dispenser before storing the appliance. Empty

the solution dispenser by working the dispenser trigger.

22) Periodically check the exhaust filters, and replace if necessary.

23) After washing the wet vacuum filter, make sure it is perfectly dry before re-positioning it.

24) Be especially careful when using the appliance on stairs.

25) To prevent fire or shock hazard do not expose the appliance to rain or moisture. Keep out of direct

sunlight.

26) Do not attempt to use the appliance if it appears to be faulty. Do not use with a damaged power cord or

plug. If the machine has been accidentally dropped, left outside, immersed in water or otherwise wet,

take it to an authorized Technical Service Centre.

26) To repair or if the power cable is damaged and requires replacement, contact an authorised service

centre in order to avoid compromising the efficiency of your appliance and guarantee the validity of the

guarantee. For the same reasons, you are always recommended to use original spare parts.

SAVE THESE INSTRUCTIONS

The manufacturer reserves the right to change the specifications of the appliance and/or accessories

without prior notice. This appliance complies with EEC Directive 73/23 and 93/68 CEE and 89/336 CEE

on electromagnetic compatibility.

16/28 GB 3-01-2003 10:36 Pagina 18

CAUTION: unplug the appliance from the

mains before effecting any set-up operations

or maintenance.

1. DRY VACUUM

PENTAVAP is first and foremost a powerful

vacuum cleaner.

Release the

motor unit by

pulling the

hooks out

(fig. A).

Lift off motor

unit by the easy-

grip handle

(fig.B). Remove

tools from of the

tank.

Make sure that the motor-protection paper bag

(36) is fitted over the motor housing (36).Secure

the paper filter with the special elastic ring (40)

or an ordinary elastic band (fig. C). Position the

large dustbag (37) inside the tank by fitting the

cardboard collar onto the suction inlet port

(fig. D).

Attach motor unit to the tank, refastening the

two catches (fig. A). Connect the flexible hose to

the inlet port of your cleaner by rotating the hose

coupling (17)clockwise until securely attached

(fig. E).

Connect the

solution

dispenser by

pressing in until

it clicks into

place.

DRY VACUUM TOOLS AND

ACCESSORIES

Attach one end of the extension tubes (39) to

the handgrip (10) and the appropriate tool to the

other end.

Carpet/floor power brush (28)

Effectively picks up dust from hard floors and

carpets or rugs.

To vacuum hard floors, depress the beater

brush lever to show the bristles extended

symbol ( ).

To vacuum carpets or rugs, depress the beater

brush lever on the opposite side to show the

bristles withdrawn symbol ( ) (fig. F).

Crevice tool (34)

You can use this tool to

pick up crumbs, dust,

and other fine debris.

Ideal for cleaning those

hard-to-reach places

like radiators, car

interiors, awkward

corners, and so on.

C D

16/28 GB 3-01-2003 10:36 Pagina 19

Multi-purpose nozzle

(32)

For cleaning upholstery,

sofas, car interiors,

drapes, curtains, etc.

Round dusting brush

(33)

Suitable for dusting

upholstery, furniture,

books, drapes, frames,

and clothes.

Fit the required tool to the flexible hose, plug in

the power cord (the green light (18) comes on)

and switch your cleaner on by depressing the

ON/OFF suction button (19) (fig. G).

To stop vacuuming, press the button again.

The handgrip is

equipped with a slide

switch to let you adjust

suction power.

ELECTRONIC VERSION

Cleaners equipped with electronic suction

control have a selector (13) to adjust suction

power to the type of fabric to be cleaned or the

dirt to be removed (fig. H).

It is advisable to set the selector to minimum

power before switching on the appliance.

Maximum power: recommended for heavy dirt

(pebbles, soil, etc.) on hard flooring, matting and

deep-pile carpets, in corners, along edges, etc.

Medium power: saves energy and reduces the

noise of the appliance. It is more than enough to

remove dust from hard flooring and upholstery.

Minimum power: indispensable for vacuuming

over light, delicate objects such as light fabric

coverings, to avoid sucking up the fabric and

making cleaning difficult.

PAPER FILTER MAINTENANCE

When using your appliance as a dry vacuum

cleaner, replace paper filter (36) regularly.

When vacuuming up particularly fine dust, for

example cement, talcum powder, rubble dust,

etc., the paper or cloth filter may appear to be

clean, while actually being clogged, thus

reducing suction and lowering performance. In

such cases, it is preferable to replace the paper

filter.

16/28 GB 3-01-2003 10:36 Pagina 20

2. WET VACUUM

This function will help you to cope with those

little emergencies when you have to mop up

liquids and spillages from any surface quickly

and efficiently, like, for example, unclogging a

drain or dealing with minor floods (washing

machines, dishwashers, basement floors, etc.)

Do not immerse the appliance in liquids, only

the nozzle end.

Proceed to set up your PENTAVAP as

described in Sect. 1 (dry vacuum)

(fig. A and fig. B).

Fit the

polyurethane

foam filter for

wet pick up (35)

over motor

housing (15)

(fig. C).

Attach one end of the extension tubes (39) to

the handgrip (10) and the appropriate tool to the

other end. To

make handling

the extension

tubes easier, fit

the extra

handgrip (31)

(fig. F).

WET VACUUM TOOLS AND

ACCESSORIES

Crevice tool (34)

Recommended for wet pick-up from hard-to

reach places or to unclog drains.

Large triangular clear plastic attachment (26)

Useful for picking up liquids from floors, carpets

and rugs. When using on hard floors, fit the

hard-floor attachment (30) (fig. G).

Fit the triangular attachment on the extension

tube and

connect the

solution

dispenser

(already

connected to

the nozzle)

extension tube

by means of its

clips

(fig. H).

Connect

the solution dispenser to the handgrip by

pressing in until it clicks in place (fig. I).

16/28 GB 3-01-2003 10:36 Pagina 21

Adjust the position of the nozzle to the cleaning

operation you intend to perform (fig. L):

- push upwards

for hot- or cold-

water cleaning;

- push

downwards for

steam cleaning.

Small triangular clear plastic attachment (27)

Ideal for spot cleaning or vacuuming spills on

upholstery, sofas, furniture, etc.

Attach nozzle

directly to

handgrip.

Connect

solution

dispenser to

handgrip by

pushing it until it

clicks in

place

(fig. M).

Connect to power mains and switch your

PENTAVAP on by depressing the suction button

(fig. G, p. 7).

CAUTION: PENTAVAP can hold up to 8 litres

of water in the dirty-water tank. When the

dirty-water tank is full, a special safety

device will shut suction off automatically

and the number of motor revolutions will

increase. At this point, switch off the motor,

disconnect the machine and empty the dirty-

water tank.

EMPTYING THE DIRTY WATER TANK

To empty the tank, disconnect in this order: the

water or water-shampoo solution injection

system (a), the solution dispenser (b), the

suction hose coupling (c), the external

removable tank (d), and the motor unit (e)

(fig. N).

Empty the dirty-

water tank with

the help of the

inner handle

(fig. O).

16/28 GB 3-01-2003 10:36 Pagina 22

3. EXTRACTION

CLEANING

With PENTAVAP you can use cold water to

gently clean floors and fabrics, hot water for

tough dirt, and a powerful steam jet to sanitize

all surfaces.

CAUTION: Make sure that all the fabrics and

surfaces to be cleaned are colour-fast and

sturdy enough for extraction cleaning. If in

doubt, spot-test in an inconspicuous area

and wait until completely dry before

checking the results.

IMPORTANT NOTICE: If the fabric has

previously been treated with a shampoo

different from the product supplied with this

appliance, excessive foam may form inside the

dirty-water tank. If the foam should begin to

overflow and leak out, switch off your cleaner

and empty the dirty-water tank. Always use the

original no-foam shampoo.

Proceed to set up your PENTAVAP as

described in Sect. 2 (wet vacuum).

GETTING THE EXTERNAL TANK READY

FOR EXTRACTION CLEANING

The external unit (6) has two tanks, one

containing the detergent solution (water and

shampoo) for cleaning with water, the other

filled with clean water for rinsing or steam

cleaning.

Disconnect the solution injection system (5) and

remove the solution tank lifting it out by its

handle (fig. A).

Fill the tank from the port marked with the tap

symbol with plain water until the Max level on

the water gauge is reached (fig. B).

Fill the tank with the tap + shampoo symbol on

the cover (approx. 3 litre capacity) with water

until the left-hand-side water level ball in the

water level

gauge reaches

notch no.9, then

add shampoo to

fill. The ball

should now

reach the MAX

notch.

NOTE: this proportion applies when using

the original shampoo. The manufacturer

disclaims any liability for damage to rugs,

carpets, chairs, upholstery, etc., resulting

from the use of detergents other than those

provided with the appliance.

Close the port

hatches,

reattach the

removable tank,

and connect the

solution

injection system

(5) by firmly

pressing in

place

(fig. C).

16/28 GB 3-01-2003 10:36 Pagina 23

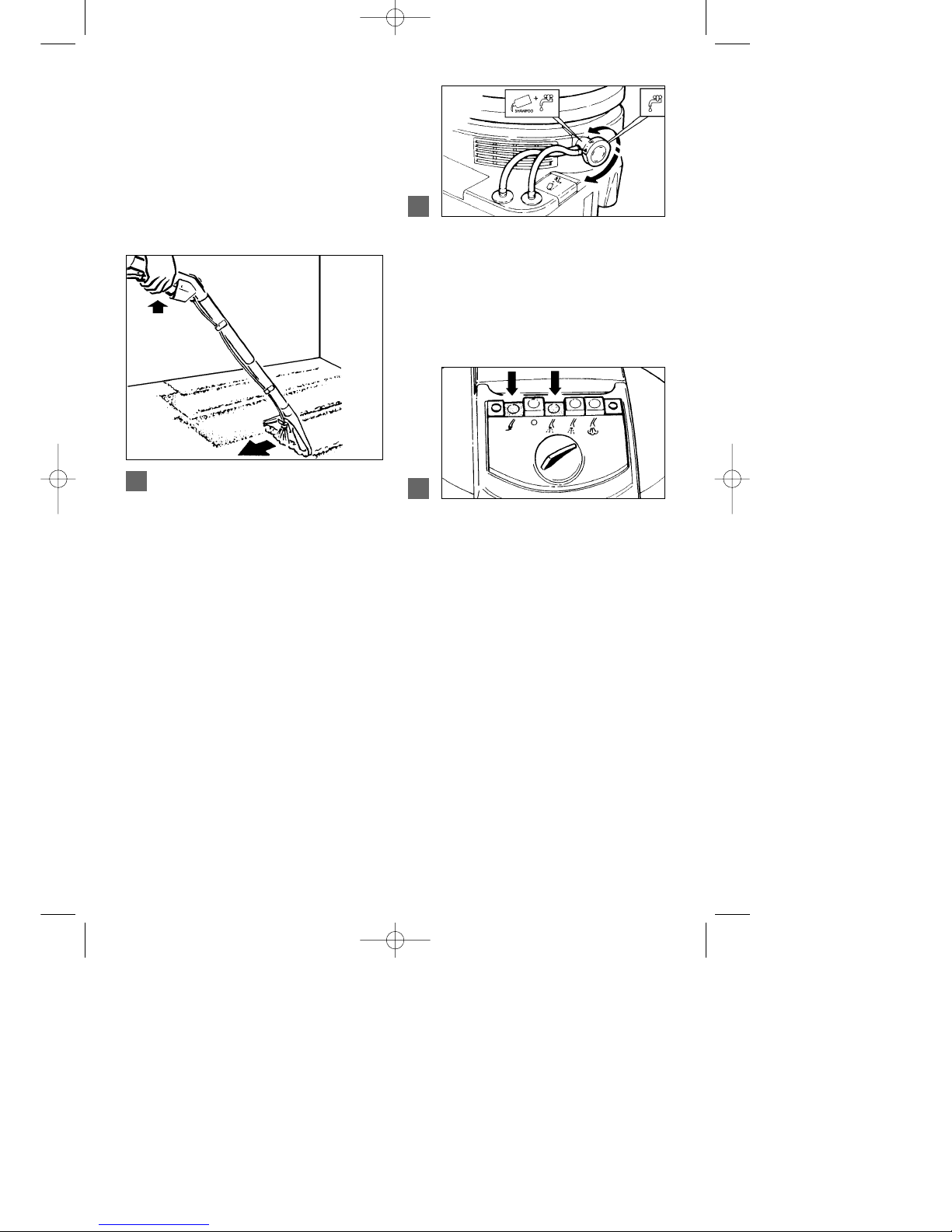

EXTRACTION CLEANING TECHNIQUES

Extraction cleaning with cold or hot water, or

steam, is performed as follows:

- spray the detergent solution or the steam jet

onto the surface to be treated by pressing the

spray trigger (1) while simultaneously

vacuuming from front to back (fig. D).

go over the same area several times,

vacuuming only.The treated surface will then be

free of dirt and almost completely dry.

IMPORTANT NOTICE: set suction at

maximum power for the electronic version.

COLD-WATER CLEANING

(WITH SHAMPOO)

Cold-water cleaning is particularly

recommended for delicate unwaxed hard floors

like fired-clay tiles, parquet floors and all textile

flooring (rugs, carpeting).

Fit your PENTAVAP with the tool required for

the desired type of cleaning.

Rotate the selector of the PENTAVAP solution

injection system to the shampoo position to

obtain spray action for the water and shampoo

solution (fig. E).

Plug in your PENTAVAP (green light (18) on)

and depress the suction (19) and cold-water

cleaning (21) buttons on (red light (24) on)

(fig. F).

At this point your PENTAVAP is ready for

extraction cleaning.

To switch the machine off, depress the cleaning-

lock (20) and suction (19) buttons.

NOTICE: noise level. After setting up your

machine, you may notice an increase of the

noise level for a few seconds. This is not due to

a defect in the machine but to the water starting

to circulate for the first time. Should the noise

continue for more than 15 seconds, check that

the suction inlet tube is correctly connected to

the motor unit. When the water in the tank runs

out, the noise level will increase once again. At

this point, switch off the machine and proceed to

refill the tank as described in the instruction

booklet.

IMPORTANT: the pump noise level acts as an

acoustic warning that the water in the tank has

run out.

16/28 GB 3-01-2003 10:36 Pagina 24

HOT-WATER CLEANING

(WITH SHAMPOO)

Hot-water cleaning is recommended for heavily

soiled unwaxed hard floors like ceramic tiles,

linoleum or vinyl floors, and tiles in general.

Recommended also for mirrors and windows -

use with the special squeegee attachment.

CAUTION: never let the steam-generator on

when the tank has run out of water.

Fit your PENTAVAP with the attachment best

suited to the task required. Rotate selector to

the shampoo setting. Your cleaner is now ready

to deliver a powerful jet of hot water-and-

shampoo solution (fig.E).

Plug in your PENTAVAP (green light (18) on)

and depress the suction (19) and hot-water

cleaning (22) buttons on (red light on); the

machine will emit a particular intermittent sound.

This is perfectly normal and indicates that the

machine is working (fig. G). Wait a few seconds,

then proceed to clean. To switch the machine

off, depress the cleaning-lock (20) and suction

(19) buttons.

USEFUL TIPS: In case of particularly tough dirt,

proceed as follows:

- begin by dry-vacuuming in accordance with the

instructions contained in the “Dry vacuum”

section;

- set up the machine for extraction cleaning and

proceed to treat the dirty surface as follows;

- rotate selector (5) to the water + shampoo

position;

- depress hot-water button (22) and use the

spray trigger on the handgrip to spray cleaning

solution on the surface to be treated;

- wait one or two minutes for pre-treatment to

soak in;

- depress suction button (19) and go over the

pre-treated area using dry vacuum only (do not

use spray trigger);

- rinse carefully following the instructions in the

next section.

CAUTION: when resuming cleaning with hot

water after a few minutes’ pause, aim the nozzle

away for the surface you are cleaning as the

machine may release steam for a few seconds.

RINSING OPERATIONS

After cleaning with the detergent solution, you

may wish to proceed to rinse. Rinsing with water

only will ensure that all traces of detergent are

removed from the treated surface, and is

especially recommended for materials where

detergent residues are hard to get to, like, for

example, fabric and textiles in general.

For rinsing, use the same tools as for extraction

cleaning. Rotate selector (5) to the water-only

position. Plug in your PENTAVAP and depress

the suction (19) and cold-water (21) buttons.

Proceed to clean the surface using the same

technique as for hot- or cold-water cleaning

(fig. D).

When not using the appliance for a fairly long

time, it is advisable to flush out the system with

plain water, no detergent added, before storing

the machine, to avoid blockages due shampoo

residues in the pump. Fill the tank with water

only, and operate the pump depressing the

spray trigger for a few minutes.

16/28 GB 3-01-2003 10:36 Pagina 25

Inhaltsverzeichnis

Andere DeLonghi Staubsauger Handbücher

DeLonghi

DeLonghi WFZ 1300SDL Bedienungsanleitung

DeLonghi

DeLonghi WF1500E Bedienungsanleitung

DeLonghi

DeLonghi XLM21LE Bedienungsanleitung

DeLonghi

DeLonghi XTL7020 Bedienungsanleitung

DeLonghi

DeLonghi XL150.41 Bedienungsanleitung

DeLonghi

DeLonghi XLM51 Series Bedienungsanleitung

DeLonghi

DeLonghi XLR32LMD Bedienungsanleitung

DeLonghi

DeLonghi Upright Vacuum Cleaner Installationsanleitung

DeLonghi

DeLonghi DRY VACUUM CLEANER Bedienungsanleitung

DeLonghi

DeLonghi XL125.20 Bedienungsanleitung

DeLonghi

DeLonghi XLR18 Bedienungsanleitung

DeLonghi

DeLonghi XLC6050M Bedienungsanleitung

DeLonghi

DeLonghi XL165.40T Bedienungsanleitung

DeLonghi

DeLonghi XLC6550M Bedienungsanleitung

DeLonghi

DeLonghi EB1000 Bedienungsanleitung

DeLonghi

DeLonghi DRY VACUUM CLEANER Bedienungsanleitung

DeLonghi

DeLonghi WF1300ES Bedienungsanleitung

DeLonghi

DeLonghi Colombina Evo Bedienungsanleitung

DeLonghi

DeLonghi XLR18LM Bedienungsanleitung

DeLonghi

DeLonghi DHV5060 Series Bedienungsanleitung

DeLonghi

DeLonghi XTXS 160E Bedienungsanleitung

DeLonghi

DeLonghi XTRC 150N Bedienungsanleitung

DeLonghi

DeLonghi XTE 600N Bedienungsanleitung

DeLonghi

DeLonghi XLR32LMD Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
