DFI EC533-KD-AI6881 Bedienungsanleitung

www.dfi.com

DFI reserves the right to change the specications at any time prior to the product's release. For

the latest revision of related technical documents and further information, please refer to related

technical docs on our website at go.d.com/EC533-KD-AI or scan the QR code on the right.

Package Contents

Quick Installation Guide

EC533-KD-AI6881/3G46E

•

1 EC533-KD-AI6881 System Unit

• 1 Quick Installation Guide

•

Mounting Screws for Mini PCIe and M.2

Front View

Notes:

1. This port can be in DVI-D or HDMI (HDMI available upon request).

2. This port is a DP/HDMI combo port but can only transmit HDMI signals (unless wired as a DP port).

Please plug in a DP or an HDMI cable with the right orientation and alignment to avoid damage

to the connector. You should feel resistance (due to a pin on the right) if the cable is not inserted

correctly. For detailed instructions, see https://youtu.be/SUj07rfN5l8.

Align this edge with the

left side of the connector

Angled-corner

(up)

Angled-corner

Aligning side

(left) pin

DC-in

DVI-I(1)

(DVI-D signal)

HDMI

(2)

USB 3.0

LAN 1

LAN 2

USB 3.0

SATA 1

SATA 2

COM3

COM2 (/power)

COM1 (/power)

VGA

Mic-in Line-out

Expansion

slots

COM6

COM5

(/power)

COM4

(/power)

DIO

Graphics Card Power

Power button

Status/HDD

Reset

Remote

power on/off

RS232

(/power)

12 3 45

6789

DCD

(or +12V)

TXD

RXD

DTR

GND

RTS

(or +5V)

DSR

CTS

245

689

245

6 8 9

DIO_0

DIO_1

DIO_2

DIO_3

GND

(or DIO_4)

(or DIO_5)

(or DIO_6)

(or DIO_7)

DATA+

DATA-

N.C.

GND

N.C.

DIO RS422

Full Duplex RS485

6 7 8 9

RXD+

TXD+

RXD-

TXD-

N.C.

12 3 45

N.C.

AI6881 3G46E

DC-in

DVI-I(1)

(DVI-D signal)

HDMI

(2)

USB 3.0

LAN 1

LAN 2

SATA 1

SATA 2

Remote power

on/off

Line-out

Mic-in

Expansion slots

PoE 1~4

DIO

Graphics Card Power

Power button

Status/HDD

Reset

COM3

COM2 (/power)

COM1 (/power)

VGA

Quick Installation Guide |

Installing a 2.5" SATA Drive

The SATA drive bay can be easily accessed witout opening the system. However, the system

does not support hot-swapping hard drives; turn off the system rst before proceeding with the

following procedure for installing a SATA drive. Locate the drive bay on the front panel and open it

by releasing the handle. Slide the HDD into the drive bay. Note that the HDD should be positioned

vertically with the SATA data connector on top of the power connector to correctly engage with the

system's SATA connectors. Then close the drive bay and lock the handle.

Notes:

1. The slot is desgined to exactly t a 2.5" SATA drive with 7mm thickness; it cannot t

SATA drives with other sizes.

Do not force to close the drive bay if the HDD is not correctly inserted.

Removing the Chassis Cover

Please observe the following guidelines and follow the procedure to open the system.

1. Service or maintenance procedures should only be performed by trained technicians.

2. Ground yourself by using a wrist grounding strap to prevent electrostatic discharge.

3. Make sure the connected system or computer and all other devices connected to it have been

powered off.

4. Disconnect all power cords and cables.

5. The 5 mounting screws on the top cover of the system are used to secure the cover to the

chassis. Remove these screws and then put them in a safe place for later use.

6. After removing the mounting screws, lift the chassis cover to open the system.

SATA data Connecotr

Drive bay handle

Mounting screw

SODIMM sockets

Mini PCIe sockets

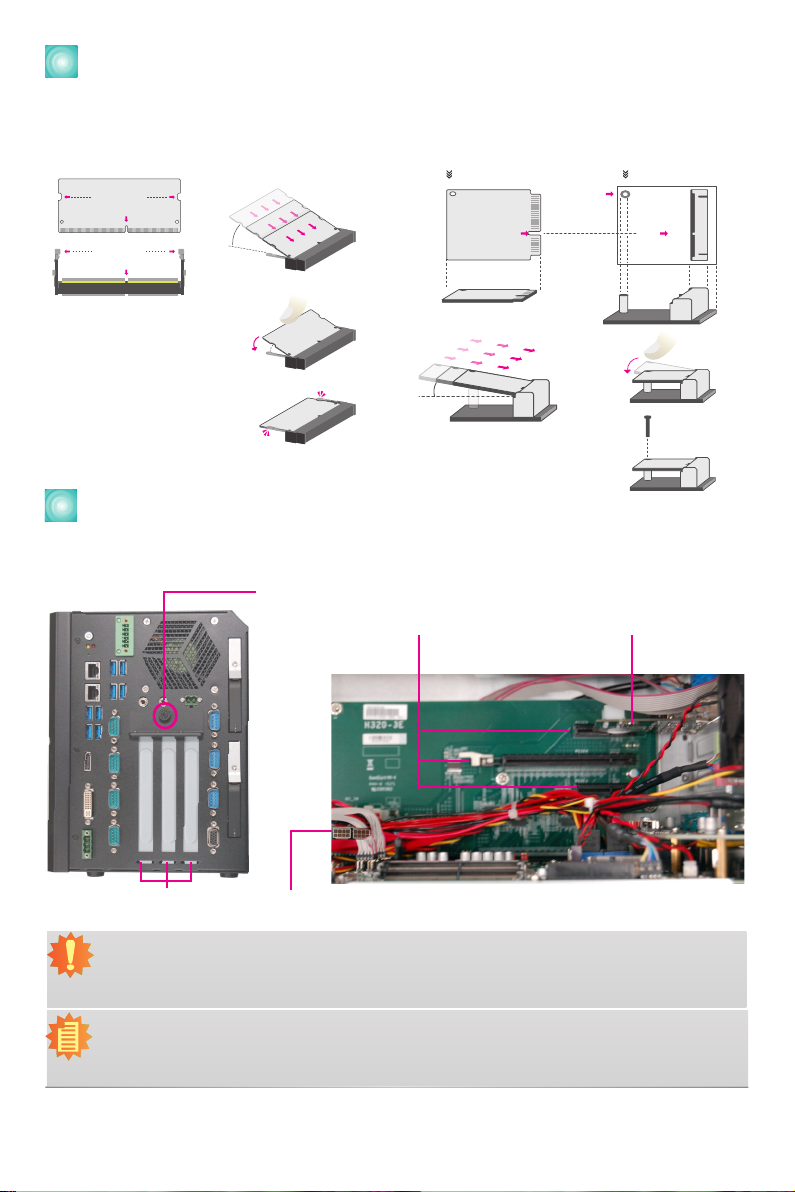

Installing Devices

Installing a SODIMM

Installing a Mini PCIe Card

The system board is equipped with 2 Mini PCIe

slots: full-size (black) and half-size (white). The

half-size slot provides USB & SATA interfaces

whereas the full-size slot provides PCIe and USB

interfaces.

The system supports two DDR4

SODIMM sockets (dual channel).

Installing a PCIe Expansion Card

Important:

When inserting expansion cards into the system unit, please select a standard card

within 303x126x41 (LxWxH) mm in order to t into the system chassis.

Note: The EC532-KD-AI6881 provides one PCIe x16 and one PCIe x4 (x 1 lane)

expansion slots with the H320-2E riser card. The EC533-KD-AI6881 and EC533-KD-

AI3G46E one PCIe x16 and two PCIe x4 (x 1 lane) slots with the H320-3E riser card.

To install an expansion card, you need to rst remove the slot plates and bracket by uninstalling the

thumb screws on the front panel.

Mini PCIe Module Mini PCIe Socket

Key

Stand-off

Notch

Mini PCIe Module Mini PCIe Socket

Key

Stand-off

Notch

Mini PCIe Module Mini PCIe Socket

Key

Stand-off

Notch

Step 1

Step 2

Step 3

Notch

Retention Notch

Key

Socket Top View

DDR4 SO-DIMM

Retention Clip

45°

Step 1

Step 2

Step 3

Notch

Retention Notch

Key

Socket Top View

DDR4 SO-DIMM

Retention Clip

45°

Step 1

Step 2

Step 3

Step 1

Step 2

Step 3

thumbscrew

and bracket

Slot plate

PCIe cardPCIe expansion slot

8-pin graphics card

power connector

Quick Installation Guide |

(JP7)

(JP2)

(JP3) 1

(JP1) 1

(JP5)

(JP6)

(JP4)

(JP11) 1

(JP9)

(JP10) 1

(JP8) 1

(JP13) 1

(JP14)

(JP12)

DC-in

USB 3.0

USB 7-8

USB 5-6

DIO COM4 COM5 COM6

Board Jumper Settings

A-586-Q-2006

USB 3-4 USB 3.0

USB 1-2 USB 3.0

J22

JP2 JP3

J21

HDMI (default)/DP

DVI

System

Fan 2

Front

Panel

SATA Power

DC-in

LAN 2

LAN 1

PCIe x16 (PCIE1)

SPI Flash

BIOS

VGA

Clear CMOS

Data (JP1)

Auto Power-on

Select (JP11)

(JP9)

(JP8) (JP15)

2 10

COM 3

(JP6)

2 10

COM 2

(JP7) (JP14)

2 10

COM 1

LPC

4-pin power

PCIe x4 (PCIE2)

Power

Button

Reset

DDR4_2 SODIMM

DDR4_1 SODIMM

(JP5)

2 2

Status LED

HDD LED

Parallel

DIO Power

DIO

S/PDIF

Front Audio

ECX

SATA 3.0

USB 2.0 13-14

(JP13)

(JP12)

SATA 0 SATA 1

Mini PCIe

mSATA

System

Fan 1

bettery

2 12

USB 2.0

Clear CMOS Data JP1

Normal (default) 1-2 On

Clear CMOS Data 2-3 On

RS232/Power Select:

COM 1 (JP3), COM 2 (JP2)

R S2 3 2 ( d ef a ul t ) 1-3 (RI), 2-4 (DCD) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

Auto Power-on Select JP11

Power-on via Power Button (default) 1-2 On

Power-on via AC Power 2-3 On

RS232/422/485 Select:

COM 1 (JP5/JP12)

COM 2 (JP7/JP14)

COM 3 (JP8/JP15)

COM 1 (JP6)

COM 2 (JP13)

COM 3 (JP9)

R S 2 3 2 ( d e f a u l t ) 1-3, 2-4 On 1-2 On

RS422 Full Duplex 3-5, 4-6 On 3-4 On

RS485 3-5, 4-6 On 5-6 On

I/O board (EC532/533-KD-AI6881)

RS232/Power Select:

COM 4 (JP7), COM 5 (JP11)

R S 2 3 2 ( d e f a u l t ) 1-3 (RI), 2-4 (DCD) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

RS232/422/485 Select:

COM 4 (JP2/JP3)

COM 5 (JP9/JP10)

COM 6 (JP13/JP14)

COM 4 (JP1)

COM 5 (JP8)

COM 6 (JP12)

R S 2 3 2 ( d e f a u l t ) 1-3, 2-4 On 1-2 On

RS422 Full Duplex 3-5, 4-6 On 3-4 On

RS485 3-5, 4-6 On 5-6 On

RS232/422/485 Select:

COM 4 (JP2/JP3), COM 5 (JP9/JP10)

RS232 (default) 1-3, 2-4 On

RS422 Full Duplex/RS485 3-5, 4-6 On

DIO G G 8 7

DIO

VCC +12V

GND

Graphics Card Power
