Digi ConnectPort X2e ZB Bedienungsanleitung

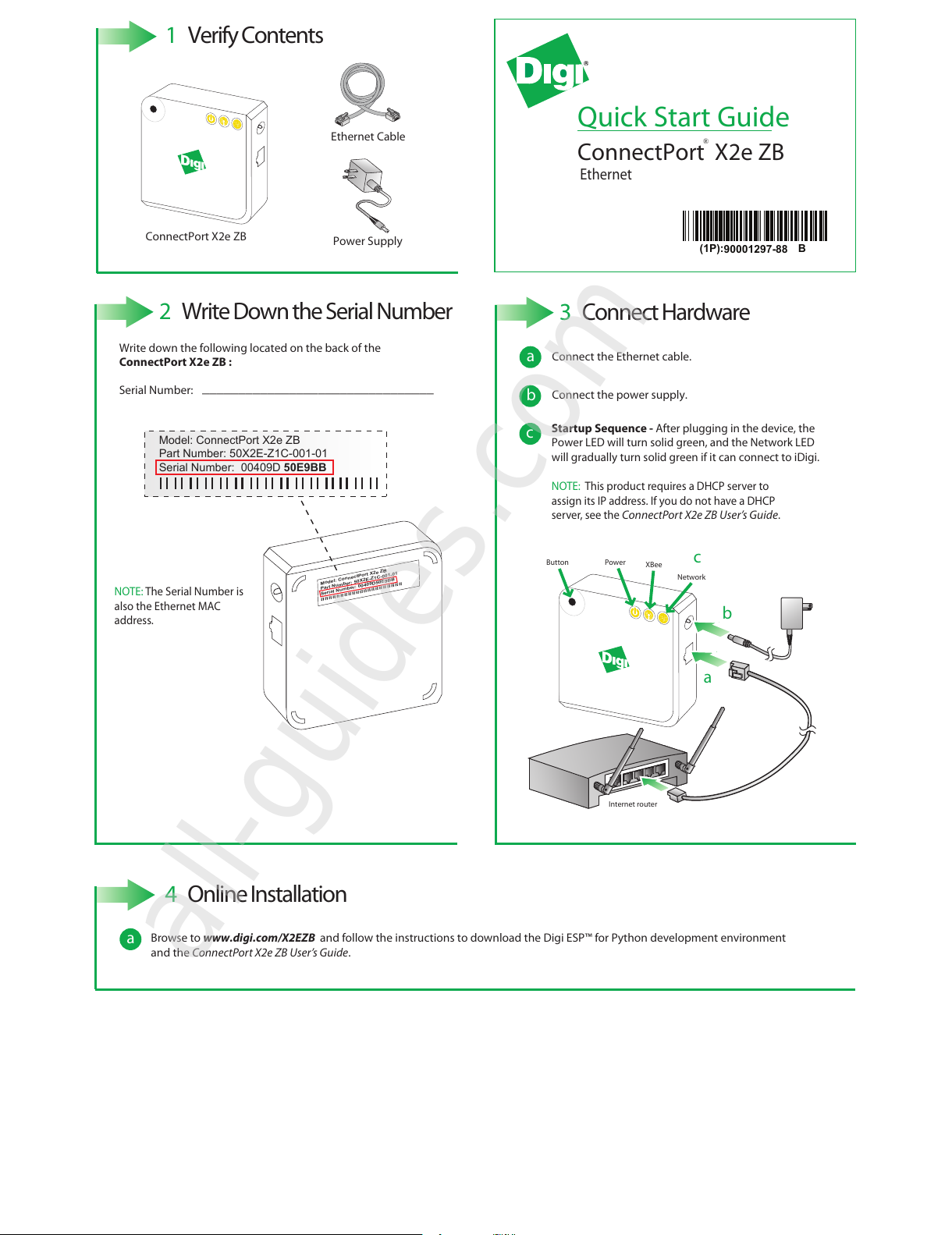

Quick Start Guide

ConnectPort X2e ZB

Power Supply

Ethernet Cable

ConnectPort X2e ZB

1 VerifyContents

Ethernet

(1P):90001297-88 B

4 OnlineInstallation

Browse to

www.digi.com/X2EZB

and follow the instructions to download the Digi ESP

™

for Python development environment

and the ConnectPort X2e ZB User’s Guide.

2 WriteDowntheSerialNumber

Write down the following located on the back of the

ConnectPort X2e ZB :

Model: ConnectPort X2e ZB

Part Number: 50X2E-Z1C-001-01

Serial Number: 00409D50E9BB

Model: ConnectPort X2e ZB

Part Number: 50X2E-Z1C-001-01

Serial Number: 00409D 50E9BB

NOTE: The Serial Number is

also the Ethernet MAC

address.

Serial Number: ________________________________

3 ConnectHardware

Power XBee

Network

Button

Internet router

aConnect the Ethernet cable.

bConnect the power supply.

cStartup Sequence -

After plugging in the device, the

Power LED will turn solid green, and the Network LED

will gradually turn solid green if it can connect to iDigi.

NOTE: This product requires a DHCP server to

assign its IP address. If you do not have a DHCP

server, see the

ConnectPort X2e ZB User’s Guide

All manuals and user guides at all-guides.com

all-guides.com

Digi, Digi International, Inc., ConnectPort, iDigi, and the Digi and iDigi logos are trademarks or registered trademarks of Digi International, Inc., in the United States and other countries worldwide. All other trademarks are the property of their respective owners.

Network LED

Description

Status

No power.

Solid green Device is powered. This state does not indicate that the device is fully operational.

The Network LED and its states convey such information.

OFF

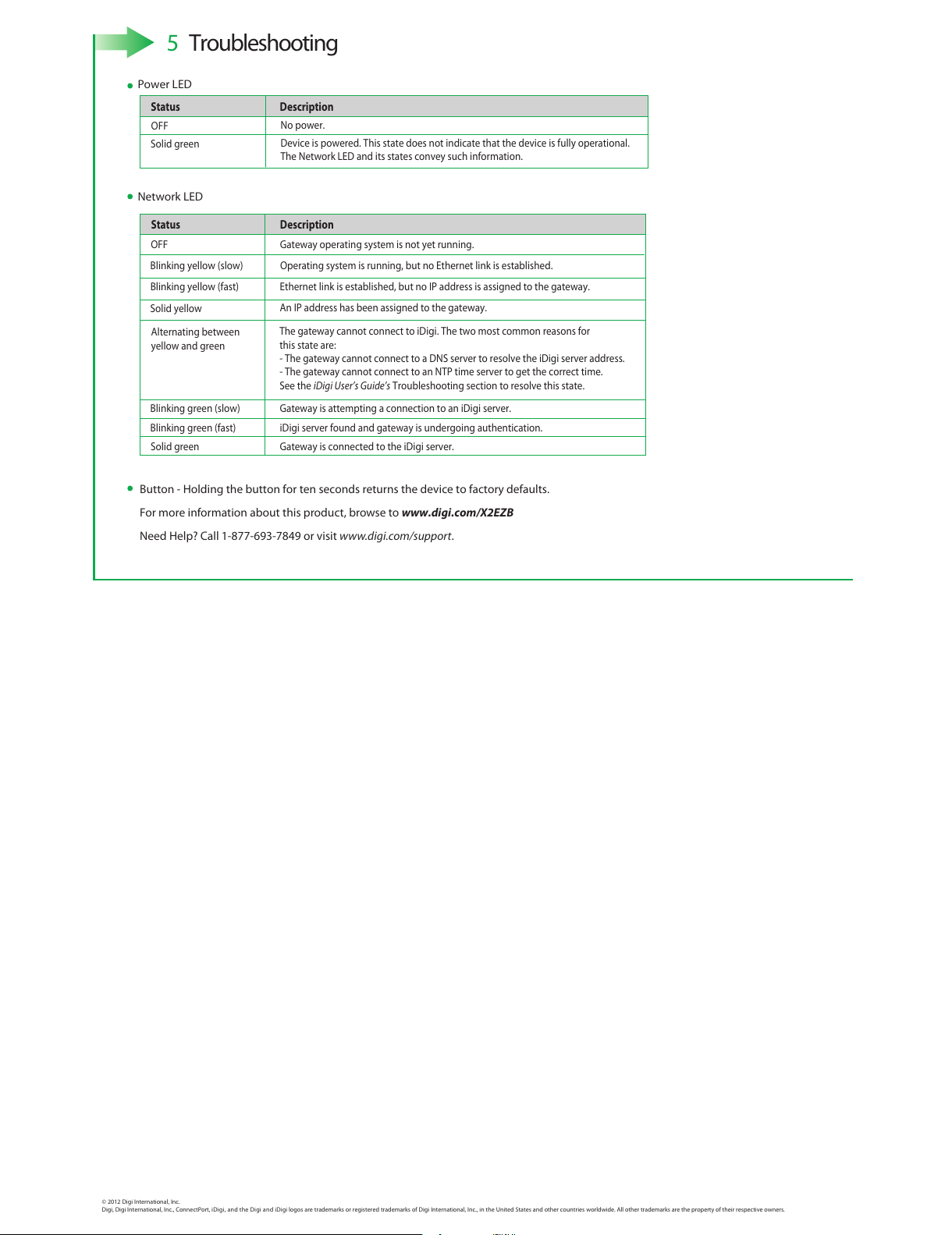

5 Troubleshooting

Power LED

Button - Holding the button for ten seconds returns the device to factory defaults.

Need Help? Call 1-877-693-7849 or visit www.digi.com/support.

For more information about this product, browse to

www.digi.com/X2EZB

Description

Status

Blinking yellow (slow) Operating system is running, but no Ethernet link is established.

OFF

Blinking yellow (fast)

Ethernet link is established, but no IP address is assigned to the gateway.

Solid yellow An IP address has been assigned to the gateway.

Blinking green (slow) Gateway is attempting a connection to an iDigi server.

Blinking green (fast) iDigi server found and gateway is undergoing authentication.

Solid green Gateway is connected to the iDigi server.

Alternating between

yellow and green

The gateway cannot connect to iDigi. The two most common reasons for

this state are:

- The gateway cannot connect to a DNS server to resolve the iDigi server address.

- The gateway cannot connect to an NTP time server to get the correct time.

See the iDigi User’s Guide’s Troubleshooting section to resolve this state.

Gateway operating system is not yet running.
