Digital Watchdog DWC-D3661T Bedienungsanleitung

07212014

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Starlight MPA

Indoor Dome Camera

DWC-D3661T

DWC-D3661TIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenance and installation,

for it may be dangerous and can cause damage.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth wi h a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residen ial environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Easy Installation

Connecting to Monitors

Control Board

13-25

27-28

29-30

Adjus ing the Camera Gimbal 12

Adjus ing the Camera Lens 11

FEATURES*

1/3" Sony 1.3M CMOS

820 TV Lines [B/W], 800 TV Lines [Color]

2.8~12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync, Smart IR [DWC-D3661TIR]

True Day & Night with IR Cut Filter

3D DNR (3D Digital Noise Reduction)

WDR (Wide Dynamic Range)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

Defog (Extreme Weather Image Copmensation)

Digital Quick Zoom & 8x Digital Zoom

16:9 and 4:3 Viewing Modes

AGC / BLC / AWB

Privacy Zones (16) & Motion Detec ion

Camera Control via RS-485/ UTC

RS485, UTP, & 1Alarm Output Built-In

Secondary BNC Output

PARTS & DESCRIPTION*

1Bottom Case

Camera Gimbal

Upper Case

Dome Cover

BNC Cable

DC12V Cable

UTP Cable

RS485 Cable

Alarm Output Cable

DIMENSIONS IN MILLIMETERS (IN)*

120.0 4.72”

9.0 0.3539.0 1.53”

89.4 3.52”

81.0 3.19”

89.0 3.50”

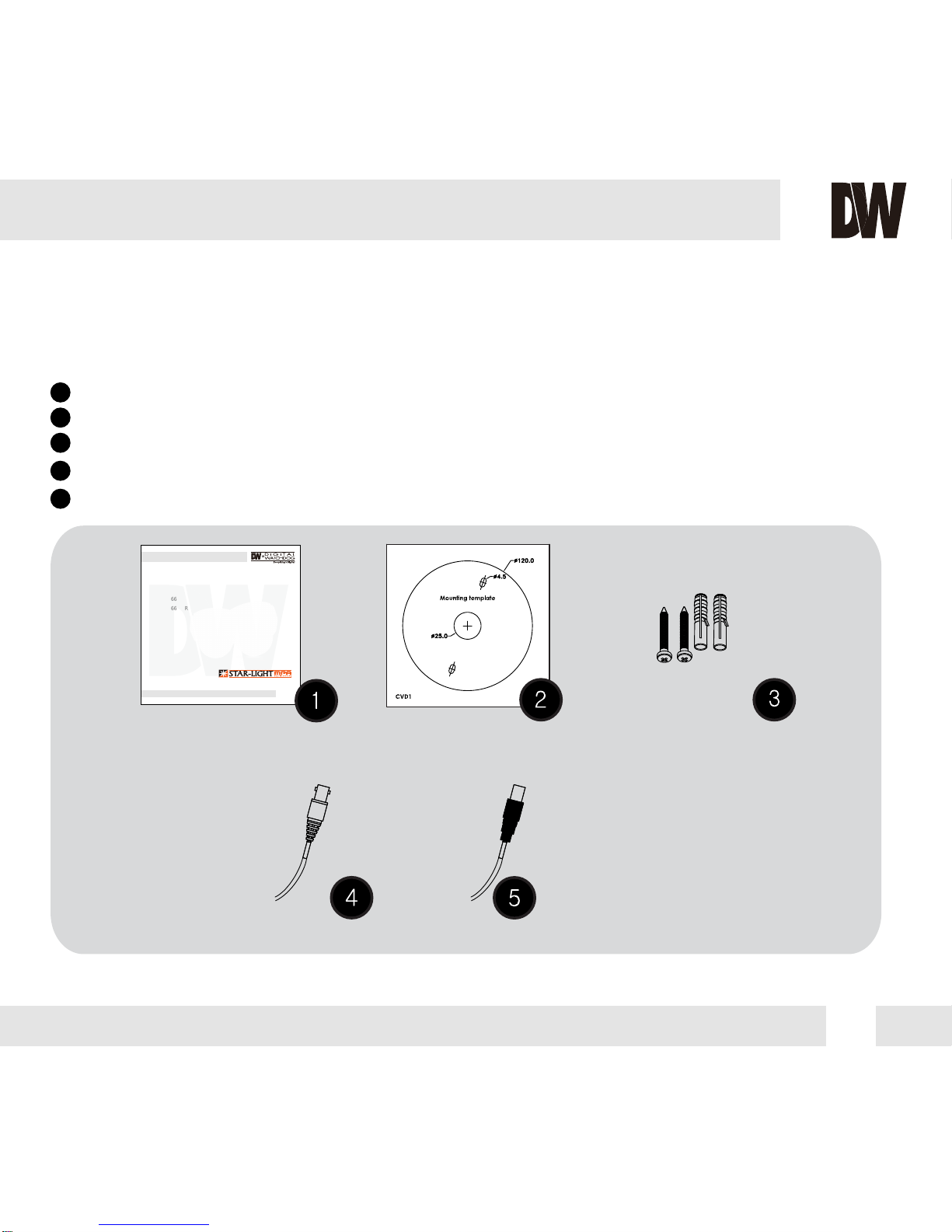

Included with your Camera

User Manual

Moun ing Template

2 Machine Screws and 2 Dry Wall Anchors

Secondary Video-BNC Cable

Power Cable

0 0

AB U MA UA

Strl ght MPA

Indoor Dome Camera

DWC-D366

DWC-D366 R

INSIDE THE BOX*

EASY INSTALLATION*

1. To detach the camera’s cover dome from the camera’s module

press the small buttons located at the sides of the cover dome.

While pressing the buttons, disconnect the cover dome from the

camera’s base module.

2. Use he camera or mounting template to mark and drill the

necessary holes in the wall or ceiling.

3. Pull wires through and make connections.

4. Using the two (2) included screws, mount and secure the

camera to the wall or ceiling.

5. Adjust the camera’s Pan and Tilt. See page 12 for more

information.

6. Use he joystick to adjust the OSD menu. See pages

13-21 for more information.

7. Snap the camera’s cover dome to the camera base to complete

the installation.

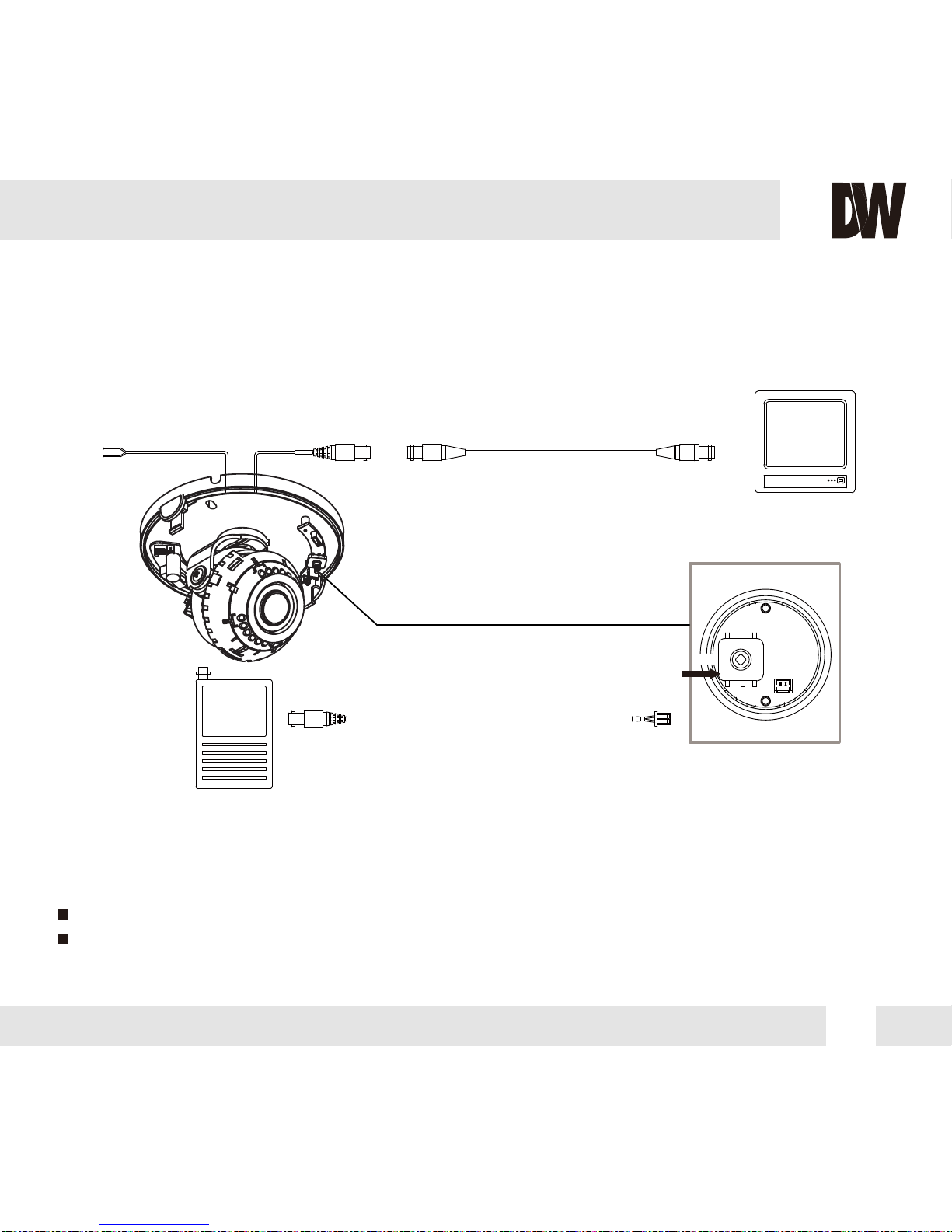

Use the diagram below to connect to a Monitor or CRT Monitor properly.

12VDC/24VAC

Monitor

CCTV Monitor

Second Video Output

Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

CONNECTING TO MONITORS*

Right

Left

Down

Joystick: Controls the OSD menu.

Secondary Connector:

Video Output Connector for

On-Site Configuration

CONTROL BOARD*

Remove he camera’s lens cover by rotating it counter-clockwise.

Use the Joystick to control he camera’s OSD options.
