Digital Watchdog STAR-LIGHT AHD DWC-D3763WTIR Bedienungsanleitung

ABOUT MANUAL

Indoor Dome Camera

Analog High Definition

DWC-D3763WTIR

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

01/2016

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

Table of Contents

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Easy Installation

Connecting to Monitors

Control Board

Adjusting the Camera Angle

12-25

27-28

29-30

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

FEATURES*

Analog High Definition (AHD) HD over Coax Technology

STAR-LIGHT™ Super Low Light Technology

Panasonic 1/3" CMOS Sensor

1080P Resolution at 30fps

Digital Wide Dynamic Range (DWDR)

Varifocal P-Iris Lens 2.8~12mm

Smart IR™ with Intelligent Camera Sync. 100ft Range

Smart DNR™ 3D Digital Noise Reduction

Highlight Masking Exposure (HME)

True Day/Night Mechanical IR Cut Filter

Secondary Video-BNC Output (While UTP in use)

Easy Icon Driven OSD Menu with Built-in Joystick

Programmable Privacy Zones

Auto Gain Control (AGC)

Back Light Compensation (BLC)

Dynamic Range Compressor (DRC) Reveals Low Light Detail

Auto White Balance (AWB)

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

PARTS & DESCRIPTION*

Bottom Case

Camera Gimbal

Upper Case

Dome Cover

UTP Cables

RS485 Cables

Alarm Output Cable

6 7

Set Screw

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

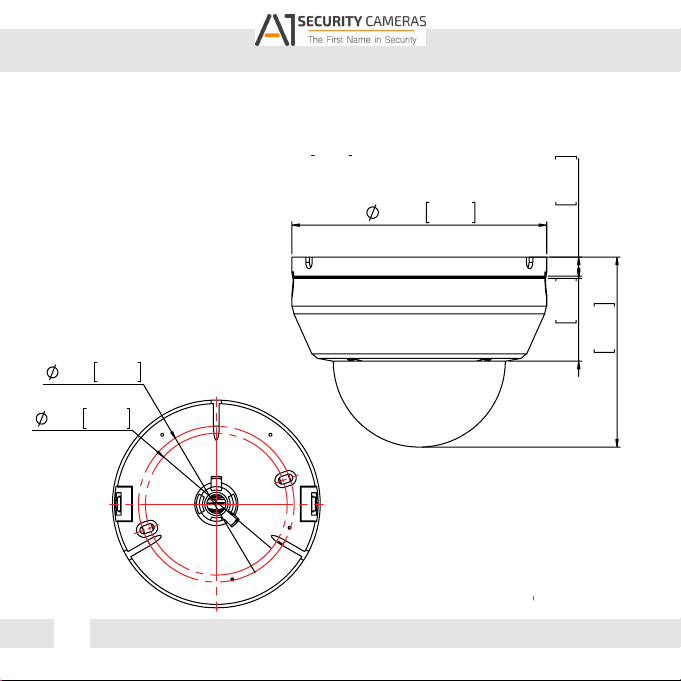

DIMENSIONS IN MILLIMETERS (IN)*

89.0 3.50”

81.0

120.0 4.72”

9.0 0.3539.0 1.53”

89.4 3.52”

3.19”

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

INSIDE THE BOX*

Included with your Camera:

User Manual

Mounting Template

2 Machine Screws and 2 Dry Wall Anchors

Secondary Video-BNC Cable

Power Cable

10222013

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Strlight MPA

Indoor Dome Camera

DWC-D3661T

DWC-D3661TIR

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

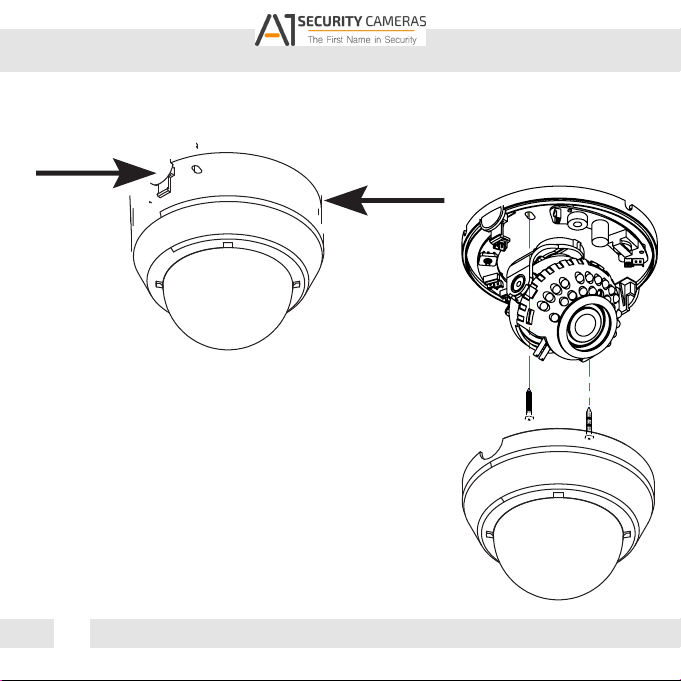

EASY INSTALLATION*

1. To detach the camera’s cover dome from the camera’s module

press the small buttons located at the sides of the cover dome.

While pressing the buttons, disconnect the cover dome from the

camera’s base module.

2. Use the camera or mounting template to mark and drill the

necessary holes in the wall or ceiling.

3. Pull wires through and make connections.

4. Using the two (2) included screws, mount and secure the

camera to the wall or ceiling.

5. Adjust the camera’s Pan and Tilt. See page 12 for more

information.

6. Use the joystick to adjust the OSD menu. See pages

13-21 for more information.

7. Snap the camera’s cover dome to the camera base to complete

the installation.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

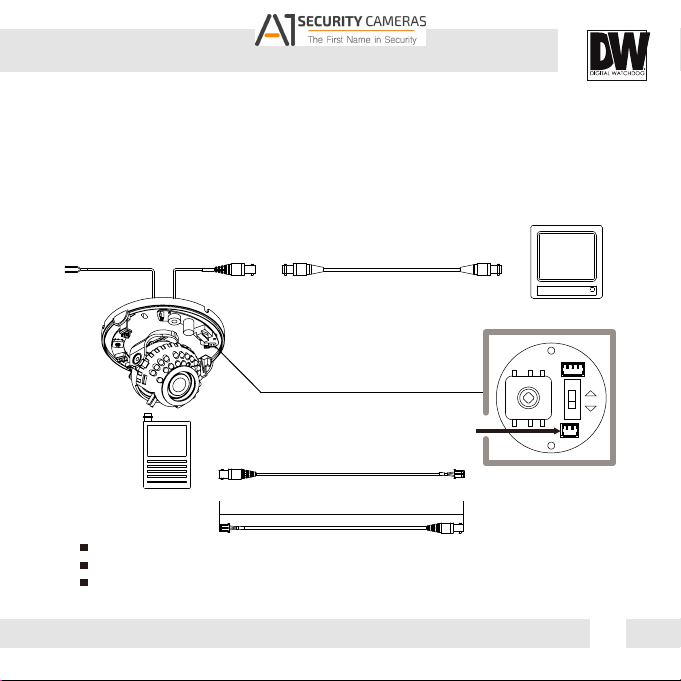

CONNECTING TO MONITORS*

Use the diagram below to connect to a Monitor or CRT Monitor properly.

12VDC/24VAC

CCTV Monitor

Monitor 300.0

Right

Left

UTP

2ND

COAX

Down

2nd Video Output

Power Connection -12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

NOTE: Make sure the UTP/ COAX switch is set to the proper connection. If the switch is set, for

example to UTP, but the camera is connected via Coax, the video from the camera will appear black.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]

CONTROL BOARD*

Joystick: Controls

the OSD menu.

Secondary Connector:

Video Output Connector for

On-Site Configuration

2 Remove the camera’s lens cover by rotating it counter-clockwise.

Use the Joystick to control the camera’s OSD options.

Available from A1 Security Cameras

www.a1securitycameras.com email: [email protected]
