Digital Watchdog Starlight V1363TIR Bedienungsanleitung

Starlight V1363TIR

11192010

Starlight V1363TIR

User Manual Version #2:

Camera with ICON Menu

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.

Cleaning

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface

The material of the mounting surface must be strong enough to support the camera.

TROUBSHOOTING

Before sending your camera for repair, check the following or contact our technical specialist.

No VIDEO

Check the coaxial cable and make sure it is connected securely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Out-of-Focus VIDEO

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to Provide reasonable protection against harmful interference .when the equipment is operated in a residential environment. This equipment

generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance

with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacture.

FEATURES

1/3” Sony Super HAD II CCD

High Resolution 560 TV Lines

3.3 ~ 12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync

True Day & Night / TDN5 (Electro Magnetic Mechanism)

Star-Light (Super Low Light Technology)

DRC (Dynamic Range Compressor)

Dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image.

3D-DNR (3D Digital Noise Reduction)

Produces less noise and more color during low-light application.

HME (Highlight Mask Exposure)

Masks overly exposed light to produce a true video image of any environment.

BLC (Back Light Compensation)

Programmable Privacy Zone (6) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

No Fog or Condensation under Any Weather Condition

Power Wire Maximum Distance

Wire Gauge 12VDC 24VAC

24 AWG 80ft 323ft

22 AWG 128ft 513ft

20 AWG 203ft 815ft

18 AWG 323ft 1295ft

16 AWG 514ft 2056ft

14 AWG 816ft 3264ft

12 AWG 1295ft 5183ft

10 AWG 2057ft 8228ft

DIMENSION (mm) & POWER REQUIREMENT

POWER REQUIREMENT:

12VDC @1A

24VAC @ .500mA

COAXIAL CABLE TYPE

MAXIMUM DISTANCE

RG59/ U 750feet

RG6/U 1,000feet

RG11/U 1,500feet

INSTALLATION

Included with DW Vandal Dome Camera:

1. Mounting Template

2. User Manual

3. Security L-Key

4. Single Sided Hex Key

5. Double Sided Hex Key

6. Secondary BNC Cable for Field Monitor

7. Four (4) Screws and Four (4) Dry Wall

Anchors

8. 3 Axis Gimbal Guide

4 6

Camera Installation

Use the mounting template to mount the camera.

Using the security L-key to loosen the four screws that secure the vandal proof dome cover, Remove

the vandal proof dome cover to access the screw holes to mount the camera.

NOTE: Keep the lens and the vandal proof cover free from dust or fingerprint.

INSTALLATION

A. Use the supplied L Wrench to remove the four fixing

screws from the dome cover.

B. Align the camera unit with the surface of the ceiling .

Draw marks on the ceiling in the places where the screw

holes will be drilled. Drill the four holes.

C. Cut a small hole in the ceiling for the cables.

D. Pass the power cable and video cable from the camera

unit through the cable hole in the ceiling.

E. Align the four screw holes in the camera unit with the

screw holes on the ceiling, and then secure the camera in

place by tightening the four screws through the washers.

F. Carry out the settings and adjustments for the camera.

G. Secure the dome cover by tightening the screws.

DC12V / AC24V

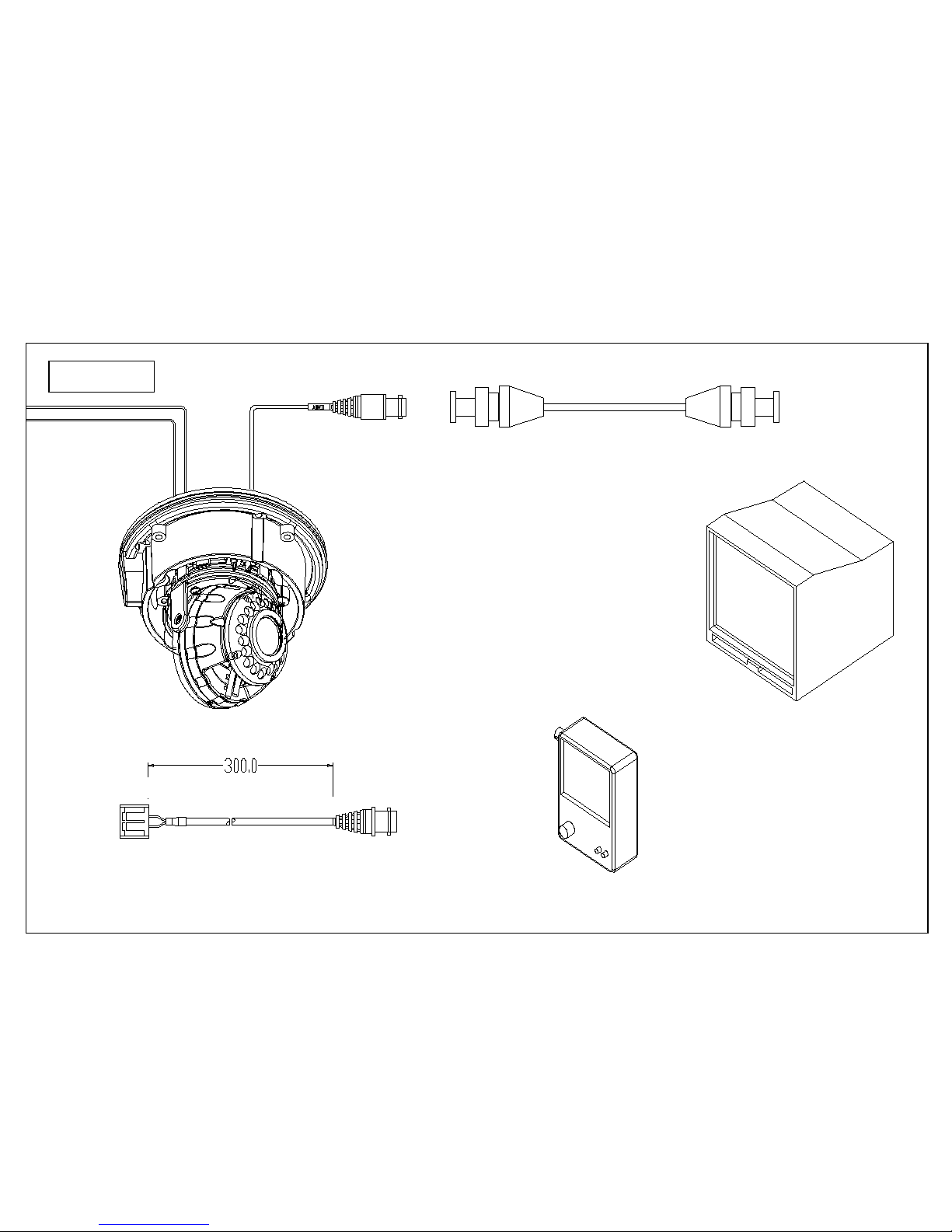

CONNECTION

Main Monitor

BNC Cable

Video Output

Spot Monitor Cable Field Test Monitor

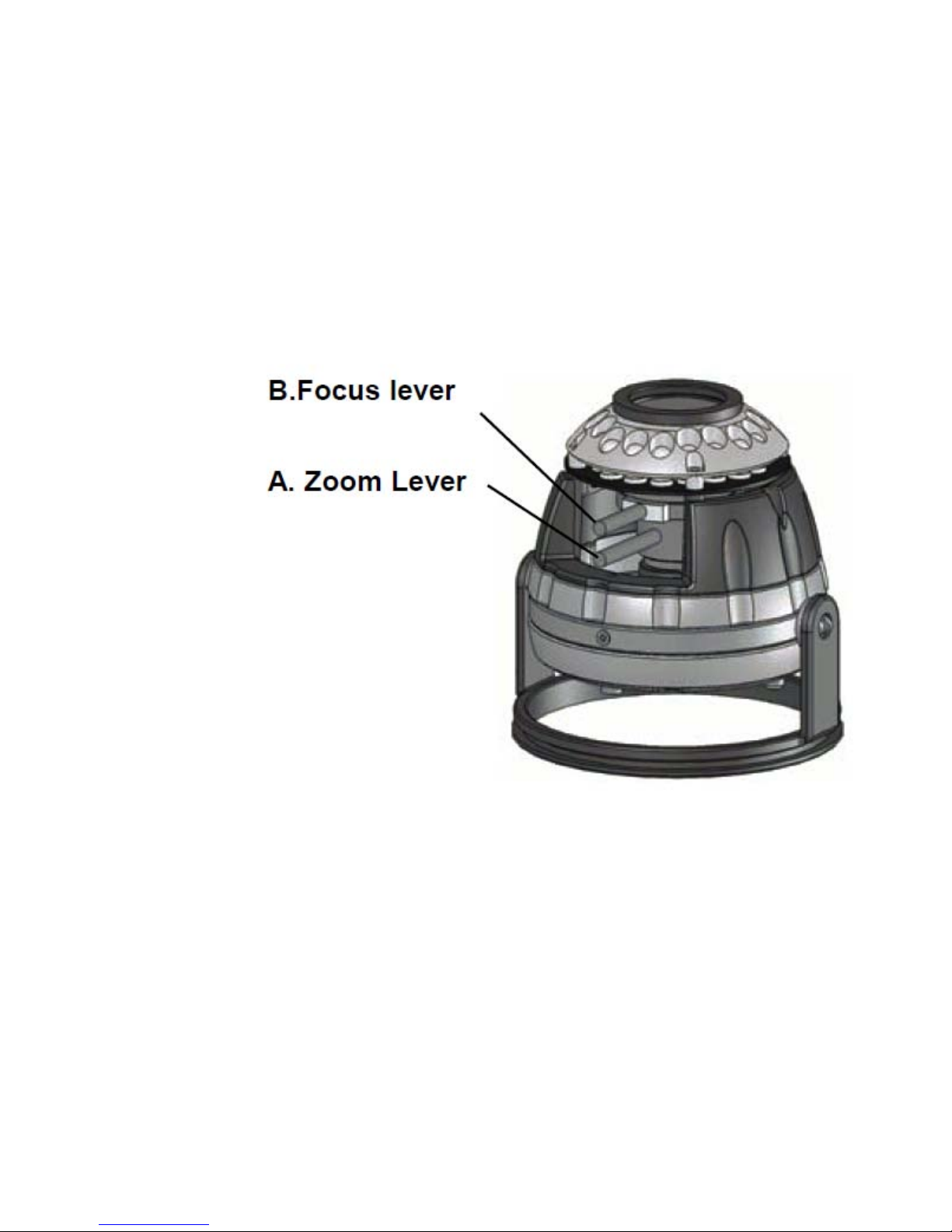

LENS ADJUSTMENT

A.Move the Zoom Lever until you get the desired position.

B. Move the Focus Lever until you get the desired focus.

COLOR

WB MODE AWC / ATW / MANUAL / PUSH LOCK

R-Y GAIN 0 ~ 100

B-Y GAIN 0 ~ 100

DAY & NIGHT

Day & Night Mode

AUTO / COLOR / BW / EX-CONT

COLOR ----



BW : Switching from color to BW; if the number is higher, the camera will only switch during a super low light condition.

BW ----



COLOR : Switching from BW to color; this number should always be lower than COLOR to BW

Read Time: Time interval to switch from Color to Black-and-White

COLOR

B&W: (BURST:OFF/ON) When the burst is OFF will make less noise

C-SUP Color Suppression :Color will be reduced at low illumination, if the C-SUP Level is higher.

0 ~ 100 (Not Available when DNR is On.)

A-SUP Aperture Suppression: The sharpness of the edges will be reduced at low illumination, if A-SUP Level is higher.

0 ~ 100 (Not Available when DNR is On.)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

EXPOSURE

LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.)

SHUTTER 1/160 /1/100 / FLC / 1/250 ~ 10000 / SENS-UP x2 ~ x250

BLC OFF / ON

BLC (Back Light Compensation)

AGC HIGH / MIDDLE / LOW / OFF

AGC (Auto Gain Control)

MAX-DR OFF / ON (0 ~ 20) (Electronic Wide Dynamic Range)

STAR-LIGHT AUTO (x2 ~ x250) / OFF (x32 is recommended.)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY RESET

FUNCTION

MIRROR OFF / MIRROR / V-FLIP / ROTATE

SHARPNESS 0 ~ 31

GAMMA 0.05 ~ 1.00 / USER

FREEZE OFF / ON

NEGATIVE OFF/ ON

3D-DNR OFF / LOW / MIDDLE / HIGH

3D-DNR (3D Digital Noise Reduction)

D-ZOOM OFF / ON (x1.0 ~ x32 PTZ)

SLC OFF / ON

SLC (Side Light Compensation)

HME OFF / ON

HME (Highlight Masking Exposure)

DIS OFF / ON

DIS (Digital Image Stabilizer)

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

MOTION

(OMNI-Focus Lens Only)

MOTION OFF / ON

SET WINDOW

ALL SET (Set the Entire Screen)

ALL CLEAR (Clear the Entire Screen)

SENSITIVITY (1 ~ 120)

SHOW INDICATOR (OFF / ICON / TRACE)

DELAY OUT (1 ~ 15)

Motion Alarm Zoom-In Delay

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET
