Digital Watchdog DWC-V5661T Bedienungsanleitung

07212014

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Starlight MPA

Vandal Dome Camera

DWC-V5661T

DWC-V5661TIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth wi h a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residen ial environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Surface Mount Installation

Accessories Installation

Connecting to Monitors

Control Board

9-12

17-29

31-32

33-34

Adjus ing the Camera Gimbal 16

Adjus ing the Camera Lens 15

FEATURES*

1/3" Sony 1.3M CMOS

820 TV Lines [B/W], 800 TV Lines [Color]

2.8~12mm Varifocal Auto Iris Lens

100ft Range IR with Intelligent Camera Sync, Smart IR [DWC-V5661TIR]

True Day & Night with IR Cut Filter

3D DNR (3D Digital Noise Reduction)

WDR (Wide Dynamic Range)

Star-Light (Super Low Light Technology)

HME (Highlight Masking Exposure)

Defog (Extreme Weather Image Copmensation)

Digital Quick Zoom & 8x Digital Zoom

16:9 and 4:3 Viewing Modes

AGC / BLC / AWB

Privacy Zones (16) & 4 Motion Detection Zones

Camera Control via RS-485/ UTC

RS485 & UTP Built-In

RS485, UTP, & 1 Alarm Output Built-In

IP66 Certified (Weatherproof)

PARTS & DESCRIPTION*

1BNC Cable

DC12V Cable

UTP Cable

RS485 Cable

Alarm Output Cable

Bottom Case

Camera Gimbal

Upper Case

Dome Cover

5Cover Screws (x4)

Side Port for Cabling

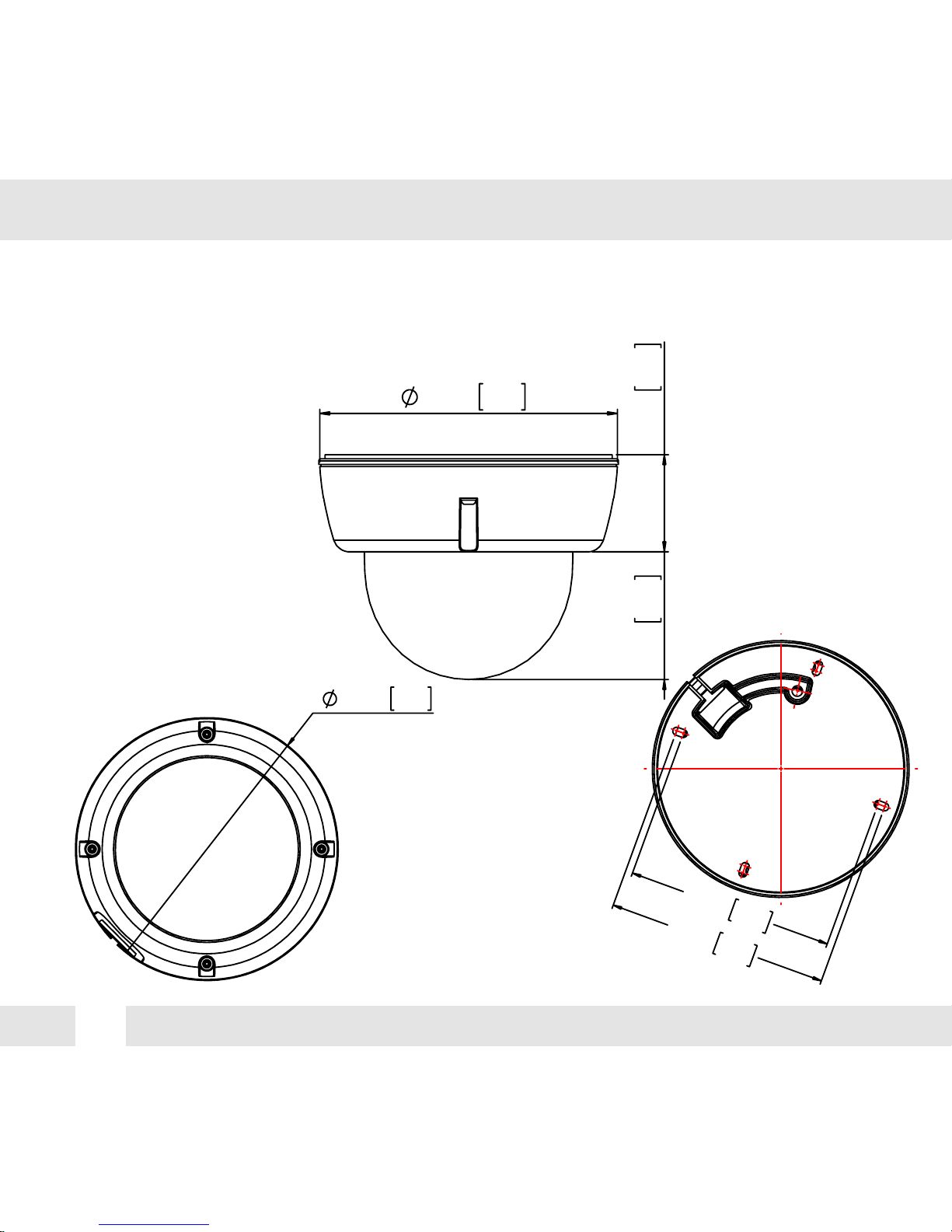

DIMENSIONS IN MILLIMETERS (IN)*

47.0 1.9

144.0 5.7

61.8 2.4

145.0 5.7

117 0 4 6

125 0 4 9

INSIDE THE BOX*

Included with Camera:

User Manual

Moun ing Template

4 Machine Screws and 4 Dry Wall Anchors

Secondary Video-BNC Cable

L-Key

DC Plug Power Cable

0 9

AB U MA A

Star ight MPA

Vandal Dome Camera

DWC-V566 T

DWC-V566 T R

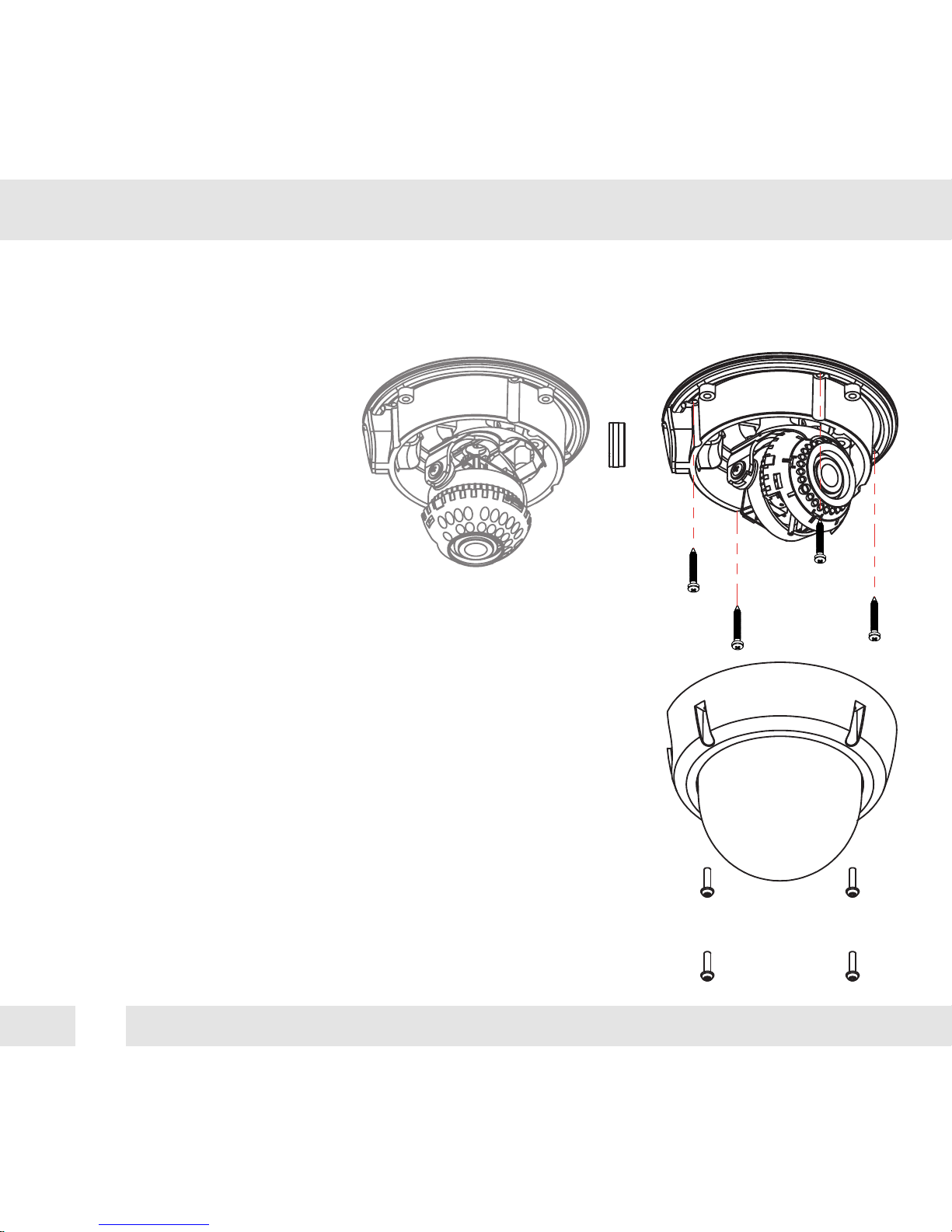

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

1. Use the camera or mounting template to mark and drill the

necessary holes in the wall or ceiling.

2. Pull wires through and make connections.

3. Using the four (4) included screws, mount and secure the

camera to the wall or ceiling.

4. Adjust the camera’s Pan and Tilt and Lens.

See pages 15-16 for more information.

5. Use the joystick to adjust the OSD menu. See pages 17-28

for more information.

6. Attach the camera housing to the camera base using the

assembly screws.

JUNCTION BOX INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Use the dry wall anchors and

machine screws to mount the

junc ion box and rubber

gasket to the wall.

Insert wires through he

wall and make the

appropriate connec ions.

Attach he camera to the

junction box using he

machine screws.

Attach the camera housing

to the junction box using the

assembly screws.

1 2 3

4 5

WALL MOUNT INSTALLATION INSTRUCTIONS*

Check to see all parts are in

the box.

Insert the wires from he

camera through the wall

mount housing.

Attach the camera to

he wall mount housing.

Use the mounting template to

make pilot holes. Use he dry

wall anchors and machine screws

to attach the assembly to the wall.

Attach he camera housing

to the fixture.

1 2 3

4 5
