HUNTER

User Manual

This manual describes how to safely complete nal assembly

and includes tips for use and maintenance

English

Dillenger Hunter BBS 2016 Dillenger Hunter Hub Drive Dillenger Hunter BBS 2015

This manual covers the assembly of:

SAFETY

PLEASE NOTE

Mechanical Safety Check:

Routinely check the condition of your bike. Make sure no fasteners have come loose. Perform

a visual inspection of the whole bicycle before every ride. Make sure tyres are correctly inated

within the range given on the tyre sidewall. Check your brakes for proper operation.

Your First Ride:

Be sure to pick an area away from cars, other cyclists, obstacles or other hazards to become

familiar with the controls, features and performance of your new electric bike.

We highly recommend the purchase of the Dillenger electric bike repair

toolkit. It will make your setup and ongoing maintenance much easier.

This can be purchased online.

Thank you for purchasing your new Dillenger electric bike! We know you’ll love it, and with some

care it should last for a very long time. Please read through this manual carefully before

beginning nal assembly.

THANK YOU

ITEM CHECK LIST

Each electric bike is assembled under the most strict quality control standards. Upon

completion, each electric bike is test ridden by a technician inside the assembly factory to

check that every function and adjustment on the bike is perfect.

Item Check list:

• Electric bike with front wheel and handlebars

• Charger box (this may container other important parts)

• Pedals (left and right) please note the left and right pedals are not identical

• Any loose boxes may container other parts, such as a light (if where a light is provided or

purchase) so please check all packaging thoroughly

• BBS shield and xings

CONTENTS

THANK YOU 2

SAFETY 2

ITEM CHECK LIST 3

SUMMARY OF FINAL SETUP 5

UNBOXING 6

MAIN PARTS 7

ASSEMBLY 10

FRONT WHEEL 10

HANDLEBARS 14

PEDALS 17

SEAT 18

BBS SHIELD INSTALLATION 19

BATTERY OPERATION 24

LCD OPERATION 26

IMPORTANT POINTS 27

CHARGING 28

MAINTENANCE 29

TROUBLE SHOOTING 30

Your Dillenger bike is fully assembled in our factory and tested to our high standards.

To t into an appropriately sized shipping carton to comply with the various courier

networks, some basic parts of the bike are temporarily removed. This is so that the bike

can t into the shipping carton safely, and so that we can adequately package each part of

the bike so that it is delivered in perfect condition.

These simple instruction will show you how to perform the nal setup. Your bike may

arrive in a more assembled state than what is shown here. These are the steps required

for most customers (packaging and nal assembly can vary by country).

In summary, these are the main steps.

Step 1, Unpacking/Unboxing

Step 2, Identify the pieces that require nal assembly

Step 3, Front wheel fastening

Step 4, Handlebar alignment

Step 5, Left and right side pedals

Step 6, Seat

Step 7, BBS Shield Installation

Tools required:

Allen keys (5 and 6mm)

These are provided and can be found in the charger box.

Other equipment not provided:

Bike pump (or service station car tyre pump)

3mm allen key, 11mm spanner (or shifter) for the BBS Shield

Your Dillenger bike is fully assembled in our factory and tested to our high standards.

To t into an appropriately sized shipping carton to comply with the various courier

networks, some basic parts of the bike are temporarily removed. This is so that the bike

can t into the shipping carton safely, and so that we can adequately package each part of

the bike so that it is delivered in perfect condition.

These simple instruction will show you how to perform the nal setup. Your bike may

arrive in a more assembled state than what is shown here. These are the steps required

for most customers (packaging and nal assembly can vary by country).

In summary, these are the main steps.

Step 1, Unpacking/Unboxing

Step 2, Identify the pieces that require nal assembly

Step 3, Front wheel fastening

Step 4, Handlebar alignment

Step 5, Left and right side pedals

Step 6, Seat

Step 7, BBS Shield Installation

Tools required:

Allen keys (5 and 6mm)

These are provided and can be found in the charger box.

Other equipment not provided:

Bike pump (or service station car tyre pump)

3mm allen key, 11mm spanner (or shifter) for the BBS Shield

SUMMARY OF FINAL SETUP

Unboxing your Dillenger will be very exciting, but it’s important to take care when

unboxing the bike as it’s possible to accidentally damage the bike or misplace crucial

parts. It’s also much easier to unbox the bike with someone to help you.

Remove the protective packaging from the bike carefully with a pair of scissors or a box

cutter. Make sure you don’t misplace any components in the lose packaging (there can be

quite a lot of protective packaging used).

A stand is shown in this photo for staging purposes only, it is not included with the bike.

After you’ve taken your Dillenger out of it’s shipping carton, you should have these parts:

1. The complete bike

2. Front wheel

UNBOXING

MAIN PARTS

After you’ve taken your Dillenger out of it’s shipping carton, you should have these parts:

1. The complete bike

2. Front wheel

5. Pedals (these can be in the same box as the charger, or fastened to the bike separately)

3. handlebars (attached by the wiring)

4. Charger

6. BBS Shield and Fixings

Please note your keys will be securely fastened to the frame or handlebars of your bike.

Make sure you do not lose these as they are coded and a replacement set can only be

tted in a Dillenger factory.

5. Pedals (these can be in the same box as the charger, or fastened to the bike separately)

6. BBS Shield and Fixings

Please note your keys will be securely fastened to the frame or handlebars of your bike.

Make sure you do not lose these as they are coded and a replacement set can only be

tted in a Dillenger factory.

FRONT WHEEL

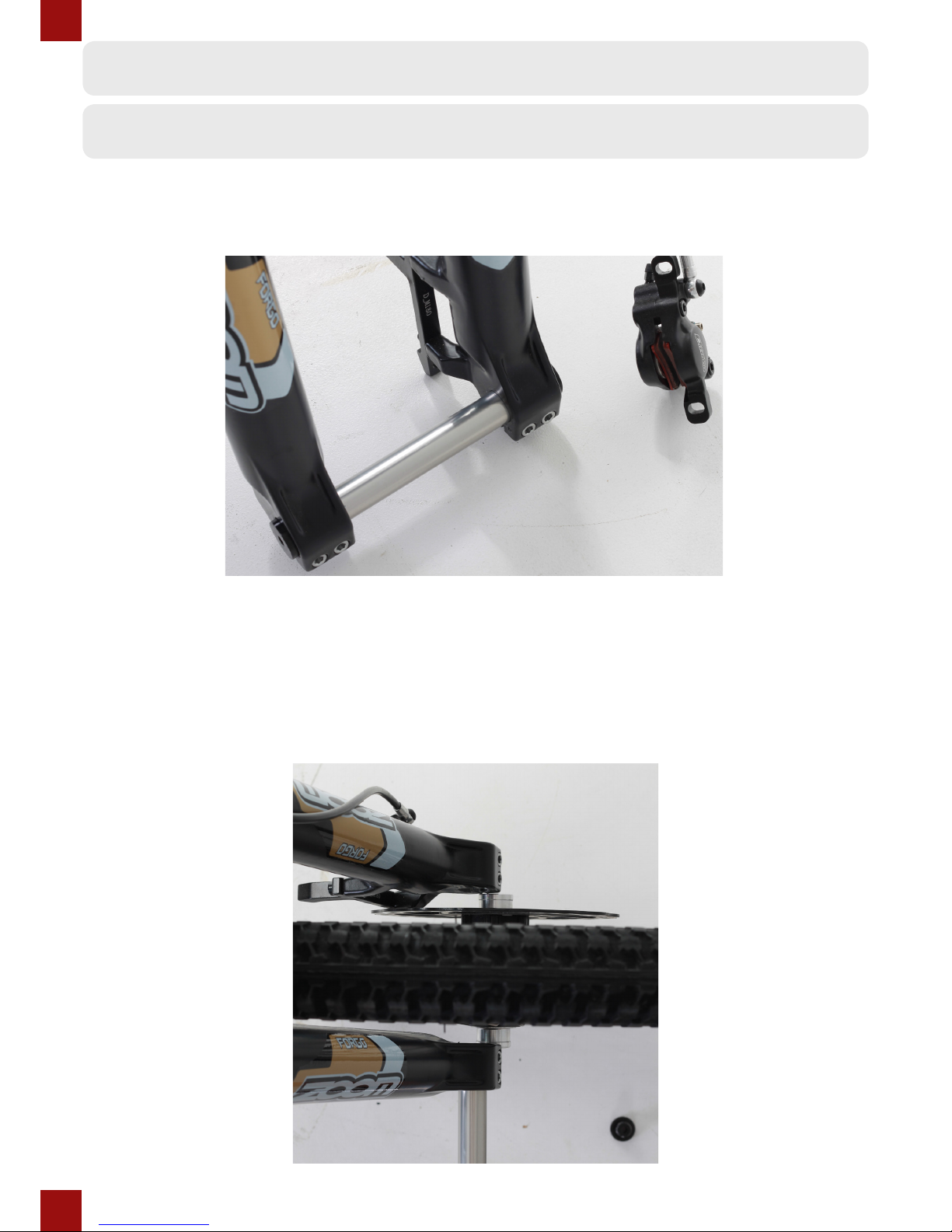

Start by loosening the 4 bolts at the bottom of the fork in order to remove the through

axle. You will have to remove this axle to mount the front wheel and then the axle can be

inserted and fastened.

Prior to assembling the front wheel, we suggest removing the front brake caliper. It’s not

essential but it does make it a lot easier. Once you’ve removed the caliper from the front

fork, you can insert the wheel into the forks as shown below. It can be quite a tight t, this

is intentional. You will have to maneuver wheel and forks where needed so you can line

up the through-axle with the center.

This stage shows the through axle almost in position:

Once in place, tighten the through axle with the specialized nut provided:

ASSEMBLY
