Dirt Devil UD70163 Bedienungsanleitung

USER MANUAL

#961151990 / ID116243 / R0 11/15

Español - página 45

%JSU%FWJM®6QSJHIU

Carpet + Hard Floor Cyclonic Upright

Model # 6%6%6%6%

REPLACEMENT PARTS

• BELT STYLE 5

• PRE-MOTOR FILTER F94

• EXHAUST FILTER F86

HI. WELCOME.

PRODUCT

REGISTRATION

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or

call 1-800-321-1134 to register by phone.

Hint: Attach your sales receipt to this Owner’s manual. Veriﬁcation of date of purchase may be

required for warranty service of your Dirt Devil®product.

Congrats on purchasing your new Power MAX®

Carpet + Hard Floor Cyclonic Upright Vacuum.

Inside, you’ll ﬁnd everything you want to know

from the tools to how to.

So what are you waiting for? LET’S GO.™

This product uses the following parts:

BELT STYLE 5

PRE-MOTOR FILTER F94

EXHAUST FILTER F86

Find GENUINE Replacement Parts at www.dirtdevil.com

TABLE OF

CONTENTS

Quick Start Assembly 6

Tools 9

How to 12

Troubleshooting 18

Limited Warranty 19

WARNING

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED

COMMERCIALLY WARRANTY IS VOID.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.

• Operate cleaner only at voltage speciﬁed on data plate on bottom of cleaner.

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before

cleaning or servicing.

• Do not use outdoors or on wet surfaces.

• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close

attention is necessary when used by or near children. To avoid injury or damage, keep children

away from product, and do not allow children to place ﬁngers or other objects into any

openings.

• Use only as described in this manual. Use only manufacturer’s recommended attachments.

• Do not use with damaged cord or plug. If appliance is not working as it should, has been

dropped, damaged, left outdoors, or dropped into water, return it to a service center for

inspection prior to continuing use.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp

edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord

away from heated surfaces.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with wet hands.

• Do not put any objects into openings. Do not use with any opening blocked; keep free

of dust, lint, hair, and anything that may reduce air ﬂow.

• Keep hair, loose clothing, ﬁngers, and all parts of body away from openings and

moving parts. Brushroll continues to rotate when in upright position.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the

cleaner from falling, always place cleaner at bottom of stairs or on ﬂoor.

Do not place cleaner on stairs or furniture, as it may result in injury or damage.

• Do not use to pick up ﬂammable or combustible liquids, such as gasoline, or use in areas where

they may be present.

• Unplug before connecting Turbo Tool.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or

hot ashes.

• Do not use without ﬁlters and/or dirt cup in place.

• WARNING: This product contains chemicals known to the State of California to cause cancer,

birth defects or reproductive harm. WASH HAN DS AFTER USING.

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do not change the plug in any way.

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.

• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.

• Do not use sharp objects to clean out hose as they can cause damage.

• With brushroll on, do not allow cleaner to sit in one location for an extended period of time, as

damage to ﬂoor can result.

•Brushroll continues to turn while product is turned on and the handle is in the upright

position. To avoid damage to carpet, rugs, and ﬂooring, avoid tipping cleaner or setting it on

furniture, fringed area rugs or carpeted stairs during tool use.

SAVE THESE INSTRUCTIONS

NOTICE

A THERMAL PROTECTOR HAS BEEN DESIGNED INTO

YOUR CLEANER TO PROTECT IT FROM OVERHEATING.

WHEN THE THERMAL PROTECTOR ACTIVATES THE

CLEANER WILL STOP RUNNING.

If this happens proceed as follows:

1. Turn cleaner OFF and unplug it from the electrical outlet.

2. Empty dirt cup.

3. Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic ﬁlter,

rinsable ﬁlter, and HEPA ﬁlter. Clear obstructions if present.

4. When cleaner is unplugged and motor cools for 30 minutes, the thermal

protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the

above steps, your cleaner needs servicing.

INSERT CLEANING

WAND INTO TOP OF VAC.

SECURE YOUR HOSE

HERE AND HERE.

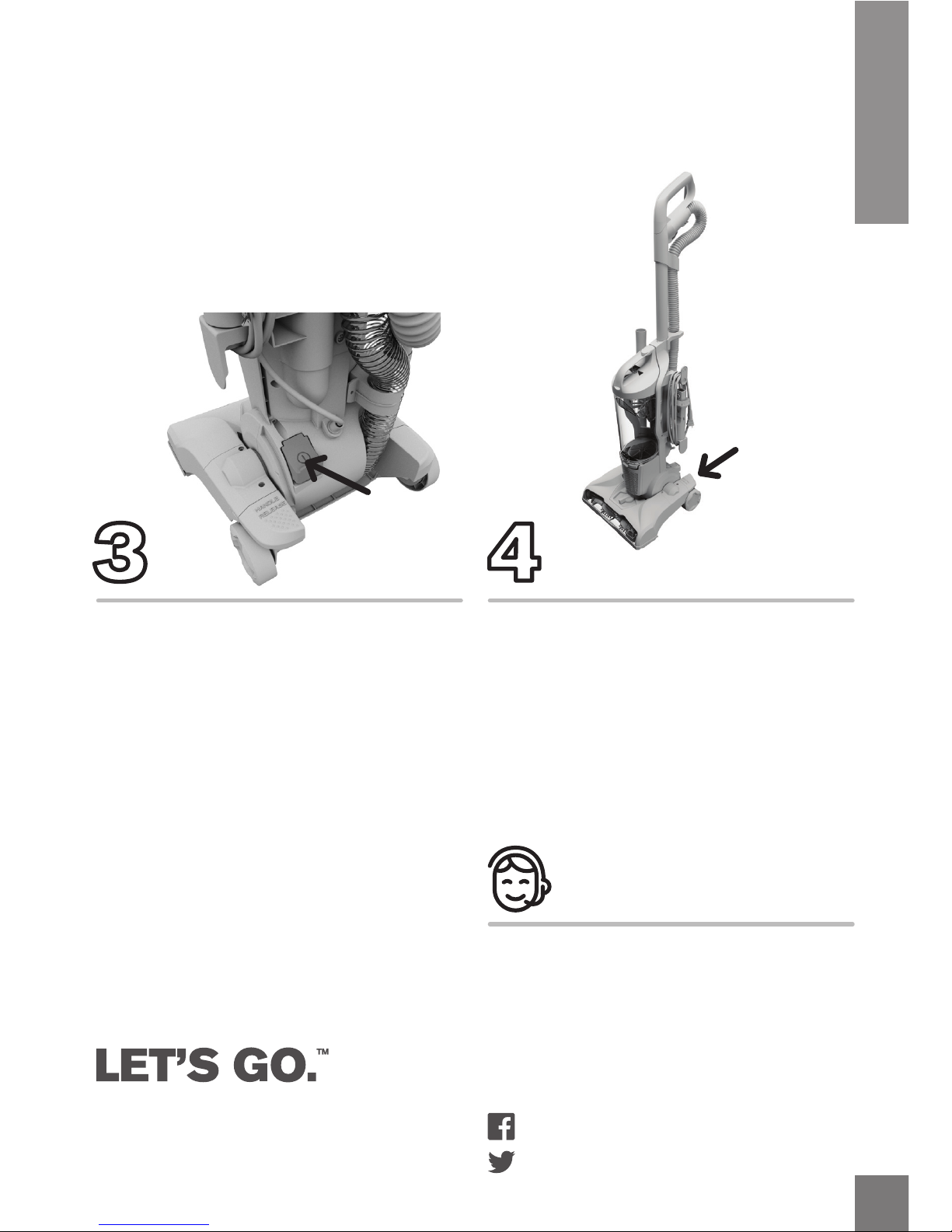

NOW, WRAP THE CORD

AROUND CORD HOOKS!

HANDLE

RELEASE

PUSH HERE AND PULL

HANDLE BACKWARDS

TO RECLINE.

PLUG IN THE CORD AND

PRESS HERE TO POWER UP.

QUICK START

YOUR POWER MAX®

IS READY

TO CLEAN!

NEED HELP?

Go to dirtdevil.com/support or

contact our Customer Service

Department at (800) 321-1134

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

Pick up the conversation on...

Twitter@DirtDevil

Facebook.com/DirtDevil

THE FOLLOWING HEIGHT SETTINGS ARE RECOMMENDED FOR

MAXIMUM CLEANING PERFORMANCE.

1. Hard Floor Setting: Great

for tile, hardwood, linoleum

and more.

3. Mid Carpet Setting:

Great for mid pile carpet.

NOTE: If you’re not sure what type of carpet you have, choose a setting and if the upright is hard to push, change

the height to the next highest setting.

2. Low Carpet Setting:

Great for low pile carpet, door

mats and area rugs.

4. High Carpet Setting:

Great for plush and shag

style carpets.

TOOLS

1. Press the wand release button.

ON-DEMAND

CLEANING WAND

2. Pull wand up & out.

3. Push the tools on the wand*

for convenient cleaning.

When you’re done, twist &

pull to take them off.

WAND

RELEASE

*Accessories not included on all models.

EXTENSION WAND:

Attach to cleaning wand

for longer reach on above

and hard ﬂoor cleaning.

2-IN-1 COMBO TOOL: Use

the Crevice Tool for tight

spaces, corners and along

stair edges and baseboards.

Try the Dusting Brush for furniture,

table tops, lamps,

blinds and more.Press the

lock button (A) down and slide

to switch between modes.

CAUTION

Not to be used for grooming a pet.

WARNING

Unplug vacuum before connecting hose, wand or tools.

COMPLETE

ON-BOARD TOOLKIT

*Accessories not included on all models.

TURBO TOOL®: For upholstered

furniture, draperies, mattresses

and stairs.
