INSTALLATION GUIDE

XR200—242-ZONE

COMMAND PROCESSOR™ PANEL

XR200 Installation Guide Digital Monitoring Products

TABLE OF CONTENTS

MODEL XR200

COMMAND PROCESSOR

INSTALLATION GUIDE

FCC NOTICE

This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance

with the manufacturer’s instructions, may cause interference with radio and television reception. It has been type tested

and found to comply with the limits for a Class A computing device in accordance with the specication in Subpart J

of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential

installation. If this equipment does cause interference to radio or television reception, which can be determined by

turning the equipment off and on, the installer is encouraged to try to correct the interference by one or more of the

following measures:

Reorient the receiving antenna

Relocate the computer with respect to the receiver

Move the computer away from the receiver

Plug the compute into a different outlet so that computer and receiver are on different branch circuits

If necessary, the installer should consult the dealer or an experienced radio/television technician for additional suggestions.

The installer may nd the following booklet, prepared by the Federal Communications Commission, helpful:

“How to identify and Resolve Radio-TV Interference Problems.”

This booklet is available from the U.S. Government Printing Ofce, Washington D.C. 20402

Stock No. 004-000-00345-4

Information furnished by DMP is believed to be accurate and reliable.

This information is subject to change without notice.

XR200 Installation Guide Digital Monitoring Products

TABLE OF CONTENTS

Revisions to This Document

Product Specications

1.1 Power Supply .........................................1

1.2 Communication.......................................1

1.3 Panel Zones............................................1

1.4 Keypad Data Bus ....................................1

1.5 LX-Bus™ ................................................1

1.6 Outputs..................................................1

1.7 Enclosure Specications ..........................1

Panel Features

2.1 Description.............................................2

2.2 Expansion Zones.....................................2

2.3 Relay Output Expansion ..........................2

2.4 Partitions and Areas ................................3

2.5 Central Station Communication ................3

2.6 Before you Begin ....................................3

2.7 About this Guide .....................................3

2.8 How to Use This Guide............................3

System Components

3.1 Description.............................................4

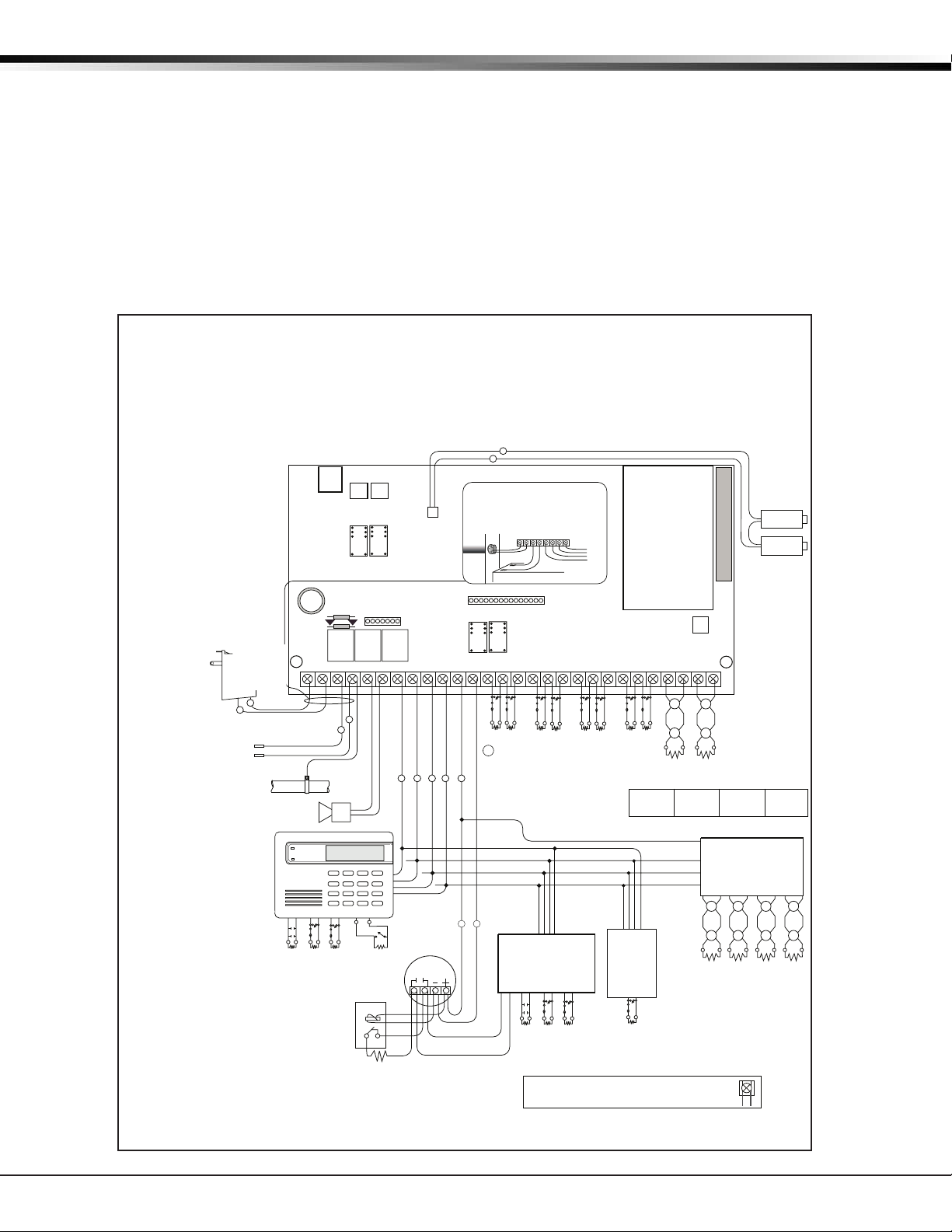

3.2 Wiring Diagram.......................................4

3.3 Lightning Protection ................................5

3.4 Accessory Devices...................................5

Installation

4.1 Mounting the Enclosure...........................6

4.2 Mounting Keypads and

Zone Expansion Modules .........................7

4.3 Connecting Serial Devices........................7

Primary Power Supply

5.1 AC Terminals 1 and 2 ..............................7

5.2 Transformer Types ..................................7

Secondary Power Supply

6.1 Battery Terminals 3 and 4........................8

6.2 Earth Ground..........................................8

6.3 Battery Only Restart................................8

6.4 Replacement Period ................................8

6.5 Discharge/Recharge ................................8

6.6 Battery Supervision .................................8

6.7 Battery Cutoff.........................................8

6.8 XR200 Power Requirements.....................8

Bell Output

7.1 Terminals 5 and 6 .................................10

Keypad Data Bus

8.1 Description...........................................10

8.2 Terminal 7 - RED ..................................10

8.3 Terminal 8 - YELLOW ............................10

8.4 Terminal 9 - GREEN ..............................10

8.5 Terminal 10 - BLACK .............................10

Digital Monitoring Products XR200 Installation Guide

TABLE OF CONTENTS

XR200 Installation Guide Digital Monitoring Products

iii

TABLE OF CONTENTS

Smoke and Glassbreak Detector Output

9.1 Terminals 11 and 12..............................10

9.2 Current Rating......................................10

Protection Zones

10.1 Terminals 13–24 ...................................11

10.2 Operational parameters.........................11

10.3 Zone response time ..............................11

10.4 Keyswitch arming zone..........................11

Powered Zones for 2-Wire Smoke Detectors

11.1 Terminals 25–26 and 27–28...................11

11.2 Zone Information..................................11

11.2 Compatible 2-Wire

Smoke Detector Chart ...........................12

Dry Contact Relay Outputs

12.1 Description...........................................13

12.2 Contact Rating......................................13

12.3 Output Harness Wiring ..........................13

12 VDC Voltage Outputs 3 to 10

13.1 Description...........................................13

13.2 Output Harness Wiring ..........................13

Telephone RJ Connector

14.1 Description...........................................14

14.2 FCC registration....................................14

14.3 Notication...........................................14

14.4 Ground Start ........................................14

14.5 Answering Machine Bypass....................14

Reset and Tamper Headers

15.1 J16 Reset Header .................................15

15.2 J4 Tamper Header ................................15

Universal UL And NFPA Fire Alarm Specications

16.1 Introduction .........................................16

16.2 Wiring..................................................16

16.3 Transformer..........................................16

16.4 End-of-Line Resistor..............................16

16.5 System Trouble Display .........................16

16.6 Fire Display ..........................................16

16.7 Police Station Phone Number.................16

16.8 System Maintenance .............................16

16.9 Audible Alarm .......................................16

16.10 Fire Zone Programming .........................16

16.11 Style D Zones .......................................16

16.12 Video Option ........................................16

16.13 UL Listed Receivers ...............................16

UL 985 NFPA 72 (Chapter 2) Specications

17.1 Bell Output Denition ............................17

Digital Monitoring Products XR200 Installation Guide

TABLE OF CONTENTS

XR200 Installation Guide Digital Monitoring Products

iii

TABLE OF CONTENTS

UL 864 NFPA 72 (Chapter 9) Specications

18.1 Zone Restoral Reports ...........................17

18.2 Power Fail Delay ...................................17

18.3 Sprinkler Supervisory ............................17

18.4 DACT Systems......................................17

18.5 Type 2 and Type 3

Central Station Service ..........................17

18.6 Type 1 Central Station Service ...............17

18.7 Local Protective Signaling Systems .........18

18.8 Proprietary Protective

Signaling Systems.................................18

18.9 Remote Station Protective

Signaling Systems.................................18

18.10 Fire Protective Signaling

Systems with an iCOM™........................18

California State Fire Marshal Specications

19.1 Bell Output Denition ............................18

Wiring Diagrams

20.1 Notication Circuit Module Installation....19

20.2 Multiple Notication Circuit

Module Installation ...............................20

20.3 Multiple Notication Circuit

Modules for Zoned Annunciation ............21

20.4 Dual Style D Zone Module Installation ....22

20.5 Remote Station Reversing

Relay Connection ..................................23

20.6 Supervised Remote Relay Connection.....24

20.7 LX-Bus Module Connection ....................25

Operating Instructions

Digital Monitoring Products XR200 Installation Guide

REVISIONS

XR200 Installation Guide Digital Monitoring Products

INTRODUCTION

Revisions to This Document

This section explains the changes that were made to this document during this revision. This section lists the date

the change was made, the section number and section heading, and a quick summary of the change.

Date Section Number and Heading Quick Explanation of Changes

12/06 3.2 Wiring Diagram Removed UL Burglary and Access Control text and information.

13.2 Output Harness Wiring Removed UL Burglary and Access Control text and information.

16 Universal UL Burglary Specications Removed entire section. UL listing expired.

17 UL 1023 Specications Removed entire section. UL listing expired.

18 UL 1610 and 1076 Specications Removed entire section. UL listing expired.

19 UL 1635 Specications Removed entire section. UL listing expired.

20 UL 365 and 609 Specications Removed entire section. UL listing expired.

Note: Subsequent section numbers revised.

20.8 Rothenbuhler Install Diagram removed.

20.9 Cell Backup for Derived Chanel Burg Diagram removed.

Note: Subsequent section numbers revised.

3/04 3.2 Wiring Diagram Added UL required text and information.

Section 6.8 Added keypad models 690F, 790F, and 693.

Added/revised current draw information.

25.7 Cellular Backup Installation Revised drawing and added STU connection text.

for Derived Channel Burglary

6/03 FCC Statement Adjusted to properly reect Class A.

Entire Document Added SCS-1R references to the appropriate places.

6.8 Standby Battery Calculations Current Draw on some products adjusted.

10.3 Zone Response Time Changed from 160 milliseconds to 167.

11.1 Terminals 25-26 and 27-28 EOL information claried.

7/02 4.1 Mounting the Enclosure Model 325 Transformer Bracket, Terminal Strip added to Figure 3.

1.7 Enclosure Specications Information added about 349, 350, 350A Enclosures.

11.1 Terminals 25-26 and 27-28 Information added about Sensor Reset’s affect on Zones 9 and 10.

23.7 Local Protective Signaling Systems Information added requiring the 893 to be used in local commercial

re installations

23.10 Fire Protective Signaling Section added with compliance information for the iCOM.

Systems with an iCOM™

10/01 3.4 Accessory Devices New DMP products added to the table.

4.3 Connecting Serial Devices LX-Bus and keypad bus information added.

6.8 XR200 Power Requirements 710F added to the Standby Battery Calculations chart.

11.2 Compatible 2-Wire Smokes Chart updated to include smoke detectors that are compatible with

the 725 zone expander and other 12 VDC smoke detectors.

Digital Monitoring Products XR200 Installation Guide

REVISIONS

XR200 Installation Guide Digital Monitoring Products

INTRODUCTION

Product Specications

1.1 Power Supply

Transformer Input: 16.5 VAC 40 VA (Models 320 or 321)

Standby Battery: 12 VDC 7.7Ah (40 VA charges 2 batteries; 56 VA and 100 VA charges up to 4 batteries)

Auxiliary: 12 VDC output at 1 Amp

Bell Output: 12 VDC at 1.5 Amp

All circuits are inherent Power Limited except the red battery wire.

1.2 Communication

Built-in dialer communication to DMP Model SCS-1 and SCS-1R Receivers

Built-in multiplex communication to DMP Model SCS-1 Receivers

Built-in Contact ID communication to non-DMP receivers

Built-in Modem IIe communication to non-DMP receivers

Optional 893 or 893A Dual Phone Line Modules with phone line supervision

Optional Host communication through Ethernet data networks

Can operate as a local panel

1.3 Panel Zones

Eight 1k Ohm EOL burglary zones (zones 1 to 8)

Two 3.3k Ohm EOL Class B (Style A) powered zone with reset (zones 9 and 10)

1.4 Keypad Data Bus

You can connect up to eight of the following supervised keypads and expansion modules to the XR200 keypad

data bus: Alphanumeric keypads, four and single zone expansion modules, and single zone detectors.

1.5 LX-Bus™

You can connect the following devices to the LX-Bus™ provided by the DMP 462N, 462P, 462FM, 472, and 481

Interface Cards up to the maximum number of LX-Bus™ addresses. See Accessory Devices in section 3.4.

• Four and single zone expansion modules • Single zone detectors

• Relay output expansion modules • Graphic annunciator modules

1.6 Outputs

The XR200 provides two SPDT relay outputs which require the installation of two Model 305 relays, each

rated 1 Amp at 30 VDC resistive) power limited sources only. The XR200 also provides 8 auxiliary 12 VDC,

50mA resistive outputs. To use these outputs, you need one Model 430 Output Harness.

1.7 Enclosure Specications

The XR200 is shipped in an enclosure with End-of-Line resistors, battery leads, User’s Guide, and

Programming Sheets.

Model 349 Enclosure (XR200M) Dimensions: 12.5” W x 11.5” H x 3.5” D - 8 lbs with panel

Color: Black (61), Gray (63), or Red (81)

Construction: 20-gauge cold-rolled steel

Model 350A Enclosure (XR200A) Dimensions: 17.5” W x 13.5” H x 3.75” D (enclosure only)

Color: Black (61), Gray (63), or Red (81)

Construction: Door: 16-gauge cold-rolled steel.

Back and Sides: 18-gauge cold-rolled steel

Model 350 Enclosure (XR200L) Dimensions: 17.5” W x 13.5” H x 3.5” D - 10 lbs with panel

Color: Black (61), Gray (63), or Red (81)

Construction: 18-gauge cold-rolled steel

Digital Monitoring Products XR200 Installation Guide

INTRODUCTION

XR200 Installation Guide Digital Monitoring Products

INTRODUCTION

Panel Features

2.1 Description

The DMP XR200 Command Processor™ Panel is a versatile 12 VDC, combined burglary and re communicator

panel with battery backup. The XR200 provides 8 on-board burglary zones and 2 on-board 12 VDC Class B

powered zones. The powered zones have a reset capability to provide for 2-wire smoke detectors, relays,

or other latching devices. The XR200 can communicate to one or two DMP SCS-1 Receivers using multiplex,

host, or digital dialer; one or two to DMP SCS-1R using host or digital dialer; or to non-DMP receivers using

the Contact ID and Modem IIe formats.

Figure 1: Typical XR200 System Conguration

 



               

           

































































































2.2 Expansion Zones

Up to 232 additional zones are available on the XR200 using the remote zone capability of DMP Security

Command keypads and zone expander modules. The panel’s keypad data bus supports up to eight supervised

device addresses with each address supporting up to four programmable expansion zones.

Up to 200 zones are available using the Model 460 Interface Adaptor, 462N, 462P, 462FM, 472, or 481

Interface Cards, and any combination of zone expansion modules and single zone LX-Bus™ detectors.

Note: Do not use shielded wire for LX-Bus or Keypad Bus circuits.

2.3 Relay Output Expansion

In addition to the 2 SPDT relays and 8 voltage outputs on the XR200, you can also connect up to 25 Model 716

Output Expansion modules to each LX-Bus. These modules can provide an additional 200 programmable SPDT

relays. The XR200 provides 50 Output Schedules you can use for programming the 716 to perform a variety of

annunciation and control functions. You can also assign the 716 outputs to any of the panel’s Output Options

such as Fire Alarm, Communication Fail, or Phone Trouble Outputs.

The LX-Bus™ also supports the Model 717 Graphic Annunciator Module. Each 717 module supplies 20

switched ground outputs that follow the state of their assigned zones.

Digital Monitoring Products XR200 Installation Guide

INTRODUCTION

XR200 Installation Guide Digital Monitoring Products

INTRODUCTION

2.4 Partitions and Areas

The 20 reporting areas of the XR200 are divided into four separate partitions. Partition 1 provides up to eight

individual reporting areas while partitions 2, 3, and 4 each provide up to four individual reporting areas.

Keypads installed on the XR200 system are assigned to partitions allowing users to operate the functions of

those areas.

2.5 Central Station Communication

You can program the XR200 panel for one of many communication formats:

• Local annunciation only

• Reporting to one or two DMP SCS-1 Receivers using multiplex, host, or digital dialer

• Reporting to one or two DMP SCS-1R Receivers using host or digital dialer

The panel can also communicate to non-DMP receivers using the Contact ID or Modem IIe communication

formats. The XR200 connects at the premises to a standard RJ31X or RJ38X telephone jack. Use the DMP

893 or 893A Dual Phone Line Module when connecting the XR200 panel to two separate phone lines in re or

burglary applications.

2.6 Before you Begin

Before installing the XR200, we recommend you read through the entire contents of this guide. Familiarize

yourself with the features of the panel and the key points to remember during the installation. Be sure to

read and understand all of the caution statements printed in bold italics.

2.7 About this Guide

The information in this guide is organized into ve sections:

• The Table of Contents at the front lists the headings and subheadings used throughout each section of

the guide. To the right of each heading is the section number where the information can be found.

• The Introduction section gives you an overview of the various components that go into a XR200 system

and provides diagrams of typical system congurations.

• The Installation section begins with mounting instructions for the enclosure and continues on to detail

the operational characteristics of the XR200 panel.

• The Compliance section describes the various regulations the XR200 complies with, such as UL.

• The System Diagrams illustrate different ways to wire the XR200 to a variety of modules.

Caution notes

Throughout this guide you will see caution notes containing information you need to know when installing

the XR200 panel. These cautions are written with a bold, italicized introductory clause followed by a

detailed description of the caution. See the example shown below:

Always ground the panel before applying power to any devices: The XR200 must be properly grounded

before connecting any devices or applying power to the panel. Proper grounding protects against

Electrostatic Discharge (ESD) that can damage system components.

Whenever you see a caution note, make sure you completely read and understand its information. Failing

to follow the caution note can cause damage to the equipment or improper operation of one or more

components in the system.

2.8 How to Use This Guide

To locate information about the installation of the XR200, rst go to the Table of Contents at the front of

this guide. Find the subject heading that best describes the information you need and turn to the section

number shown to the right of the heading.

The text that follows the heading has been written to provide as much information about the subject as

possible. If you cannot nd the information you need under that heading, try scanning through a few of the

headings before and after and reading the text under those that sound similar.

Digital Monitoring Products XR200 Installation Guide

INTRODUCTION

XR200 Installation Guide Digital Monitoring Products

INTRODUCTION

System Components

3.1 Description

The DMP XR200 system is made up of an alarm panel with a built-in communicator, an enclosure, battery,

one 16.5 VAC transformer, and a keypad. You can add up to eight supervised Security Command® keypads;

wireless, network communications, and expansion interface cards; zone and output expander modules; and

initiating and indicating circuit modules. You can also connect auxiliary devices to the panel’s output relays

to expand the basic system’s control capability. Combined current requirements of additional modules may

require an auxiliary power supply. Refer to section 6.8 in this guide when calculating power requirements.

3.2 Wiring Diagram

The XR200 system below shows some of the accessory modules you can connect for use in various

applications. A brief description of each module follows in section 3.4.

























             

        

   

            

    















































  

  

  

  

  

  



 

 

 

 

 

 

 

 

 







































  





































































































 

















































  













































































































































































































































































































Figure 2: XR200 Wiring Diagram

Andere Handbücher für XR200

Inhaltsverzeichnis

Andere DMP Electronics Bedienfeld Handbücher

DMP Electronics

DMP Electronics SecurityCommand XR6 Bedienungsanleitung

DMP Electronics

DMP Electronics XT Series Datenblatt

DMP Electronics

DMP Electronics XT Lite Bedienungsanleitung

DMP Electronics

DMP Electronics XT Series Betriebsanleitung

DMP Electronics

DMP Electronics 630F Installationsanleitung

DMP Electronics

DMP Electronics XR550 series Bedienungsanleitung

DMP Electronics

DMP Electronics XR5FC Betriebsanleitung

DMP Electronics

DMP Electronics XR200 Betriebsanleitung

DMP Electronics

DMP Electronics XTLC Betriebsanleitung

DMP Electronics

DMP Electronics XR150FC Series Bedienungsanleitung

DMP Electronics

DMP Electronics XR550 series Bedienungsanleitung

DMP Electronics

DMP Electronics XR500 SERIES Bedienungsanleitung

DMP Electronics

DMP Electronics XTLN Bedienungsanleitung

DMP Electronics

DMP Electronics XT Series Betriebsanleitung

DMP Electronics

DMP Electronics XR20ATM Bedienungsanleitung

DMP Electronics

DMP Electronics Addressable Fire Alarm Control Panel XR2500F Bedienungsanleitung

DMP Electronics

DMP Electronics XT30INT Bedienungsanleitung

DMP Electronics

DMP Electronics XR150FC Series Bedienungsanleitung

DMP Electronics

DMP Electronics XR6 COMMAND PROCESSOR Bedienungsanleitung

DMP Electronics

DMP Electronics XR100 Betriebsanleitung

DMP Electronics

DMP Electronics XRSuper6 Bedienungsanleitung

DMP Electronics

DMP Electronics XR150 series Bedienungsanleitung

DMP Electronics

DMP Electronics XR6 COMMAND PROCESSOR Betriebsanleitung

DMP Electronics

DMP Electronics XR150 series Bedienungsanleitung

Beliebte Bedienfeld Handbücher anderer Marken

RDZ

RDZ PC-HRX Bedienungsanleitung

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Technisches Handbuch

Efka

Efka Variocontrol V810 Bedienungsanleitung

Cebora

Cebora 208-10 Bedienungsanleitung

AMX

AMX AutoPatch CP-15 Bedienungsanleitung

Satel

Satel CA-6 KLED-S Bedienungsanleitung

Evolution

Evolution IQ plus 800 Bedienungsanleitung

Fagor

Fagor 8040 TCO CNC Bedienungsanleitung

Trane

Trane ComfortLink II XL950 Control Bedienungsanleitung

AKO

AKO PROCool AKO-17635-2 Bedienungsanleitung

ABB

ABB 6136/30M-101 Bedienungsanleitung

Telikou

Telikou BK-603 Belt Pack Bedienungsanleitung

Mapei

Mapei Mapeheat Thermo Touch Bedienungsanleitung

Bosch

Bosch D9412GV4 Bedienungsanleitung

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Bedienungsanleitung

Sminn

Sminn BOX L VF1L EI Bedienungsanleitung

Balboa

Balboa TP600 Bedienungsanleitung

Nice

Nice HSCU1 Technische Daten
