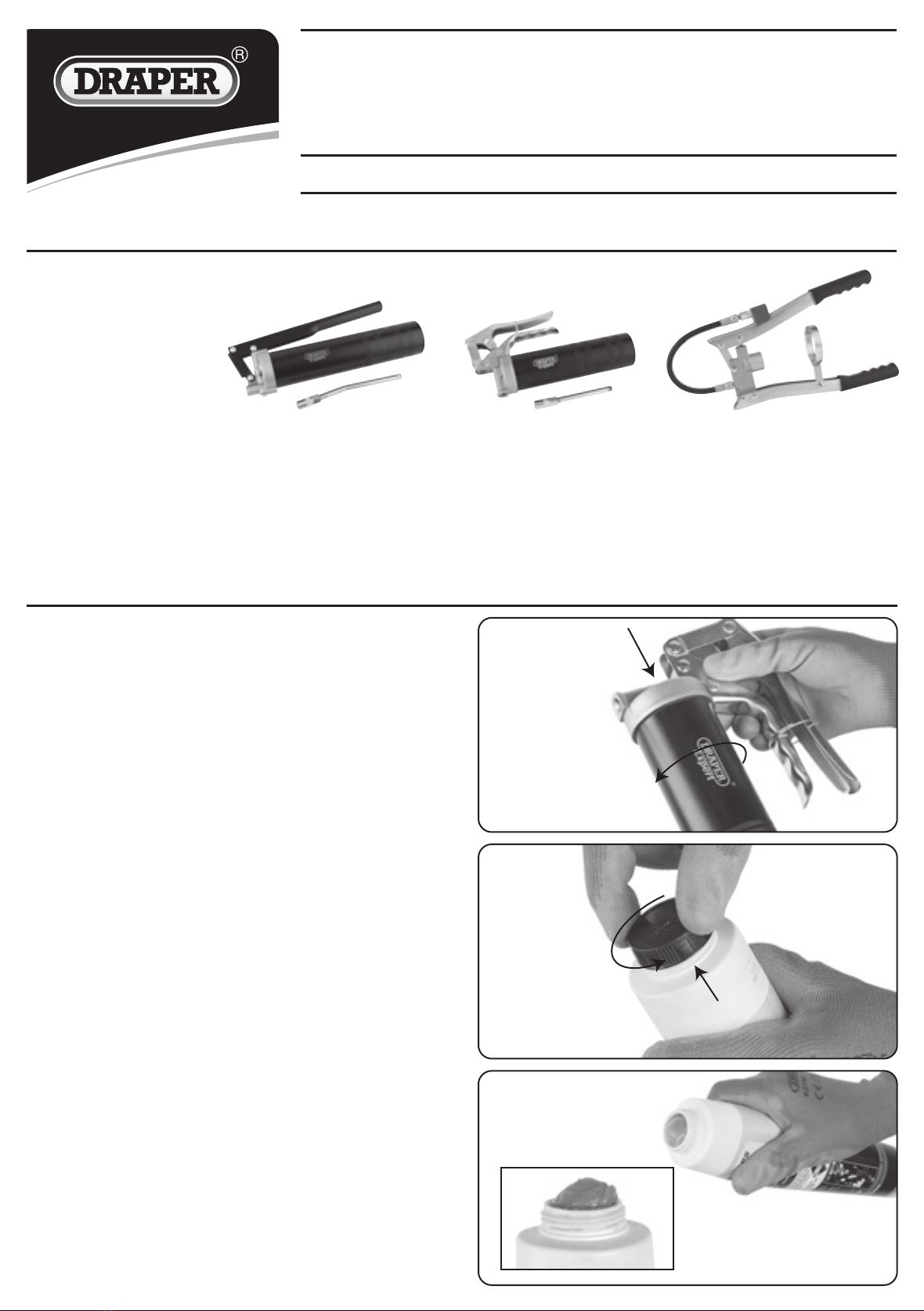

Unscrew barrel from pump head anti-clockwise (note no

barrel on Draper Stock No.16157).

Remove screw-cap from grease cartridge.

Push base of grease cartridge until grease is protruding

approx. 6mm out of the cartridge.

This is required to prevent air entering the pump unit.

INSTRUCTIONS

Stock Nos.16157, 16159, 16160 Part Nos.A10/EXP/F, A9/EXP/LS, A8/EXP/LS

2. ASSEMBLY

1. TECHNICAL DESCRIPTION

Manual for

Screw-on Grease Guns

Stock No..............................................16159 .............................................16160 .............................................16157

Part No............................................ A9/EXP/LS .......................................A8/EXP/LS.......................................A10/EXP/F

Pressure......................................10,000psi/690bar ............................5,000psi/345bar .............................7,500psi/517bar

Output ........................................ 0.5g per stroke.............................. 0.5g per stroke.............................. 0.8g per stroke

Cartridge type .......................400gm x large thread .................... 400g x large thread.................. 500 or 600g small thread

Screw steel barrel over cartridge, into pump head. Be

careful not to cross thread it. (Note: steel barrel is not

supplied or required for Draper Stock No.16157).

Pump grease gun to ensure grease is coming out of

outlet.

Screw cartridge firmly into pump head in a clockwise

rotation until it stops. Do not over tighten.

Screw outlet nozzle into main pump head in a clockwise

direction until tight. PTFE tape can be used for this joint

if required.

Pump handle to ensure grease is being expelled.

Grease gun is now ready for use.

Use above procedure to exchange grease cartridges. If changing grease types, be sure to clean out face of grease

cartridge mating face and use new grease to expel old grease before use. After initial assembly, there is no need to

remove the nozzle assembly.
