Draytek Vigor2135 Series Bedienungsanleitung

Vigor2135

Gigabit Broadband Router

Quick Start Guide

Version: 1.0

Firmware Version: V4.2.1.2

(For future update, please visit DrayTek web site)

Date: December 16, 2020

Intellectual Property Rights (IPR) Information

by copyright. No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written permission

from the copyright holders.

Trademarks The following trademarks are used in this document:

Microsoft is a registered trademark of Microsoft Corp.

Windows 8, 10 and Explorer are trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks or registered trademarks of their

respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

Read the installation guide thoroughly before you set up the router.

The router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the

router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

Do not stack the routers.

The router should be used in a sheltered area, within a temperature

range of 0 to +45 Celsius.

Do not expose the router to direct sunlight or other heat sources. The

housing and electronic components may be damaged by direct sunlight

or heat sources.

Do not deploy the cable for LAN connection outdoor to prevent

electronic shock hazards.

Keep the package out of reach of children.

When you want to dispose of the router, please follow local regulations

on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase receipt

in a safe place as it serves as proof of date of purchase. During the warranty

period, and upon proof of purchase, should the product have indications of

failure due to faulty workmanship and/or materials, we will, at our discretion,

repair or replace the defective products or components, without charge for

either parts or labor, to whatever extent we deem necessary tore-store the

product to proper operating condition. Any replacement will consist of a new

or re-manufactured functionally equivalent product of equal value, and will

be offered solely at our discretion. This warranty will not apply if the product

is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions. The warranty does not cover the bundled or

licensed software of other vendors. Defects which do not significantly affect

the usability of the product will not be covered by the warranty. We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any

person of such revision or changes.

iii

EU Declaration of Conformity

We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 300,

Taiwan, declare under our sole responsibility that the product

Product name: Gigabit Broadband Router

Model number: Vigor2135 Series

Manufacturer: DrayTek Corp.

Address: No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 300,

Taiwan

is in conformity with the relevant Union harmonisation legislation:

EMC Directive 2014/30/EU , Low Voltage Directive 2014/35/EU , ErP 2009/125/EC and RoHS

2011/65/EU with reference to the following standards

Standard Version / Issue date

EN 55032 2012+AC:2013 class B

EN 61000-3-2 2014 Class A

EN 61000-3-3 2013

EN 55024 2010+A1:2015

EN 62368 2014+A11:2017

EC No. 1275/2008 2008

Hsinchu 10th Oct., 2020 Calvin Ma / President

(place) (date) (Legal Signature)

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause undesired

operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Company name ABP International Inc.

Address 13988 Diplomat Drive Suite 180 Dallas TX 75234

ZIP Code 75234 E-mail [email protected]

USA Local

Representative Contact Person Mr. Robert Messer Tel. 19728311600

External Power Supply ErP Information

*The external power supply used for each product will be model dependent.

1 2 3 4 5 6 7 8 9

A Manufacturer CWT CWT CWT CWT CWT APD APD APD APD

B Address No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No. 222, Sec.

2, Nankan Rd.,

Lujhu

Township,

Taoyuan

County 338,

Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

No.5, Lane 83,

Lung-Sou St.,

Taoyuan City

330, Taiwan

2ABB012F UK 2ABB018F UK 2ABL024F UK

2ABL030F UK

2ABN036F UK

WA-12M12FG

WB-18D12FG WA-24Q12FG WA-36A12FG

C Model identifier 2ABB012F EU 2ABB018F EU 2ABL024F EU

2ABL030F EU

2ABN036F EU

WA-12M12FK

WB-18D12FK WA-24Q12FK WA-36A12FK

D Input voltage 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V

Input AC frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60HzE Output voltage DC 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V

F Output current 1.0A 1.5A 2.0A 2.5A 3.0A 1.0A 1.5A 2.0A 3.0A

G Output power 12.0W 18.0W 24.0W 30.0W 36.0W 12.0W 18.0W 24.0W 36.0W

H Average active

efficiency 84.9% 86.2% 87.6% 87.8% 89.8% 83.7% 85.4% 88.6% 88.2%

I Efficiency at low load

10% 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4%

J No-load power

consumption 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W

For more update, please visit www.draytek.com.

1. Package Content .................................................................................................. 1

2. Panel Explanation................................................................................................. 2

3. Hardware Installation ........................................................................................... 4

3.1 Network Connection................................................................................................................... 4

3.2 Wall-Mounted Installation........................................................................................................... 5

4. Software Configuration........................................................................................ 6

5. Customer Service................................................................................................11

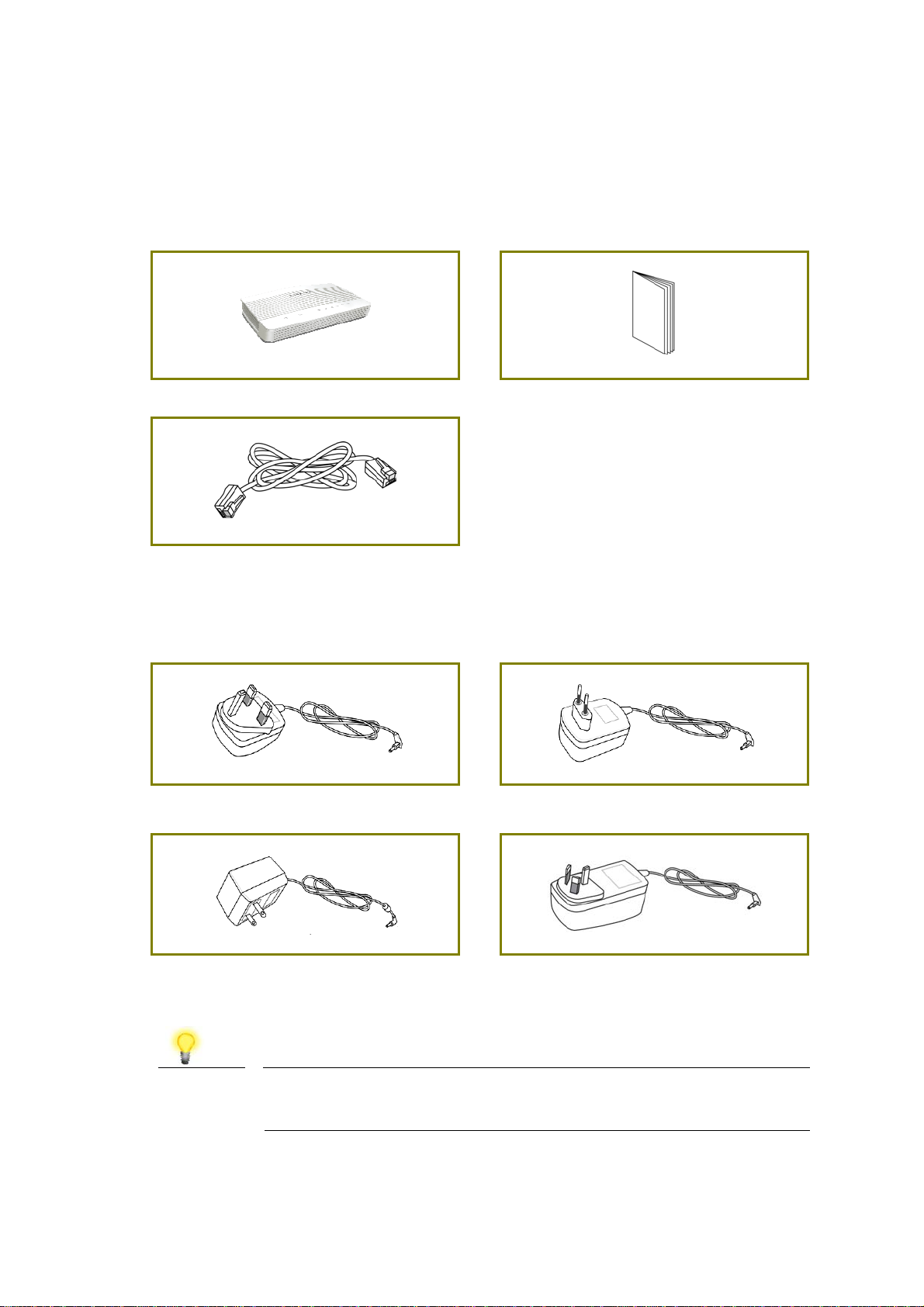

Take a look at the package content. If there is anything missed or damaged,

please contact DrayTek or dealer immediately.

Vigor Router Quick Start Guide

RJ-45 Cat-5 Ethernet Cable

The type of the power adapter depends on the country that the router will be

installed. * The maximum power consumption is 15 Watts.

UK-type Power Adapter EU-type Power Adapter

USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter

Note

Remove the protective film from the router before use to

ensure ventilation.

LED Status Explanation

Blinking The router is powered on and running normally.

(Activity) Off The router is powered off.

On Internet connection is ready.

Blinking The data is transmitting.

WAN Off Internet connection is not ready.

On The phone connected to this port is off-hook.

Off The phone connected to this port is on-hook.

1, 2

(for “V” model) Blinking A phone call comes.

On The LAN port is connected.

Blinking The data is transmitting.

LAN1/2/3/4 Off The LAN port is disconnected.

On A USB device is connected and active.

USB Blinking The data is transmitting.

Interface Description

Factory Reset Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole and

keep for more than 5 seconds. When you see the ACT LED begins to

blink rapidly than usual, release the button. Then the router will

restart with the factory default configuration.

USB1~USB2 Connector for a USB device (USB Modem or printer).

P4~P1 Connectors for local networked devices.

WAN

Connector for remote networked devices (by Ethernet cable).

WAN (F/FV)

Connector for fiber connection for accessing the Internet.

Phone2/Phone1

(for “V” model) Connector of analog phone for VoIP communication.

ON/OFF Power switch.

PWR Connector for a power adapter.

This section will guide you to install the router through hardware connection and

configure the router’s settings through web browser.

Before starting to configure the router, you have to connect your devices

correctly. Here we take Vigor2135 as an example.

1. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of

router with Ethernet cable (RJ-45).

2. Connect one port of 4-port switch to your computer with a RJ-45 cable. This

device allows you to connect 4 PCs directly.

3. Connect one end of the power cord to the power port of this device.

Connect the other end to the wall outlet of electricity.

4. Power on the router.

5. Check the ACT and WAN, LAN LEDs to assure network connection.

(For the detailed information of LED status, please refer to section 2. Panel

Explanation)

Andere Handbücher für Vigor2135 Series

Inhaltsverzeichnis

Andere Draytek Netzwerk-Router Handbücher

Draytek

Draytek Vigor2912 Series Bedienungsanleitung

Draytek

Draytek Vigor 2110f Series Bedienungsanleitung

Draytek

Draytek Vigor 2110 Bedienungsanleitung

Draytek

Draytek Vigor 2710 Bedienungsanleitung

Draytek

Draytek VigorBX 2000 Series Bedienungsanleitung

Draytek

Draytek Vigor2760Vn Bedienungsanleitung

Draytek

Draytek Vigor2600 plus Series Bedienungsanleitung

Draytek

Draytek Vigor2952 Series Bedienungsanleitung

Draytek

Draytek Vigor2915 Series Bedienungsanleitung

Draytek

Draytek Vigor3300 Series Bedienungsanleitung

Draytek

Draytek Vigor2100 Bedienungsanleitung

Draytek

Draytek Vigor 2800 Bedienungsanleitung

Draytek

Draytek Vigor2765 Series Bedienungsanleitung

Draytek

Draytek Vigor 2130 Series Bedienungsanleitung

Draytek

Draytek Vigor 3100 Series Bedienungsanleitung

Draytek

Draytek Vigor 2950 Bedienungsanleitung

Draytek

Draytek Vigor2100 Bedienungsanleitung

Draytek

Draytek VigorPro 5510 Series Bedienungsanleitung

Draytek

Draytek Vigor2760 Bedienungsanleitung

Draytek

Draytek Vigor2925 Series Bedienungsanleitung

Draytek

Draytek Vigor2710 Series Bedienungsanleitung

Draytek

Draytek Vigor2925 Series Bedienungsanleitung

Draytek

Draytek VigorFly 210 Bedienungsanleitung

Draytek

Draytek Vigor2800 Series Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
