Draytek Vigor2962 Series Bedienungsanleitung

Vigor2962

2.5G Security VPN Router

Quick Start Guide

Version:1.0_(official)

Firmware Version: V3.9.3

(For future update, please visit DrayTek web site)

Date: December 9, 2020

Intellectual Property Rights (IPR) Information

by copyright. No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written permission

from the copyright holders.

Trademarks The following trademarks are used in this document:

Microsoft is a registered trademark of Microsoft Corp.

Windows, Windows 8, 10 and Explorer are trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks or registered trademarks of their

respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

Read the installation guide thoroughly before you set up the router.

The router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the

router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

Do not stack the routers.

The router should be used in a sheltered area, within a temperature

range of +5 to +40 Celsius.

Do not expose the router to direct sunlight or other heat sources. The

housing and electronic components may be damaged by direct sunlight or

heat sources.

Do not deploy the cable for LAN connection outdoor to prevent electronic

shock hazards.

Keep the package out of reach of children.

When you want to dispose of the router, please follow local regulations on

conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase receipt

in a safe place as it serves as proof of date of purchase. During the warranty

period, and upon proof of purchase, should the product have indications of

failure due to faulty workmanship and/or materials, we will, at our discretion,

repair or replace the defective products or components, without charge for

either parts or labor, to whatever extent we deem necessary tore-store the

product to proper operating condition. Any replacement will consist of a new

or re-manufactured functionally equivalent product of equal value, and will

be offered solely at our discretion. This warranty will not apply if the product

is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions. The warranty does not cover the bundled or

licensed software of other vendors. Defects which do not significantly affect

the usability of the product will not be covered by the warranty. We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any

person of such revision or changes.

iii

EU Declaration of Conformity

We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu

300, Taiwan , R.O.C., declare under our sole responsibility that the product

Product name: 2.5G Security VPN Router

Model number: Vigor2962 Series

Manufacturer: DrayTek Corp.

Address: No.26, Fu Shing Rd, HuKou, HsinChu Industry Park, Hsinchu 300,

Taiwan

is in conformity with the relevant Union harmonisation legislation:

EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU with

reference to the following standards

Standard Version / Issue date

EN 55032 2012+AC:2013 class A

EN 61000-3-2 2014 Class A

EN 61000-3-3 2013

EN 55024 2010+A1:2015

EN 62368-1 2014+A11:2017

EC No. 1275/2008 2008

Hsinchu 9th September, 2020 Calvin Ma / President

(place) (date) (Legal Signature)

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause

undesired operation.

More update, please visit www.draytek.com.

Company name ABP International Inc.

Address 13988 Diplomat Drive Suite 180 Dallas TX 75234

ZIP Code 75234 E-mail rmesser@abptech.com

USA Local

Representative Contact Person Mr. Robert

Messer Tel. 19728311600

1. Introduction........................................................................................................... 1

2. Panel Explanation................................................................................................. 2

3. Hardware Installation ........................................................................................... 4

3.1 Connecting Device..................................................................................................................... 4

3.2 Wall-Mounted Installation........................................................................................................... 5

4. Software Configuration........................................................................................ 6

5. Customer Service............................................................................................... 12

Take a look at the package content. If there is anything missed or damaged,

please contact DrayTek or dealer immediately.

Vigor router Quick Start Guide

RJ-45 Cable (Ethernet) Standard brackets

The type of the power cord depends on the country that the router will be

installed.

UK-type Power Cord EU-type Power Cord

USA/Taiwan-type Power Cord AU/NZ-type Power Cord

Note

Input Rated for Vigor2962: 100~240V, 50/60Hz, 0.7A

Input Rated for Vigor2962P: 100~240V, 50/60Hz, 1.5A

LED Status Explanation

Blinking The router is powered on and running normally.

ACT Off The router is powered off.

On The fiber connection is established.

Blinking The data is transmitting.

SFP Off No fiber connection is established or the system

is hanged.

On The USB device is installed and ready.

USB Off No USB device is installed.

MSG On /

Off /

Blinking

MSG means this LED is user-defined. It will be on

/ off / blinking according to the rule defined on

WUI.

On Power sourcing equipment for PoE is enabled.

PoE (for 2962P) Off Power sourcing equipment for PoE is disabled.

On A PoE equipment is connected to port P1, P4, P5

or P6.

P1, P4, P5, P6

(for 2962P) Off No PoE equipment connected.

On The Ethernet link is established.

Off No Ethernet link is established.

Left Blinking The data is transmitting.

On The Ethernet link is established with 1/2.5Gbps.

Right Off The Ethernet link is established with less than

1Gbps.

On The Ethernet link is established on

corresponding port.

Off No Ethernet link is established.

(Right)

~P6 Left

Blinking The data is transmitting.

On The Ethernet link is established on

corresponding port with 1Gbps.

Right Off The Ethernet link is established on

corresponding port with less than 1Gbps.

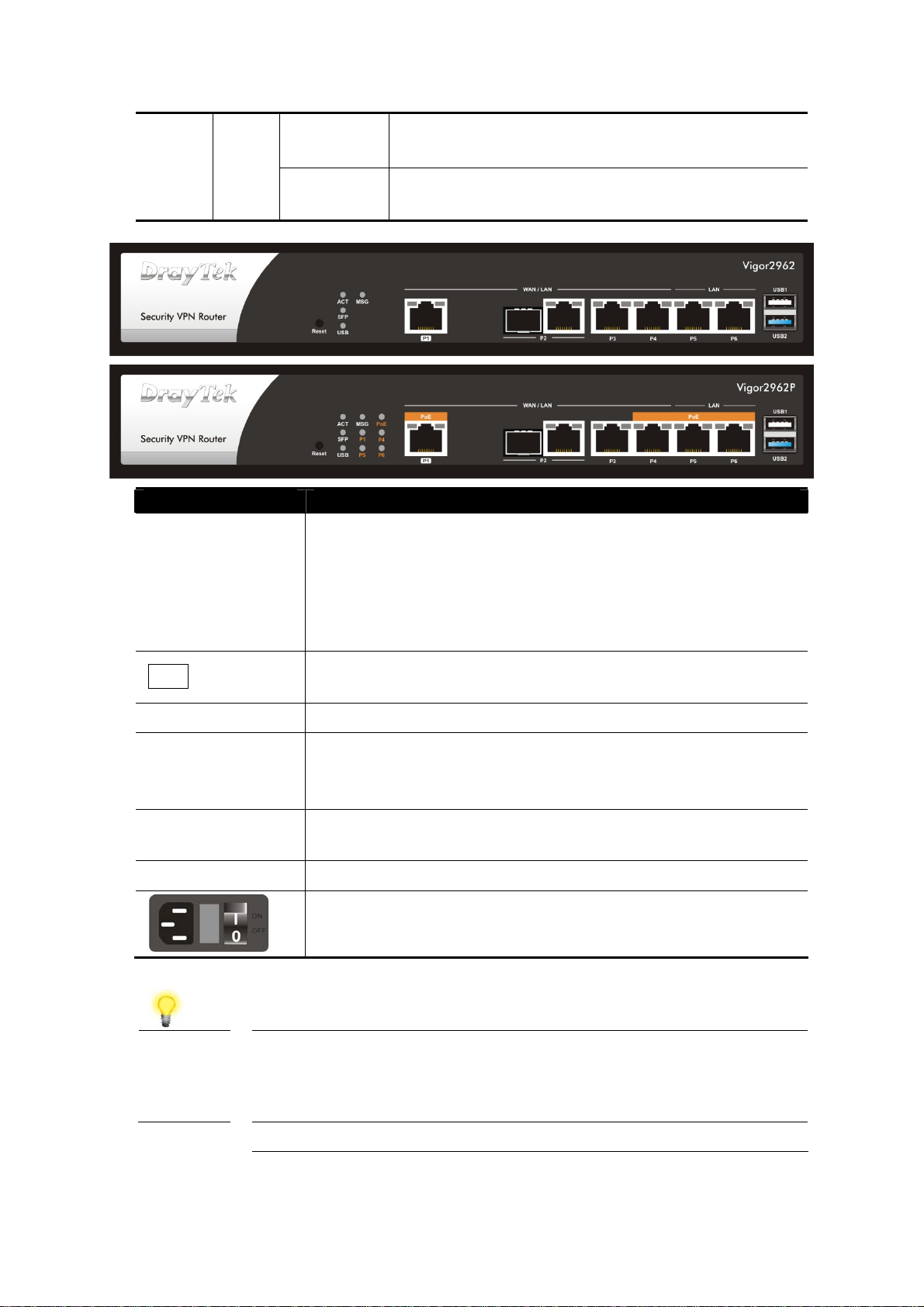

Interface Description

Reset

The Factory Reset button is used to restore the default

settings. Turn on the router (ACT LED is blinking). Press

the hole and keep for more than 5 seconds. When you see

the ACT LED begins to blink rapidly than usual, release the

button. Then the router will restart with the factory

default configuration.

P1 Connector for local network devices (LAN) or a modem for

accessing Internet (WAN).

P2 (Left) Connector for SFP module with the rate of 1G bps.

P2 (Right)~P4 Connectors for remote network devices or local network

devices (WAN/LAN) with the rate of 1G/100M/10M bps.

Or connector for a modem for accessing Internet (WAN).

P5~P6 Connectors for local network devices (LAN) with the rate

of 1G/100M/10M bps.

USB1~2 Connector for the USB device.

Connector for a power cord.

ON/OFF - Power switch.

Note 1

P1 to P4 port can be configurable as WAN / LAN interface. At least, up

to two of them can be set as the WAN port at one time.

For Vigor2962P, P1, P4, P5 and P6 also can be connected by PoE

equipments.

Note 2 The PoE Power budget is up to 60W.

This section will guide you to install the router through hardware connection and

configure the router’s settings through web browser.

Before starting to configure the router, you have to connect your devices

correctly.

1. Connect a modem to any WAN port of Vigor2962 with Ethernet cable (RJ-45)

to access Internet.

2. Connect the other end of the cable (RJ-45) to the Ethernet port on your

computer (that device also can connect to other computers to form a small

area network). The LAN LED for that port on the front panel will light up.

3. Connect the power cord to Vigor2962’s power port on the rear panel, and

the other side into a wall outlet.

4. Power on the device by pressing down the power switch on the rear panel.

The PWR LED should be ON.

5. The system starts to initiate. After completing the system test, the ACT LED

will light up and start blinking.

Below shows an outline of the hardware installation for your reference.
