Draytek Vigor2700Ge Bedienungsanleitung

Vigor2700G e/e

A D S L 2/2+ F irew a l l R ou t er

Q u ic k S t a rt G u id e

Version: 1.0

Date: 2005/11/07

iii

1. Introduction........................................................................................................... 1

1.1 Panel Explanation..................................................................................................................2

1.1.1 Front View for Vigor2700Ge ......................................................................................2

1.1.2 Rear View for Vigor2700Ge.......................................................................................2

1.1.3 Front View for Vigor2700e.........................................................................................3

1.1.4 Rear View for Vigor2700e..........................................................................................3

1.2 Package Content ...................................................................................................................4

2. Installing Your Vigor2700Ge/e Series Router..................................................... 5

2.1 Hardware Installation..............................................................................................................5

3. Configuring Web Pages ....................................................................................... 7

3.1 Basic Configuration................................................................................................................7

3.2 Wireless LAN Settings (for Vigor2700Ge only)......................................................................11

3.2.1 Basic Wireless LAN Concept...................................................................................11

3.2.2 General Settings......................................................................................................12

3.2.3 Security Settings.....................................................................................................13

4. Trouble Shooting................................................................................................ 15

4.1 Checking If the Hardware Status Is OK or Not......................................................................15

4.2 Checking If the Network Connection Settings on Your Computer Is OK or Not......................15

4.3 Pinging the Router from Your Computer...............................................................................18

4.4 Checking If the ISP Settings are OK or Not...........................................................................20

4.5 Backing to Factory Default Setting If Necessary ...................................................................21

4.6 Contacting Your Dealer ........................................................................................................22

5. Specifications ..................................................................................................... 23

Targeting requirement for residential, SOHO (Small Office and Home Office) and

business users, the Vigor2700Ge/e is an ADSL2/2+ enabled integrated access device.

With downstream speed up to 12Mbps (ADSL2) or 24Mbps (ADSL2+), the

Vigor2700Ge/e provides exceptional bandwidth for Internet access.



The available bandwidth depends on the Internet Service Provider.

To secure your network, the Vigor2700Ge/e provides an advanced firewall with advanced

features, such as NAT with multi VPN pass-through, Stateful Packet Inspection (SPI) to

offer network reliability by detecting and prohibiting malicious penetrating packets or

DoS attacks, user-configurable web filtering for parental control against network abuse

etc.

Vigor2700Ge is embedded with an 802.11g compliant wireless module which provides

wireless LAN access with data rate as much as 54Mbps. As for data privacy of wireless

network, the Vigor2700Ge can encode all transmissions data with standard WEP and

industrial strength WPA2 (IEEE 802.11i) encryption. Additional features include

Wireless Client List and MAC Address Control for maintaining control over user’s

authorization in your network, and Hidden SSID for being invisible to outside intruders

scanning.

Characteristics

Easy Internet-sharing of your broadband connection

Robust firewall to help protect your network from external attacks

ACT

WLAN

ADSL2+

Link

Data

LAN

ADSL2/2+ Router

LED

Status Explanation

Blinking The router is powered on and running properly.ACT (Activity) On

The router is powered on.

Off

Wirelss access point is turned off.

Wireless access point is ready.

WLAN

Blinking

Wireless traffic goes through.

ADSL is show time.

ADSL2+ Link

Blinking

The device starts handshaking.

ADSL2+ Data

Blinking

Data is transmitting.

Green A normal connection is through its

corresponding port.

LAN (1, 2, 3, 4)

Blinking Ethernet packets are transmitting.

Factory

Reset

ADSL2+ ON

OFF

PWR

LAN

for Annex A

Factory

Reset

ADSL2+ ON

OFF

PWR

LAN

for Annex B

Interface

Description

ADSL 2+

Connecter for accessing the Internet through ADSL 2+.

LAN 4 – 1

Connecter for local networked devices.

Factory Reset Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole

and keep for more than 5 seconds. When you see the ACT LED

begins to blink rapidly than usual, release the button. Then the

router will restart with the factory default configuration.

ON/OFF Power Switch.

PWR Connecter for a power adapter with 7~7.5VDC.

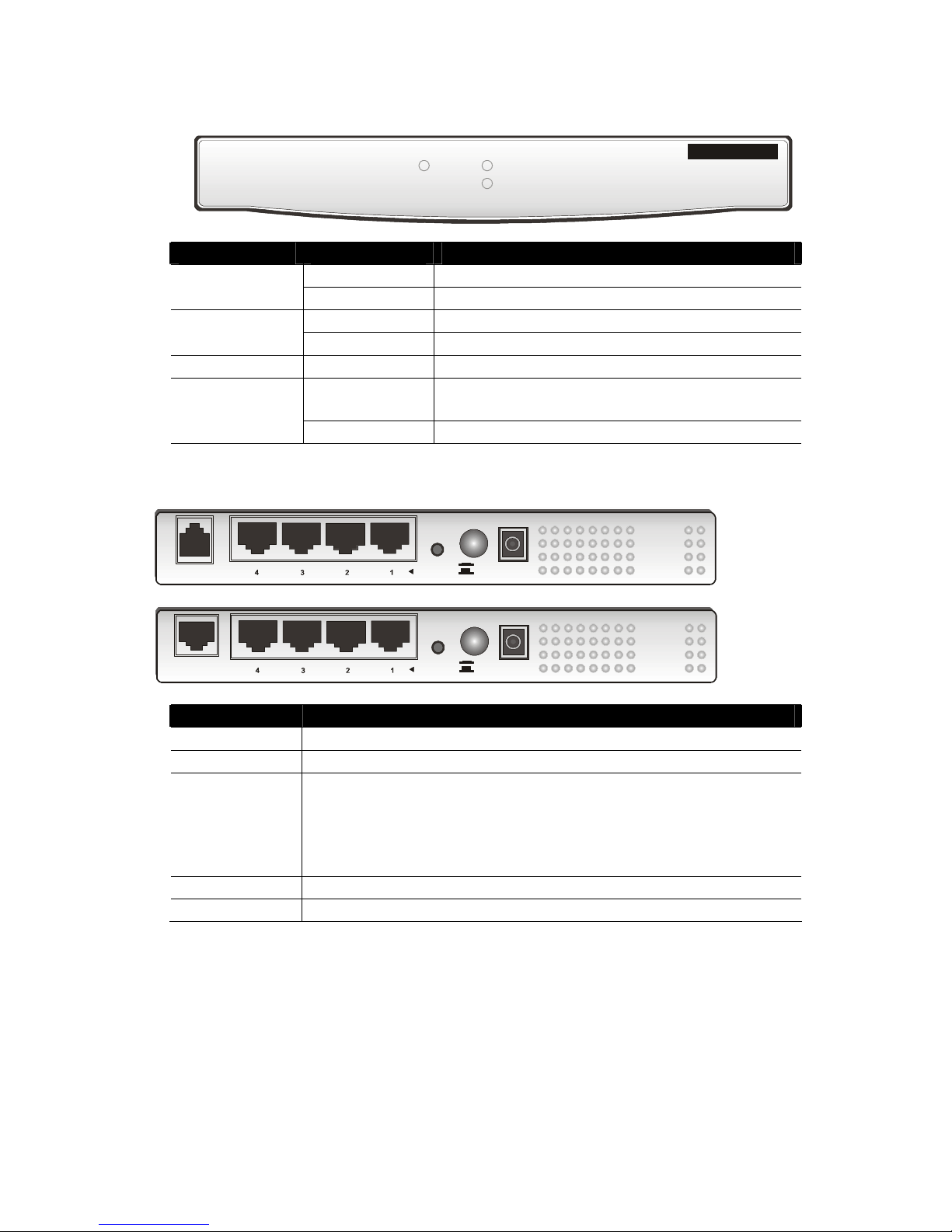

ACT

ADSL2+

Link

Data

LAN

ADSL2/2+ Router

LED

Status Explanation

Blinking The router is powered on and running properly.ACT (Activity) On

The router is powered on.

ADSL is show time.

ADSL2+ Link

Blinking

The device starts handshaking.

ADSL2+ Data

Blinking

DSL data is transmitting.

Green A normal connection is through its

corresponding port.

LAN (1, 2, 3, 4)

Blinking Ethernet packets are transmitting.

Factory

Reset

ADSL2+ ON

OFF

PWR

LAN

for Annex A

Factory

Reset

ADSL2+ ON

OFF

PWR

LAN

for Annex B

Interface

Description

ADSL 2+

Connecter for accessing the Internet through ADSL 2+.

LAN 4 – 1

Connecter for local networked devices.

Factory Reset Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole

and keep for more than 5 seconds. When you see the ACT LED

begins to blink rapidly than usual, release the button. Then the

router will restart with the factory default configuration.

ON/OFF Power Switch.

PWR Connecter for a power adapter with 7~7.5VDC.



Quick Start Guide





RJ-45 Cable (Ethernet)



The type of the cable depends on the country that the router will be installed:

RJ-11 to RJ-11 Cable

(Annex A)

RJ-11 to RJ-45 Cable

(Annex B)

RJ-45 to RJ-45 Cable

(Annex B)



The type of the power adapter depends on the country that the router will be installed:

UK-type power adapte

EU-type power adapt

USA/Taiwan-type power adapter

AU/NZ-type power adapter

This section will guide you to install the router through hardware connection and

configure the router’s settings through web browser.

Before starting to configure the router, you have to connect your devices correctly.

1. Connect the DSL interface to the external ADSL splitter with an ADSL line cable.

2. Connect one port of 4-port switch to your computer with a RJ-45 cable. This device

allows you to connect 4 PCs directly.

3. Connect one end of the power cord to the power port of this device. Connect the

other end to the wall outlet of electricity.

4. Power on the router.

5. Check the ACT and ADSL2+, LAN LEDs to assure network connections.

(For the detailed information of LED status, please refer to section 1.1.)

This page is left blank.

The Quick Start Wizard is designed for you to easily set up your router for Internet

access. You can directly access the Quick Start Wizard via Web Configurator.

1. Make sure your PC connects to the router correctly.

Notice: You may either simply set up your computer to get IP dynamically

from the router or set up the IP address of the computer to be the same

subnet as the default IP address of Vigor router 192.168.1.1. For the

detailed information, please refer to the later section - Trouble Shooting of

the guide.

2. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will

open to ask for username and password. Do not type any word on the window and

click OK for next screen.

Notice:

If you fail to access to the web configuration, please go to “Trouble

Shooting” for detecting and solving your problem.

3. Now, the Main Screen will pop up. Click Quick Start Wizard.

4. Enter the login password on the field of New Password and retype it on the field of

Retype New Password. Then click Next to continue.

5. On the next page as shown below, please select the appropriate Internet access type

according to the information from your ISP or click Auto detect button to detect the

related DSL parameters automatically. Then click Next for next step.
