Draytek VigorBX 2000 Series Bedienungsanleitung

VigorBX 2000 Series

IPPBX Firewall Router

Quick Start Guide

Version: 1.0

Firmware Version: V3.8.1_RC4a

(For future update, please visit DrayTek web site)

Date: August 10, 2015

Intellectual Property Rights (IPR) Information

by copyright. No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written permission

from the copyright holders.

Trademarks The following trademarks are used in this document:

Microsoft is a registered trademark of Microsoft Corp.

Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8 and

Explorer are trademarks of Microsoft Corp.

Apple and Mac OS are registered trademarks of Apple Inc.

Other products may be trademarks or registered trademarks of

their respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

Read the installation guide thoroughly before you set up the router.

The router is a complicated electronic unit that may be repaired

only be authorized and qualified personnel. Do not try to open or

repair the router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

Do not stack the routers.

The router should be used in a sheltered area, within a

temperature range of +5 to +40 Celsius.

Do not expose the router to direct sunlight or other heat sources.

The housing and electronic components may be damaged by direct

sunlight or heat sources.

Do not deploy the cable for LAN connection outdoor to prevent

electronic shock hazards.

Keep the package out of reach of children.

When you want to dispose of the router, please follow local

regulations on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase receipt

in a safe place as it serves as proof of date of purchase. During the warranty

period, and upon proof of purchase, should the product have indications of

failure due to faulty workmanship and/or materials, we will, at our discretion,

repair or replace the defective products or components, without charge for

either parts or labor, to whatever extent we deem necessary tore-store the

product to proper operating condition. Any replacement will consist of a new

or re-manufactured functionally equivalent product of equal value, and will

be offered solely at our discretion. This warranty will not apply if the product

is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions. The warranty does not cover the bundled or

licensed software of other vendors. Defects which do not significantly affect

the usability of the product will not be covered by the warranty. We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any

person of such revision or changes.

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu

County, Taiwan 303

Product: VigorBX 2000 Series

DrayTek Corp. declares that VigorBX 2000 Series of routers are in compliance with the following

essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC

and RoHS 2011/65/EU.

The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive

2004/108/EC by complying with the requirements set forth in EN55022/Class B and

EN55024/Class B.

The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by

complying with the requirements set forth in EN60950-1.

This product is designed for DSL, POTS and 2.4GHz/5GHz WLAN network throughout the EC

region and Switzerland with restrictions in France. Please see the user manual for the applicable

networks on your product.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause

undesired operation.

More update, please visit www.draytek.com.

Due to the US Patent No. 7,127,048, the DSL and VoIP applications on Vigor BX 2000 series can

not be allowed to promote and to sell in the USA.

iii

Be a Registered Owner

Web registration is preferred. You can register your Vigor router via http://www.draytek.com.

Firmware & Tools Updates

Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded.

Please consult the DrayTek web site for more information on newest firmware, tools and

documents.

http://www.draytek.com

1. Introduction........................................................................................................... 1

2. Package Content .................................................................................................. 2

3. Panel Explanation................................................................................................. 3

4. Hardware Installation ........................................................................................... 6

5. Software Configuration........................................................................................ 8

5.1 Quick Start Wizard for Network Connection............................................................................... 8

5.2 IPPBX Wizard for VoIP............................................................................................................. 13

6. Customer Service............................................................................................... 18

The VigorBX 2000 is an VDSL2 router with IP PBX function and 2nd Ethernet WAN.

This 2nd WAN can connect to DSL/Cable modem or fiber media converter for

policy-based load-balance, fail-over and BoD (Bandwidth on Demand); it also

features advanced bandwidth control mechanism such as IP-layer QoS, NAT

Session Limitation, Bandwidth Borrowed, etc., to allow easy, flexible, reliable

access control and bandwidth management.

The SPI (Stateful Packet Inspection) firewall uses object-based design to make

settings of firewall policies easy. The CSM (Content Security Management)

feature allows more precise and efficient access control for URL/Web Content

Filtering, IM (Instant Messenger) and P2P (Peer to Peer) applications.

With hardware-based implementation of the VPN protocols, the VigorBX 2000

supports up to 32 VPN tunnels using advanced protocols such as

IPSec/PPTP/L2TP/L2TP over IPSec with AES/DES/3DES for encryption and

MD5/SHA-1 for authentication.

VigorBX 2000 can provide up to 50 extensions setup to let all registered IP phones

in LAN or remote sites around the world to have unlimited free calls through

Internet. Moreover, VigorBX 2000 is able to establish multiple networking

architectures corresponding to your current desire and future needs of growing

communication. Its PSTN compatibility lets you move from simple VoIP solution

such as IP phone and Softphone to integrate with comprehensive networking

infrastructure, such as Analog phone line any time you need.

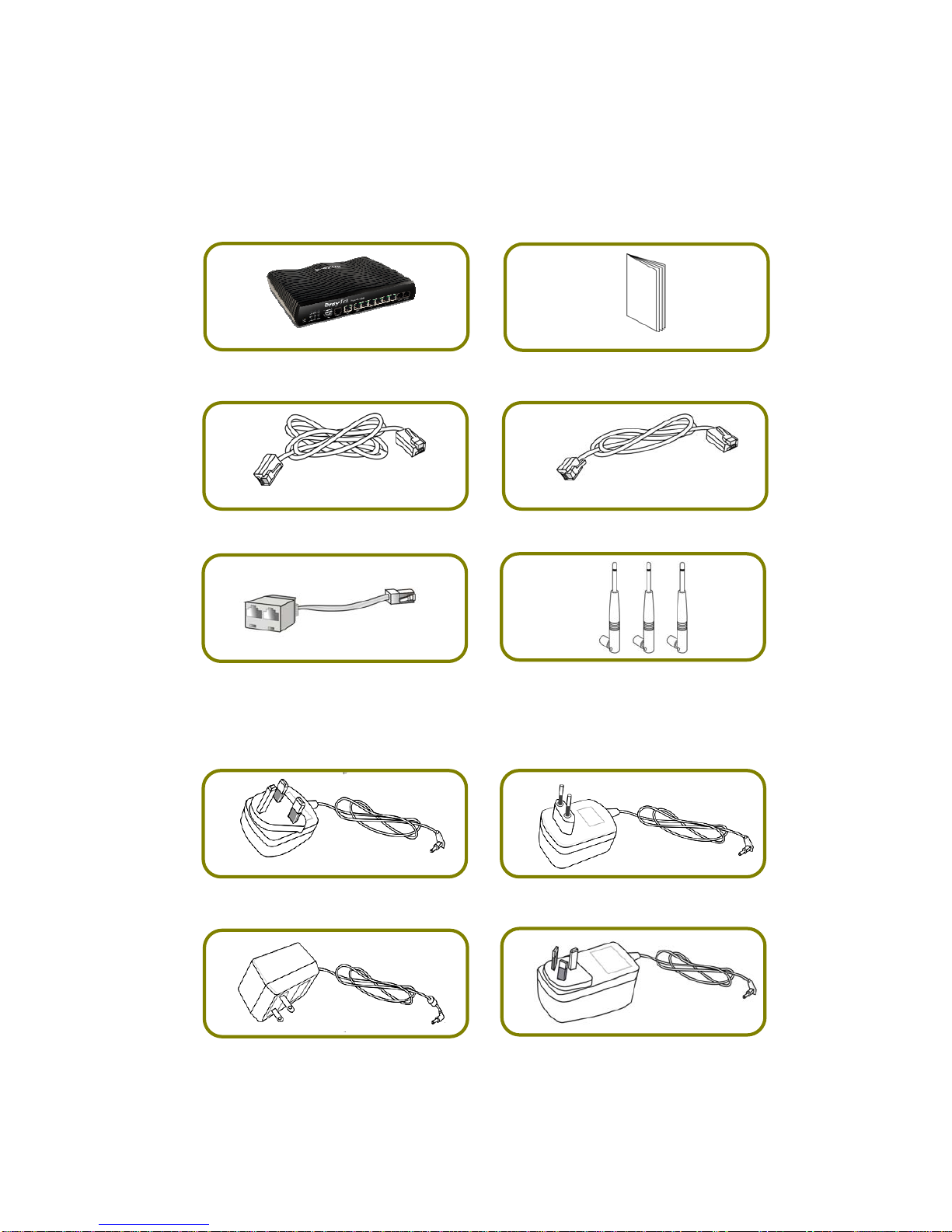

Take a look at the package content. If there is anything missed or damaged,

please contact DrayTek or dealer immediately.

VigorBX2000

Quick Start Guide

RJ-45 to RJ-45 Cable

(Annex B)

RJ-11 to RJ-45 Cable (Annex B)

RJ-11 to RJ-11 Cable (Annex A)

Phone Adapter

Antenna (ac models)

The type of the power adapter depends on the country that the router will be

installed. * The maximum power consumption is 17-23 Watt.

UK-type Power Adapter

EU-type Power Adapter

USA/Taiwan-type Power Adapter

AU/NZ-type Power Adapter

LED Status Explanation

Blinking The router is powered on and running normally.ACT

(Activity) Off The router is powered off.

On A USB device is connected and active.USB1~USB2

/ USB Blinking The data is transmitting.

On The WAN2 connection is ready.WAN 2 Blinking It will blink while transmitting data.

On The router is ready to access Internet through DSL link.DSL Blinking Slowly: The modem is ready.

Quickly: The connection is training.

On VPN tunnel is up and down.

Off VPN services are disabled.

VPN

Blinking Traffic is passing through VPN tunnel.

On Wireless access point with bandwidth of 2.4GHz/5GHz is

ready.

2.4G/5G

Blinking It will blink slowly while wireless traffic goes through.

ACT and WLAN LEDs blink quickly and simultaneously when

WPS is working, and will return to normal condition after

two minutes. (You need to setup WPS within 2 minutes.)

On A PSTN phone call comes (in and out). However, when the

phone call is disconnected, the LED will be off about six

seconds later.

Line1~Line2

Off There is no PSTN phone call.

On The phone connected to this port is off-hook.

Off The phone connected to this port is on-hook.

Phone

Blinking A phone call comes.

LED on Connector On The port is connected.

Off The port is disconnected.

Left LED

(Green) Blinking The data is transmitting.

On The port is connected with 1000Mbps.

WAN 2

Right LED

(Green) Off The port is connected with 10/1000Mbps.

On The port is connected.

Off The port is disconnected.

Left LED

(Green) Blinking The data is transmitting.

On The port is connected with 1000Mbps.

LAN 1~LAN6

Right LED

(Green) Off The port is connected with 10/100Mbps.

Interface Description

Wireless LAN

ON/OFF/WPS

Wireless band will be switched /changed according to the

button pressed and released. For example,

2.4G (On) and 5G (On) – in default.

2.4G (Off) and 5G (On) – pressed and released the button

once.

2.4G (On) and 5G (Off) – pressed and released the button

twice.

2.4G (Off) and 5G (Off) – pressed and released the button

three times.

When WPS function is enabled by web user interface, press this

button for more than 2 seconds to wait for client’s device making

network connection through WPS.

Factory

Reset Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole and

keep for more than 5 seconds. When you see the ACT LED begins to

blink rapidly than usual, release the button. Then the router will

restart with the factory default configuration.

USB1~USB2 Connecter for a USB device (for 3G/4G USB Modem or printer).

VDSL/ADSL Connecter for accessing the Internet through VDSL/ADSL.

WAN2 Connecter for remote networked devices.

LAN1~LAN6 Connecters for local networked devices.

Phone Connecter for PSTN phone.

Line1/2 Connector for PSTN life line.

PWR Connecter for a power adapter.

ON/OFF Power Switch.

Andere Handbücher für VigorBX 2000 Series

Inhaltsverzeichnis

Andere Draytek Netzwerk-Router Handbücher

Draytek

Draytek Vigor 2130 Series Bedienungsanleitung

Draytek

Draytek Vigor3300V+ Bedienungsanleitung

Draytek

Draytek Vigor2866 Series Bedienungsanleitung

Draytek

Draytek VigorBX 2000 Series Bedienungsanleitung

Draytek

Draytek Vigor 2950 Bedienungsanleitung

Draytek

Draytek VigorSwitch P1080 Bedienungsanleitung

Draytek

Draytek VigorPro 5510 Series Bedienungsanleitung

Draytek

Draytek Vigor2600VG Bedienungsanleitung

Draytek

Draytek Vigor2120n-plus Bedienungsanleitung

Draytek

Draytek VigorFly 210 Bedienungsanleitung

Draytek

Draytek Vigor 2110f Series Bedienungsanleitung

Draytek

Draytek Vigor2600 Bedienungsanleitung

Draytek

Draytek Vigor 2200E-Plus Referenzhandbuch

Draytek

Draytek Vigor3910 Series Bedienungsanleitung

Draytek

Draytek Vigor3100 Bedienungsanleitung

Draytek

Draytek Vigor2130 Series Bedienungsanleitung

Draytek

Draytek VigorIPPBX 2820 Series Bedienungsanleitung

Draytek

Draytek Vigor2710 Series Bedienungsanleitung

Draytek

Draytek Vigor 2925 Series Bedienungsanleitung

Draytek

Draytek Vigor2860 Series Bedienungsanleitung

Draytek

Draytek VigorPro 5300 Bedienungsanleitung

Draytek

Draytek Vigor2620 Series Bedienungsanleitung

Draytek

Draytek Vigor2900V Bedienungsanleitung

Draytek

Draytek Vigor 2765 Series Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
