Installation by a licensed tradesperson and in
accordance with:
• AS/NZS 3500.4 “National Plumbing &
Drainage Code Hot Water Supply Systems
– Acceptable Solutions”
• AS5601/AG601 Gas Installation
• Adherence to local authority and OH&S
regulations
• Victorian PIC Requirements
Installer’s Guide
For advice, repairs and service, call:
1300 365 115 (Australia)
0800 729 389 (New Zealand)
Read This Document First
On completion, sign and leave with owner
Gas continuous ow water heater
Models: 26XL
26XN
Part No: IG090701
Version: B
Specications and materials may change without notice
Effective for Endurance continuous ow water heaters manufactured and sold after 1st Sept 2009.
Installer’s Guide – Endurance six™
2Part No: IG090701
Version: B

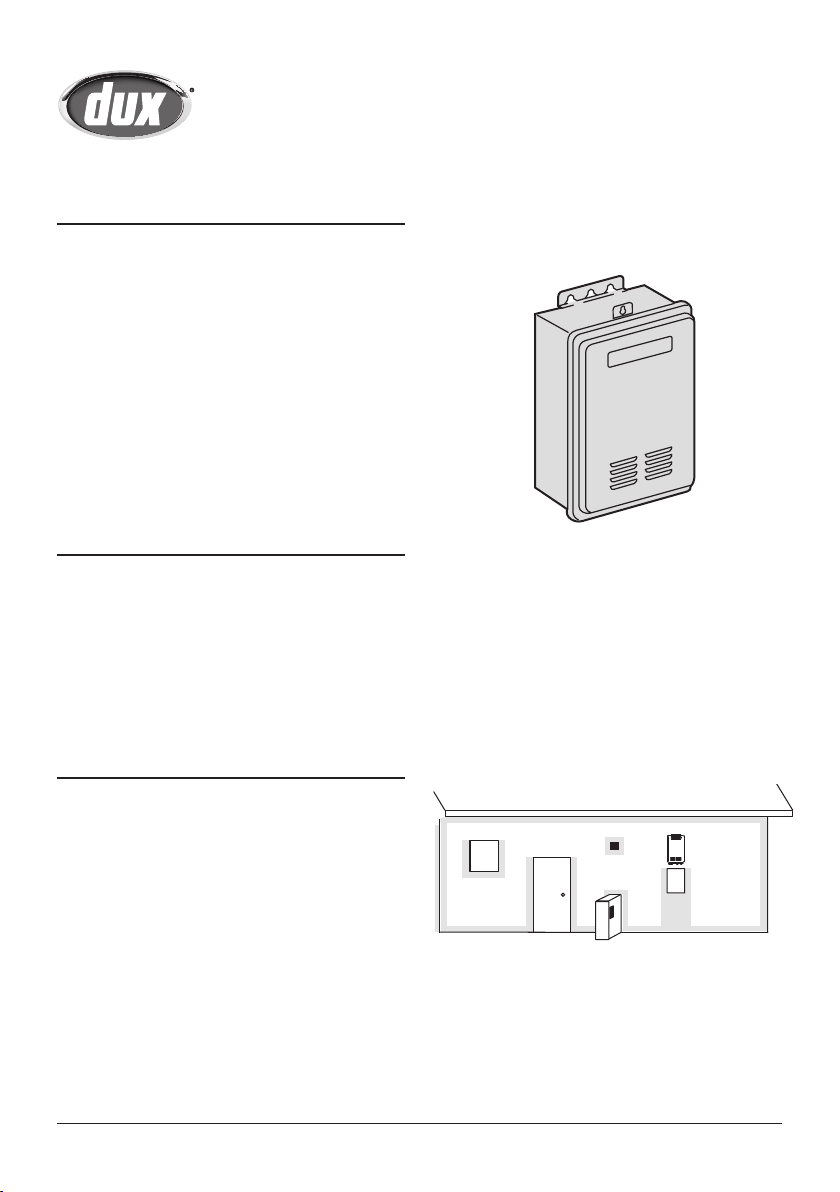

• Arrive at site, park vehicle as close as
allowable to installation, and conduct
a safety audit.
• Safety audits can also be known as
Work Method Statements (WMS) or
Job Site Analysis (JSA).
Note – do not commence a
job where the risks can’t be
controlled.
• The existing water heater (if
applicable) should be drained and
removed in a responsible manner.
Note: Do not drain on to grass or
garden beds.
• This heater is approved for
outdoor installation only – it is
not suitable for indoor use.
• Safely install new heater in an
appropriate location, in accordance
with all plumbing and building
regulations.
Installation Guide
Window
Door
Endurance
Refer to AS5601 for detailed installation instructions
Installer’s Guide – Endurance six™
3
Part No: IG090701
Version: B

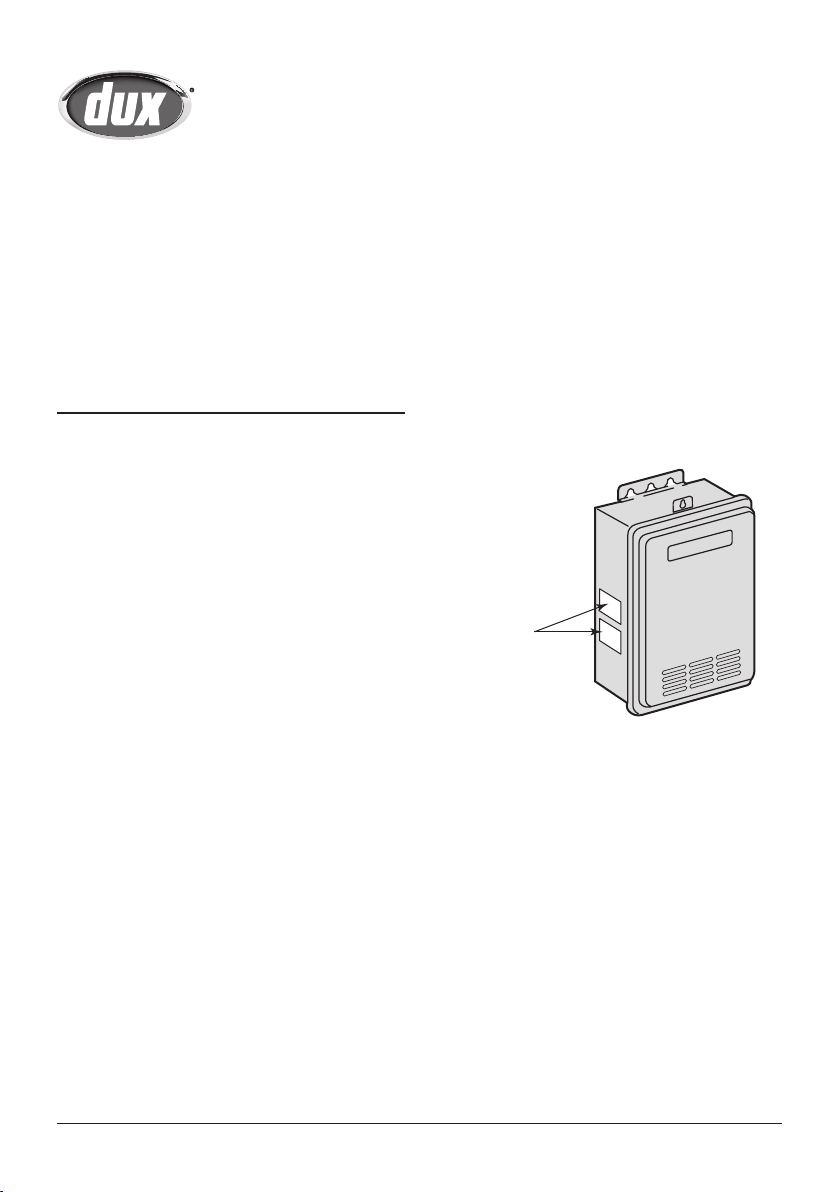

Refer to the Owner’s Manual and
AG 601 for detailed installation
instructions.
• Plan hot water pipework to ensure
optimum ow rates to all outlets.
• Check labels located on the unit’s
side for:
a. maximum inlet water pressure; a
Pressure Limiting Valve may be
required.
b. gas supply pressure requirements
(minimums = 1.13kPa for Natural
Gas, 2.75kPa for LPG)
c. gas type – is the unit set up for
the gas supplied to the property?
• Ensure that the property’s gas
meter is able to supply sufcient
volume of gas and pressure in the
event of all gas appliances on site
operating simltaneously at maximum
gas consumption levels. For LPG
installations, conrm bottle size is
adequate. This water heater uses
199 MJ/h of gas.
Installation Guide
Labels
Installer’s Guide – Endurance six™
4Part No: IG090701
Version: B

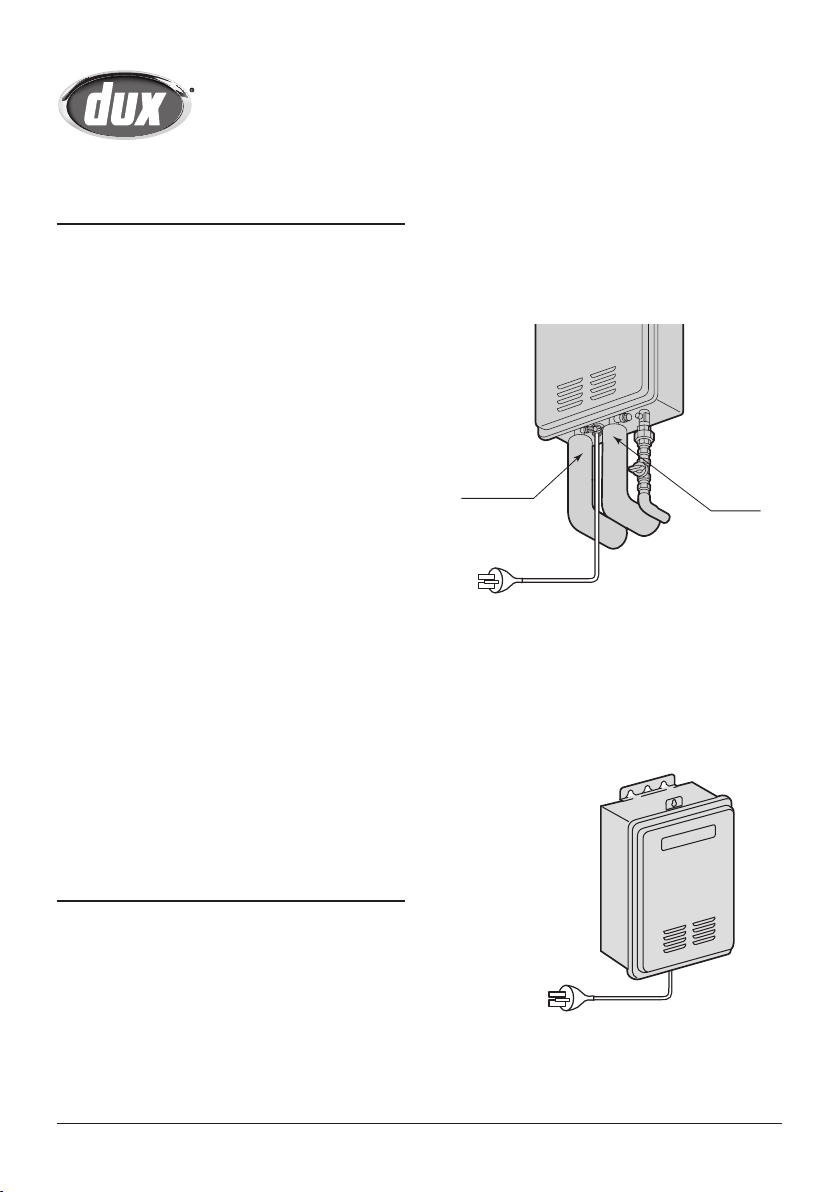

Water Connection
• Using correct plumbing methods,
connect the cold water pipe to the
heater.
Note: According to local regulations
and the plumbing code, t any
and all valves that are necessary
e.g. tempering valves, pressure
limiting valves, duo valves, cold
water expansion valves etc. We
recommend the use of new valves for
all Installation. Please refer plumbing
code and/or local requirements.
• A Gate Valve or Ball Valve must be
used on the cold water inlet to the
water heater.
This requirement is an Australia
wide requirement under the national
plumbing code.
• Stop taps or combination stop taps
and non-return valves are not to be
used!
Electrical Connection
• Continuous electrical power must
be supplied to the water heater. This
ensures correct performance of the
unit.
Installation Guide
Cold
Water
Inlet
Hot
Water
Outlet
240 Volt
Continuous Power Supply
Installer’s Guide – Endurance six™
5
Part No: IG090701
Version: B
Gas Connection
• Fit a union to the water heater gas
inlet for easy connection and removal.
The thread diameter is R¾/20.
• Fit an AGA approved isolating gas
cock in the supply line adjacent to
the water heater gas connection.
• Ensure that the supply pipe and
the gas pressure regulator (LPG
or Natural Gas) has sufcient ow
capacity for this and other appliances
connected to the tting line. Refer to
AG 601 for size of pipe.
• For LPG appliances, ensure that
gas cylinders are of sufcient size.
The water heater alone will require a
regulator of 4kg per hour capacity.
• Before connecting the appliance to
the gas service, purge any debris or
air from the gas service. Venting of
purged gas shall be an area free of
sources of ignition.
Close the isolating gas cock prior to
connection of the appliance.
• After connection, check all joints for
leaks with an approved leak tester.
Refer to AG 601 Installations
Standard for pipe sizing details. For
your assistance, we have included
the pipe sizing from AG 601 for
copper tube using Natural Gas in the
table in the margin.
Nominal Pipe
Size in mm
Straight Length
Of Pipe Metres
Hourly Rate
in MJ/h
13 4 43.0
18 4 82.2
20 4 142.0
25 4 313.0
Note: The Endurance six requires 199 MJ/h for the
customer to get the full performance benefit.
Installation Guide
Gas
Valve
Installer’s Guide – Endurance six™
6Part No: IG090701
Version: B
• This unit has a preset temperature of
50°C.
• If controllers are installed, the
maximum temperature setting will
still be 50°C.
• Make sure there is water inside the
unit prior to turning on the power.
This can be achieved by turning on
the tap.
• If the water heater has been installed
correctly, when the power is turned
on the heater will go through
initialisation. This will take a few
seconds.
• If a fault occurs, please refer to the
Owner’s Manual.
• The gas valve must be checked for
gas pressure during operation.
• The test point pressure should be
set in accordance with the pressure
rating marked on the data plate label,
located on the side of the heater.
• Commission appliance and check
safe and correct operation of the
appliance.
Installer’s Guide – Endurance six™
7
Part No: IG090701
Version: B

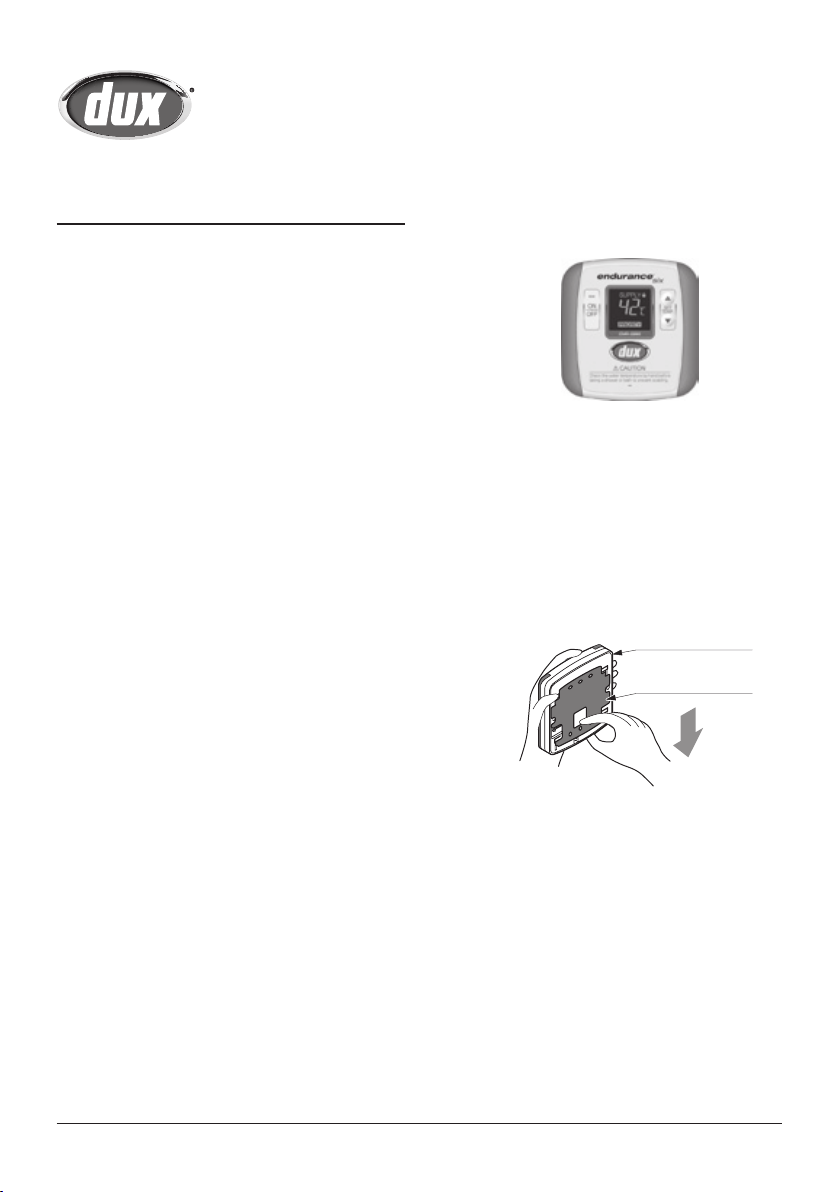

Installation Of Main
Remote Control
• Detach the tting bracket from Main
remote controller by sliding it down.
• Attach the tting plate to wall.
• Install conduit inside of wall in
advance and secure the wiring box.
• Pass remote controller cables
through conduit.
• Then pass the cables through the
hole of the tting bracket and pull
them out.
• Attach the tting bracket with screws
adjusting the screw hole to the wiring
box.
• Connect the remote controller
cables to the terminal for the remote
controller of PCB.
• If controllers are installed, the
maximum temperature setting will
still be 50°C.
Installation Guide
Main Remote Control
Model CMR-2252
Bad examples
Do Not
Chemicals
Wiring box
Cover
Cover
Wood screw
Remote controller
fitting bracket
Remote controller
Wiring box
Hole for wiring
Screw
Remote controller
fitting bracket
Hook
Remote controller
cables
Slot
Terminal
Installer’s Guide – Endurance six™
8Part No: IG090701
Version: B

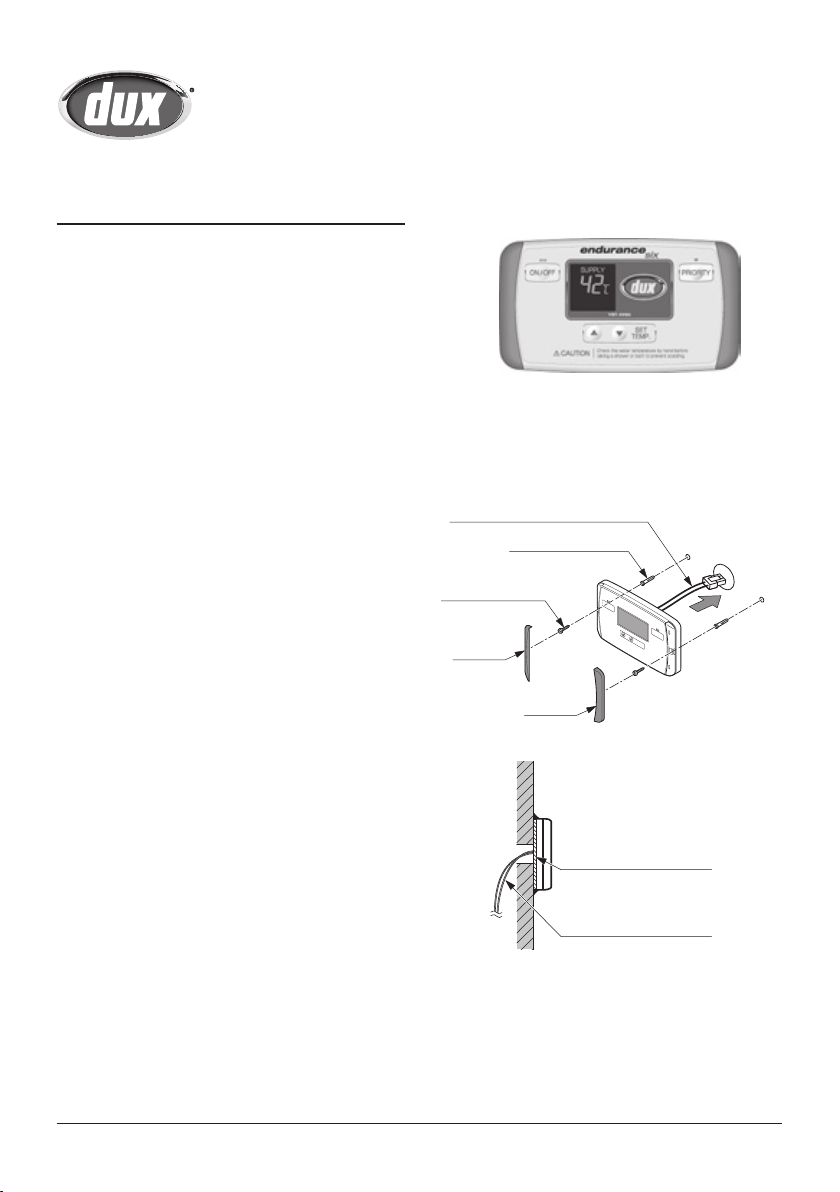

Installation of
Shower Remote Control
• Drill a hole (more than diameter
about 12mm) in a wall for the
remote controller cables.
• After passing the remote controller
cables through the hole, remove
the packing’s back paper of remote
controller. Then attach the remote
controller to the wall.
• Detach both end covers of remote
controller and x the remote
controller to the wall with wood
screws (2 pcs) in the screw holes
provided. (You can detach the
covers with catching the bottom
corner’s slot with nail.)
• Do not tighten the screws
excessively, as the screw hole may
be damaged. In case of mounting
the remote controller on tile, cement
or mortar, use an expansion bolt.
Installation Guide
Shower Remote Control
Model YST-2252
Wood screw
Cover
Cover
Expansion bolt
Remote controller cables
Remote controller
packing
Remote controller
cables
Wood screw
Cover
Cover
Expansion bolt
Remote controller cables
Remote controller
packing
Remote controller
cables
Installer’s Guide – Endurance six™
9
Part No: IG090701
Version: B
Location of Installation: ..........................................................................................
...............................................................................................................................
...............................................................................................................................
Tank Serial Number: ............................................................. ................................
Tank Model Number: .............................................................................................
Date Installed: ............................
Dux Hot Water terms and conditions of warranty will only apply if the below is signed
by the installer. This noties Dux Hot Water that all the requirements of proper
installation have been carried out by the installer in accordance with the Dux Hot
Water Installation Commissioning Checklist and all other requirements noted in the
Dux Hot Water Owner’s Manual supplied with the solar water heater.
Upon completion of installation, this document should be given to the home owner
in its entirety. When required by Dux Hot Water the home owner will provide this
document as evidence that the installation of the solar water heater was carried out
in accordance with Dux Hot Water installation requirements.
Declaration
I have installed the Dux Hot Water solar water heater in accordance with the above
instructions. If the instructions have not been followed then I understand that the
Dux Hot Water terms and conditions of warranty will be void.
Name: ....................................................................................................................
Signed: ..................................................................................................................
Company: .............................................................................................................
Date: .........................................
Installation Declaration
Installer’s Guide – Endurance six™
10 Part No: IG090701
Version: B
