Eaton IQ35M-ENC Bedienungsanleitung
Effective October 2013
Supersedes August 2013
Instructional Booklet IB02601010E
IQ35M-ENC enclosure
installation guide
mDanger
HaZarD OF eLeCTrIC SHOCK, eXPLOSIOn, Or
arC FLaSH.
• FollowsaFeelectricalworkpractices.
See nFPa 70eTIn THe U.S., Or aPPLICabLe
LOCaL CODeS
• thisequipmentmustonlybeinstalledand
servicedbyqualiFiedelectricalpersonnel
• read,understand,andFollowthe
InSTrUCTIOnS beFOre InSTaLLIng THIS PrODUCT
• turnoFFallpowersupplyingequipment
beForeworkingonorinsidetheequipment
• useaproperlyratedvoltagesensingdevice
toconFirmpowerisoFF.donotdependon
THIS PrODUCT FOr VOLTage InDICaTIOn
FailuretoFollowtheseinstructionswill
resultindeathorseriousinjury.
A qualified person is one who has skills and
knowledge related to the construction and
operation of this electrical equipment and the
installation, and has received safety training to
recognize and avoid the hazards involved—
NECT 2011 Article 100.
No responsibility is assumed by Eaton for
any consequences arising out of the use of
this material.
mnOTICe
• thisproductisnotintendedForliFeor
saFetyapplications
• donotinstallthisproductinhazardous
Or CLaSSIFIeD LOCaTIOnS
• theinstallerisresponsibleFor
conFormancetoallapplicablecodes
• mountthisproductinsideasuitableFire
anD eLeCTrICaL enCLOSUre

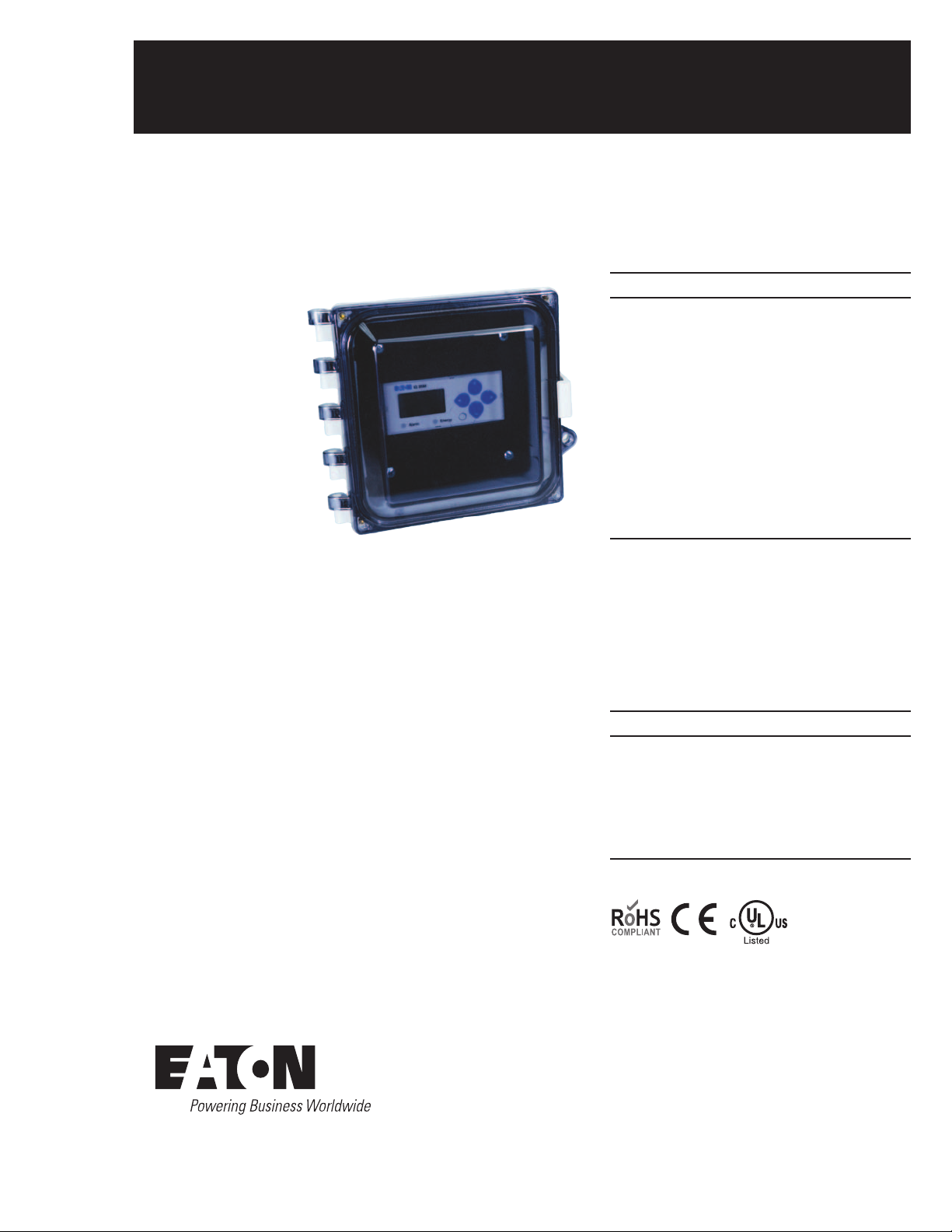

IQ 35M meter installed; IQ 35M meter
and IQ35M-ENC are ordered separately.
2
Instructional Booklet IB02601010E
Effective October 2013
IQ35M-ENC enclosure
installation guide
EATON www.eaton.com
Product overview
The IQ35M-ENC enclosure offers a mounting option for IQ 35M
Series energy meters that helps protect from tampering and
the elements. The enclosure is equipped with DIN rail mounting
hardware for easy installation, and a NEMAT4X rating ensures
durability. The swing panel kit and multiple locking options provide
additional security from unwanted tampering.
4.25
(108.0)
4.25
(108.0)
6.75
(171.5)
6.75
(171.5)
8.50
(215.9)
5.30
(134.6)

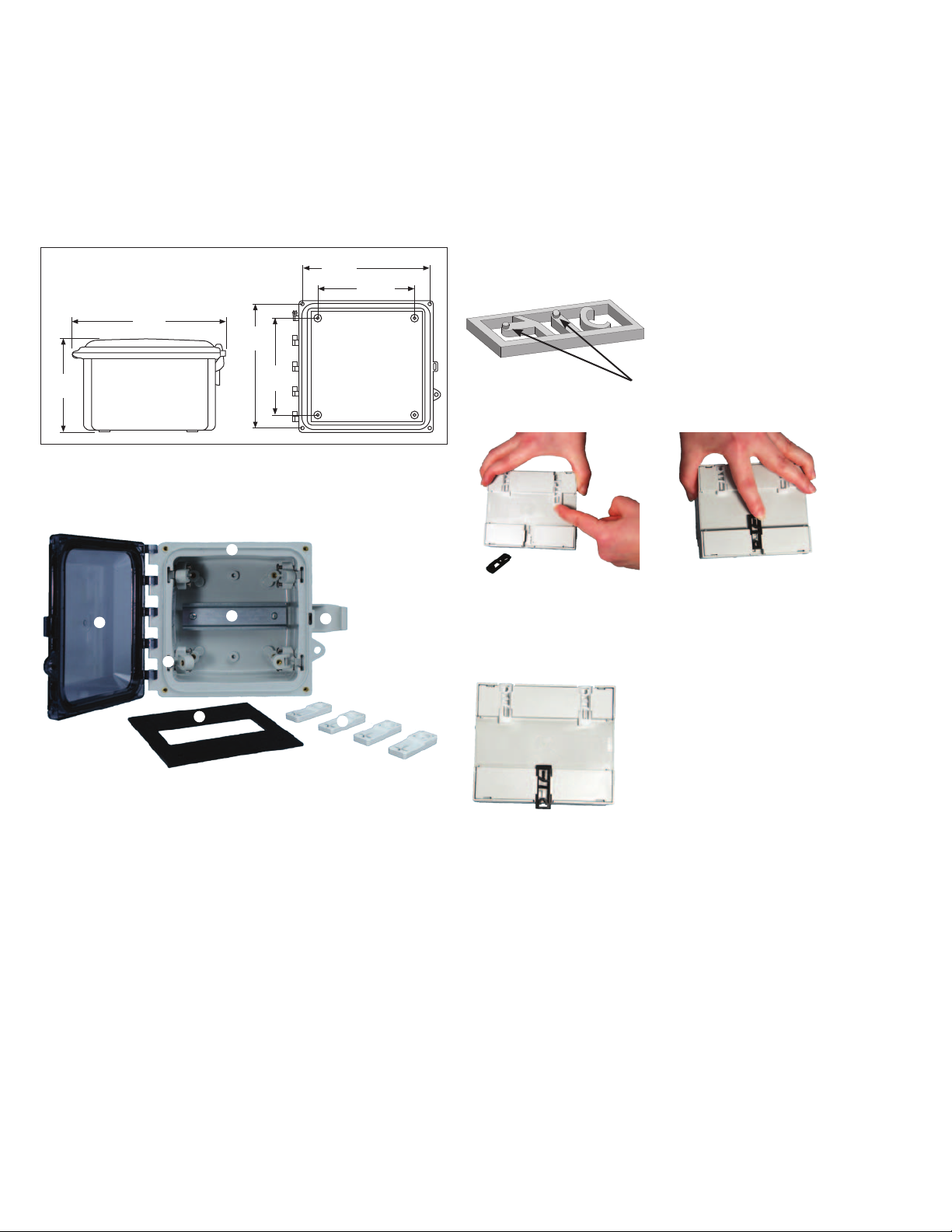

Figure 1. Dimensional Drawings in Inches (mm)
Product diagram
a
b
c
e
fg
d
a Enclosure
bDIN rail
cHinged lid
dClasp
eBrackets for swing panel cover
fSwing panel cover
gMounting feet
(hardware not pictured)
Installation
Step 1. Install DIN rail clips to the back of the
IQ 35M Series meter
The IQ 35M Series meter is shipped with a set of three DIN rail
clips included. Insert these clips into the slots on the back of the
housing from the middle, moving outward. Stopping pegs must face
the underside of the housing. Push clips into place until there is an
audible click.
DIN Rail Clip
(included with IQ 35M meter)
When attaching the clips to the
underside of the IQ 35M meter, these
stopping pegs must face in toward
the meter housing surface. Set pegs
into the available slots on the meter.
When all clips are in place, the white clips must be flush with the
top edge of the housing, and the black clip must protrude slightly
past the bottom edge.
3
Instructional Booklet IB02601010E
Effective October 2013
IQ35M-ENC enclosure
installation guide
EATON www.eaton.com

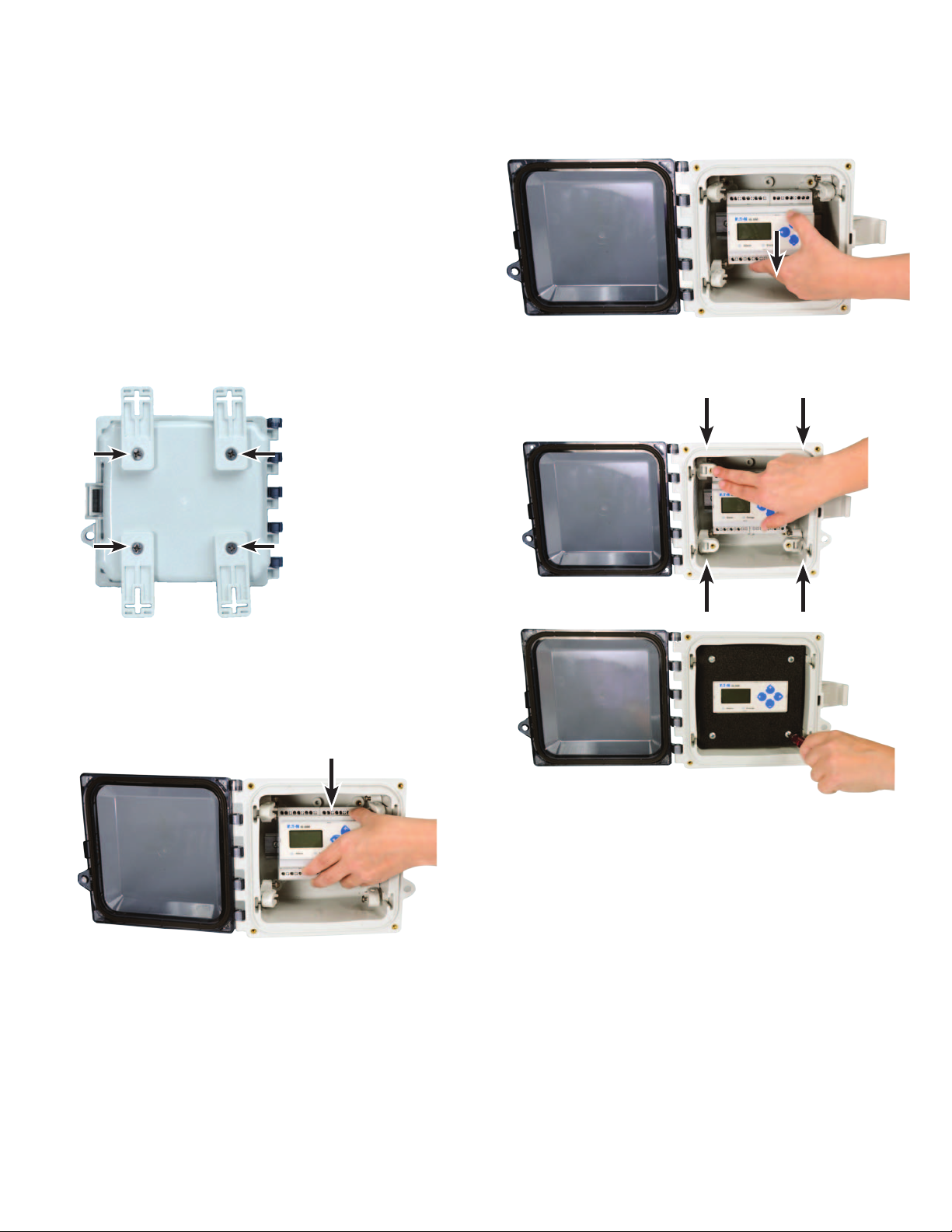

Step 2. Mount the IQ35M-ENC enclosure to a wall or a panel
Cut holes in the enclosure for wire conduit connections prior to the
installation of the meter in the enclosure. After running the wiring,
seal all holes properly to maintain the enclosure rating. If using
metallic conduit, bonding between the conduit connections is not
automatic and must be provided as a part of the installation.
Take care to protect the equipment from drill chips, filings, and other
contaminants when making the wire entry holes and mounting the
enclosure to prevent component damage or a future malfunction.
Use the included mounting hardware to attach the mounting feet
to the enclosure. Then mount the enclosure to the wall or the
panel using either a 4-point or 2-point configuration (hardware for
mounting to the wall/panel is provided by the installer). The 4-point
configuration is shown below. For a 2-point configuration, mount the
feet as shown, but rotate the bottom feet 180 degrees so that they
are flush against the back of the enclosure.
Step 3. Install IQ 35M Series meter onto DIN rail
inside the IQ35M-ENC
Run meter wiring through the holes drilled previously. Wire the
meter according to the instructions in the meter installation guide.
Push the top of the meter onto the DIN rail.
Push the bottom of the meter onto the DIN rail until there is an
audible click.
Lower the four brackets so that the swing panel cover can be
attached using the enclosed hardware.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
© 2013 Eaton
All Rights Reserved
Printed in USA
Publication No. IB02601010E / Z14394
October 2013
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
Instructional Booklet IB02601010E
Effective October 2013
IQ35M-ENC enclosure
installation guide

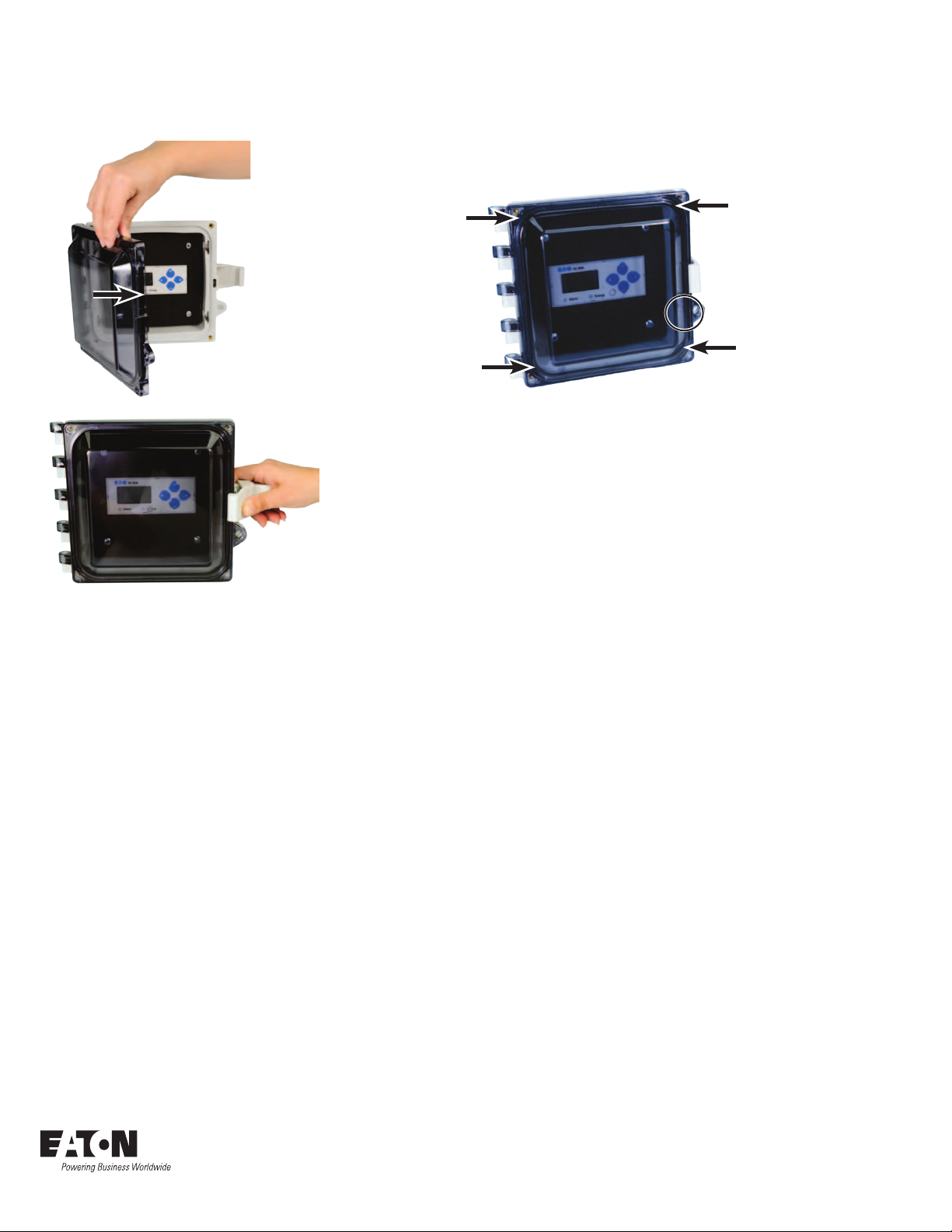

Close the hinged lid and secure the clasp to close. Screws are provided to secure the hinged lid. Local codes may
require this step to prevent opening by unauthorized persons if a
locking mechanism is not used. For added security, the installer may
also add a locking mechanism.
Optional: Attach a
locking mechanism
here (not included).
Optional: Use included
hardware to secure
the hinged lid at all
four corners.
